Volvo wiper motor for 12 volt conversion

cncwhiz

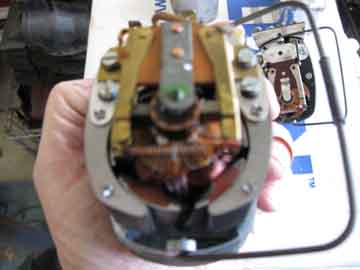

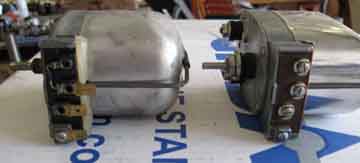

I am posting some pics of a 200 series rear window wiper motor that I pulled out of a car at pic and pull. The motor on the left is a lowlight 57 motor that I restored. These motors look to be a direct swap with a brush swap. The Volvo motor is a single speed 12 volt motor. You could pull the armature out of it for your conversion or swap the brush/ connector setup and bottom cover and be good to go with 12 volt. They had it listed for 21.00. They guy at the counter had a super beetle and thought he was an expert on bugs and charged me 9.00 for my "regulator"

Image may have been reduced in size. Click image to view fullscreen.

Russ Wolfe · Posted: Sun Dec 07, 2008 1:00 pm Post subject:

Good find. Nice piece of research.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.

cncwhiz · Posted: Sun Dec 07, 2008 1:45 pm Post subject:

I did not find it, Dr Darby did. But I agree its a good find.

blacktruck · Samba Member Joined: September 23, 2005 Posts: 377

Dr d really got my attention with that,and now here you are with the
part...now say nothing matches or is terribly OG on a 63 beetle.
Is this piece a bolt on deal or do I need to fiddle around with the
gut swapping?

cncwhiz · Posted: Sun Dec 07, 2008 8:40 pm Post subject:

It is not a straight bolt on. You need to remove the cap on your motor. Then you can do it two ways. take the Volvo motor cap off. remove the brushes. Take out the armature. Do the same thing to your motor and put the armature from the Volvo motor into your motor. The other way is harder and more work. You take the brushes and wire connector from your motor and put it on the Volvo motor. Then take your bottom cover from your motor and put it on the Volvo motor. If you want me to do it pm me and we can work somthing out. Its not too hard of job and your motor probably need new grease anyway.

blacktruck · Samba Member Joined: September 23, 2005 Posts: 377

that doesn't sound out of my league,thank you tho.
wasn't sure if it was necessary or an aesthetic thing

cool!

JinxedSydney · Posted: Tue Dec 09, 2008 11:39 am Post subject:

Going to pick one up now; cheapest I could get it for here is $35. One condecending prick wanted $100 from the "ma'am" who couldn't tell him the year of her Volvo; even when I explained it was for a VW. Going to drive by and egg his business. Twisted Evil

_________________
'63 Beetle "Gertie"
Yes, I am indeed a chick that does her own work on her own Dub.

cncwhiz · Posted: Tue Dec 09, 2008 11:55 am Post subject:

Sounds like some of the people here who think their parts are made of gold?

fastinradford · Posted: Tue Dec 09, 2008 12:52 pm Post subject:

JinxedSydney · Posted: Tue Dec 09, 2008 3:57 pm Post subject:

cncwhiz · Posted: Tue Dec 09, 2008 4:12 pm Post subject:

If you are referring to the spring on the brushes, the one on your motor might work? I have not torn it apart yet.

JinxedSydney · Posted: Wed Dec 10, 2008 2:07 pm Post subject:

Finished the conversion, with much help from cncwhiz. Wink

Works great!!! Cleaned all the parts and regreased. Thanks DrDarby and especially cncwhiz. Applause

_________________
'63 Beetle "Gertie"
Yes, I am indeed a chick that does her own work on her own Dub.

cncwhiz · Posted: Wed Dec 10, 2008 2:22 pm Post subject:

35 dollars for a 12 volt wiper conversion, sweet.

Russ Wolfe · Posted: Wed Dec 10, 2008 6:54 pm Post subject:

I might run by my friendly salvage yard and see how many Volvo's he has.
I have known him for over 40 years. He should treat me right.
What wrenches do I need to pull them out?
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey

Gary: OK. Ima poop.

JinxedSydney · Posted: Wed Dec 10, 2008 7:15 pm Post subject:

The main motor has itty bitty 9mm ones. I couldn't tell you about what you need to pull it since the guys wouldn't let me do it. If possible, bring a 2x4 in case the door hydraulics don't work, since I'll be busy tomorrow! Wink

_________________
'63 Beetle "Gertie"
Yes, I am indeed a chick that does her own work on her own Dub.

vintagevwnut · Posted: Wed Dec 10, 2008 9:20 pm Post subject:

I dont know Volvo's so what year and body style would that be from?

cncwhiz · Posted: Thu Dec 11, 2008 7:21 am Post subject:

I found mine on a 240. I looked at 740 but the motor was gone. I believe that they are on 200 series wagons. To clarify it again, it is the "rear" wiper motor. The one I removed was primo. They don't get banged around and so the top cover is like new.

DrDarby · Posted: Thu Dec 11, 2008 7:27 am Post subject:

1980 - 1993 Volvo 245 (240 model station wagon) rear wiper motor. I'd bet the 145 (older) would work too.
_________________
Midwest Autosavers, Inc. Crystal Lake, IL

keifernet · Posted: Thu Dec 11, 2008 7:29 am Post subject:

One thing to watch out for... The 240 series wagons had wiring issues through the tailgate hinge. This caused many rear wipers to either "quit working" ( and those are in primo shape because many owners wouldn't pay to get them fixed) or some BURNED UP from wiring short.

SO... check the motor first before purchasing and don't buy a burned up unit.
You can flip the bail down and take off the "bread box" cover and see right away what you got.

Just thought I would pass that along. My family and I have had many 240 wagons starting way back for a 72 model bought new. And I have dealt with the wiring and burned up motors a few times Very Happy

I never though about checking them for use on the VW though. Neat that they work for that early single speed conversion.

fluxcap · Posted: Thu Dec 11, 2008 8:45 am Post subject:
