Engine fire and the wiring harness on a 72 Bug
Forum Index -> Beetle - Late Model/Super - 1968-up Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Rmvr53
Samba Member


Joined: March 18, 2006
Posts: 55

Rmvr53 is offline

PostPosted: Sat Mar 29, 2025 7:43 am    Post subject: Engine fire and the wiring harness on a 72 Bug Reply with quote

Wasn't a bad fire but an engine fire none the less. Is there any way to just replace the rear/engine harness and not the whole thing? I an still working out "bugs" from a full harness replacement I had to do on my Wife's 68 5 years ago. I bought the car with the harness installed but it took me a month to finish it and the lights still don't work correctly. I REALLY don't want to do a full harness again just because of a engine fire

as a secondary question - is a "main" harness the engine to fuse block only? Worst case I'm going to have to buy that to cut/splice it in.


Last edited by Rmvr53 on Sat Mar 29, 2025 10:01 am; edited 2 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Cusser
Samba Member


Joined: October 02, 2006
Posts: 33046
Location: Hot Arizona
Cusser is offline

PostPosted: Sat Mar 29, 2025 8:11 am    Post subject: Re: Engine fire and the wiring harness on a 72 Bug Reply with quote

Way back in 1974 I had to work on a VW with an engine fire. Yes, I unwrapped the harnesses and tapped into the good wires to get it running.

Is that VW still operational 51 years later? I don't know !
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297
Back to top
View user's profile Send private message Gallery Classifieds Feedback
baldessariclan
Samba Member


Joined: October 14, 2016
Posts: 2026
Location: Wichita, KS
baldessariclan is offline

PostPosted: Sat Mar 29, 2025 11:00 am    Post subject: Re: Engine fire and the wiring harness on a 72 Bug Reply with quote

Rmvr53 wrote:
Is there any way to just replace the rear/engine harness and not the whole thing?

The only way I am aware of to accomplish something like that would be to cut and splice the individual wires in the engine compartment - there are no central splice/disconnect points for those wires that I am aware of (ref. factory wiring diagram here: https://www.thesamba.com/vw/archives/info/wiring/bug_6869.jpg ).

Those individual wires are bundled together with others for a lot of their length, and run through things like the “death foam” over the wheel well, under the carpeting along the edge of floor pan, etc. So not really any easy way to pull and install new ones along their entire length.
_________________
1971 Standard Beetle — fairly stock / driver

baldessariclan -- often in error, never in doubt...
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
cjsuner
Samba Member


Joined: January 04, 2013
Posts: 513
Location: Bay area CA
cjsuner is offline

PostPosted: Sat Mar 29, 2025 11:26 am    Post subject: Re: Engine fire and the wiring harness on a 72 Bug Reply with quote

I had a 74 catch fire 2 years ago,

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

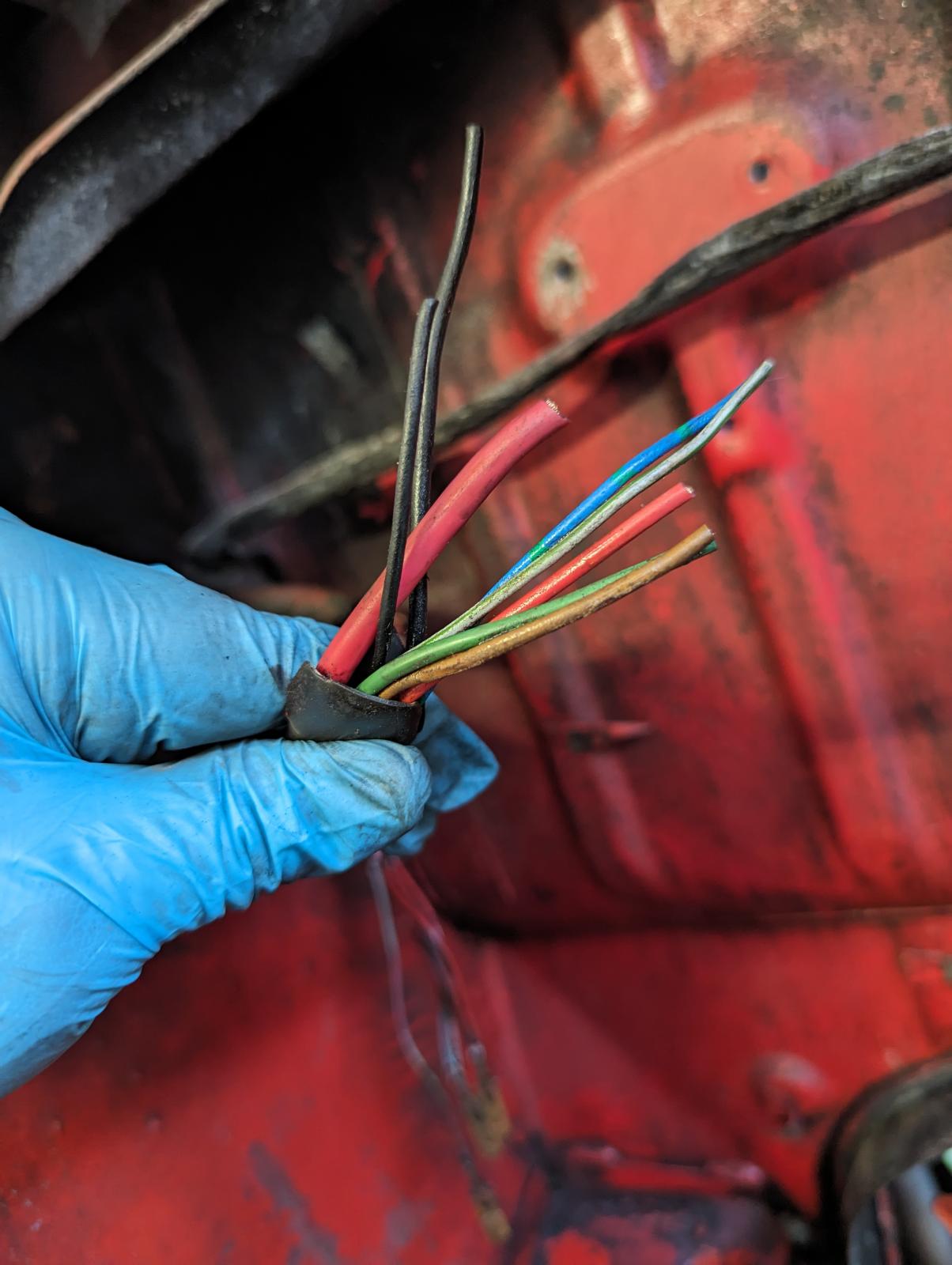

As you can see, it wasn't a awful fire, but it was enough to cook all of the wires.

Like you, I didn't want to do a full replacement, just for the few wires that are in the engine, so I cut it back until I had clean, not crispy wires, and spliced in new wires from there. Now, for me at the time, my buddy had a parts care, and I was able to take it's wiring loom out, and put wires into here, but I still ended up cutting and splicing the new wires on, instead of doing a full replacement harness.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
71 Super Convertible (Orange)
74 Standard Beetle (Light Blue)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OldSchoolVW's Premium Member
Samba Member


Joined: July 03, 2020
Posts: 1398
Location: San Diego
OldSchoolVW's is offline

PostPosted: Sat Mar 29, 2025 1:27 pm    Post subject: Re: Engine fire and the wiring harness on a 72 Bug Reply with quote

This would be an opportune time to install a terminal block with quick disconnect terminals something like this.

https://ceautoelectricsupply.com/product/terminal-...7Qvf3-aflk

A single location to disconnect all the engine wires when pulling the engine. Just be sure all the wires are tagged and/or colors match on both sides of the block.

Just a thought.
_________________
Tom

"Following distance is proportional to IQ."

"If you don't do it this year, you'll be one year older when you do." Warren Miller

"Research is what I'm doing when I don't know what I'm doing." Wernher von Braun

'63 Beetle Sedan
'69 Beetle Sunroof
'70 Beetle Sedan
'73 Type 3 Fastback
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rmvr53
Samba Member


Joined: March 18, 2006
Posts: 55

Rmvr53 is offline

PostPosted: Sat Mar 29, 2025 2:04 pm    Post subject: Re: Engine fire and the wiring harness on a 72 Bug Reply with quote

Tom
close to what I was thinking. I was actually considering similar but using new "old style" clear 4 wire connectors so it kinda looked like it was supposed to be that way. '
Back to top
View user's profile Send private message Gallery Classifieds Feedback
diamondblue1969
Samba Member


Joined: February 19, 2010
Posts: 142
Location: ONTARIO
diamondblue1969 is offline

PostPosted: Sat Mar 29, 2025 2:41 pm    Post subject: Re: Engine fire and the wiring harness on a 72 Bug Reply with quote

They do make a repair harness

https://www.cip1.ca/c16-w-1001/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 79433
Location: Sneaking up behind you
Glenn is offline

PostPosted: Sat Mar 29, 2025 2:58 pm    Post subject: Re: Engine fire and the wiring harness on a 72 Bug Reply with quote

Let me guess, plastic fuel filter?

Image may have been reduced in size. Click image to view fullscreen.

_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
OldSchoolVW's Premium Member
Samba Member


Joined: July 03, 2020
Posts: 1398
Location: San Diego
OldSchoolVW's is offline

PostPosted: Sat Mar 29, 2025 3:30 pm    Post subject: Re: Engine fire and the wiring harness on a 72 Bug Reply with quote

Rmvr53 wrote:
I was actually considering similar but using new "old style" clear 4 wire connectors so it kinda looked like it was supposed to be that way.'


I don't think anyone sells a reproduction of the original 4 way connectors. These are in the Samba Classifieds and are probably as close as you'll get the original style. Cut to the number of attached connectors you want:

https://www.thesamba.com/vw/classifieds/detail.php?id=2696504
_________________
Tom

"Following distance is proportional to IQ."

"If you don't do it this year, you'll be one year older when you do." Warren Miller

"Research is what I'm doing when I don't know what I'm doing." Wernher von Braun

'63 Beetle Sedan
'69 Beetle Sunroof
'70 Beetle Sedan
'73 Type 3 Fastback
Back to top
View user's profile Send private message Gallery Classifieds Feedback
cjsuner
Samba Member


Joined: January 04, 2013
Posts: 513
Location: Bay area CA
cjsuner is offline

PostPosted: Sat Mar 29, 2025 7:34 pm    Post subject: Re: Engine fire and the wiring harness on a 72 Bug Reply with quote

Glenn wrote:
Let me guess, plastic fuel filter?

Image may have been reduced in size. Click image to view fullscreen.


Lol NO.

Fuel line drip onto hot exhaust is our best guess as to what happened. New fuel line too, it was the maiden voyage of the car outside the neighborhood.
_________________
71 Super Convertible (Orange)
74 Standard Beetle (Light Blue)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rmvr53
Samba Member


Joined: March 18, 2006
Posts: 55

Rmvr53 is offline

PostPosted: Sat Mar 29, 2025 10:26 pm    Post subject: Re: Engine fire and the wiring harness on a 72 Bug Reply with quote

OldSchoolVW's wrote:
Rmvr53 wrote:
I was actually considering similar but using new "old style" clear 4 wire connectors so it kinda looked like it was supposed to be that way.'


I don't think anyone sells a reproduction of the original 4 way connectors. These are in the Samba Classifieds and are probably as close as you'll get the original style. Cut to the number of attached connectors you want:

https://www.thesamba.com/vw/classifieds/detail.php?id=2696504


VWWerks does have them in sticks of 12. So I bought a stick. Quite reasonable on the price as well. Thanks for the lead. Now to buy the car or worst case (or best?) is to use them on my replicar if I don't get the 72. Thanks all for the ideas and directions
Bill
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 10524
Location: Pearl River, NY
Rome is offline

PostPosted: Sun Mar 30, 2025 8:27 am    Post subject: Re: Engine fire and the wiring harness on a 72 Bug Reply with quote

The stock-style connectors shown above would look best, but you still should solder on the wire "female" ends for optimal electrical connections. Another wiring connection possibility is this style, similar to VW's own black-colored terminals used thru '60. This style does not need the wire end have a female terminal, though for best connectity the wires' bare ends should be "tinned" with solder to keep all of the individual wire strands together.
Image may have been reduced in size. Click image to view fullscreen.

If you select this style, it'd be best to mount the strips vertically (wires come in from the sides) so that any water does not run into the wire chambers if the strips were mounted horizontally with the wires inserted vertically.

The now nearly defunct Radio Shack stores used to sell these terminal blocks with 2 hole sizes- the smaller ones for "thin to medium" wires such as up to 16 gauge, and a larger one for "larger" wires such as 12 gauge. So if you pursue one of the above blocks, make sure the chamber holes have large enough diameters for your car's thickest wires such as the B+ at the generator/alternator.
