 Posted: Wed Jan 23, 2008 4:38 pm Post subject: Correct Outside Mirror? |
 |
|
Getting down to the details.....anyone have pictures of an original exterior mirror? Does the mirror have a part number stamped on the ball as the later mirrors do? I am specifically interested in 55 BD, but interested in earlier examples as well.
Thanks....Douglas
_________________
Transporter Restorations
Upholstery Haus
Active 23 Window Samba Collector/Restorer,since 1986 |
|
| Back to top |
|
 |
Long-roofs
Samba Member
Joined: March 20, 2002
Posts: 2359
Location: Millwood, Wa
|
| Posted: Wed Jan 23, 2008 4:46 pm Post subject: |
|
|
No part #'s on the pin/base. I would take pictures of the ones I have, but I suck at zooming with a camera.
_________________
---
Trying to keep poor cool
People are talking, the greatness is coming, going to be greater than great, so great, greater than anything ever.
-- |
|
| Back to top |
|
|
RockStock
Samba Member
Joined: November 26, 2004
Posts: 4211
Location: England
|
|
| Back to top |
|
|
Douglas Denlinger
Samba Member
Joined: May 23, 2003
Posts: 1403
Location: Arizona's version of the east coast
|
| Posted: Wed Jan 23, 2008 7:18 pm Post subject: |
|
|
Are you sure about that one Mr Rock the Casbah???
Although I do have something similar on my April of 55 non BD singlecab
Something else to check at the warehouse tomorrow......huh
_________________
Transporter Restorations
Upholstery Haus
Active 23 Window Samba Collector/Restorer,since 1986 |
|
| Back to top |
|
|
Wolfsburg Classics
Banned
Joined: October 17, 2003
Posts: 326
Location: Christchurch,New Zealand.
|
| Posted: Wed Jan 23, 2008 8:34 pm Post subject: . |
|
|
My NOS Barndoor mirror for my Deluxe was made by Freese,and has no logo or part numbers at all,the outer edge is very flat and I am told by all those that know the correct Barndoor parts,that this is the correct one!!!!
Also the mirror arm clamp is different to the later clamp,I think all Wolfsburg buses used the same clamp,they are alot sharper in the shape that goes onto the mirror arm....
I will dig it out and try and post some pics later.
Have posted some pics in the gallery but unsure how to link them to this thread.....
Last edited by Wolfsburg Classics on Thu Jan 24, 2008 5:21 pm; edited 1 time in total |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71475
Location: Phoenix 602
|
|
| Back to top |
|
|
Scotty
Samba Member
Joined: July 02, 2003
Posts: 1553
Location: Northampton - Uk
|
| Posted: Thu Jan 24, 2008 6:17 am Post subject: |
|
|
That looks like a motorbike mirror to me, I doubt vw ever used anything like that
_________________
| EverettB wrote: |
I'd be curious to know the length of his tip.
|
http://scottys-stuff.blogspot.com/ |
|
| Back to top |
|
|
Barndoor Mafia
Il Capo
Joined: August 23, 2001
Posts: 6195
Location: EUSKAL HERRIA
|
| Posted: Thu Jan 24, 2008 9:50 am Post subject: |
|
|
This looks right to me. Doug The Head found a box of these Douglas Dillenger lll. I got a few for my heeps, you may want to contact him to see if he has any more? Are you aware the clamps are slightly different as well??? And Sox Rock, pay no attention, this is just Linda pretending to be a Brit taking the piss. Just having a bubble on us Yanks! REALLY!!
|
|
| Back to top |
|
|
RockStock
Samba Member
Joined: November 26, 2004
Posts: 4211
Location: England
|
| Posted: Thu Jan 24, 2008 10:34 am Post subject: |
|
|
hey, i was just pointing out EBs photos....not saying it was right!
_________________
-StockRocks- |
|
| Back to top |
|
|
Lind
Samba Member
Joined: November 06, 2000
Posts: 10207
Location: idaho
|
| Posted: Thu Jan 24, 2008 11:48 am Post subject: |
|
|
| EverettB wrote: |
The mirror edge is different based on the originals I have seen that are known to be original, hopefully someone will post photos. There is no part #.
It's my understanding that at least all Wolfsburg Buses have mirrors with no part #. Possibly even later? Here's an NOS mirror I own but I don't believe it is Barndoor:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=59530
|
my old june '57 standard had the original mirror with no parts number. I believe that carried through '58 also.
the dome light lenses and ashtrays also have no VW logo or parts number on pressed bumper era buses.
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
Barndoor Mafia
Il Capo
Joined: August 23, 2001
Posts: 6195
Location: EUSKAL HERRIA
|
| Posted: Thu Jan 24, 2008 12:55 pm Post subject: |
|
|
| RockStock wrote: |
| hey, i was just pointing out EBs photos....not saying it was right! |
Calm Down Son! Just having a Bubble! REALLY!
(all above said with an English accent, with a slight twist from the Toon) |
|
| Back to top |
|
|
Anchovy
Samba Member
Joined: August 05, 2000
Posts: 2969
Location: San Diego, CA
|
| Posted: Thu Jan 24, 2008 4:55 pm Post subject: |
|
|
My '54 came with a VW stamped and numbered mirror...but I was told by "experts" that it was probably put on later. The clamp is the right BD shape and the mirror arm was original to the bus.
Looking through vintage photos it looks like there were quite a few different style mirrors put on, either at the factory, dealers, or by the owners. It looks like the mirror arm location was sometimes changed as well. Check this early photo and note the mirror arm location of the Continental bus:
When it comes to getting advise on these details, I use Ronald Reagans nuclear proliferation advice; "trust but verify". I think old photos are the best source and unfortunately you rarely see a close enough shot of the mirror to know the make for sure. |
|
| Back to top |
|
|
Long-roofs
Samba Member
Joined: March 20, 2002
Posts: 2359
Location: Millwood, Wa
|
| Posted: Thu Jan 24, 2008 5:11 pm Post subject: |
|
|

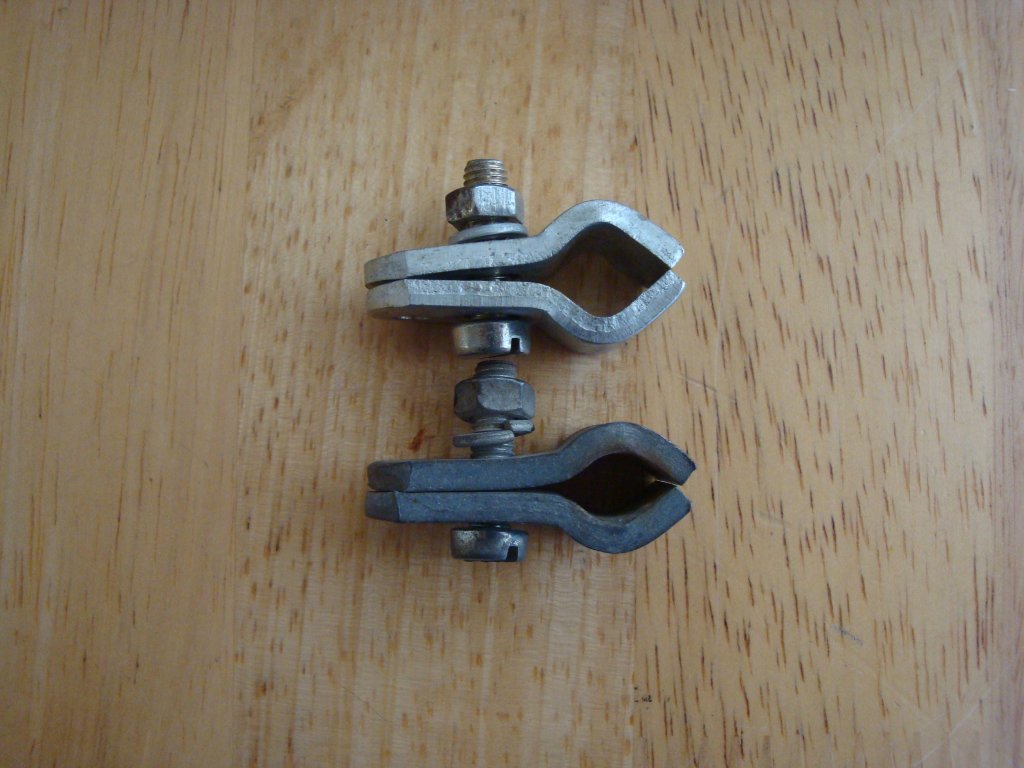

What is the difference in clamps? I looked at 3 early number-free mirrors and they look the same. I am still searching for other clamps in my parts. Any photos of the early clamps?
_________________
---
Trying to keep poor cool
People are talking, the greatness is coming, going to be greater than great, so great, greater than anything ever.
-- |
|
| Back to top |
|
|
Barndoor Mafia
Il Capo
Joined: August 23, 2001
Posts: 6195
Location: EUSKAL HERRIA
|
| Posted: Thu Jan 24, 2008 5:14 pm Post subject: |
|
|
| Long-roofs wrote: |
| What is the difference in clamps? I looked at 3 early number-free mirrors and they look the same. I am still searching for other clamps in my parts. Any photos of the early clamps? |
If I can remember, I will take a picture. But they are bent differently? Bent in more. Kinda like Linda's booty? Does this make sense? |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71475
Location: Phoenix 602
|
|
| Back to top |
|
|
Douglas Denlinger
Samba Member
Joined: May 23, 2003
Posts: 1403
Location: Arizona's version of the east coast
|
| Posted: Thu Jan 24, 2008 10:52 pm Post subject: |
|
|

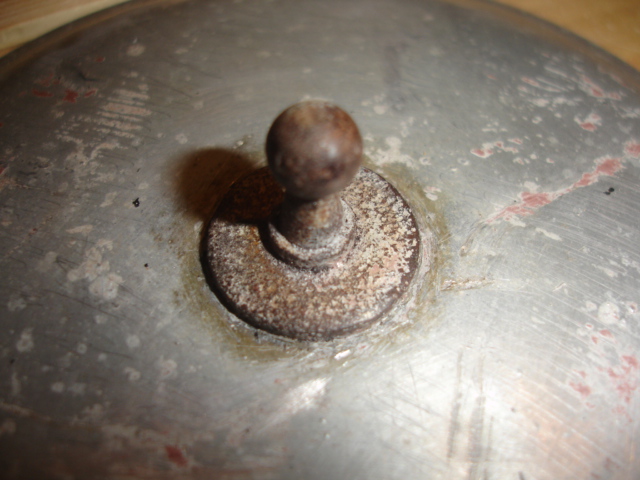

Here's what came off my 55......
So which is correct? I have some NOS clamps as well.....need to pull those out tomorrow to add to the confusion.
_________________
Transporter Restorations
Upholstery Haus
Active 23 Window Samba Collector/Restorer,since 1986 |
|
| Back to top |
|
|
Douglas Denlinger
Samba Member
Joined: May 23, 2003
Posts: 1403
Location: Arizona's version of the east coast
|
| Posted: Thu Jan 24, 2008 11:05 pm Post subject: |
|
|
Ok, here's what's came with the 55 BD
How long did the large lip continue???
_________________
Transporter Restorations
Upholstery Haus
Active 23 Window Samba Collector/Restorer,since 1986 |
|
| Back to top |
|
|
Barndoor Mafia
Il Capo
Joined: August 23, 2001
Posts: 6195
Location: EUSKAL HERRIA
|
| Posted: Fri Jan 25, 2008 12:00 pm Post subject: |
|
|
Yo Doug! As far as I know, what Everett Barnes lll posted, those are BD clamps. Most unmolested BD's have those style of clamps. I saw a BD in Sweden and one in Poland, both wear beat down like Linda's Booty, but they both had the mirror arms, clamps and mirrors. Both had those clamps. And other og BD's have those clamps as well. But, you know how VW utilized what ever they had!!
Took me a few sessions to realize this is your new bus?? DDUURRR!!!!
Hope to see that mug on the road and not kept in the closet like allot of them are. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71475
Location: Phoenix 602
|
|
| Back to top |
|
|
IN2VWS
Samba Member
Joined: January 29, 2006
Posts: 2548
Location: Australia
|
| Posted: Tue Feb 03, 2009 6:44 am Post subject: |
|
|
I thought I would jump in here with some printed info.
The first 2 pics are from Happich catalogs. The first pic is from a 1953 catalog. Note there is no 'dome' shape to the back of the mirror.
The 2nd pic is from a 1956 catalog, note the newer shape.
The next pics are from a 1952 Frese catalog. The refer to the VW Transporter as a VW Schnell Laster.....don't know why they did that because the DKW was a Schnell-Laster.

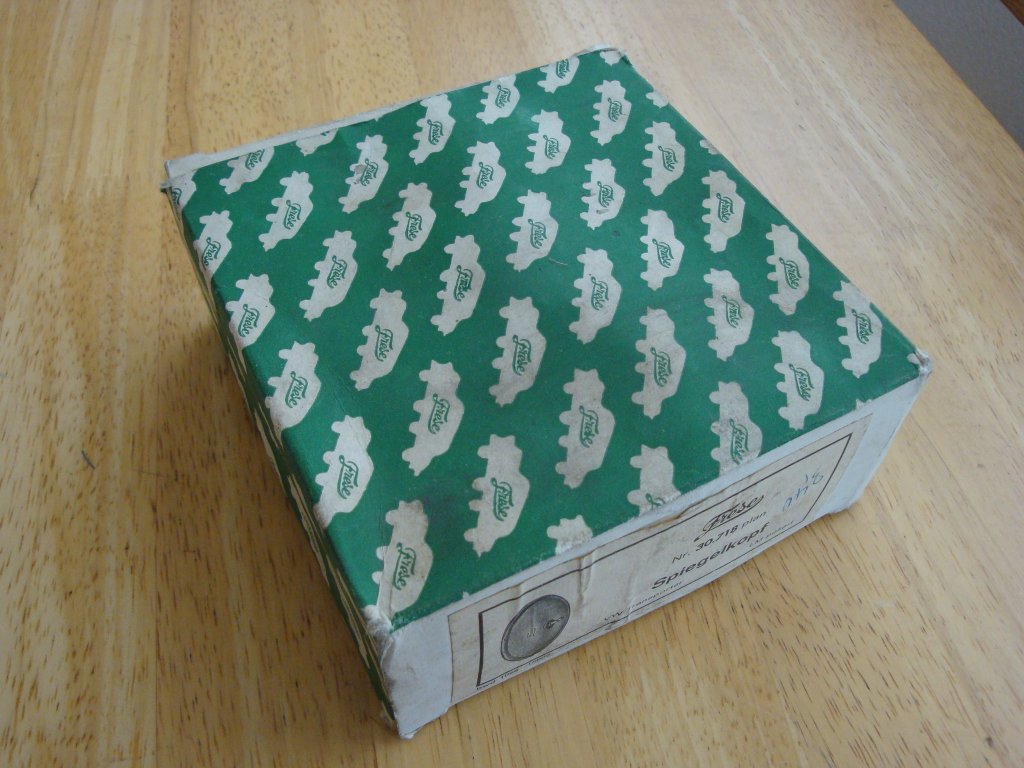

Note they list the mirror diameter as 105mm, and the part number is different to the Frese part number on the box above.
The Frese catalog doesn't show any pics of this mirror.

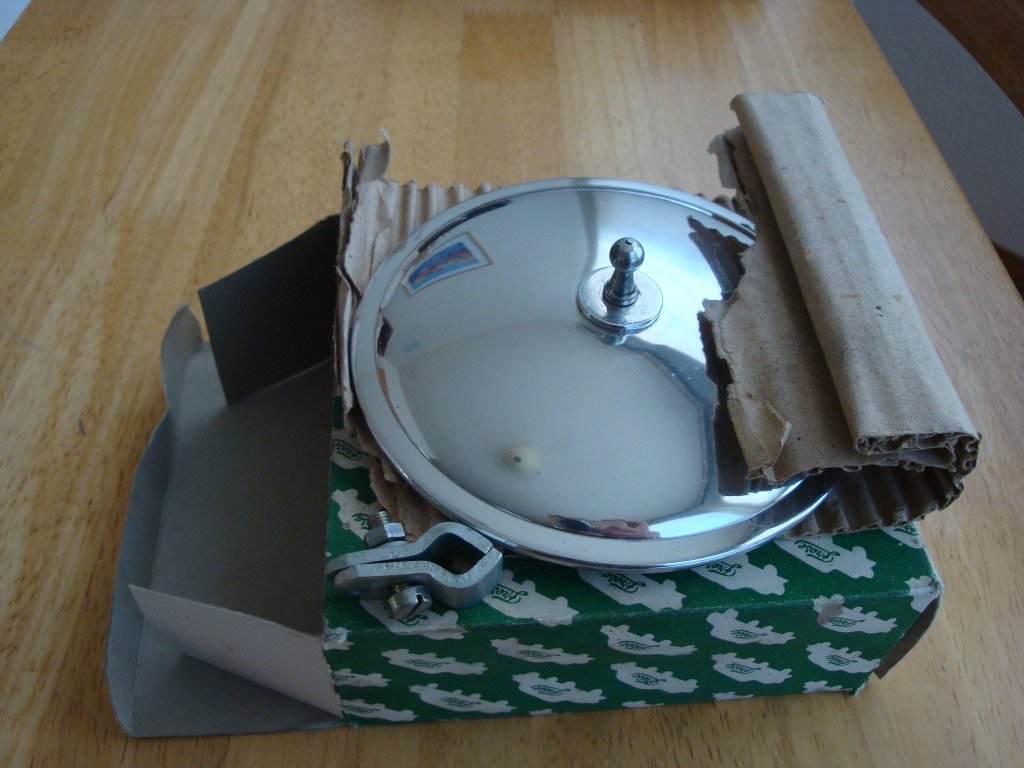

I also have an NOS mirror, not sure what year it is though. No part numbers on it.
_________________
( ⫏ ⫐ )
(ọ\ ¡ /ọ)¹⁹⁵⁴ ¹⁹⁵¹ ¹⁹⁵⁸
(⦷ ⥢ Ĭ ⥤ ⦷) 𝗞_𝗔_𝗥_𝗠_𝗔_𝗡_𝗡 𝓖𝓱𝓲𝓪¹⁹⁵⁶
⨴⨵--⊗--⨴⨵ 𝕊ℙ𝟚¹⁹⁷³ |
|
