Hi Samba,
I am installing a glowshift oil pressure gauge in my 1987 vanagon camper. The gauge kit came with a harness to connect the gauge to the sender - but it is too short to reach all the way back to the engine compartment. The harness has 3 wires. I see where i could splice in a length of wire(s) to give me additional footage - has any else done this? I have a request into glowshift to see if that have a longer harness(doubt it).
thanks,
Kevin |
|
| Back to top |
|
 |
clamay
Samba Member
Joined: September 24, 2014
Posts: 146
Location: PNW
|
| Posted: Tue Jun 18, 2024 4:54 pm Post subject: Re: oil pressure wiring harness extension - how extend wiring harnes |
|
|
Yes GlowShift has longer cables. I used an 18 ft. to install my oil pressure gauge. $13 from Amazon.
_________________
91 Carat, automatic, GW 2.2, GW EFI, Peloquin TBD
When you come to a fork in the road, take it. --Yogi Berra |
|
| Back to top |
|
|
qbini
Samba Member
Joined: October 01, 2009
Posts: 45
Location: Pacifica, CA
|
| Posted: Tue Jun 18, 2024 4:57 pm Post subject: Re: oil pressure wiring harness extension - how extend wiring harnes |
|
|
| Awesome! Found it.. UPC 842559110072 in case anyone else needs it. |
|
| Back to top |
|
|
zerotofifty
Samba Member
Joined: December 27, 2003
Posts: 3922
|
| Posted: Tue Jun 18, 2024 5:58 pm Post subject: Re: Oil pressure gauge wiring: how to extend wiring harness? |
|
|
Extra wire, solder and heat shrink sleave is all that you need to extend the wire. Most auto parts stores or hardware store will have what you need.
_________________
Sorry About That Chief.
Give Peace a Chance.
Words to live by. |
|
| Back to top |
|
|
dhaavers
Samba Member
Joined: March 19, 2010
Posts: 8474
Location: NE MN (tinyurl.com/dhaaverslocation)
|
| Posted: Tue Jun 18, 2024 8:16 pm Post subject: Re: Oil pressure gauge wiring: how to extend wiring harness? |
|
|
I suggest you just cut the plug ends off a 3-conductor outdoor extension cord.
You’ll only have one cord to string and it includes a layer of weatherproof sheathing.
- Dave
_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"
<EDITED TO PROTECT INNOCENT PIXELS> |
|
| Back to top |
|
|
wesitarz
Samba Member
Joined: August 20, 2012
Posts: 1757
Location: Victoria,B.C.Canada
|
| Posted: Tue Jun 18, 2024 8:48 pm Post subject: Re: Oil pressure gauge wiring: how to extend wiring harness? |
|
|
| zerotofifty wrote: |
| Extra wire, solder and heat shrink sleave is all that you need to extend the wire. Most auto parts stores or hardware store will have what you need. |
Dimmer gauge light from headlight switch, ground anywhere under dash or brown ground wire.Extend the signal wire from sender with appropriate gauge wire. |
|
| Back to top |
|
|
qbini
Samba Member
Joined: October 01, 2009
Posts: 45
Location: Pacifica, CA
|
| Posted: Wed Jun 19, 2024 6:41 pm Post subject: Re: Oil pressure gauge wiring: how to extend wiring harness? |
|
|
| I decided to go with the glowshift 'Extended Length 18' Pressure Gauge Sensor Harness"(SKU: GS-C-7-SH-06-1. The glowshift gauge and sender use a 3 wire connector - so you'd have to splice all three. I suspect they run a ground wire to not rely on the sender be well grounded. Since the wires will be running outside the vehicle, it seems the less connectors the better plus it was only $13! |
|
| Back to top |
|
|
zerotofifty
Samba Member
Joined: December 27, 2003
Posts: 3922
|
| Posted: Wed Jun 19, 2024 7:10 pm Post subject: Re: Oil pressure gauge wiring: how to extend wiring harness? |
|
|
| qbini wrote: |
| I decided to go with the glowshift 'Extended Length 18' Pressure Gauge Sensor Harness"(SKU: GS-C-7-SH-06-1. The glowshift gauge and sender use a 3 wire connector - so you'd have to splice all three. I suspect they run a ground wire to not rely on the sender be well grounded. Since the wires will be running outside the vehicle, it seems the less connectors the better plus it was only $13! |
Some gages are supposed to have the ground wire be near the sender as the sender compares the ground signal from that wire to that of the sender resistance, with the sender being grounded. In that case having both grounds at the same location assures the same reference ground, thus assuring accuracy of the gage. Consider if one uses say a headlight ground lug as the ground reference,, with the sender grounded to the engine case. the engine case may well be at a different potential than that headlamp ground lug when the headlamps are on, and thus the gage accuracy will get all screwed up. This is why many times it is best to locate the reference ground wire close to the grounded sender.
_________________
Sorry About That Chief.
Give Peace a Chance.
Words to live by. |
|
| Back to top |
|
|
qbini
Samba Member
Joined: October 01, 2009
Posts: 45
Location: Pacifica, CA
|
| Posted: Sun Sep 01, 2024 6:00 pm Post subject: Re: Oil pressure gauge wiring: how to extend wiring harness? |
|
|

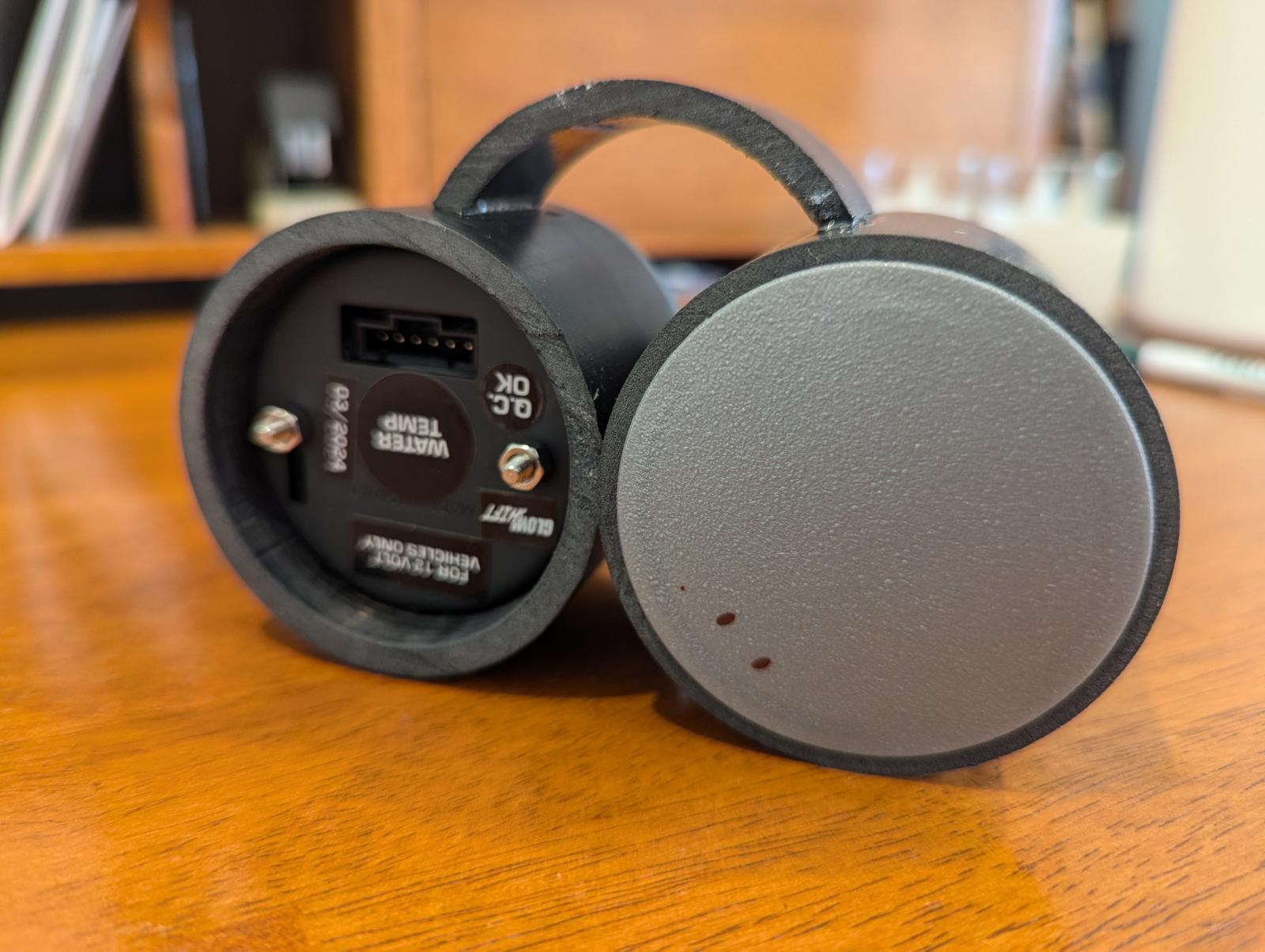

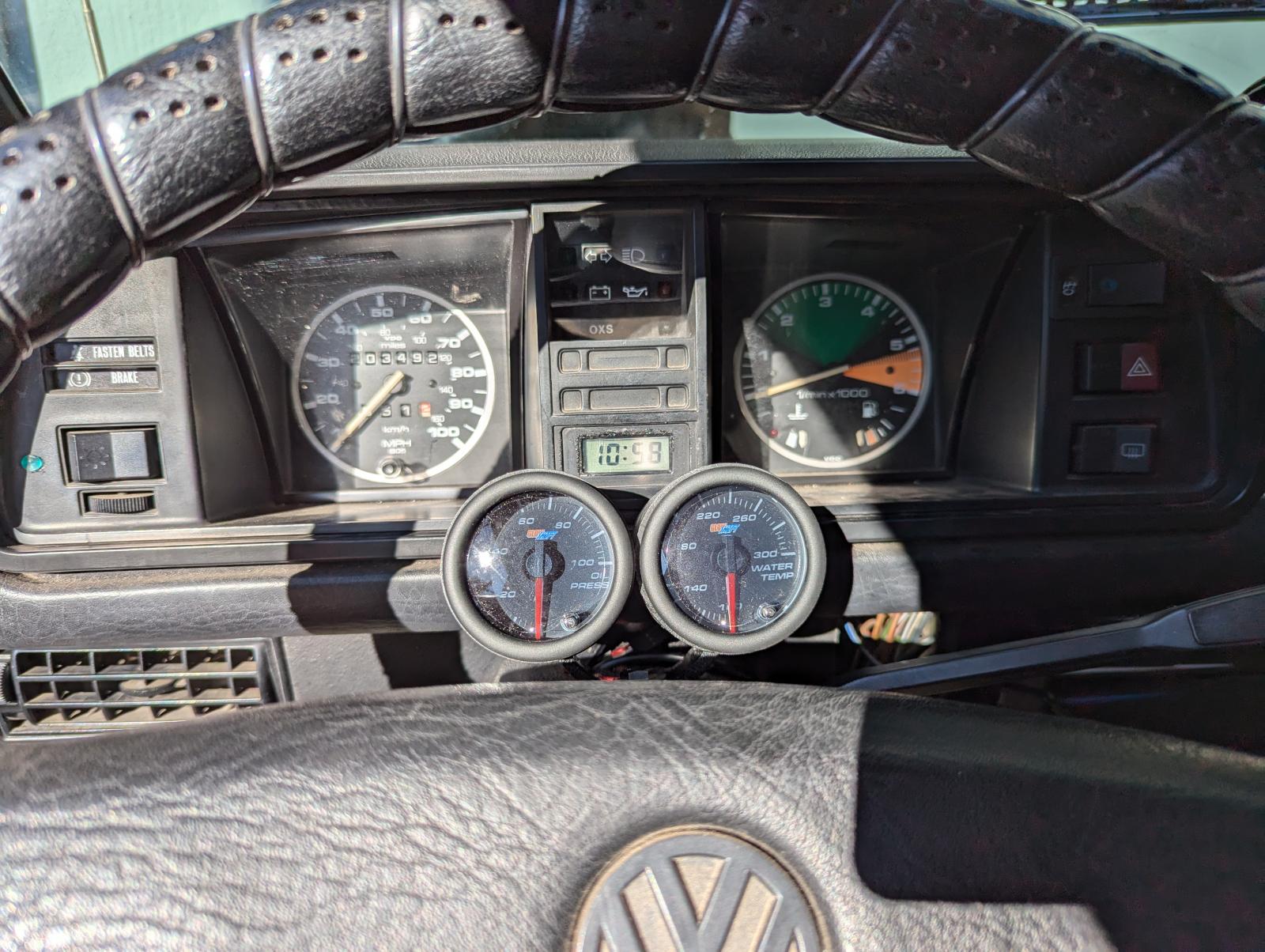

I didn't like any of the current mounting ideas. So I made a gauge pod using standard 2in PVC drain pipe. Turns out the glowshift 2 1/16 inch gauge are a perfect friction fit. The mounting leg is a 1/2 cut pipe glued onto the bottom of the gauge pipes. I found a desk? 'grommet' that fits perfectly into the back of the pipe to seal off the gauge pipe. Still playing with height, but this location works well - angled to the driver and not blocking any of the current dash; included that stupid clock.
|
|
| Back to top |
|
|
zerotofifty
Samba Member
Joined: December 27, 2003
Posts: 3922
|
| Posted: Mon Sep 02, 2024 7:45 pm Post subject: Re: Oil pressure gauge wiring: how to extend wiring harness? |
|
|
clever gage mount!!!!
