Rim and Tire question
Forum Index -> Vanagon Share: Facebook Twitter
This topic is locked: you cannot edit posts or make replies.
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
dillon70
Samba Member


Joined: October 20, 2008
Posts: 234
Location: Ventura, Ca.
dillon70 is offline

PostPosted: Sat May 02, 2009 5:40 pm    Post subject: Rim and Tire question Reply with quote

I want to put some Mercedes rims with tires on my 1990 Vanagon. What size offset should I be looking for with a 16, 17 or 18 inch rim? How wide should I go 7 or will 8 fit?
I have read several articles, but I aint no rocket scientist, a little help please........
Back to top
View user's profile Send private message Gallery Classifieds Feedback
levi
Samba Member


Joined: February 11, 2005
Posts: 5476
Location: Las Vegas
levi is offline

PostPosted: Sat May 02, 2009 5:45 pm    Post subject: Reply with quote

all you want to know, and more:
http://www.thesamba.com/vw/forum/viewtopic.php?t=203519
_________________
One of these days I'm gonna settle down,
but till I do I won't be hangin round.
Going down that long lonesome highway,
gonna see life my way

https://youtu.be/cSrL0BXsO40
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dillon70
Samba Member


Joined: October 20, 2008
Posts: 234
Location: Ventura, Ca.
dillon70 is offline

PostPosted: Sat May 02, 2009 6:33 pm    Post subject: Reply with quote

It was too much info. I would just like to know which mercedes rims fit without issues and spacers.... Bolt ons..

Thanks Greg
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bruce Wayne
Samba Member


Joined: May 15, 2007
Posts: 1210

Bruce Wayne is offline

PostPosted: Sat May 02, 2009 6:35 pm    Post subject: Reply with quote

dillon70 wrote:
I would just like to know which mercedes rims fit without issues and spacers.... Bolt ons..


me too.
Back to top
View user's profile Send private message Classifieds Feedback
allsierra123
Samba Member


Joined: August 19, 2006
Posts: 1462
Location: Tecate, Baja California MX
allsierra123 is offline

PostPosted: Sat May 02, 2009 6:53 pm    Post subject: Reply with quote

your gonna have to research it. Its all there in those threads. Maybe someone could edit a that thread to include direct bolt on swaps in the beginning maybe it would be less confusing I dont know I stick with vw wheels.
_________________
95 GMC Yukon 6.5 TD 2 Door Tow pig/ Daily driver.
91 Vanagon GL. 1.9TD Conversion Sold
81 Vw rabbit 1.6 Diesel. Sold
Back to top
View user's profile Send private message Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5145
Location: PNW
Christopher Schimke is offline

PostPosted: Sat May 02, 2009 7:45 pm    Post subject: Reply with quote

The ONLY Mercedes truly bolt-on, no modifications to the vehicle, wheel is the '98-'00 forged CLK320 wheel as shown in this picture. This wheel is a 16x7 with a 37mm offset.

Image may have been reduced in size. Click image to view fullscreen.


The only modification necessary to the wheels is drilling the lug holes to 37/64". You will have to run custom lugs because the stock Vanagon lugs don't fit the lug seats properly. Without spacers, the stock Mercedes center caps will not fit on the rear of a Syncro and the front/rear of a 2wd.

Tire choice is super critical when running these wheels without spacers. A 215 (with a maximum of an 8.8" cross section according to MrPolak) is the absolute widest tire you can run without having upper control arm clearance issues on a 2wd. A Syncro can get away with a 225.

What makes this wheel different from other Mercedes 16x7 ET37 wheels is the fact that they have a much thinner cross section where the lugs pass through the wheel. This allows the use of the stock rear wheel studs. All other Mercedes wheels would require longer rear wheel studs.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
mightyart
Samba Member


Joined: March 24, 2004
Posts: 6188
Location: Portland, Oregon
mightyart is offline

PostPosted: Sat May 02, 2009 8:13 pm    Post subject: Reply with quote

In the future please use the tire stickie.
Your just adding more info. to the archives to sift through.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dillon70
Samba Member


Joined: October 20, 2008
Posts: 234
Location: Ventura, Ca.
dillon70 is offline

PostPosted: Sat May 02, 2009 8:59 pm    Post subject: Reply with quote

Sorry, posted under sticky for what wheels fit. Check out the picture.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
VisPacem
Samba Member


Joined: July 15, 2007
Posts: 1143
Location: Las Vegas
VisPacem is offline

PostPosted: Sat May 02, 2009 9:46 pm    Post subject: Re: Rim and Tire question Reply with quote

dillon70 wrote:
I want to put some Mercedes rims with tires on my 1990 Vanagon. What size offset should I be looking for with a 16, 17 or 18 inch rim? How wide should I go 7 or will 8 fit?
I have read several articles, but I aint no rocket scientist, a little help please........


I have Mercedes wheels, 15x7. offset 25. The vox populi here along with the choirs of experts predicted instant painful death, loss of citizenship, heavy taxation and shameful disease. Laughing

Over a year now and still spinning happily.

You can check out the wheels sold by the usual suspects, GW, Small Car, Van Cafe and the other chaps. Some of them are mercedes wheels with the politically correct offset.

Good luck.
_________________
LG aka VisPacemPB, *The* party Pooper

No Regrets (Nothing to do with Vanagons)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5145
Location: PNW
Christopher Schimke is offline

PostPosted: Sun May 03, 2009 7:22 am    Post subject: Re: Rim and Tire question Reply with quote

VisPacem wrote:
I have Mercedes wheels, 15x7. offset 25. The vox populi here along with the choirs of experts predicted instant painful death, loss of citizenship, heavy taxation and shameful disease. Laughing

Over a year now and still spinning happily.


No, no, no, that is not what has been preached.
Image may have been reduced in size. Click image to view fullscreen.
What has been preached is that there is an ideal. The further you get away from ideal, the greater the chance for issues. The other thing that has been preached is that if you have the choice, why not make it as "right" as possible? That's all, no death, no massive destruction.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Famous 01
Samba Member


Joined: May 19, 2007
Posts: 81
Location: Concord, NC
Famous 01 is offline

PostPosted: Mon May 04, 2009 6:38 am    Post subject: Reply with quote

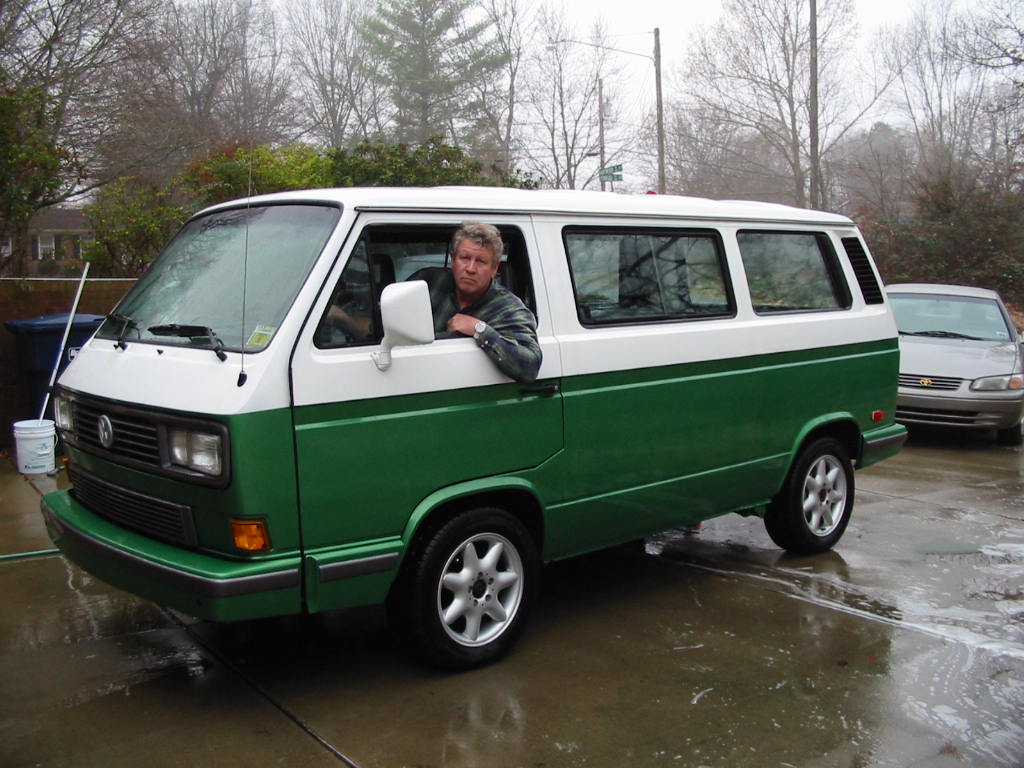

I am running 16" X 7" ET37 Mercedes rims with 215/60/16 Bridgestone Potenzas from Sams Club. 95 load rating. 1/4 inch spacers on the front wheels. You have to drill mounting holes on the rims and change to longer ball-end studs but they fit just fine. The ride is a little harsher than the standard tires, though.

https://www.thesamba.com/vw/gallery/pix/514369.jpg
-Kent
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mightyart
Samba Member


Joined: March 24, 2004
Posts: 6188
Location: Portland, Oregon
mightyart is offline

PostPosted: Mon May 04, 2009 7:10 am    Post subject: Reply with quote

Dillon is making you guys look bad.
Use the tire sticky.
If we get to much more wheel and tire stuff, that nobody wants to wade through, I may start moving the custom stuff to the wheel and tire forum (which I should have been doing anyways).
sticky.
