 Posted: Thu Dec 17, 2009 1:59 pm Post subject: Std pan seat stud locations ? |
 |
|
I have some deluxe pans I will be modifying for my '51 std. I have NOS seat studs and will remove the rails on the pans now. I need the dimensions of where they should be. How far back from the front chassis bulkhead (one measurement) and how far away from the tunnel, perpendicularly for each (2 measurements). I can photo shop a chassis pic later if it is not clear.
Anyone have an original split std and can get those measurements? I have a bunch of time off over the holidays and hope to work on those pans....
TIA
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
 |
9secschwim
Samba Member
Joined: January 09, 2005
Posts: 120
Location: Lakewood / San Jacinto
|
| Posted: Thu Dec 17, 2009 8:07 pm Post subject: |
|
|
| Hey John, I measured 30 3/4" from the bulkhead, and 2 1/8" and 15 5/8" from the tunnel to the center of the studs. This was from an original chassis that has not been repaired. |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9414
Location: Northwood, NH USA
|
| Posted: Thu Dec 17, 2009 8:18 pm Post subject: |
|
|
Excellent, thank you 9secschwim. Can you tell me what year that chassis was? Can anyone else confirm these measurements?
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
erioco
Samba Member
Joined: February 05, 2004
Posts: 382
Location: St. Louis, MO
|
| Posted: Thu Dec 17, 2009 8:34 pm Post subject: Std seat clamp placement |
|
|
John,
I have an unmessed with 1947 that has the threaded bolts still in place. But that is about all I have.
Will measure them in the AM.
Eric
_________________
Radclyffe Roadster Replica proj based on an April 47 chassis |
|
| Back to top |
|
|
9secschwim
Samba Member
Joined: January 09, 2005
Posts: 120
Location: Lakewood / San Jacinto
|
| Posted: Thu Dec 17, 2009 9:02 pm Post subject: |
|
|
| johnshenry wrote: |
| Excellent, thank you 9secschwim. Can you tell me what year that chassis was? Can anyone else confirm these measurements? |
This particular chassis is a 51 and those measurements are from the drivers side. I can measure the passenger side tomorrow if needed. |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9414
Location: Northwood, NH USA
|
| Posted: Thu Dec 17, 2009 9:26 pm Post subject: |
|
|
I can't imagine the pass side would be different. I don't think there is a need to measure those.
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
barnyardvw
Samba Member
Joined: August 23, 2004
Posts: 54
Location: Camas, WA
|
| Posted: Thu Dec 17, 2009 10:54 pm Post subject: |
|
|
John

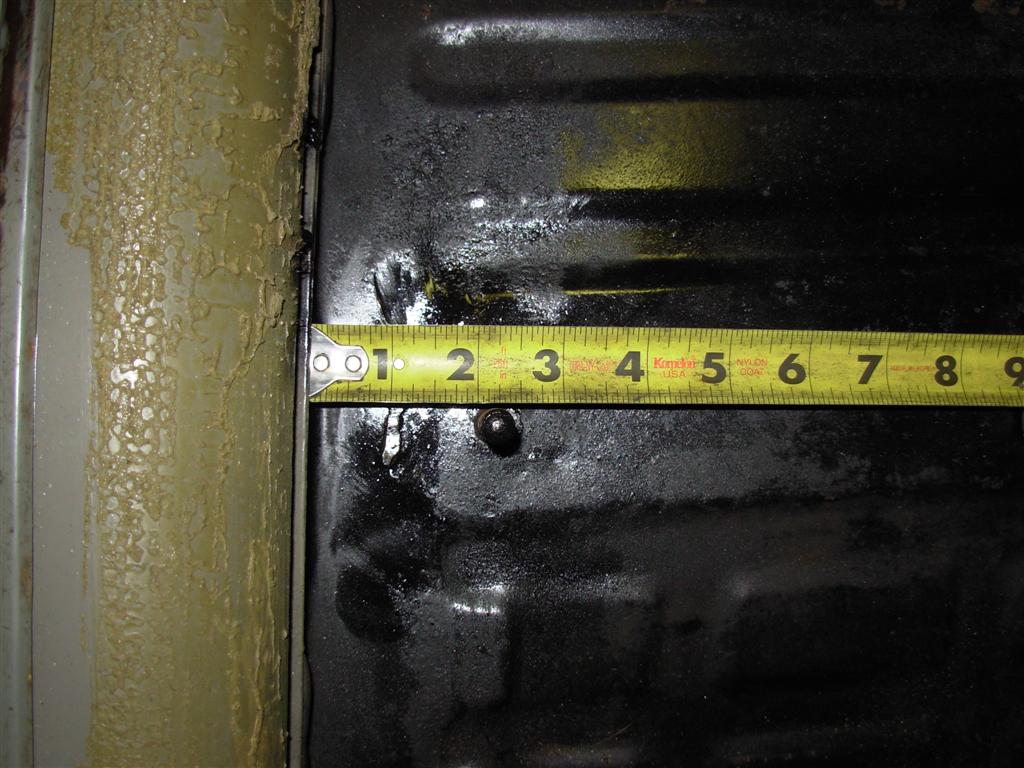

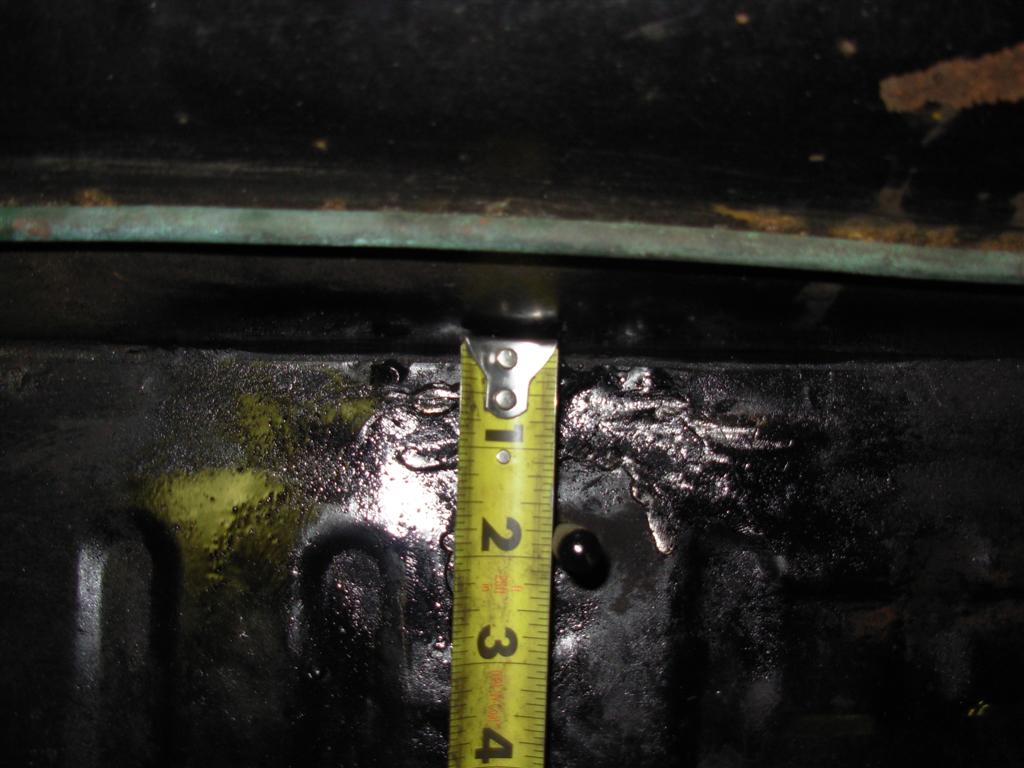

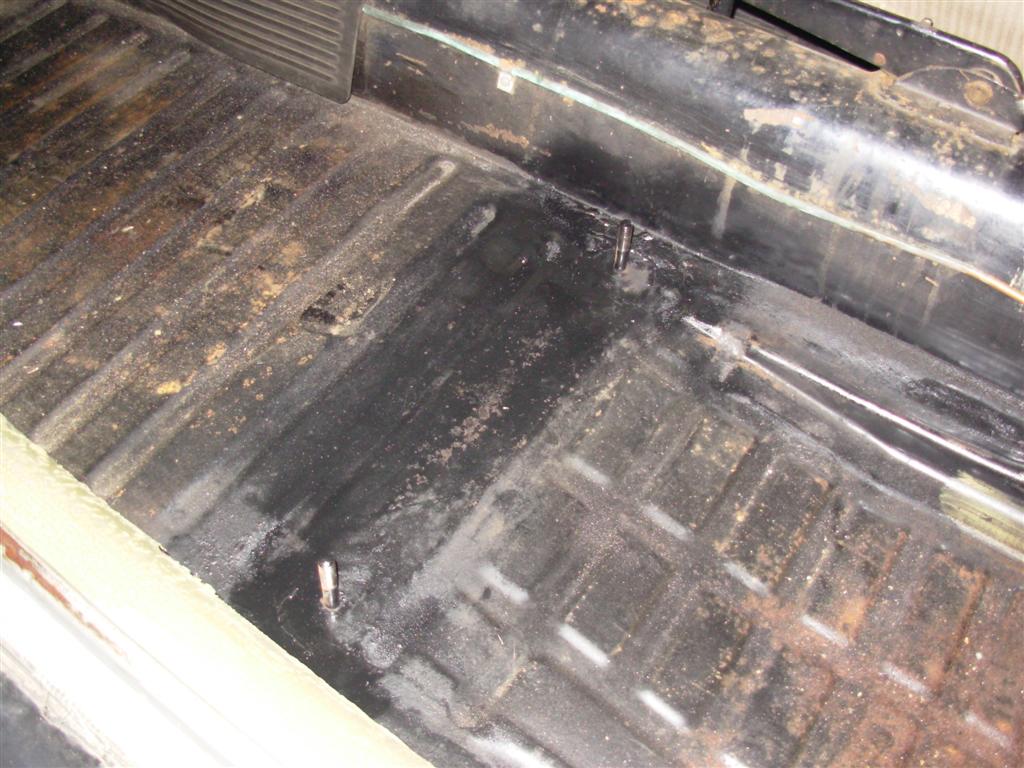

I came up with almost those exact same measurements in a nice OG 1950 Hoffman standard that was in the shop earlier this year
30 3/4" from bulk head
2"? from the tunnel
2 1/4" from the heater channel
13 3/8" between the two bolts
these were just quick measurements i wrote down while working on the customers to-do list
[/quote]
_________________
John Jensen
1950 11A
1955 113
1963 151
1958 113-28,000 orig. miles
1967 241
1968 Eriba Puck |
|
