PostPosted: Fri Oct 02, 2009 11:26 pm    Post subject: Truck tilt thread FAQ Reply with quote

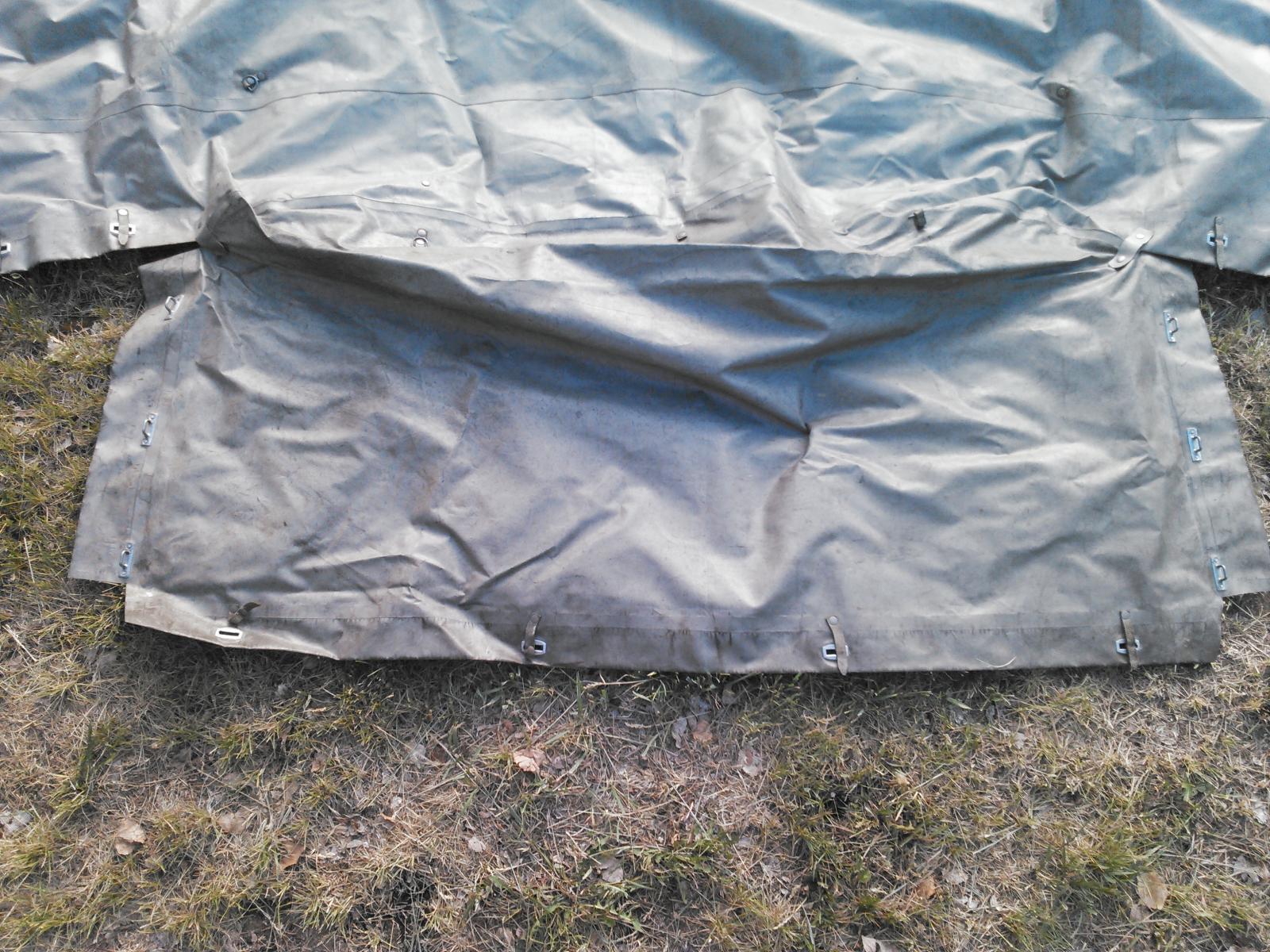

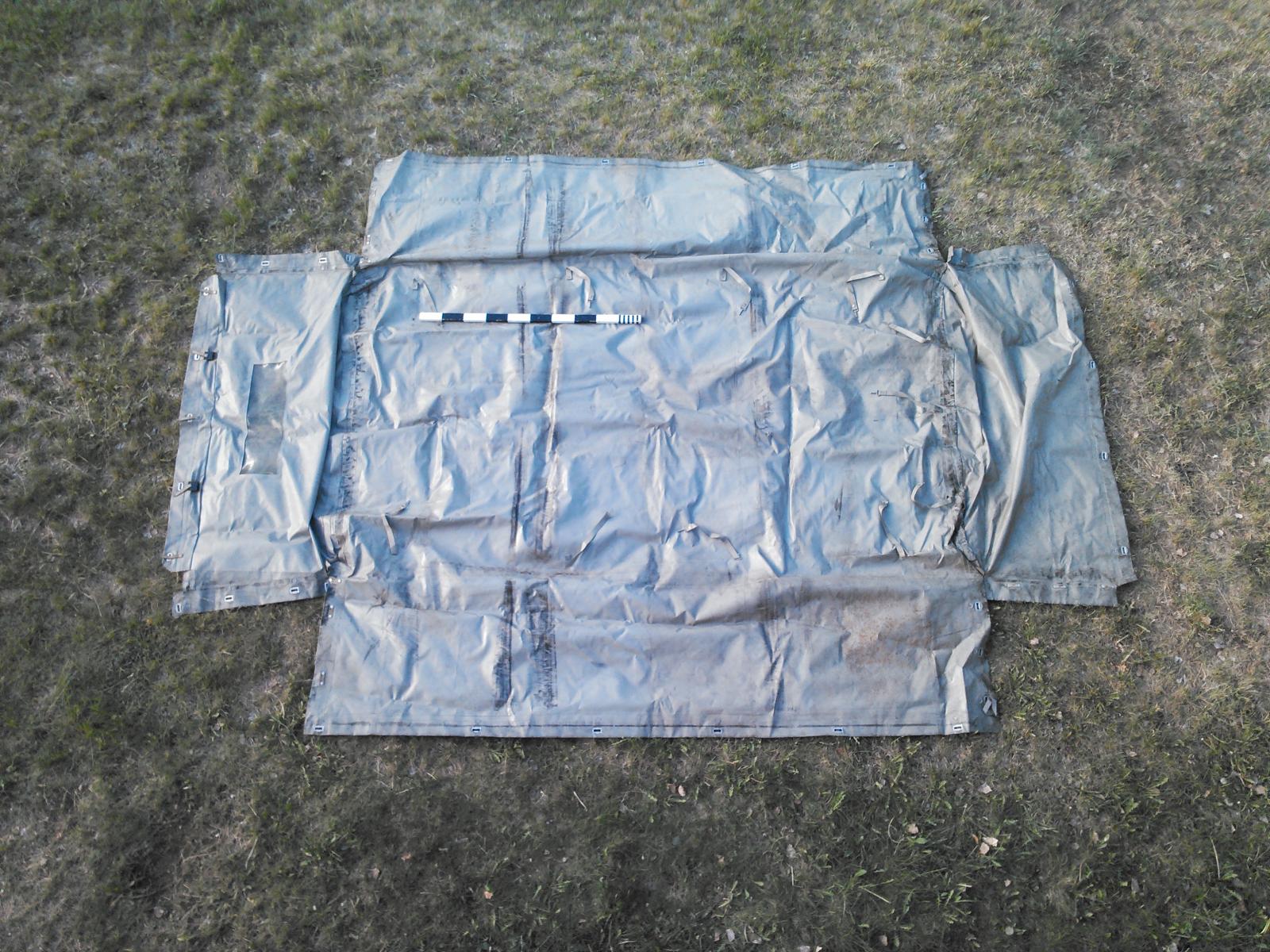

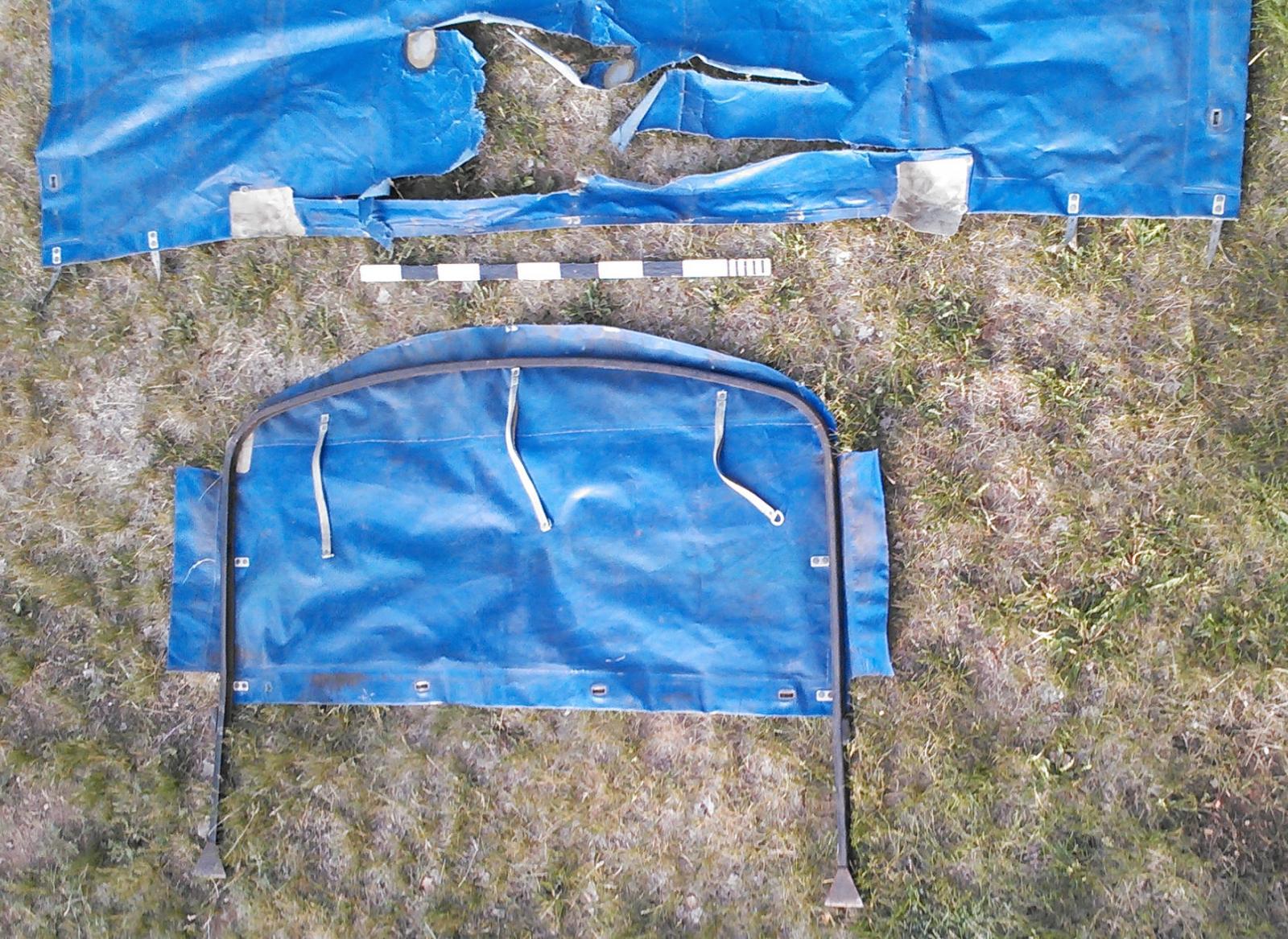

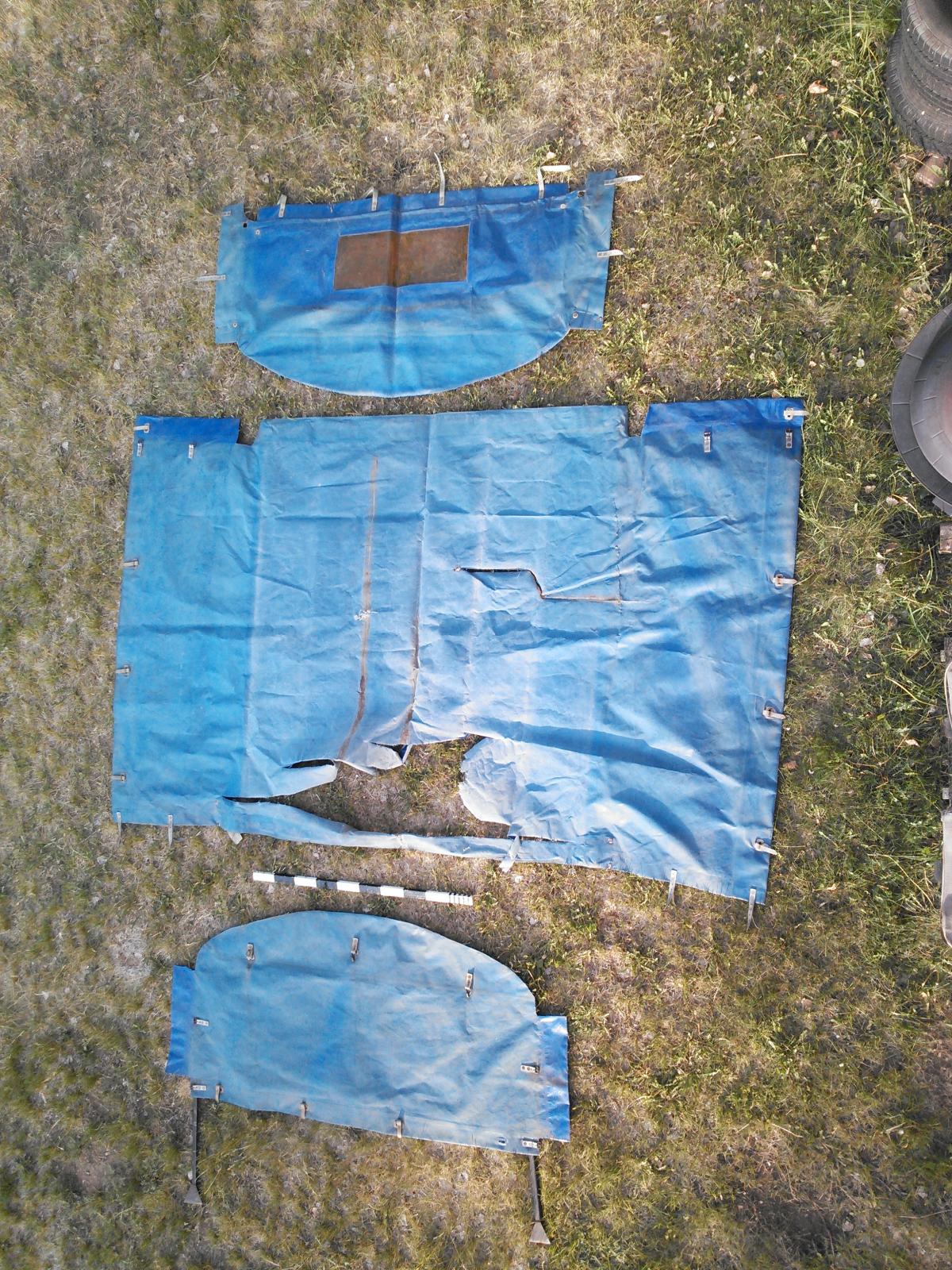

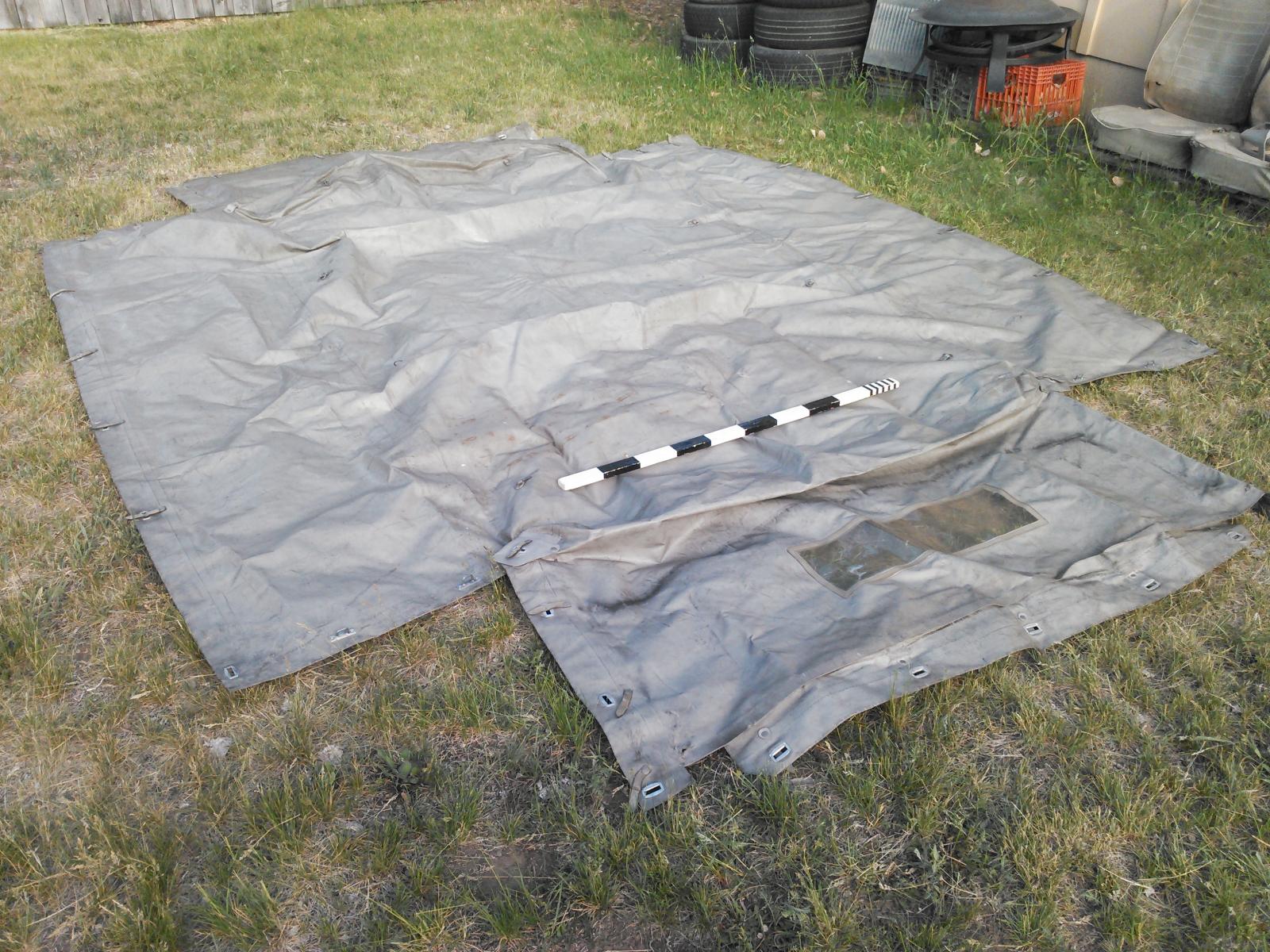

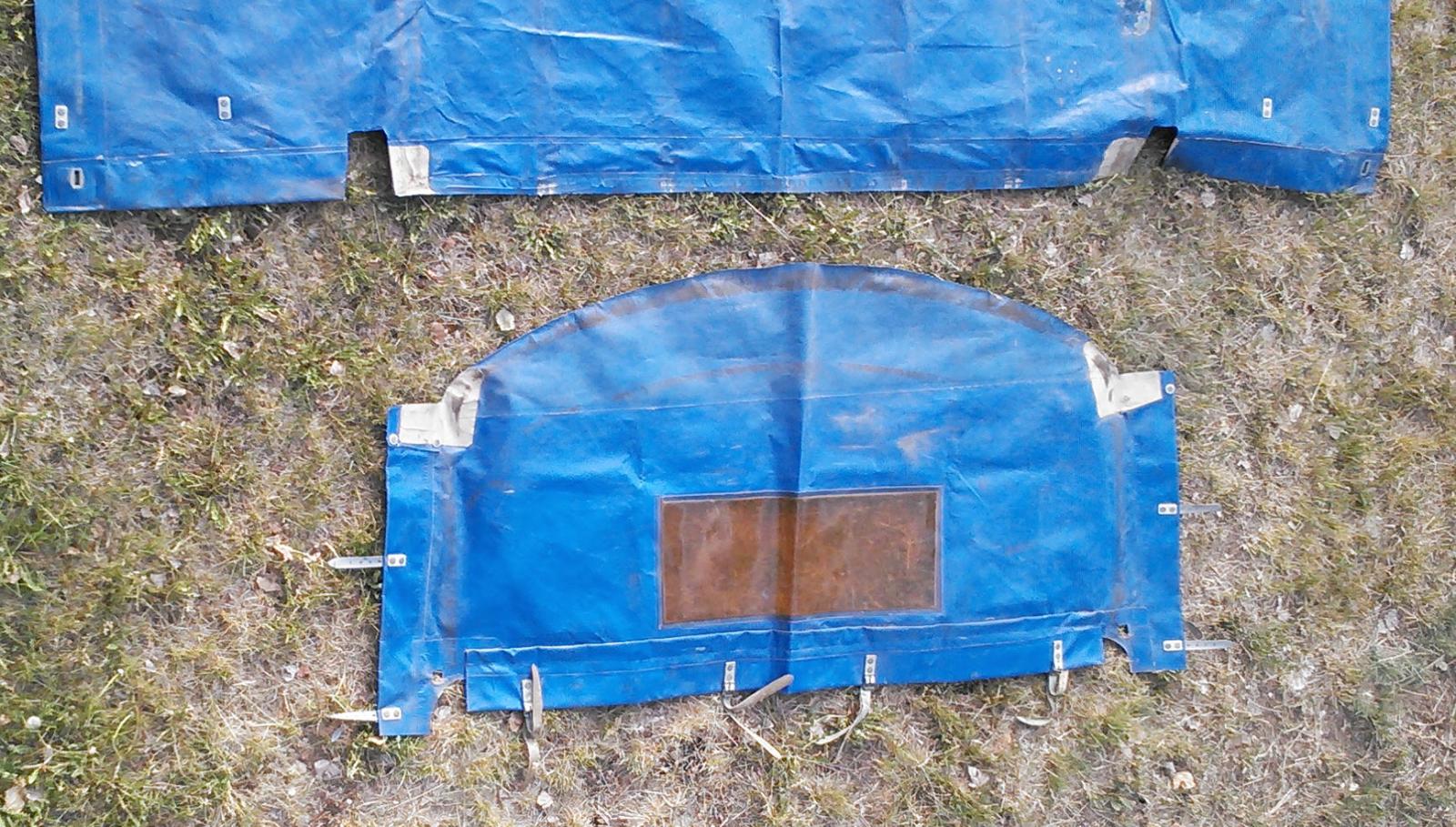

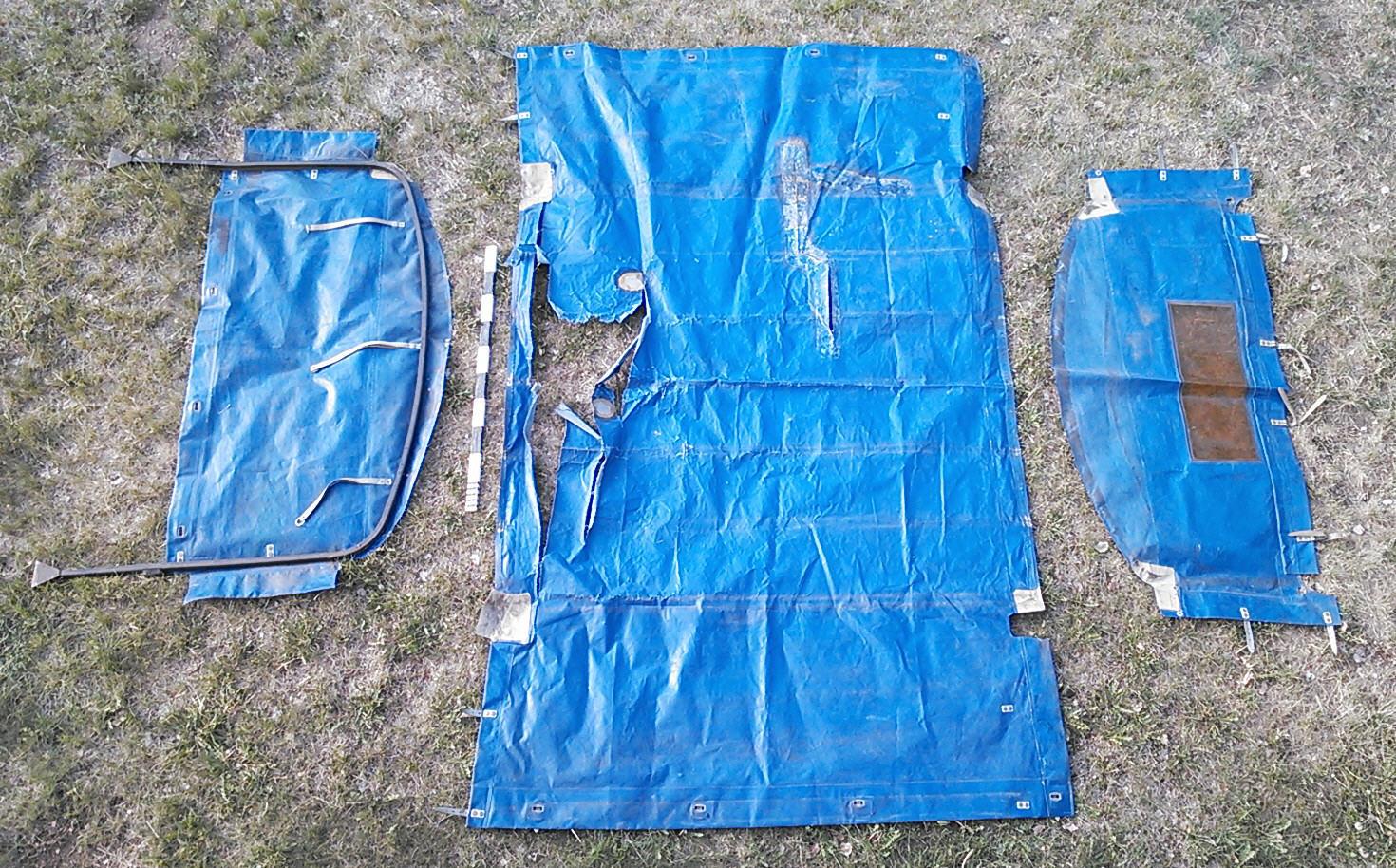

after months and months of storage i am able to use the tilt on my 68 doublecab. the wood is bowed and the canvas needs attention but it is functional and very enjoyable. i hope to have it entirely restored in a short while. the canopy is a heavy duty type vinyl perfect for everyday use in the pacific northwest. i will be replacing hardware, a little patching, and assorted improvements. haven't seen too many like this one.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busworks
Samba Member


Joined: May 21, 2004
Posts: 186
Location: Mt. Pleasant, SC
busworks is offline

PostPosted: Mon Jul 08, 2013 12:09 pm    Post subject: Reply with quote

Think I may have one of these same tilt for a single.
Does it have a stitched in badge by DSU?

Like this?
Image may have been reduced in size. Click image to view fullscreen.


I have one of the same material I've had in storage for roughly a decade.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
babysnakes
Samba Member


Joined: August 19, 2008
Posts: 6329
Location: Banned from Florida BugJam. Badge of honor!
babysnakes is offline

PostPosted: Mon Jul 08, 2013 12:19 pm    Post subject: Reply with quote

Yes, I got Jorma! If you don't know Jorma, you don't know Jack. Very Happy

I'd love to see some more tilt action on this thread. Might be a year before I start working on mine.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jtauxe
Samba Member


Joined: September 30, 2004
Posts: 4918
Location: Los Alamos, New Mexico
jtauxe is offline

PostPosted: Fri Sep 13, 2013 12:00 pm    Post subject: Reply with quote

If it's heavy-duty vinyl looking stuff, I think that is what VW called a PVC canopy (M-code 209).

B-snakes - Stay tuned. Once I get my hoops and wooden stringers in order, I'll be putting up the original canopy on the single cab, and a repaired original one on the double cab. I have original hoops and canopy material, but will have to have the middle single cab bow and all of the end hoop caps (or whatever they would be called) fabbed up by DG Creations.
http://www.thesamba.com/vw/classifieds/detail.php?id=1173743
I'm shooting for next summer.

But I still need some attachment details... information appreciated:

How exactly do the feet of the hoops attach to the bed? I have what I think are M-10 threads on the two single mounting holes on the front, but just open holes on the back -- two on each side.

How exactly does the front hoop attach to the back of the cab? Is there supposed to be a captured nut on the inside or something?

Any photos of these attachment details would be most appreciated!
_________________
John
"The bus came by and I got on. That's when it all began..." - Garcia/Weir/Kreutzman
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof
, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner
1974 Westfalia parts bus, 1975 Mexican single cab, 1978 Irish 4-door double cab RHD
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
[email protected]
Samba Peckerhead


Joined: January 01, 2007
Posts: 10588
Location: sticksville, ct.
skills@eurocarsplus is offline

PostPosted: Fri Sep 13, 2013 12:42 pm    Post subject: Reply with quote

Bolts to bed in the corners and back of cab, by the handle. Iirc there are 2 bolts per leg and one for the back of the cab
_________________
gprudenciop wrote:

my reason for switching to subaru is my german car was turning chinese so i said fuck it and went japanese.......
[email protected] wrote:
most VW enthusiasts are stuck in 80's price land.

Jake Raby wrote:
Thanks for the correction. I used to be a nice guy, then I ruined it by exposing myself to the public.

Brian wrote:
Also the fact that people are agreeing with Skills, it's a turn of events for samba history
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jtauxe
Samba Member


Joined: September 30, 2004
Posts: 4918
Location: Los Alamos, New Mexico
jtauxe is offline

PostPosted: Fri Sep 13, 2013 12:50 pm    Post subject: Reply with quote

[email protected] wrote:
Bolts to bed in the corners and back of cab, by the handle. Iirc there are 2 bolts per leg and one for the back of the cab

That much I figured from the holes in the hoops and in the trucks. But how exactly do these work? For example, the PO on the single cab just schmeared over the old bolt holes into the cab with filler, and the analogous holes on the DC were just badly ripped open holes in the body.

What is supposed to be there?

And what is supposed to be in the back to bolt into?
_________________
John
"The bus came by and I got on. That's when it all began..." - Garcia/Weir/Kreutzman
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof
, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner
1974 Westfalia parts bus, 1975 Mexican single cab, 1978 Irish 4-door double cab RHD
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
VDubTech
Samba Member


Joined: December 29, 2002
Posts: 9126
Location: Syracuse, NY
VDubTech is offline

PostPosted: Fri Sep 13, 2013 1:36 pm    Post subject: Reply with quote

IIRC from when I took the hoops off of the SC I parted out....the through bolts replace one of the bolts on each side that hold the female connector that latches the gates up.
_________________
First Trip in the RustyBus:
http://www.thesamba.com/vw/forum/viewtopic.php?t=279077&highlight=
borninabus wrote:
a measurement of your rod would be extremely useful.

notchboy wrote:
my dad wasnt a belittling cock when he tought me how to wrench on cars.

EverettB wrote:
One photo = good for reference.
10 photos = douchebaggery
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Peckerhead


Joined: January 01, 2007
Posts: 10588
Location: sticksville, ct.
skills@eurocarsplus is offline

PostPosted: Fri Sep 13, 2013 2:03 pm    Post subject: Reply with quote

what is suppose to be there is a capitve 8x1.25 nut that a bolt would attach the frame to.

from the factory there was a 8x1.25 bolt, washer and rubber gasket in place there. you would remove them to put the framework on there.

the bolt's, washers etc were on every truck to plug the hole weather or not you bought the hoops

you guys are going to make me take pictures, huh?
_________________
gprudenciop wrote:

my reason for switching to subaru is my german car was turning chinese so i said fuck it and went japanese.......
[email protected] wrote:
most VW enthusiasts are stuck in 80's price land.

Jake Raby wrote:
Thanks for the correction. I used to be a nice guy, then I ruined it by exposing myself to the public.

Brian wrote:
Also the fact that people are agreeing with Skills, it's a turn of events for samba history
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jtauxe
Samba Member


Joined: September 30, 2004
Posts: 4918
Location: Los Alamos, New Mexico
jtauxe is offline

PostPosted: Fri Sep 13, 2013 2:10 pm    Post subject: Reply with quote

The DC has those captive 8x1.25 threads on the bed up front, and I have them plugged with bolts. So, I get what you are saying.

Are you also saying that a similar (or exactly the same?) setup originally existed for the pairs of holes at the back of the bed, and for the two holes that go forward into the back of the cab?

That makes sense -- I just want to confirm that that is the original setup.

If so, then I will go about getting all that welded back as it should be.
_________________
John
"The bus came by and I got on. That's when it all began..." - Garcia/Weir/Kreutzman
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof
, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner
1974 Westfalia parts bus, 1975 Mexican single cab, 1978 Irish 4-door double cab RHD
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
babysnakes
Samba Member


Joined: August 19, 2008
Posts: 6329
Location: Banned from Florida BugJam. Badge of honor!
babysnakes is offline

PostPosted: Fri Sep 13, 2013 2:50 pm    Post subject: Reply with quote

[email protected] wrote:

you guys are going to make me take pictures, huh?


Applause Dancing

It won't be long until we put down the bed and bulkhead. Captive nuts make total sense.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jtauxe
Samba Member


Joined: September 30, 2004
Posts: 4918
Location: Los Alamos, New Mexico
jtauxe is offline

PostPosted: Fri Sep 13, 2013 3:08 pm    Post subject: Reply with quote

Good timing! It will be a snap to put those in before assembly.
_________________
John
"The bus came by and I got on. That's when it all began..." - Garcia/Weir/Kreutzman
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof
, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner
1974 Westfalia parts bus, 1975 Mexican single cab, 1978 Irish 4-door double cab RHD
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
[email protected]
Samba Peckerhead


Joined: January 01, 2007
Posts: 10588
Location: sticksville, ct.
skills@eurocarsplus is offline

PostPosted: Fri Sep 13, 2013 7:20 pm    Post subject: Reply with quote

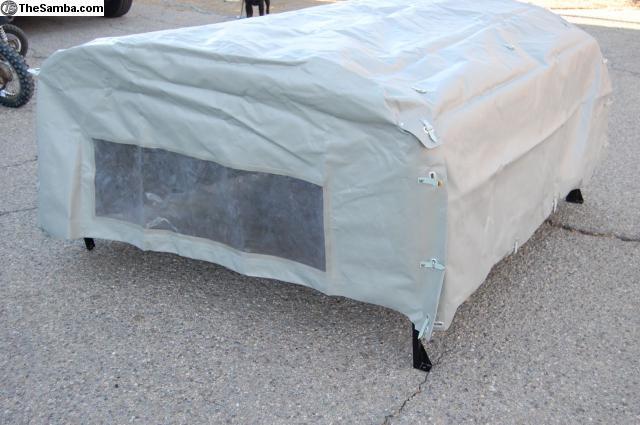

hrer is a teaser pic. i will need to go out and take more tomorrow






Image may have been reduced in size. Click image to view fullscreen.

_________________
gprudenciop wrote:

my reason for switching to subaru is my german car was turning chinese so i said fuck it and went japanese.......
[email protected] wrote:
most VW enthusiasts are stuck in 80's price land.

Jake Raby wrote:
Thanks for the correction. I used to be a nice guy, then I ruined it by exposing myself to the public.

Brian wrote:
Also the fact that people are agreeing with Skills, it's a turn of events for samba history
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jtauxe
Samba Member


Joined: September 30, 2004
Posts: 4918
Location: Los Alamos, New Mexico
jtauxe is offline

PostPosted: Fri Sep 13, 2013 7:44 pm    Post subject: Reply with quote

Consider me teased. Cool

Seriously, detail photos would be much appreciated. I can't find anything in the gallery pertaining to the mounting of hoops to the truck.
_________________
John
"The bus came by and I got on. That's when it all began..." - Garcia/Weir/Kreutzman
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof
, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner
1974 Westfalia parts bus, 1975 Mexican single cab, 1978 Irish 4-door double cab RHD
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
babysnakes
Samba Member


Joined: August 19, 2008
Posts: 6329
Location: Banned from Florida BugJam. Badge of honor!
babysnakes is offline

PostPosted: Sat Sep 14, 2013 8:25 pm    Post subject: Reply with quote

All nuts welded.

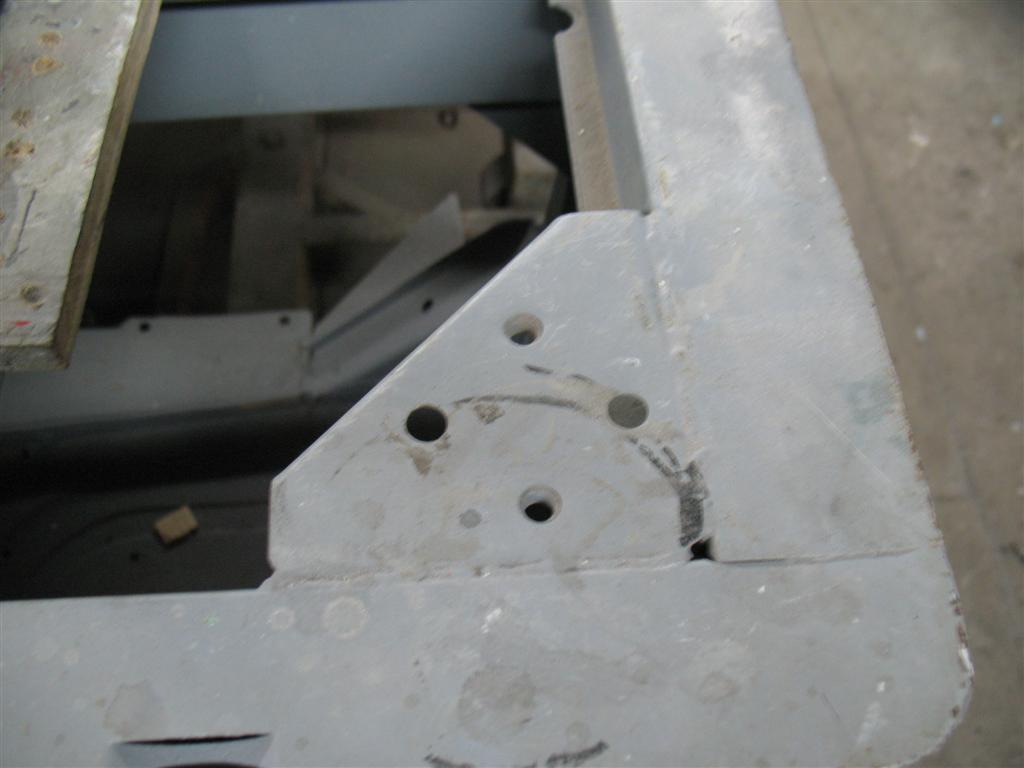

Left rear corner of bed, deck removed. 2 nuts left to right, 2 blank holes front to back.
Image may have been reduced in size. Click image to view fullscreen.



Front side of Gersons bulkhead.
Image may have been reduced in size. Click image to view fullscreen.



Back side of OG bulkhead.
Image may have been reduced in size. Click image to view fullscreen.



I don't have a pick of the forward bed, but I think there is only one mounting point on each side.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Brian
Samba Member


Joined: May 28, 2012
Posts: 7749
Location: San Diego
Brian is offline

PostPosted: Sun Dec 08, 2013 8:56 pm    Post subject: Reply with quote

Does anyone have measurements for the hoops?
_________________
'69 Bug
'68 Baja Truck
'71 Bug

Ran when parked
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
babysnakes
Samba Member


Joined: August 19, 2008
Posts: 6329
Location: Banned from Florida BugJam. Badge of honor!
babysnakes is offline

PostPosted: Mon Dec 09, 2013 9:56 am    Post subject: Reply with quote

lustig69 wrote:
Does anyone have measurements for the hoops?


Looking for this?

http://busware.biz/Hoop_Details.html
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jtauxe
Samba Member


Joined: September 30, 2004
Posts: 4918
Location: Los Alamos, New Mexico
jtauxe is offline

PostPosted: Sun Oct 26, 2014 8:11 pm    Post subject: Reply with quote

Here are photos of the original (and unrepaired) canopy for a 1978 Irish double cab. Note that the front and back have separated from the main part.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
John
"The bus came by and I got on. That's when it all began..." - Garcia/Weir/Kreutzman
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof
, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner
1974 Westfalia parts bus, 1975 Mexican single cab, 1978 Irish 4-door double cab RHD
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
jtauxe
Samba Member


Joined: September 30, 2004
Posts: 4918
Location: Los Alamos, New Mexico
jtauxe is offline

PostPosted: Sun Oct 26, 2014 8:27 pm    Post subject: Reply with quote

Here are photos of an original PVC canopy (tilt) for a 1975 single cab from Mexico.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
John
"The bus came by and I got on. That's when it all began..." - Garcia/Weir/Kreutzman
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof
, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner
1974 Westfalia parts bus, 1975 Mexican single cab, 1978 Irish 4-door double cab RHD
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
jtauxe
Samba Member


Joined: September 30, 2004
Posts: 4918
Location: Los Alamos, New Mexico
jtauxe is offline

PostPosted: Fri Jan 09, 2015 1:40 pm    Post subject: Reply with quote

Now I have another question.

Did VW ever make a cab-height canopy?

Like this:

Image may have been reduced in size. Click image to view fullscreen.


I wonder if it is legitimately NOS, since I did not know VW ever made this. But, here is a part number written on it:

Image may have been reduced in size. Click image to view fullscreen.


Thoughts?
_________________
John
"The bus came by and I got on. That's when it all began..." - Garcia/Weir/Kreutzman
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof
, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner
1974 Westfalia parts bus, 1975 Mexican single cab, 1978 Irish 4-door double cab RHD
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12844
Location: San Jose, California, USA
Tcash is offline

PostPosted: Fri Jan 09, 2015 3:19 pm    Post subject: Reply with quote

This parts manual list one part number for the bows.
The part number on the tilt is correct. Who knows who wrote it.
The seller is not sure of Mnf.
Early Baywindow Bus Parts BookDouble Cab Doka Bed Cover Tilt NOS Bay Window

Thanks to Jerseylooker
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


M209
Tilt made of PVC instead of sail-cloth(with M070 only) Model type 261,264
Tilt made of PVC instead of sail-cloth(with M207 only) Model type 265,268
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
