PostPosted: Sat Oct 24, 2009 8:04 pm    Post subject: Rebuilding your 56 to 61 fuel reserve tap. Reply with quote

I was given this old skanky fuel valve that "appeared" to be beyond hope. It was frozen tight with gunk and yuck and looked like a good candidate for the s#!t can (didn't take any pics though). BUT...I thought I'd give it a try anyway - and I'm glad I did. I soaked it in a cup of Break-Free for two days and scrubbed all the nasty off and I'll be damned if it didn't clean-up pretty good.
So here's the quick and dirty on rebuilding a fuel valve. It's pretty straight forward but hopefully someone will find it useful. I'm not well versed on all the spiffy terminology for the parts and pieces, but I'm sure you'll get the idea.

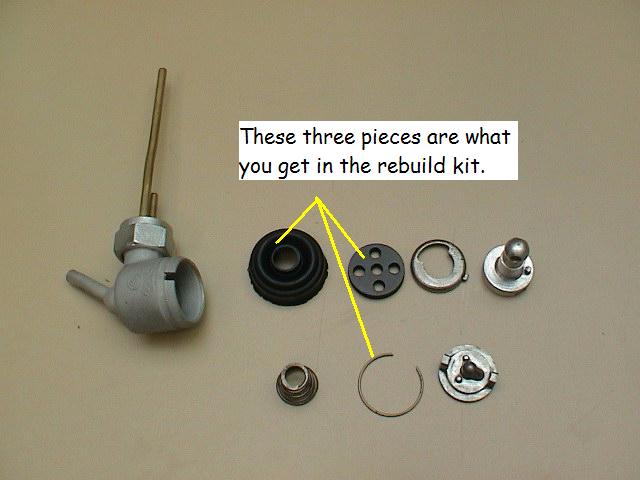

I bought the rebuild kit from WW.

Image may have been reduced in size. Click image to view fullscreen.

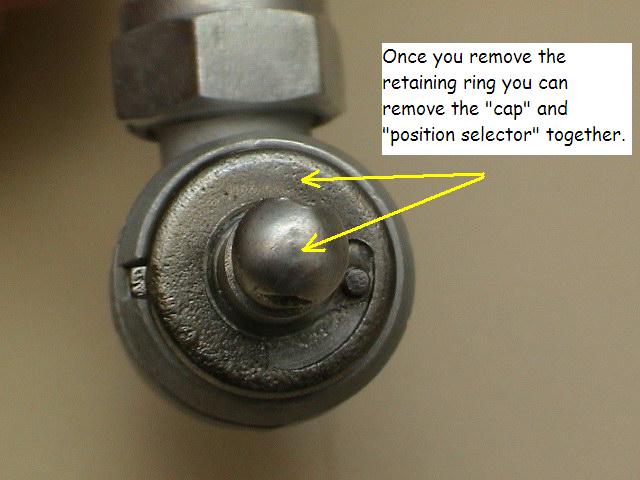

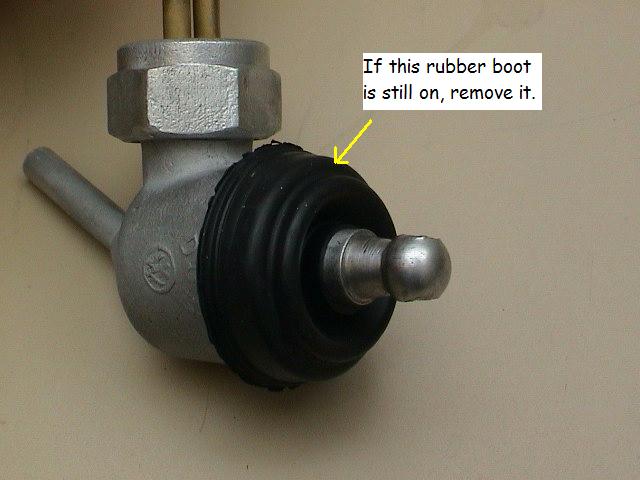

Disassemble.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

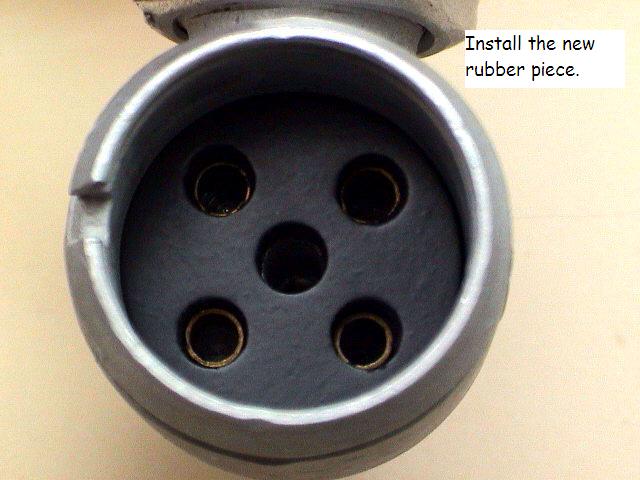

Reassembly.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Here's a picture from WW with the wire on the rubber boot. This would be a wise idea to do.
Image may have been reduced in size. Click image to view fullscreen.


Not a big deal, just useful info.

Good luck.
_________________
1960 Sedan. L349 Jade Green.


Last edited by duginabug on Sat Oct 24, 2009 8:34 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Helfen
Samba Member


Joined: January 19, 2009
Posts: 2816
Location: Vulcania
Helfen is offline

PostPosted: Sat Oct 24, 2009 8:28 pm    Post subject: Reply with quote

Nice post, While I did mine a few years back on my 65, I wish I had that close-up of the snap ring because there was so much crud on mine you couldn't see it! It looked like part of the main body, finally after soaking in carb cleaner and then 3hrs in Zep I was able to see and get it apart. Great pictures, I'm sure you've saved someone some grief.

Don
Back to top
View user's profile Send private message Classifieds Feedback
asad1432
Samba Member


Joined: May 29, 2006
Posts: 297
Location: Karachi, Pakistan
asad1432 is offline

PostPosted: Sun Oct 25, 2009 7:39 am    Post subject: Reply with quote

Wow!

Useful info???? Im ready to subscribe to your fan list Laughing

Thanks a lot for the nice step by step pictorial tutorial. Have bookmarked this thread as it would be invaluable for me as I rebuild my 59 ragtop.
Very Happy
Back to top
View user's profile Send private message Classifieds Feedback
Eric&Barb
Samba Member


Joined: September 19, 2004
Posts: 19192
Location: Olympia Wash Rinse & Repeat
Eric&Barb is offline

PostPosted: Sun Oct 25, 2009 10:03 am    Post subject: Reply with quote

Very nice, but if you do not apply a mixture of graphite and grease to the inner valve seal will most likely not last long. So nice to be able to switch it to "Off" position when replacing fuel lines or removing the engine and not having the fuel leaking out.

Good to also remove or just cut off the shorter reserve pipe. That was little to no water can be trapped in the tank to rust it out.
Way easier to just drain the carb if need be.
_________________
In Stereo, Where Available!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
SOWEGA
Samba Member


Joined: December 02, 2007
Posts: 74
Location: Atlantic South East
SOWEGA is offline

PostPosted: Sun Oct 25, 2009 5:04 pm    Post subject: Reply with quote

Thank you. I believe this is the second step by step I have read that you have authored. If only the majority of the posts were like this...interesting and informative. Unfortunately, most are ridiculous and frustrating.
_________________
Danny


Quote:
There are a lot of people just driving their buses around doing normal routine maintenance and they don't post their horror stories on here. On here you hear about the problems.
Back to top
View user's profile Send private message Classifieds Feedback
VOLKSWAGNUT
Fastest VW Belt Changer


Joined: October 14, 2007
Posts: 10035
Location: Flippin' a Belt Off ..... NC USA
VOLKSWAGNUT is offline

PostPosted: Tue Feb 09, 2010 10:26 am    Post subject: Reply with quote

I have aquestion about these. I just removed my 61 fuel tap, to clean and repair.

Are the tubes replaceable, mine have cracks.

I will probably repair and solder
_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited


Last edited by VOLKSWAGNUT on Tue Feb 09, 2010 4:27 pm; edited 3 times in total
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
bill may
Samba Member


Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
bill may is offline

PostPosted: Tue Feb 09, 2010 12:36 pm    Post subject: Reply with quote

is the rebuild the same for a 1962-1967 Standard beetle fuel reserve valve?
_________________
1965 panel bus-Kermit
"Camping is cheaper than therapy"
www.sv2s.com
www.steeringboxscrapers.net
SBS #100
http://www.thesamba.com/vw/forum/viewtopic.php?t=453617
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Bart Dunn
Samba Consiglieri


Joined: May 09, 2004
Posts: 2351
Location: Sea level (Mid Atlantic)
Bart Dunn is offline

PostPosted: Tue Feb 09, 2010 6:03 pm    Post subject: Reply with quote

Eric&Barb wrote:
Very nice, but if you do not apply a mixture of graphite and grease to the inner valve seal will most likely not last long.


If I recall correctly, the Bentley manual says to use "french chalk" (whatever that is) or brake fluid. Not that the grease/graphite wouldn't work well, but perhaps there are other options.
_________________
Not enough car seats fit into my:
'58 Beetle convertible
'58 Beetle sedan
Back to top
View user's profile Send private message Gallery Classifieds Feedback
duginabug
Samba Member


Joined: June 06, 2007
Posts: 481
Location: Washington State
duginabug is offline

PostPosted: Tue Feb 09, 2010 9:03 pm    Post subject: Reply with quote

bill may wrote:
is the rebuild the same for a 1962-1967 Standard beetle fuel reserve valve?


Well the rebuild kit that WW sells says its for 1956-1961 Beetle but I couldn't imagine it would be a whole lot different for the later ones.
_________________
1960 Sedan. L349 Jade Green.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Eric&Barb
Samba Member


Joined: September 19, 2004
Posts: 19192
Location: Olympia Wash Rinse & Repeat
Eric&Barb is offline

PostPosted: Tue Feb 09, 2010 10:30 pm    Post subject: Reply with quote

http://en.wikipedia.org/wiki/French_chalk
_________________
In Stereo, Where Available!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
downsbs
Samba Member


Joined: July 17, 2009
Posts: 540
Location: Avondale, AZ
downsbs is offline

PostPosted: Wed Feb 10, 2010 12:34 am    Post subject: Reply with quote

I rebuilt one over ten years ago using graphite grease and it is still going strong.
_________________
1956 Rag W/ Semaphores
Back to top
View user's profile Send private message Classifieds Feedback
Loren Premium Member
Samba Member


Joined: January 10, 2004
Posts: 1175

Loren is offline

PostPosted: Tue Oct 26, 2010 7:51 pm    Post subject: Reply with quote

I just rebuilt a fuel tap and this post was a great help. I did come across a few issues that were not covered, so I thought I would add them.

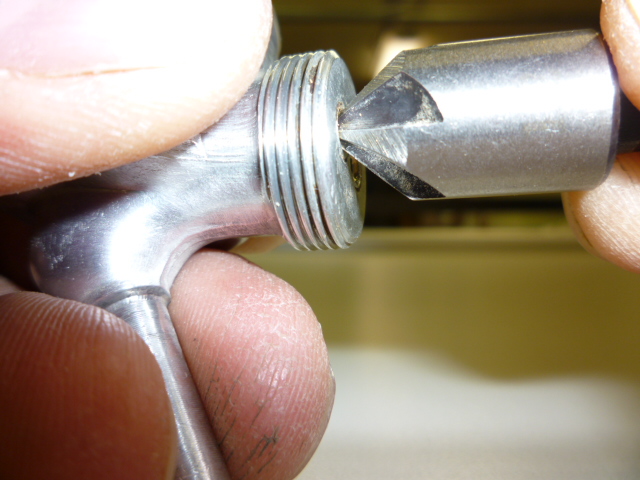

Unfortunately both of the brass tubes were broken off the end of the tap. The first thing I did was file the area flat and used a counter sink to ream out the holes (this will also help in centering the drill bit later on).
Image may have been reduced in size. Click image to view fullscreen.

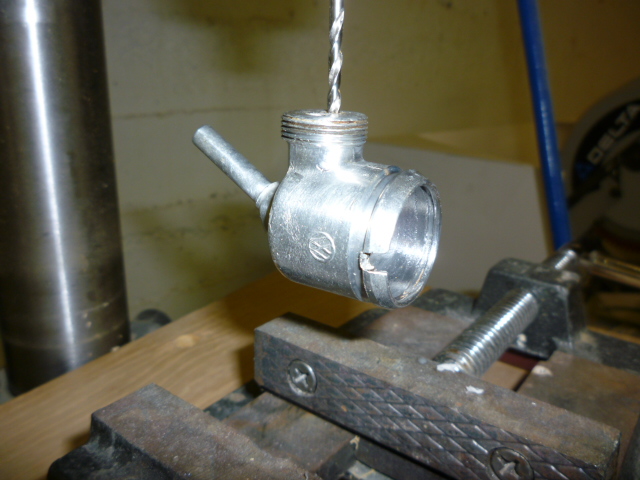

With the holes cleaned up the next step was to insert a 7/64" bit into one of the holes. You might need to use a hand drill to coax the bit into the hole, you want a nice tight fit. Push the bit in as far as it will go and chuck it into the drill press.
Image may have been reduced in size. Click image to view fullscreen.


Now lower the bit with the fuel tap and carefully clamp the fuel tap in a vice. This will help insure you drill straight into the original holes. You don't want to drill the holes out at an angle. Raise the chuck on the drill and remove the 7/64" drill bit.
Image may have been reduced in size. Click image to view fullscreen.


Now put a 5/32" drill bit in the chuck and either put a piece of tape 3/8" from the tip of the bit or set the drill stop to extend the bit 3/8" into the end of the tap.
Image may have been reduced in size. Click image to view fullscreen.


Drill out both holes to a depth of 3/8"
Image may have been reduced in size. Click image to view fullscreen.


Next I went to my local hobby store and bought some 5/32" O.D. brass tubing to replace the missing tubing on the tap. Luckily, I had another tap on hand to measure the length of the tubing. The long piece was 3 7/16" long and the short piece was 7/8" long. Adding 3/8" to each piece to account for the depth of the holes I drilled, I cut two pieces of tubing measuring 1 1/4" and 3 13/16". I used a cut off wheel on the dremel to cut the tubing. Once they were cut I filed the ends flat, used the counter sink to clean up the ends and used sand paper to taper the outside edges and remove any burrs. I put a bend in the long piece about 2 1/4" from one end to match the other tap I had. This allows the fuel screen to fit over the two tubes.

Finally install the two tubes in the correct holes and solder them in place.
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

After a little clean up here is the final result.

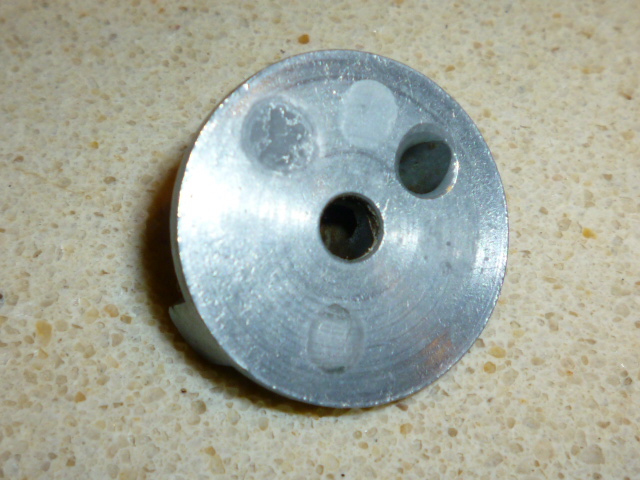

With the tap fixed it was time to put it back together. I noticed some pitting on the under side of the selector valve.
Image may have been reduced in size. Click image to view fullscreen.


I put some wet/dry sand paper on the kitchen counter (you want a flat surface to put the sand paper on. A piece of tile or a piece of glass work well too) added a little water and sanded it until all of the marks were gone. I sanded the edges a little too, just to take down the sharp edge.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


With the valve selector flat and smooth I added a thin coat of moly graphite assembly lube to the bottom of the valve selector and the top of the position selector.
Image may have been reduced in size. Click image to view fullscreen.


With the fuel tap all back together it was time to add the wire on the boot. I used some thin galvanized wire I found at the hobby store.

Image may have been reduced in size. Click image to view fullscreen.

I tightened it with a pair of needle nose pliers, cut off the excess wire and bent the twisted part back.

Image may have been reduced in size. Click image to view fullscreen.

All finished and ready to install!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bill may
Samba Member


Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
bill may is offline

PostPosted: Wed Oct 27, 2010 6:55 am    Post subject: Reply with quote

extremely helpful pictures and repair writeup.
_________________
1965 panel bus-Kermit
"Camping is cheaper than therapy"
www.sv2s.com
www.steeringboxscrapers.net
SBS #100
http://www.thesamba.com/vw/forum/viewtopic.php?t=453617
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
duginabug
Samba Member


Joined: June 06, 2007
Posts: 481
Location: Washington State
duginabug is offline

PostPosted: Fri Nov 12, 2010 11:44 am    Post subject: Reply with quote

Holy crap Loren! I just noticed your addition to this post. Nicely done. Thanks
_________________
1960 Sedan. L349 Jade Green.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jt69bug
Samba Member


Joined: September 22, 2010
Posts: 87
Location: Middle Tennessee
jt69bug is offline

PostPosted: Wed Jun 01, 2011 11:27 pm    Post subject: Reply with quote

I discovered this tonight while I was working on my 59. I cleaned it up and used the kit from WW (their instructions are horrible). This was a WONDERFUL help to me.

I couldn't help but notice that in the above images, the gentleman put some lube directly on the rubber piece. I didn't do that and felt the gasoline would lube it up enough. I was also worried about the grease stopping up the fuel line. I did however lube up the part up top where it was metal to metal.

Do you think it's okay to lube up the rubber part?
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Classifieds Feedback
my59
Samba Member


Joined: August 13, 2003
Posts: 2923
Location: connecting the dots
my59 is offline

PostPosted: Thu Jun 02, 2011 4:54 am    Post subject: Reply with quote

Fixing the brass tubes is a nice addition to the thread. Now I know what to do with the original tap that I replaced becuase the brass pipes were cracked right at the tap surface.
_________________
my59: Well son, my grandfather died before I got to drive it, so does that answer your question?
our79: sunroof bus w/camper interior and 2.0 FI
Other:'12 Jetta, 77 Mercedes 300D
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Eric&Barb
Samba Member


Joined: September 19, 2004
Posts: 19192
Location: Olympia Wash Rinse & Repeat
Eric&Barb is offline

PostPosted: Thu Jun 02, 2011 6:28 am    Post subject: Reply with quote

jt69bug wrote:

Do you think it's okay to lube up the rubber part?


Using a grease with graphite in it is a must to work properly.
_________________
In Stereo, Where Available!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Boom
Samba Member


Joined: September 29, 2007
Posts: 1119
Location: Houston by God Texas
Boom is offline

PostPosted: Thu Jun 02, 2011 1:11 pm    Post subject: Reply with quote

nice thread, but I recently built a 61 and was able to buy a new unit for 50 bucks just incase you tear yours up they are available.
mine even has vw stamped into the body
_________________
Ovals are Overrated.....Click to view image

67 Chubby White Chic

DŁg BŁg

dLk
Back to top
View user's profile Send private message Classifieds Feedback
Eric&Barb
Samba Member


Joined: September 19, 2004
Posts: 19192
Location: Olympia Wash Rinse & Repeat
Eric&Barb is offline

PostPosted: Thu Jun 02, 2011 5:32 pm    Post subject: Reply with quote

Boom wrote:
nice thread, but I recently built a 61 and was able to buy a new unit for 50 bucks just incase you tear yours up they are available.
mine even has vw stamped into the body


New as in Brazilian? Do they still sell those with the brass tubes in the wrong place?
_________________
In Stereo, Where Available!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jt69bug
Samba Member


Joined: September 22, 2010
Posts: 87
Location: Middle Tennessee
jt69bug is offline

PostPosted: Mon Jun 06, 2011 1:40 am    Post subject: Reply with quote

I did not grease the above the rubber seal; it seems to be working just fine though... Should I remove and grease up to prevent some sort of failure?
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - 1958-1967 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6, 7  Next
Page 1 of 7


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
