 Posted: Sat Apr 19, 2008 3:22 am Post subject: Early Master Cylinder |
 |
|
I need to know what the thread size is of the screen topped screw that holds the reservoir to the top of the master cylinder.
Thanks,
Joey
_________________
58 Coral Red ragtop(Diana's car)
63 Ruby Red SC
67 Pearl White SO42
SOUTHERN INTEGRITY AIRCOOLERS |
|
| Back to top |
|
 |
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9407
Location: Northwood, NH USA
|
| Posted: Sat Apr 19, 2008 10:02 am Post subject: |
|
|

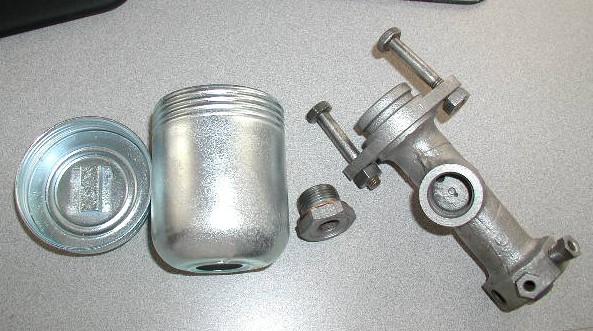

Here are pics of my MC Joey, sorry for not getting back to your e-mail a sooner.
The res nut mic's out at 21.98mm (22mm presumably) with a thread pitch of 1.5mm.
The steel res was recently zinc plated, the camera flash makes it look way more shiny than it really is...
(I'll reply to your e-mail about the gen/reg later, but it sounds to me like a reg problem...)
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9407
Location: Northwood, NH USA
|
| Posted: Sat Apr 19, 2008 5:15 pm Post subject: |
|
|
Anybody know when they switched from the steel to the aluminum reservoirs???
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
ProjectX
Accessory Nut
Joined: May 01, 2006
Posts: 1014
|
| Posted: Sat Apr 19, 2008 5:18 pm Post subject: |
|
|
Nice resto work John, I'll be doing mine soon.....
_________________
Even my nuts are plated.....
195? Project "X"
1954 Oval Convertible |
|
| Back to top |
|
|
53OvalLHD
Samba Member
Joined: December 11, 2007
Posts: 19
Location: Chino, CA
|
| Posted: Sun Apr 27, 2008 12:56 pm Post subject: |
|
|

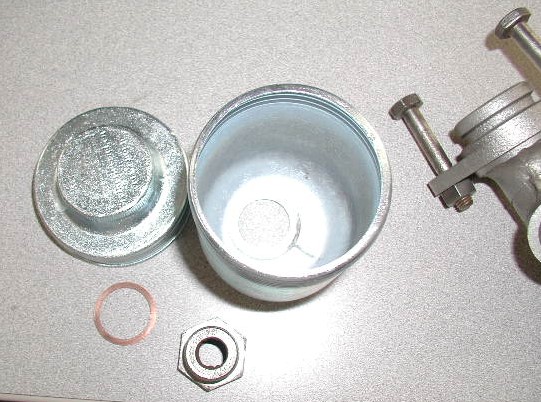

Here are all of the parts from mine, just need the rebuild kit and an aluminum reservoir. John, any thoughts
This looked like a butt crack before I cleaned it all up, a really dirty one |
|
| Back to top |
|
|
splitjunkie
Samba Member
Joined: April 04, 2006
Posts: 4201
|
| Posted: Sun Apr 27, 2008 3:12 pm Post subject: |
|
|
That is rare to see the strainer still intact.
Your are missing the float but that isn't really needed.
Ricardo (splitpartsunlimeted) sells repro steel reservoirs .
_________________
Chris
You know, a lot of these scratches will buff right out... Jerry Seinfeld |
|
| Back to top |
|
|
53OvalLHD
Samba Member
Joined: December 11, 2007
Posts: 19
Location: Chino, CA
|
| Posted: Sun Apr 27, 2008 3:38 pm Post subject: |
|
|
The float is the small disc at the end of the spring toward the brake lines, right? I think it's not missing, it's laying under the vice where I disassembled it
I think I've found an aluminum reservoir used, but nice so I'll run it as it was originally. The cups are very pliable, so I'm going to run them if I can bleed the system without any leaks. |
|
| Back to top |
|
|
scvw
Samba Member
Joined: September 02, 2006
Posts: 3552
Location: South Carolina
|
| Posted: Sun Apr 27, 2008 4:09 pm Post subject: |
|
|
Wow Eric. That one looks very nice. I hope to have one assembled very soon myself. The reservoir nut that I got doesn't have the strainer on it anymore. I know that I should have an aluminum reservoir but I just got a steel one and I might run it, providing there aren't any holes in it.
Anybody have a spare aluminum one they want to sell?
Joey
_________________
58 Coral Red ragtop(Diana's car)
63 Ruby Red SC
67 Pearl White SO42
SOUTHERN INTEGRITY AIRCOOLERS |
|
| Back to top |
|
|
HeSa
Samba Member
Joined: January 15, 2007
Posts: 466
Location: FINLAND
|
| Posted: Sun Apr 27, 2008 4:31 pm Post subject: |
|
|
According to this source (I think these pictures are borrowed from VW parts books) the float was not used together with the strainer.
|
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10798
Location: iT StiNgeD iTseLf tO dEAd
|
| Posted: Mon Nov 16, 2009 10:09 am Post subject: |
|
|
| splitjunkie wrote: |
That is rare to see the strainer still intact.
|
digging up an old thread because i know these things are hard to find in good condition.

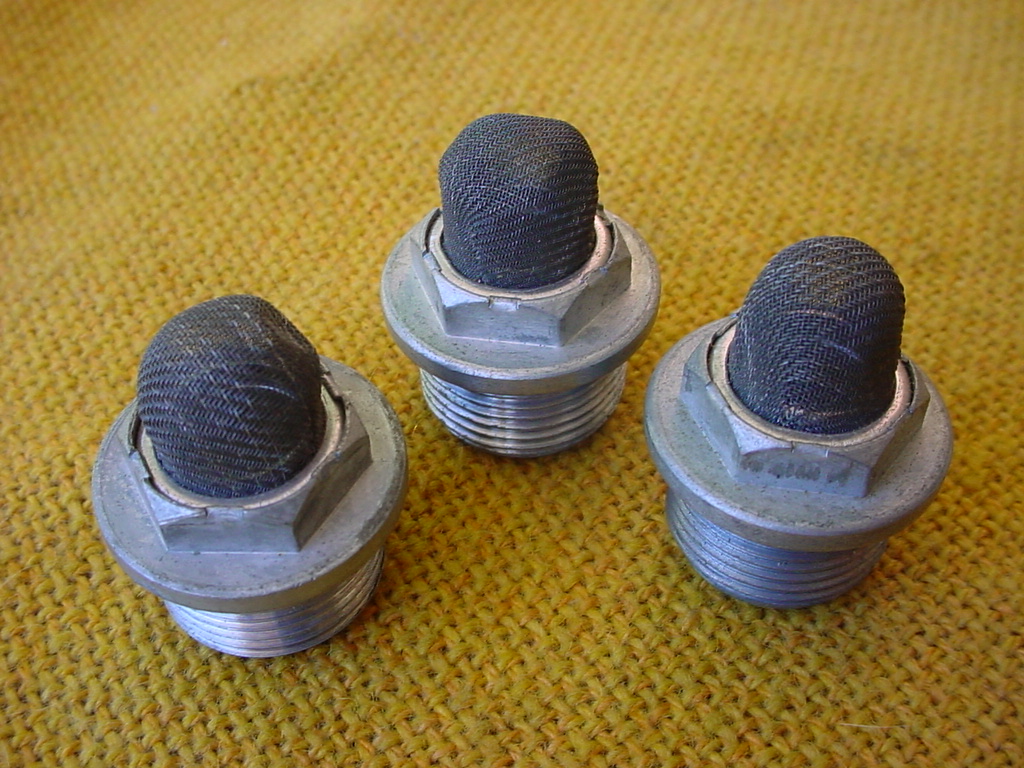

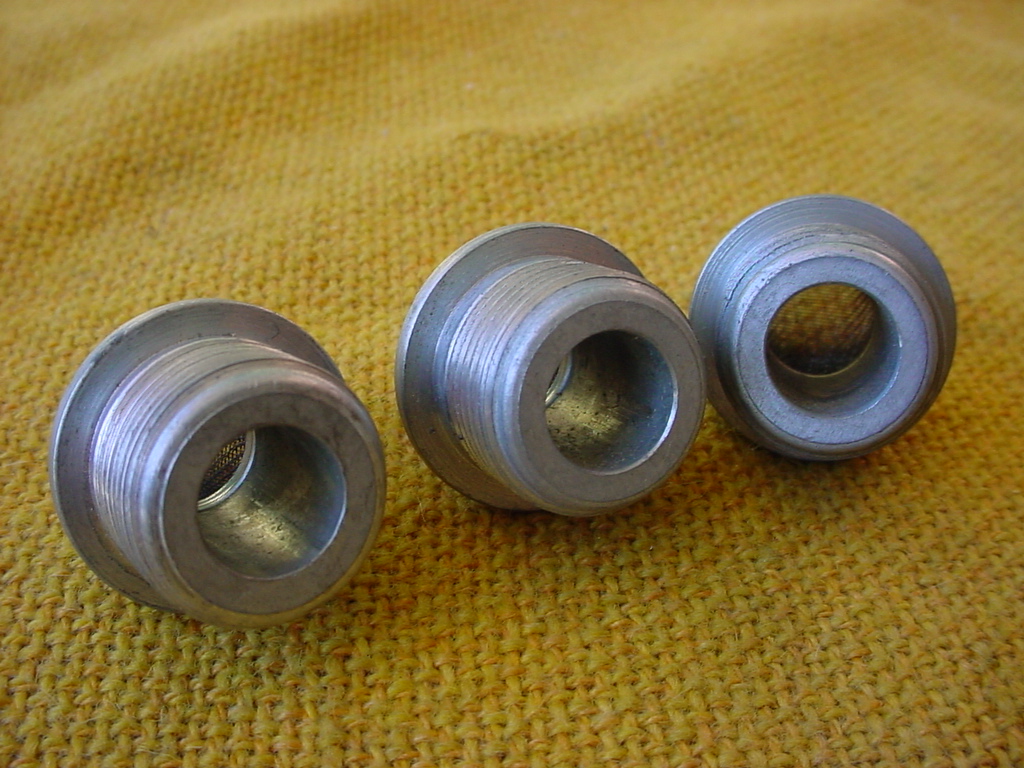

i recently bought some of these nuts/screens from a somewhat poorly listed classified ad. here is the link, there may still be some available (i bought 3  ):
http://www.thesamba.com/vw/classifieds/detail.php?id=867136
|
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9407
Location: Northwood, NH USA
|
| Posted: Mon Nov 16, 2009 10:57 am Post subject: |
|
|
| hazetguy wrote: |
| splitjunkie wrote: |
That is rare to see the strainer still intact.
|
digging up an old thread because i know these things are hard to find in good condition.
i recently bought some of these nuts/screens from a somewhat poorly listed classified ad. here is the link, there may still be some available (i bought 3 ):
http://www.thesamba.com/vw/classifieds/detail.php?id=867136
|
Those look different from the original ones, but if the thread and seat is the same, they should work. The ones I have are in my pic above, and are like Oval53LHDs.
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10798
Location: iT StiNgeD iTseLf tO dEAd
|
| Posted: Mon Nov 16, 2009 11:06 am Post subject: |
|
|
here's an original i removed from a master cylinder years ago. i've saved it as a spare since they are so difficult to find.
i think previous discussion in this thread has pointed out there are two (or more) different styles, and even the exploded diagram above shows three different styles.
the thread pitch is the same as the non screened one that came with my '51, and they both fit in my steel reservoir and master cylinder just fine. i even have one installed in my '59 Bus' aluminum reservoir. |
|
