SO42 poptop toggle latch, unusual, aftermarket or rare?
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
LAGrunthaner Premium Member
Samba Member


Joined: March 18, 2007
Posts: 5587
Location: 1st Coast
LAGrunthaner is offline

PostPosted: Mon Jul 01, 2024 5:49 am    Post subject: SO42 poptop toggle latch, unusual, aftermarket or rare? Reply with quote

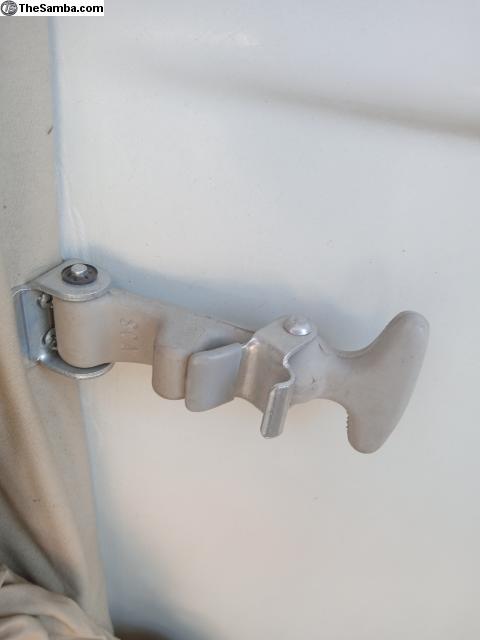

I was asked about this interesting pot-top toggle latch today and I have no answers. Is this unusual, aftermarket or something rare from Westfalia? I'm not sure what it is supposed to do other than allow the user to pull the rubber handle easily. Maybe it's from Baywindow Westies. Does anyone know about them or where to get them?

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
American Red Cross Safe And Well:
https://www.redcross.org/about-us/news-and-events/...bsite.html
Maui Roadsters VW Logo
www.mauiroadsters.com
http://www.oacdp.org
Lind wrote:
Have you considered simply starting with a nicer bus? I don't know what your skills are, but the race is easier if you can see the finish line. If you are not a runner, don't start off doing a marathon.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 52705
Location: Surrey B.C. Canada, but thinking of Ukraine
busdaddy is offline

PostPosted: Mon Jul 01, 2024 7:41 am    Post subject: Re: SO42 poptop toggle latch, unusual, aftermarket or rare? Reply with quote

It's the middle/rear from an early Bay with the full length top. The added hook grabs the edge of the roof opening.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
LAGrunthaner Premium Member
Samba Member


Joined: March 18, 2007
Posts: 5587
Location: 1st Coast
LAGrunthaner is offline

PostPosted: Mon Jul 01, 2024 9:54 am    Post subject: Re: SO42 poptop toggle latch, unusual, aftermarket or rare? Reply with quote

Thanks busdaddy, makes sense. I'll pass it along.

busdaddy wrote:
It's the middle/rear from an early Bay with the full length top. The added hook grabs the edge of the roof opening.

Image may have been reduced in size. Click image to view fullscreen.

_________________
American Red Cross Safe And Well:
https://www.redcross.org/about-us/news-and-events/...bsite.html
Maui Roadsters VW Logo
www.mauiroadsters.com
http://www.oacdp.org
Lind wrote:
Have you considered simply starting with a nicer bus? I don't know what your skills are, but the race is easier if you can see the finish line. If you are not a runner, don't start off doing a marathon.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
rsbadura
Samba Member


Joined: November 30, 2009
Posts: 744
Location: Berlin, Germany
rsbadura is offline

PostPosted: Tue Jul 02, 2024 12:12 am    Post subject: Re: SO42 poptop toggle latch, unusual, aftermarket or rare? Reply with quote

Hello everyone,

rare! Wink

Most replacements since decades are black - as also in my bay.
My originals are cracked and good originals ones are rare and hard to find.
Some I had bought in white or black in the past were much too hard and firm and not stretchy enough.
There is a nearby similar looking light grey ones today from WolfsburgWest at different shops - not tested them till now.


It was not needed in late bay Westfalia models with rear pop top since 1974. But it was not only on early bay models, it was an original part of 2 Westfalia SO 76/1 Berlin with late larger versions elevated roofs that I had in my garage during the restoration.
Both have these white /light grey/ beige latches. And saw it here also an other roof versions.

These small elevated roofs are not common in the US market for bays. There were two length by westfalia - and the larger one I talking about that was used from 6.1977 to 1979. The larger one has some storage space on top of the roof cutout. brochure images from small and larger one (compare the length to the sliding door window):
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


These also have a protector made of soft grey plastic near the hook on the support tab which protects the fabric and sheet metal - get probably lost in busdaddys photo.

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


or here with 2 in front of them in a SO 73/5 Offenbach Westfalia with early rear pop top around 1974:
Image may have been reduced in size. Click image to view fullscreen.


I can't find any photo of it in my brochure collection (more than 400 items) or old magazines or press photos.

But in VW microfiche "Campmobile, Mod. 74 - 79, Mod. 80" page 81 around part #12 VW order# 231 069 724 A or Westfalia# 216 004 113 064:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



Some more details and photos on my German website,
including 1977 installation instructions Westfalia lifting roof 216 014 841 001 with schematic picture of the latch ("Haubenhalter"):
https://www.vw-t2-bulli.de/de-westfalia-berlin-popuproof.html
Image may have been reduced in size. Click image to view fullscreen.


regards,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools collection
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Stocknazi
Samba Member


Joined: June 18, 2004
Posts: 5454

Stocknazi is offline

PostPosted: Wed Jul 03, 2024 6:58 am    Post subject: Re: SO42 poptop toggle latch, unusual, aftermarket or rare? Reply with quote

Curious if the small size bay window pop-top roof was the same as SO-42?
_________________
WANTED:
58 Westfalia cabinet knobs (3 needed), roof rack, and (7) privy tent poles (silver painted).

"When the people are afraid of the government, that's tyranny. But when the government is afraid of the people, that's liberty."
"The tree of liberty must be refreshed from time to time with the blood of patriots and tyrants."

Thomas Jefferson
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 52705
Location: Surrey B.C. Canada, but thinking of Ukraine
busdaddy is offline

PostPosted: Wed Jul 03, 2024 7:13 am    Post subject: Re: SO42 poptop toggle latch, unusual, aftermarket or rare? Reply with quote

It's slightly longer.
