| Author |
Message |
Blair McConnell
Samba Member
Joined: September 16, 2023
Posts: 33
Location: Riverview New Brunswick
|
 Posted: Sun Sep 08, 2024 10:21 am Post subject: 1985 vanagon radiator |
 |
|
Good afternoon folks,
Just finished replacing my radiator and fan. Just wondering how to store the old radiator. If it is worth keeping. Did a flush of water through it and it seems pretty clean. There was very little debris that came out. The water was flowing out as fast as I put it in.
Thanks |
|
| Back to top |
|
 |
ALIKA T3
Samba Member
Joined: July 30, 2009
Posts: 7161
Location: Honolulu,Hawaii and France
|
|
| Back to top |
|
|
Ahwahnee
Samba Member
Joined: June 05, 2010
Posts: 10209
Location: Mt Lemmon, AZ
|
| Posted: Sun Sep 08, 2024 11:14 am Post subject: Re: 1985 vanagon radiator |
|
|
| I think what you have there is a piece of scrap metal. It's difficult to assess flow/blockage by just looking at it and with some old (non-VW) radiators I've had they also lost efficiency as the fins were poorly in contact with the tubes. |
|
| Back to top |
|
|
hardway
Samba Member
Joined: January 03, 2012
Posts: 485
Location: Fidalgo Island
|
| Posted: Sun Sep 08, 2024 11:33 am Post subject: Re: 1985 vanagon radiator |
|
|
Very early T3 radiators were all metal. I don't know when the composite plastic/aluminum units were phased in. If your radiator is all metal then it can be taken apart, cleaned and reassembled. I had that done a lot a long time ago. The radiators resisted corrosion less after repairs. Time takes it toll.
With the advent of composite radiators they became more recyclable. There are not many radiator shops to rod out the all metal radiators anymore.
I used to live in Florida. There the thermal load was so high that you needed most of the capacity of the radiator. Back then radiators needed attention at 5 to 6 years of age. After rodding out they needed attention in 3 years or so.
Here in Western Washington most vehicles never need more than 25% of their capacity to reject heat. Only on the hottest days or pulling a pass do radiators show their weakness. |
|
| Back to top |
|
|
crazyvwvanman
Samba Member
Joined: January 28, 2008
Posts: 10364
Location: Orbiting San Diego
|
| Posted: Sun Sep 08, 2024 1:23 pm Post subject: Re: 1985 vanagon radiator |
|
|
Yes, watercooled T3s from model years 81 and 82 had all metal radiators.
After that, plastic end tanks.
At the same time, changes were made to the radiator mounting, pipe/hose setup, fan temp switch location and number........
Mark |
|
| Back to top |
|
|
4Gears4Tires
Samba Member
Joined: October 08, 2018
Posts: 4139
Location: MD
|
| Posted: Sun Sep 08, 2024 5:28 pm Post subject: Re: 1985 vanagon radiator |
|
|
| Ahwahnee wrote: |
| It's difficult to assess flow/blockage by just looking at it and with some old (non-VW) radiators |
Weigh the new one and weigh the old one.
I've swapped radiators out of old e30s (steel block) that still felt like they were full of coolant because they were so full with rusty sludge.
_________________
'87 Syncro Ferric Oxyhydroxide Superleggera Edition
'85 Westy Sciuridae Domus Edition |
|
| Back to top |
|
|
Silverghost500
Samba Member
Joined: August 01, 2018
Posts: 1198
Location: Atlanta, GA
|
| Posted: Sun Sep 08, 2024 6:12 pm Post subject: Re: 1985 vanagon radiator |
|
|
It's probably more money than it's worth to invest in the old radiator. While it may flow with a garden hose there still may be a good bit of crap and corrosion inside.
If you really want to make the investment you could take it to a radiator shop near you, see what it takes to boil & rod it.
_________________
1986 Volkswagen Vanagon Westfalia "Von Westy"
Honda K24A conversion
3-Speed Automatic
Von Westy YouTube Channel
https://www.youtube.com/channel/UCbhyZYxJEQrUuLnMbLleeIA |
|
| Back to top |
|
|
ALIKA T3
Samba Member
Joined: July 30, 2009
Posts: 7161
Location: Honolulu,Hawaii and France
|
| Posted: Sun Sep 08, 2024 11:11 pm Post subject: Re: 1985 vanagon radiator |
|
|
| hardway wrote: |
Very early T3 radiators were all metal. I don't know when the composite plastic/aluminum units were phased in. If your radiator is all metal then it can be taken apart, cleaned and reassembled. I had that done a lot a long time ago. The radiators resisted corrosion less after repairs. Time takes it toll.
With the advent of composite radiators they became more recyclable. There are not many radiator shops to rod out the all metal radiators anymore.
I used to live in Florida. There the thermal load was so high that you needed most of the capacity of the radiator. Back then radiators needed attention at 5 to 6 years of age. After rodding out they needed attention in 3 years or so.
Here in Western Washington most vehicles never need more than 25% of their capacity to reject heat. Only on the hottest days or pulling a pass do radiators show their weakness. |
There's been lots of subtle manufacturing changes over the years.
83-85 for sure, radiators were made by AKG plastic ends.
Late 84 production date they switched to from copper to aluminum core, 068121253B, still AKG
Funny story, Westy VIN FH043727 production date 11/84-12/84 had an aluminum radiator, built the same month by AKG
My Westy VIN FH044596 with the same production dates, had a copper core radiator. (time capsule van with 15K miles on it).
I also found another radiator built 12/84 with a copper core. So that's confusing, maybe a transition period with mixed inventory? I don't see them switching from aluminum to copper then back to aluminum again but who knows.
An 87 Doka with 43K kms had a VW radiator with finer fins like a evaporator and tubes, not flat tubes like we all know.
Some radiators for hotter climate were thicker, some were thinner. I posted pics of these https://www.thesamba.com/vw/forum/viewtopic.php?p=10058607
All VW.
I have more data but I didn't put it in the correct folder, I can't locate it.
Check this thread for photos of plugged radiator flowing "ok"
https://www.thesamba.com/vw/forum/viewtopic.php?p=9424358[list=][/list]
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget |
|
| Back to top |
|
|
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 52269
|
| Posted: Mon Sep 09, 2024 12:39 am Post subject: Re: 1985 vanagon radiator |
|
|

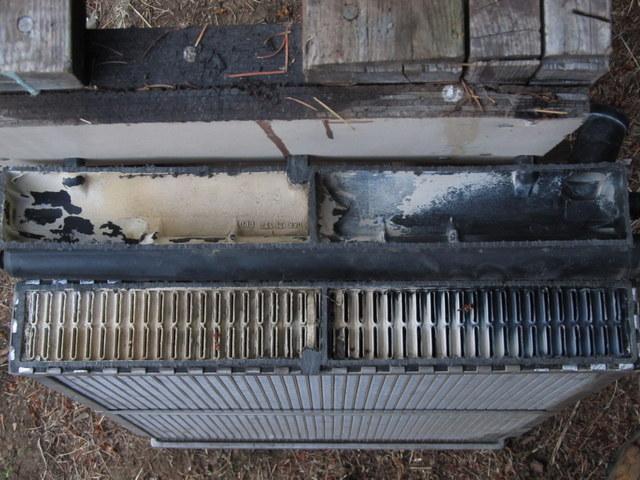

Here are some pictures of the tanks on the radiator out of my 91 Multivan, with ~300K miles on it. None of the tubes were clogged, but I have no regrets with having changed it out.
|
|
| Back to top |
|
|
ALIKA T3
Samba Member
Joined: July 30, 2009
Posts: 7161
Location: Honolulu,Hawaii and France
|
| Posted: Mon Sep 09, 2024 1:13 am Post subject: Re: 1985 vanagon radiator |
|
|
| Wildthings wrote: |
Here are some pictures of the tanks on the radiator out of my 91 Multivan, with ~300K miles on it. None of the tubes were clogged, but I have no regrets with having changed it out.
|
What's the part number on it please? Suffix "E" I believe? No 3 letter manufacturer code?
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget |
|
| Back to top |
|
|
zerotofifty
Samba Member
Joined: December 27, 2003
Posts: 3720
|
| Posted: Mon Sep 09, 2024 6:08 am Post subject: Re: 1985 vanagon radiator |
|
|
| My 1986 van had a copper/ plastic radiator from factory |
|
| Back to top |
|
|
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 52269
|
| Posted: Mon Sep 09, 2024 6:08 am Post subject: Re: 1985 vanagon radiator |
|
|
| ALIKA T3 wrote: |
What's the part number on it please? Suffix "E" I believe? No 3 letter manufacturer code? |
No clue. Pretty sure it's moved on to the great junk yard in the sky by now. |
|
| Back to top |
|
|
DanHoug
Samba Member
Joined: December 05, 2016
Posts: 5668
Location: Bemidji, MN
|
| Posted: Mon Sep 09, 2024 6:23 am Post subject: Re: 1985 vanagon radiator |
|
|
that white schmoo showing in Wildthings pictures of the core has a huge influence on heat transfer. sure, the core is NOT plugged but the heat transfer capacity is reduced. the Vanagon cooling system has quite a large over-capacity and can deal with reduced heat transfer but only up to a point. if you live in a hot area, obviously you want every BTU possible to leave the radiator.
that said, white schmoo probably would respond to a citric acid cleaning. but with the large hose runs of a Vanagon becomes a chore to flush it ALL out of the 2 heater cores, the block, and the rad. a new radiator in a 40 year old vehicle is a good thing, quality of replacement parts withstanding.
equally, if not more important if you have AC, is to make sure the space between the AC condenser and the radiator is not filled with dust and debris. i find that the case in just about every older car.
_________________
-dan
60% of what you find on the internet is wrong, including this post.
