 Posted: Mon Dec 21, 2009 3:42 pm Post subject: Can someone take a close up of a popout window hinge?*Found* |
 |
|
I am putting a set into our super and I would like a close up of the inside body hinge to see the fitment of the welting. Tried the gallery but its all kits outside the car or bus pop-outs.
Thank you for anyone that can help me.
More searching and I found this picture from this thread. Go me.
http://www.thesamba.com/vw/forum/viewtopic.php?t=217413
|
|
| Back to top |
|
 |
KEROUACTIVIST
Samba Member
Joined: February 18, 2009
Posts: 114
Location: NC
|
|
| Back to top |
|
|
ento
Samba Member
Joined: December 31, 2008
Posts: 246
Location: el paso tx
|
| Posted: Sun Apr 18, 2010 1:45 pm Post subject: |
|
|
So for the pop out hinge, Does it just flex the metal? And has this broken on anyone? Ive never had pop outs and just picked some up to put in my 69
_________________
62 type 2 So34
66 European bug, 66 euro sunroof
76 baja
76 sun bug sunroof
64,66,67,68 bug
69,70 bay
61 Ragtop bug, 61 sedan(looking for the vert)
61 RHD Ragtop Semaphore bug fakeAF
64,64 KG
74 thing
55 oval
70 ratrod
73 fastback pignose |
|
| Back to top |
|
|
kevhum
Samba Member
Joined: April 05, 2008
Posts: 726
|
| Posted: Sun Apr 18, 2010 2:34 pm Post subject: |
|
|

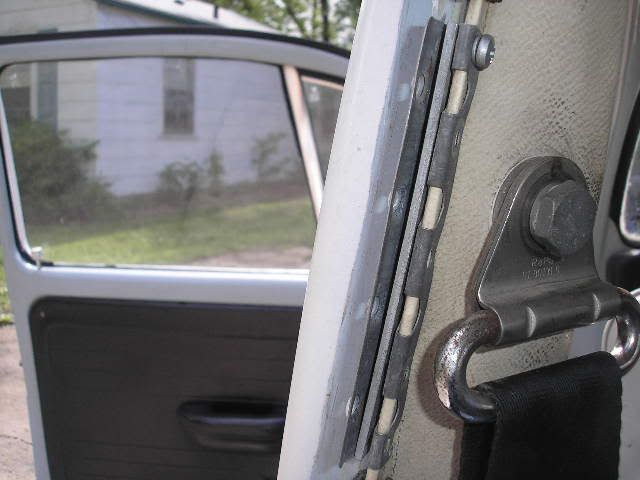

| theres little metal bars that go in there they have threaded holes in them for the screws to thread into.They probably help reinforce it to eliminate flex.on the first pic posted you can see the end of one of them sticking out on the bottom. |
|
| Back to top |
|
|
JonF
Samba Member
Joined: December 16, 2005
Posts: 2030
Location: Oklahoma
|
| Posted: Sun Apr 18, 2010 5:22 pm Post subject: |
|
|
_________________
68 bug 1600sp 30/31
68 baja 1600sp 010 32ndix |
|
| Back to top |
|
|
kevhum
Samba Member
Joined: April 05, 2008
Posts: 726
|
| Posted: Sun Apr 18, 2010 6:35 pm Post subject: |
|
|

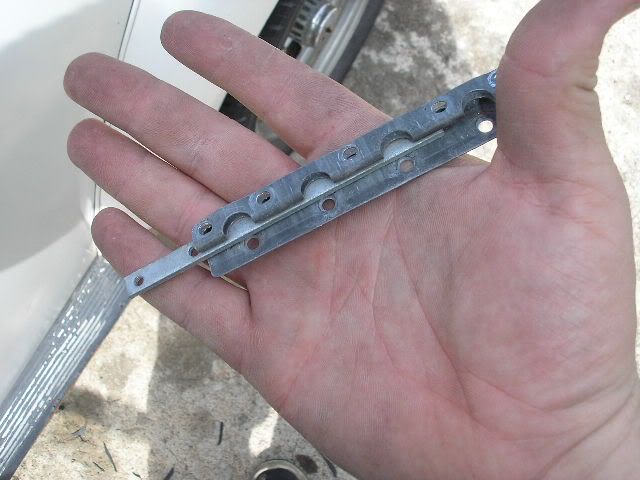

yes those are them, also I've noticed on A 68 bug we were parting out that the holes were already in the pinch wield and the car didn't have pop-outs
. |
|
| Back to top |
|
|
JonF
Samba Member
Joined: December 16, 2005
Posts: 2030
Location: Oklahoma
|
| Posted: Sun Apr 18, 2010 7:01 pm Post subject: |
|
|
yep they have the holes already needed for pop out windows.
_________________
68 bug 1600sp 30/31
68 baja 1600sp 010 32ndix |
|
| Back to top |
|
|
ento
Samba Member
Joined: December 31, 2008
Posts: 246
Location: el paso tx
|
| Posted: Sat Apr 24, 2010 2:53 pm Post subject: |
|
|
Cool thanks for the pics they help out a lot
_________________
62 type 2 So34
66 European bug, 66 euro sunroof
76 baja
76 sun bug sunroof
64,66,67,68 bug
69,70 bay
61 Ragtop bug, 61 sedan(looking for the vert)
61 RHD Ragtop Semaphore bug fakeAF
64,64 KG
74 thing
55 oval
70 ratrod
73 fastback pignose |
|
| Back to top |
|
|
DesignBuild
Samba Member
Joined: September 29, 2016
Posts: 402
Location: HOUSTON, TEXAS
|
| Posted: Sun Jun 02, 2019 1:25 am Post subject: Re: Can someone take a close up of a popout window hinge?*Found* |
|
|
| If you measure the opening from the body and the length of the window you can figure out the amount of movement at the hinge. It is very small and is evidently not enough to cause metal fatigue at the 'hinge'. If the hinge cracks you can find new hinges readily. |
|
