 Posted: Thu Dec 24, 2009 12:15 pm Post subject: 59 panel van conversion to 15 window deluxe |
 |
|

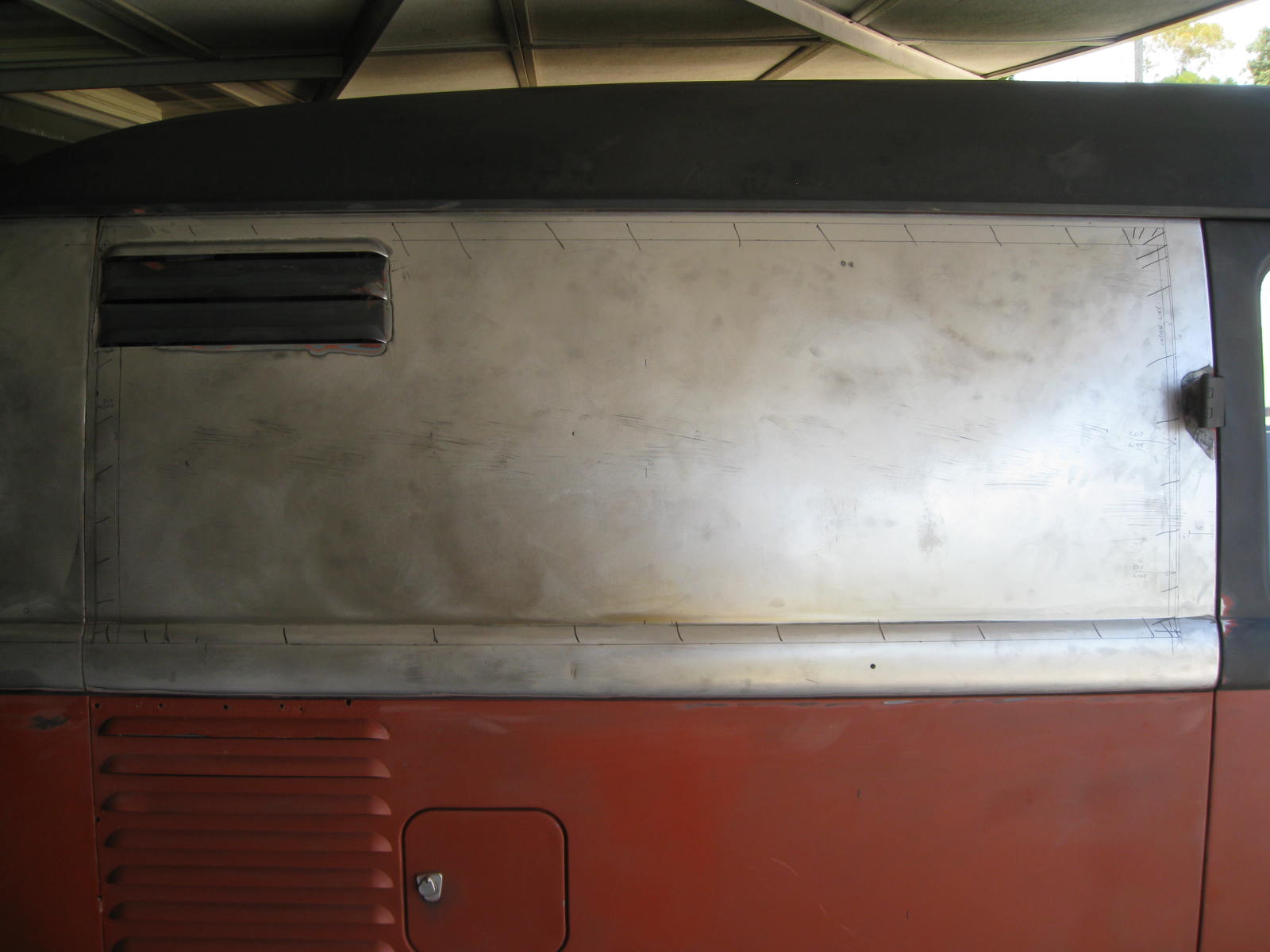

First stage of conversion.Clean painted area.Mark out cut lines.Cut donor side windows from cargo doors.
Last edited by themetalsurgeon on Thu Dec 24, 2009 4:04 pm; edited 2 times in total |
|
| Back to top |
|
 |
themetalsurgeon
Samba Member
Joined: April 11, 2008
Posts: 425
Location: Denver
|
| Posted: Thu Dec 24, 2009 4:24 pm Post subject: |
|
|

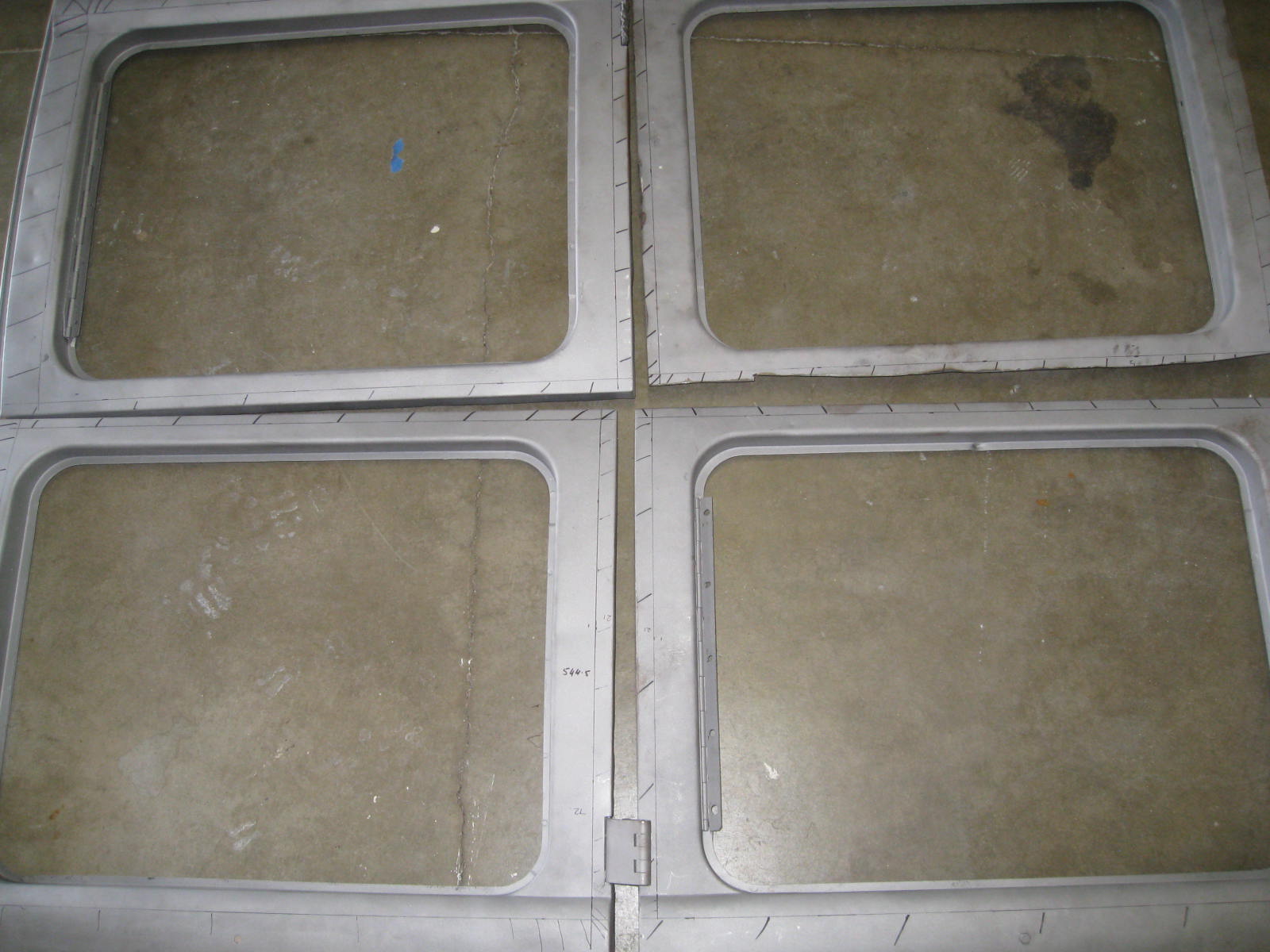

pics include cargo door top window frame donors to graft in to the bus. |
|
| Back to top |
|
|
Lohe
Samba Member
Joined: June 26, 2007
Posts: 662
Location: Chandler, Az
|
| Posted: Thu Dec 24, 2009 4:33 pm Post subject: |
|
|
I've got a 59 panel with holes already cut in the side, trade you?
Oh wait, too late. |
|
| Back to top |
|
|
kombisutra
Samba Member
Joined: October 02, 2003
Posts: 4127
Location: San Anselmo, 10 miles North Of San Francisco
|
| Posted: Thu Dec 24, 2009 7:13 pm Post subject: |
|
|
He's obviously committed. I'll just stand back and watch. Hope his work is up to his avitar screen name.
Everette, for Christmas- despite how much we owe you- we want an "eating popcorn" emocon.
I'm eating popcorn. Let's see your work... |
|
| Back to top |
|
|
KombiMonster
Samba Member
Joined: April 17, 2001
Posts: 2751
Location: Central Cal.
|
| Posted: Thu Dec 24, 2009 8:35 pm Post subject: |
|
|
are the door window sections flat like the side panel?
_________________
FOOK CANCER
*WANTED* |
|
| Back to top |
|
|
themetalsurgeon
Samba Member
Joined: April 11, 2008
Posts: 425
Location: Denver
|
| Posted: Thu Dec 24, 2009 9:19 pm Post subject: 59 panel van conversion to 15 window deluxe |
|
|

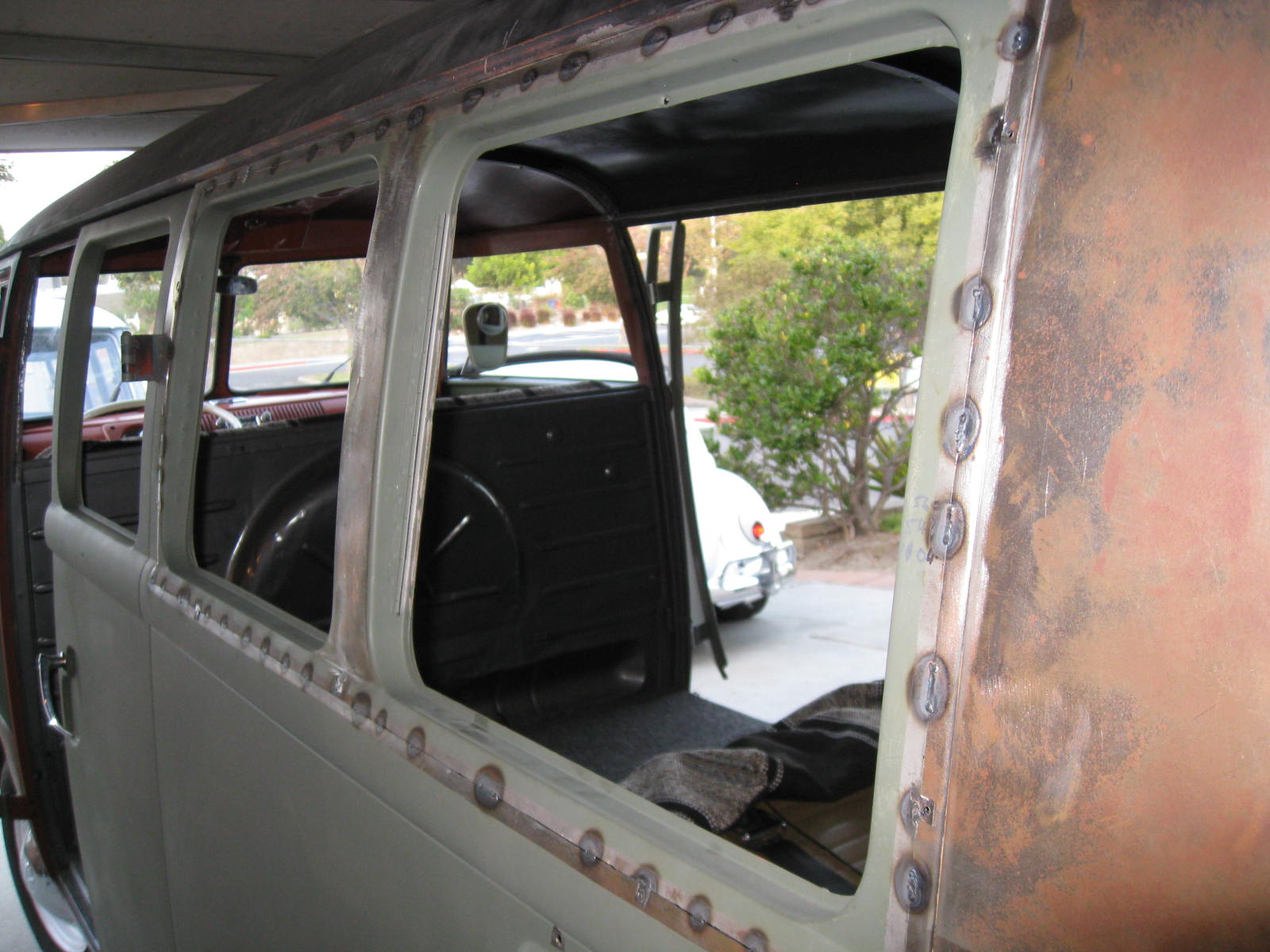

the 2 donor cargo window frames TIG welded together and metal finished.Then grafted into the ares cut out in the bus body.Klico'd in ,then tacked.
Followed by welding an inch at a time ,and cooling immeadiatley .Then metal finish as shown in the centre section of the 2 window frames. |
|
| Back to top |
|
|
themetalsurgeon
Samba Member
Joined: April 11, 2008
Posts: 425
Location: Denver
|
| Posted: Thu Dec 24, 2009 9:22 pm Post subject: |
|
|
are the door window sections flat like the side panel?
| Quote: |
cargo window frames share the same profile as the body. |
|
|
| Back to top |
|
|
slow36hp
scott wimberley
Joined: August 09, 2004
Posts: 3113
Location: mukilteo washington
|
|
| Back to top |
|
|
my65vert
Samba Member
Joined: November 09, 2003
Posts: 6186
Location: Middleburg, Florida
|
| Posted: Thu Dec 24, 2009 9:41 pm Post subject: |
|
|
when your finished I have an early 57 panel you can do.
would it not be easier to use complete donor window sections from a kombi/standard bus for each side in 1 complete panel?
_________________
OGJHC
Kombisutra;
I'm starting to get little wafts of bus stink coming from the north. Something about the unique scent of drivers seat padding when it's glued together with mouse piss and shit that really gets me going... and I'm smelling it! Oh yeah! Time to start loading up the equipment. |
|
| Back to top |
|
|
themetalsurgeon
Samba Member
Joined: April 11, 2008
Posts: 425
Location: Denver
|
| Posted: Thu Dec 24, 2009 10:17 pm Post subject: |
|
|

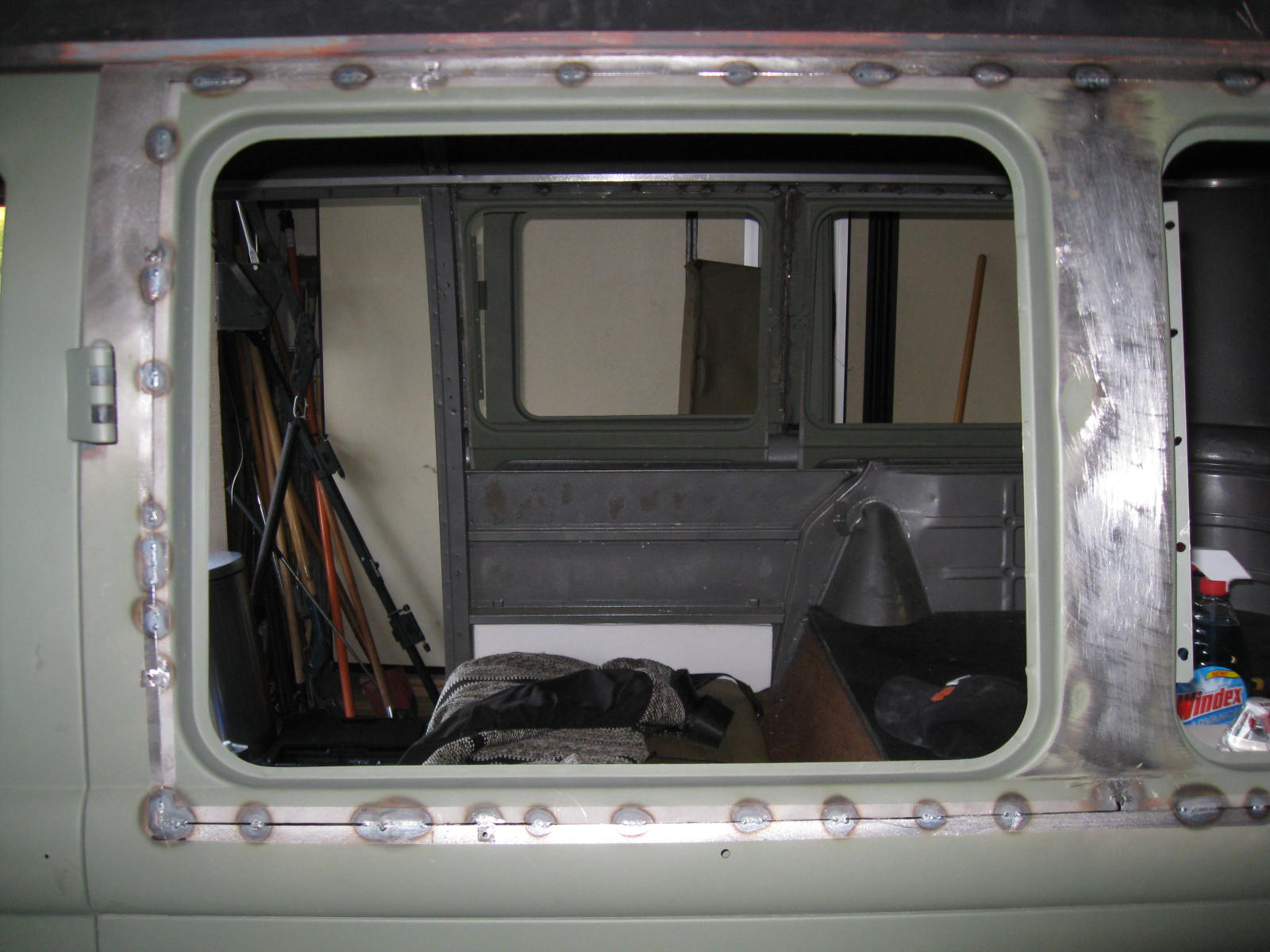

another angle |
|
| Back to top |
|
|
rustfree1967bug
Samba Member
Joined: November 16, 2006
Posts: 3426
Location: minnesota
|
| Posted: Thu Dec 24, 2009 10:21 pm Post subject: |
|
|
So it will be a double door 15w?
_________________
'70 ghia
'69 ghia
'65 singlecab
'66 sunroof beetle
'74 bus
'67 so-42
IDA's...well... they talk dirty -MURZI |
|
| Back to top |
|
|
themetalsurgeon
Samba Member
Joined: April 11, 2008
Posts: 425
Location: Denver
|
| Posted: Thu Dec 24, 2009 10:26 pm Post subject: 59 panel van conversion to 15 window deluxe |
|
|

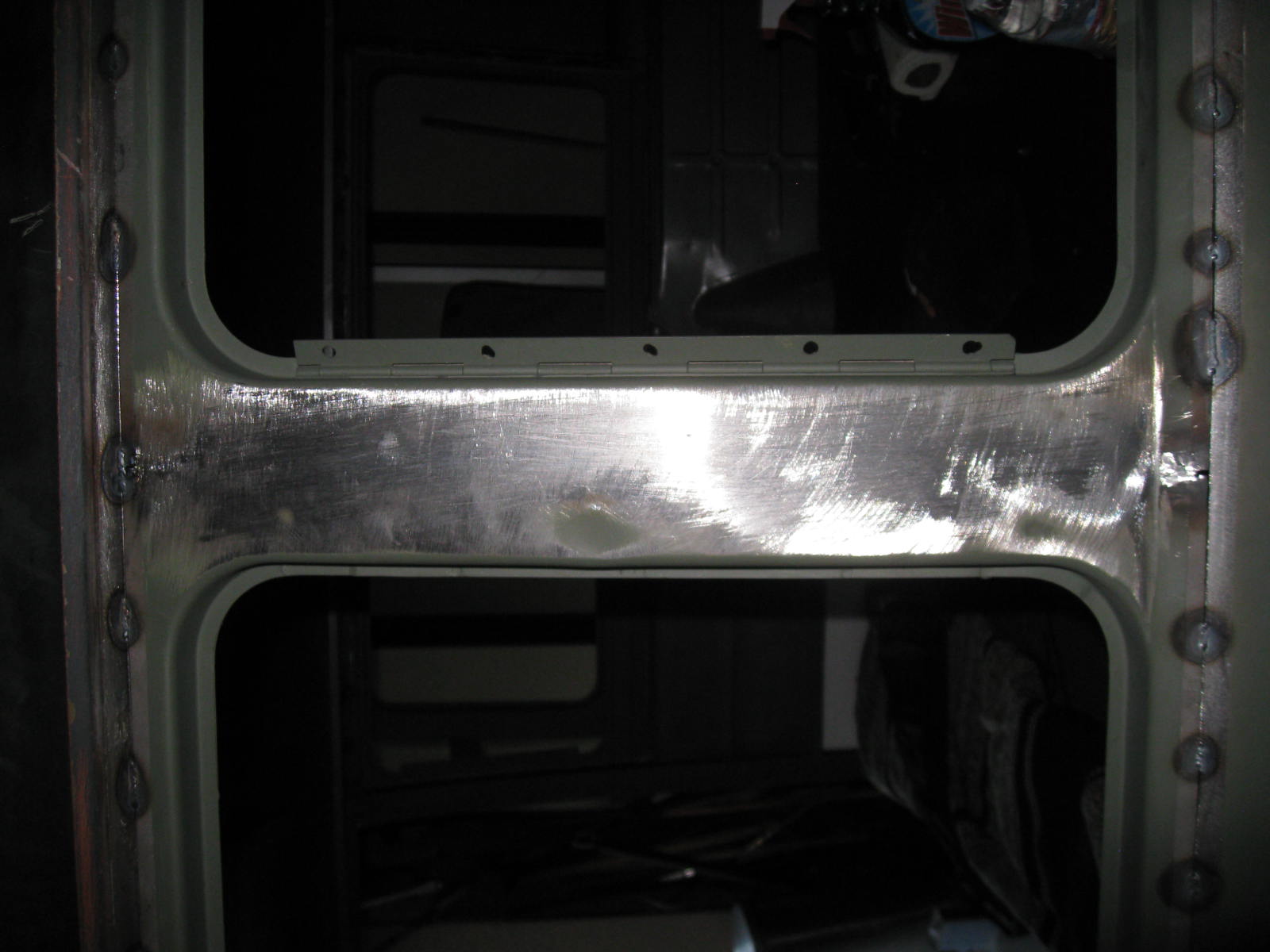

inside the bus.weld penetration |
|
| Back to top |
|
|
themetalsurgeon
Samba Member
Joined: April 11, 2008
Posts: 425
Location: Denver
|
| Posted: Thu Dec 24, 2009 10:28 pm Post subject: 59 panel van conversion to 15 window deluxe |
|
|
So it will be a double door 15w? [/quote]
certainly will be |
|
| Back to top |
|
|
themetalsurgeon
Samba Member
Joined: April 11, 2008
Posts: 425
Location: Denver
|
| Posted: Thu Dec 24, 2009 10:37 pm Post subject: 59 panel van conversion to 15 window deluxe |
|
|

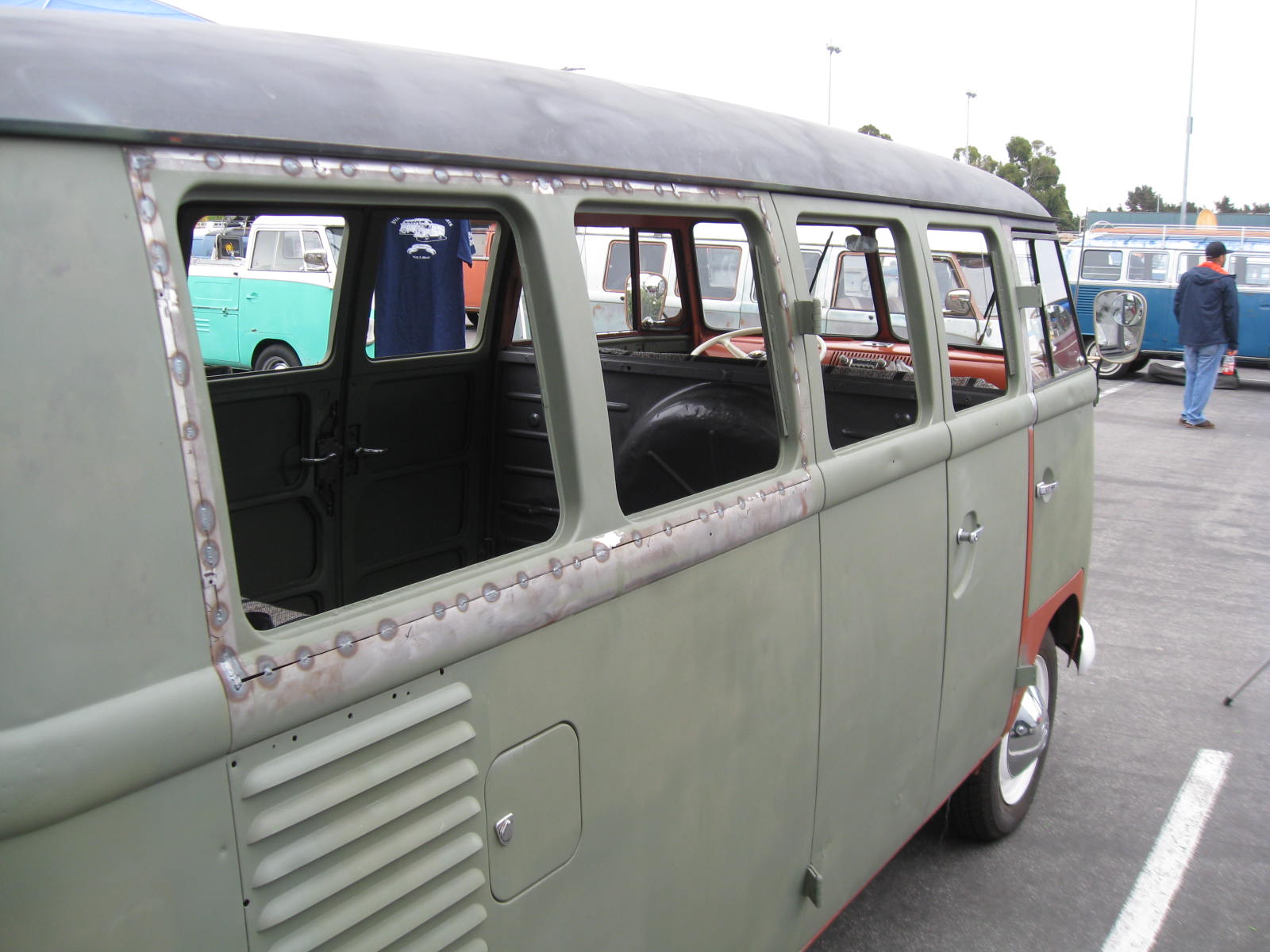

the bus at OCTO fest 09 .Work in progress! |
|
| Back to top |
|
|
mightymouse
Samba Member
Joined: May 26, 2004
Posts: 4220
Location: las vegas
|
| Posted: Thu Dec 24, 2009 11:37 pm Post subject: |
|
|
| my65vert wrote: |
when your finished I have an early 57 panel you can do.
|
Please dont waste a good early panel. If you want a 15, buy one. Perpetrating should be against the law.
_________________
Nothing can stop the man with the right mental attitude from achieving his goal; nothing on earth can help the man with the wrong mental attitude.
Thomas Jefferson
Note to EVERYONE.
Know your ZDDP levels or you WILL lose a cam and lifters. |
|
| Back to top |
|
|
joe cool
Samba Member
Joined: August 20, 2006
Posts: 1255
Location: Yolo County CA
|
| Posted: Fri Dec 25, 2009 12:22 am Post subject: |
|
|
| Lohe wrote: |
I've got a 59 panel with holes already cut in the side, trade you?
Oh wait, too late. |
The pieces he is cutting out are the pieces I need to de-camper my panel.
Are they available? |
|
| Back to top |
|
|
zimblewinder
Samba Member
Joined: January 22, 2004
Posts: 887
Location: Australia
|
| Posted: Fri Dec 25, 2009 4:06 am Post subject: |
|
|
Door window inner skins are not right above the window line. The original skins are flat.
_________________
58Euro 23 343208 The Ultimate Zimblewinder Machine.
59 mango standard
Wanted- splash pan supports, og pressed bumper coach bolts, ivory blaupunkt knobs (early), armrest alloy strips, NOS door mechanism |
|
| Back to top |
|
|
i_am_cool_fred
Samba Member
Joined: June 26, 2004
Posts: 1743
Location: Benton, AR
|
| Posted: Fri Dec 25, 2009 5:09 am Post subject: |
|
|
| joe cool wrote: |
| Lohe wrote: |
I've got a 59 panel with holes already cut in the side, trade you?
Oh wait, too late. |
The pieces he is cutting out are the pieces I need to de-camper my panel.
Are they available? |
agreed, people doing this only make my panel more valuable
man,i just soudned like a purist
_________________
proud owner of a defunct 1979 sunroof kombi
Brian Denning, as seen on Gearz TV |
|
| Back to top |
|
|
my65vert
Samba Member
Joined: November 09, 2003
Posts: 6186
Location: Middleburg, Florida
|
| Posted: Fri Dec 25, 2009 6:50 am Post subject: |
|
|
| mightymouse wrote: |
| my65vert wrote: |
when your finished I have an early 57 panel you can do.
|
Please dont waste a good early panel. If you want a 15, buy one. Perpetrating should be against the law. |
I dont want a 15 window i just sold the one I had, I would just make it an 11 window kombi or maybe just cut camper windows into it?
_________________
OGJHC
Kombisutra;
I'm starting to get little wafts of bus stink coming from the north. Something about the unique scent of drivers seat padding when it's glued together with mouse piss and shit that really gets me going... and I'm smelling it! Oh yeah! Time to start loading up the equipment. |
|
| Back to top |
|
|
Lohe
Samba Member
Joined: June 26, 2007
Posts: 662
Location: Chandler, Az
|
| Posted: Fri Dec 25, 2009 7:14 am Post subject: |
|
|
| Nice metal work, really. Hope you saved the panels for someone |
|
