Leaking coolant level sending unit with weak connector.
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
86VaNa60N
Samba Member


Joined: March 22, 2014
Posts: 53
Location: Ventura
86VaNa60N is offline

PostPosted: Thu Sep 20, 2018 9:33 pm    Post subject: Leaking coolant level sending unit with weak connector. Reply with quote

Hello

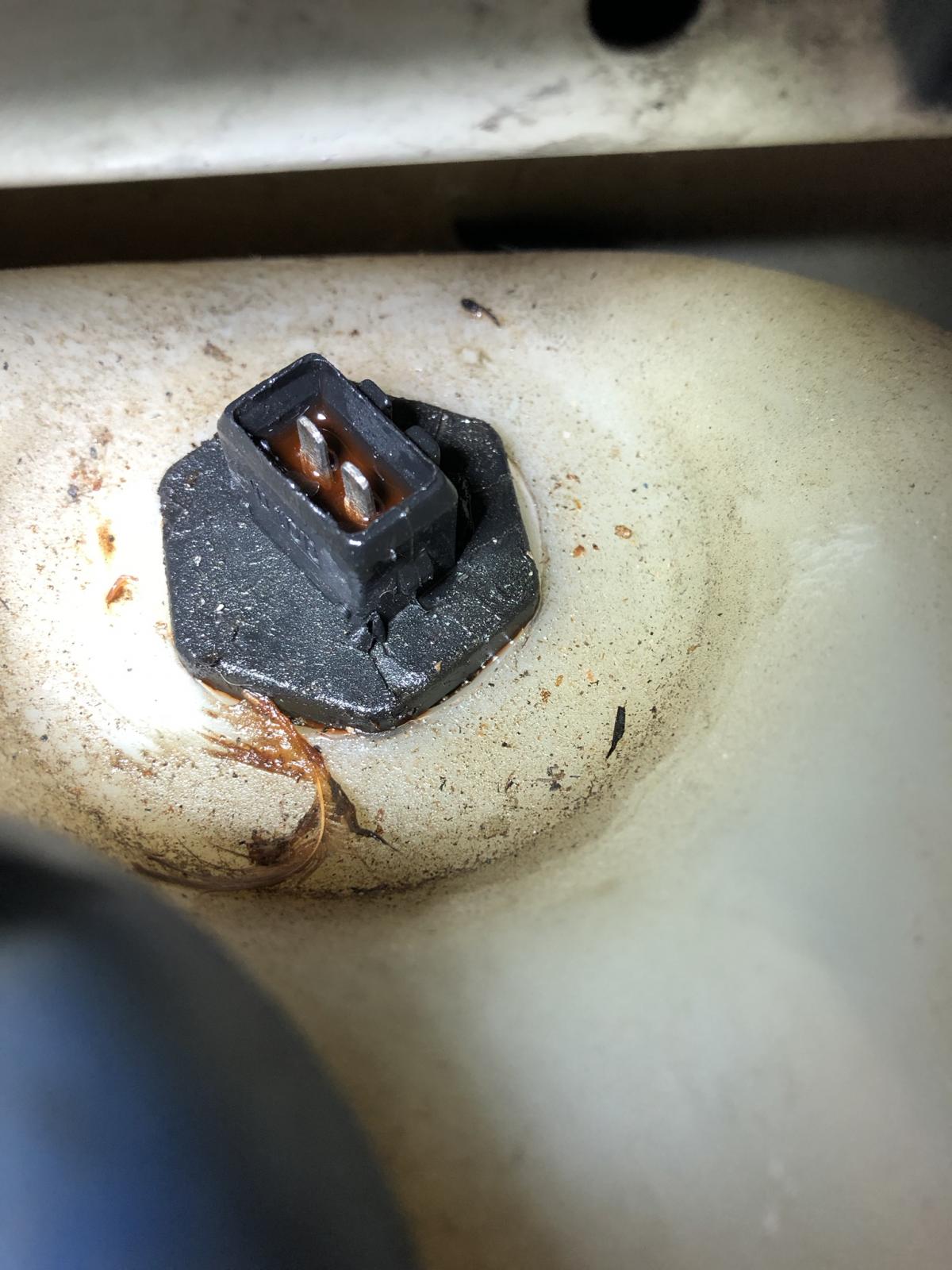

The connector to the coolant level sending unit is so worn that it keeps popping off. The rubber boot was so warped that it was making it impossible to seat the connection, so I trimmed it. The send unit some how gets filled up with coolant, even though its only 2 years old. I'm thinking, OK, new sending unit to purchase, however, has anyone found a new connector out there?

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 3606
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Thu Sep 20, 2018 10:12 pm    Post subject: Re: Leaking coolant level sending unit with weak connector. Reply with quote

You have the wrong sender for your connector, that's why. You need the older sender Wink

Put a little bit of Teflon, that helps the o'ring doing its job, they often leak bc the expansion tanks o'ring seat is not perfect.
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
86VaNa60N
Samba Member


Joined: March 22, 2014
Posts: 53
Location: Ventura
86VaNa60N is offline

PostPosted: Fri Sep 21, 2018 12:25 am    Post subject: Re: Leaking coolant level sending unit with weak connector. Reply with quote

Wow, really? Ok. I'll check into that. Thanks Smile
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AtlasShrugged
Samba Member


Joined: October 30, 2008
Posts: 1495
Location: Decatur, Ga. USA
AtlasShrugged is offline

PostPosted: Fri Sep 21, 2018 6:55 am    Post subject: Re: Leaking coolant level sending unit with weak connector. Reply with quote

Yep..two different senders, same basic design but electrical connection is different. An early part number 251-919-372 and later part number 5B0-919-372.


Your sender looks like it is leaking up through the electrical elements..very common problem. It look like it is leaking around the threads but the clue is that puddle around the plug connector.

To avoid this problem get the correct sender from VW..the after-market senders fail often.

Image may have been reduced in size. Click image to view fullscreen.

251-919-372
Image may have been reduced in size. Click image to view fullscreen.

5B0-919-372
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
86VaNa60N
Samba Member


Joined: March 22, 2014
Posts: 53
Location: Ventura
86VaNa60N is offline

PostPosted: Fri Sep 21, 2018 8:02 am    Post subject: Re: Leaking coolant level sending unit with weak connector. Reply with quote

Great thank you for advising Smile Is it possible to get a new boot around the connector as well?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AtlasShrugged
Samba Member


Joined: October 30, 2008
Posts: 1495
Location: Decatur, Ga. USA
AtlasShrugged is offline

PostPosted: Fri Sep 21, 2018 8:44 am    Post subject: Re: Leaking coolant level sending unit with weak connector. Reply with quote

86VaNa60N wrote:
Great thank you for advising Smile Is it possible to get a new boot around the connector as well?


The new boot part number is 447919141 about $10 from Latvia on the Bay. You will have to remove the plastic connector AIRC...part number 171906231.

A bit fiddly as you will need new brass electrical plug connectors too. Those are not listed but usually part of a electrical Euro connector kit in most shops.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
86VaNa60N
Samba Member


Joined: March 22, 2014
Posts: 53
Location: Ventura
86VaNa60N is offline

PostPosted: Fri Sep 21, 2018 12:46 pm    Post subject: Re: Leaking coolant level sending unit with weak connector. Reply with quote

Thanks so much, listing the part number is very helpful. Have a great weekend Smile
Back to top
View user's profile Send private message Gallery Classifieds Feedback
86VaNa60N
Samba Member


Joined: March 22, 2014
Posts: 53
Location: Ventura
86VaNa60N is offline

PostPosted: Wed Oct 17, 2018 11:35 am    Post subject: Re: Leaking coolant level sending unit with weak connector. Reply with quote

Hi Atlas,

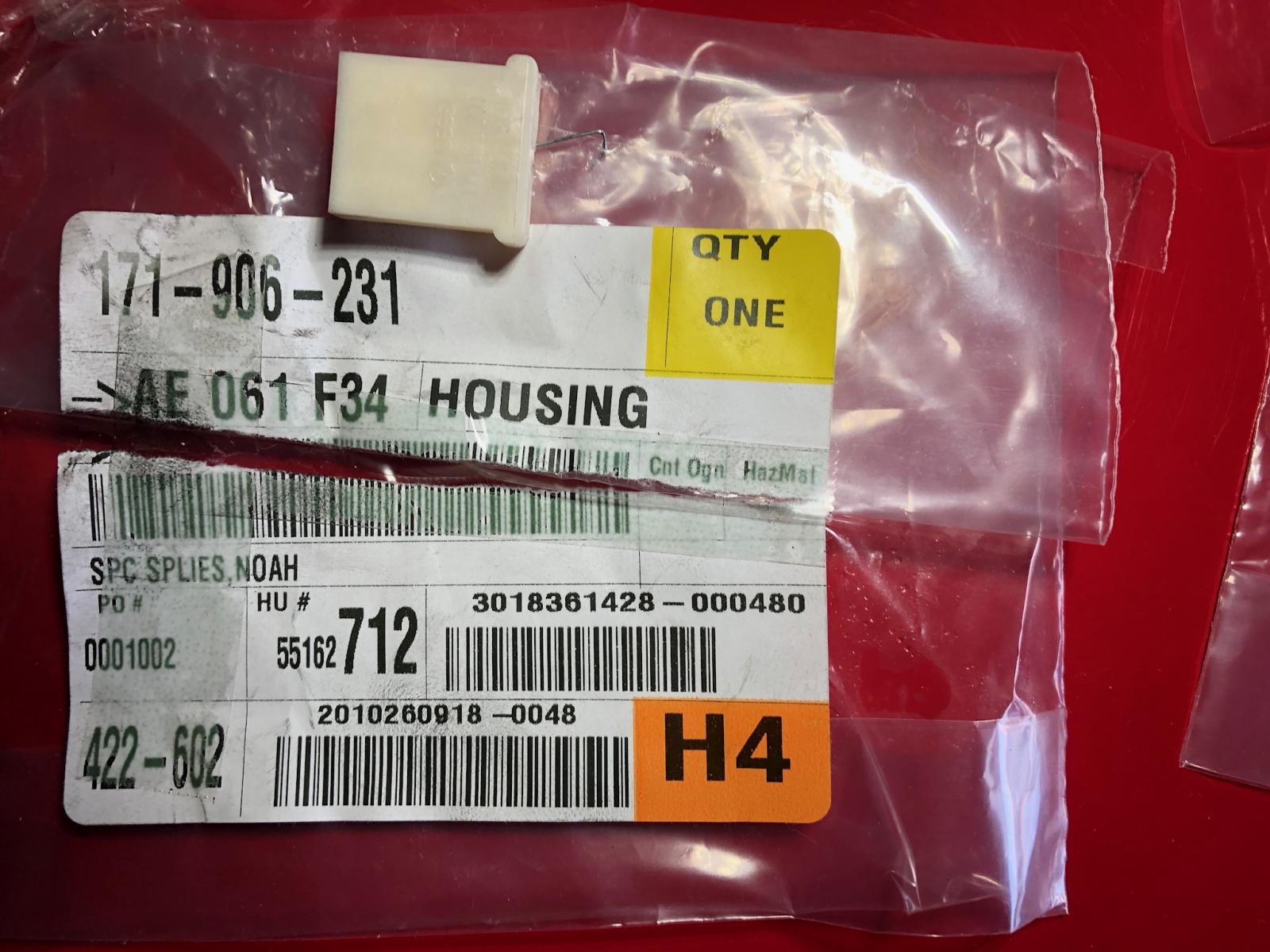

I ordered those parts from VW and sure enough they had them TYSM. The boot is an exact copy of the original - yaaay. However, the electrical connector was too big. I'm thinking this may be the connector for earlier models before my 1986 van.

Just to save hassling the parts dept at the dealership, would you happen to know the part number for the connector for my year? Otherwise, I'm gonna have to figure out how to disconnect the terminals from the plastic connector so I can some how get the boot over the wires.

Thanks,
Noah
Image may have been reduced in size. Click image to view fullscreen.
