Windshield Rust Advice

[Aukai]

I am replacing the lower section of the windshield frame. I had cut and removed the rusted/rotted lower windshield section. When I put the new lower windshield replacement panel in, I have nothing to weld the bottom of the replacement windshield piece where the bottom of the windshield frame meets the top of the front nose. What do I do now??????

Thanks,
Bruce

[iamdonquixote]

how much of a gap are we talking about ?

a pic would help.

[Campy]

I am not sure what you mean but, once the piece is welded in at the top and side edges, the sill is spot welded to the nose panel.
_________________
Don't worry; be happy. (Baba)

[Slow Steve]

I think you might have cut the lower part that you could have rested the replacement on. There is a lip if you just cut the top layer of metal. Here's a link to my lower windshield replacement. Hope this helps.

http://kustomcoachwerks.com/forums/viewtopic.php?t=4477

[slow36hp]

[Stanagon]

[SkooobaSteve]

When you remove the window metal you have to be carefull not to cut into the nose part that is behind the metal.

The metal is spot welded to it all the way down on the both sides of the lip comming off the nose.

So when you remove the skin of the window seal area it should look somthing like that last picture.
_________________
Jonathan
Romans 6:13
WTB 67 beetle rear seat belts.
59 Euro ragtop build with my dad
http://www.thesamba.com/vw/forum/viewtopic.php?t=493553&postdays=0&postorder=asc&start=0
65 dlx Slow build
http://www.thesamba.com/vw/forum/viewtopic.php?t=391061

[Slow Steve]

[Slow Steve]

[joescoolcustoms]

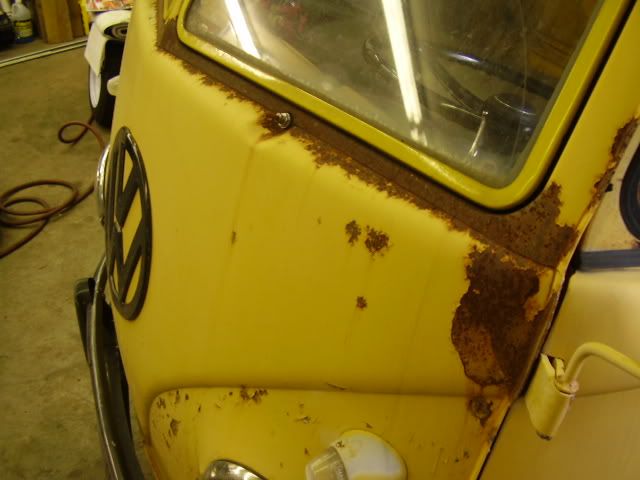

I am in a similar situation. My Windscreen is rusted pretty well, but no holes or rust through. The overlaying metal is not swelling.

My question is with a condition like this, how does one restore this area and not have rust reappear from under the overlay?

What is the best method, media blast then POR treat, the prime and paint?

_________________
Bad News Racing 2018 NORRA 1000 3rd in Class
Best Day Ever Racing 2022 NORRA 1000 2nd in Class and first All Female team to complete the race

Everyone is gifted. Some just do not open the package.

Looks like it was painted with a live chicken,polished with a brick and buffed with a pine cone

[SkooobaSteve]

That a tough one, even thought the metal is not rusted through there is still more than likely going to have rust in between the 2 peices of metal.
_________________
Jonathan
Romans 6:13
WTB 67 beetle rear seat belts.
59 Euro ragtop build with my dad
http://www.thesamba.com/vw/forum/viewtopic.php?t=493553&postdays=0&postorder=asc&start=0
65 dlx Slow build
http://www.thesamba.com/vw/forum/viewtopic.php?t=391061

[germansupplyscott]

sandblast and paint with POR15 then prime as per their guidelines. it isn't 100% needed to sandblast if you're using POR15 but when the rust is like that i'd do it if you have the ability.

here is a photo gallery with some decent details on replacing the lower channel. the owner of the bus is a member here, velvetgreen.

http://www.germansupply.com/Picture_Galleries/germ...bi.html#15
_________________
SL

[Aukai]

I just got the sheet metal piece from Gerson of Klassic Fabrications delivered to my house. It's the piece that the lower windshield repair panel welds onto. Thanks everyone for your advice and input. Gerson, muchas gracias!!!!!!!

[Slow Steve]
