 Posted: Mon Jan 08, 2024 8:30 am Post subject: Rear Wheelhouse reinforcement 1960 |
 |
|
Short question due to the reason that I was not able to find this information somewhere (or I had the wrong wording probably)

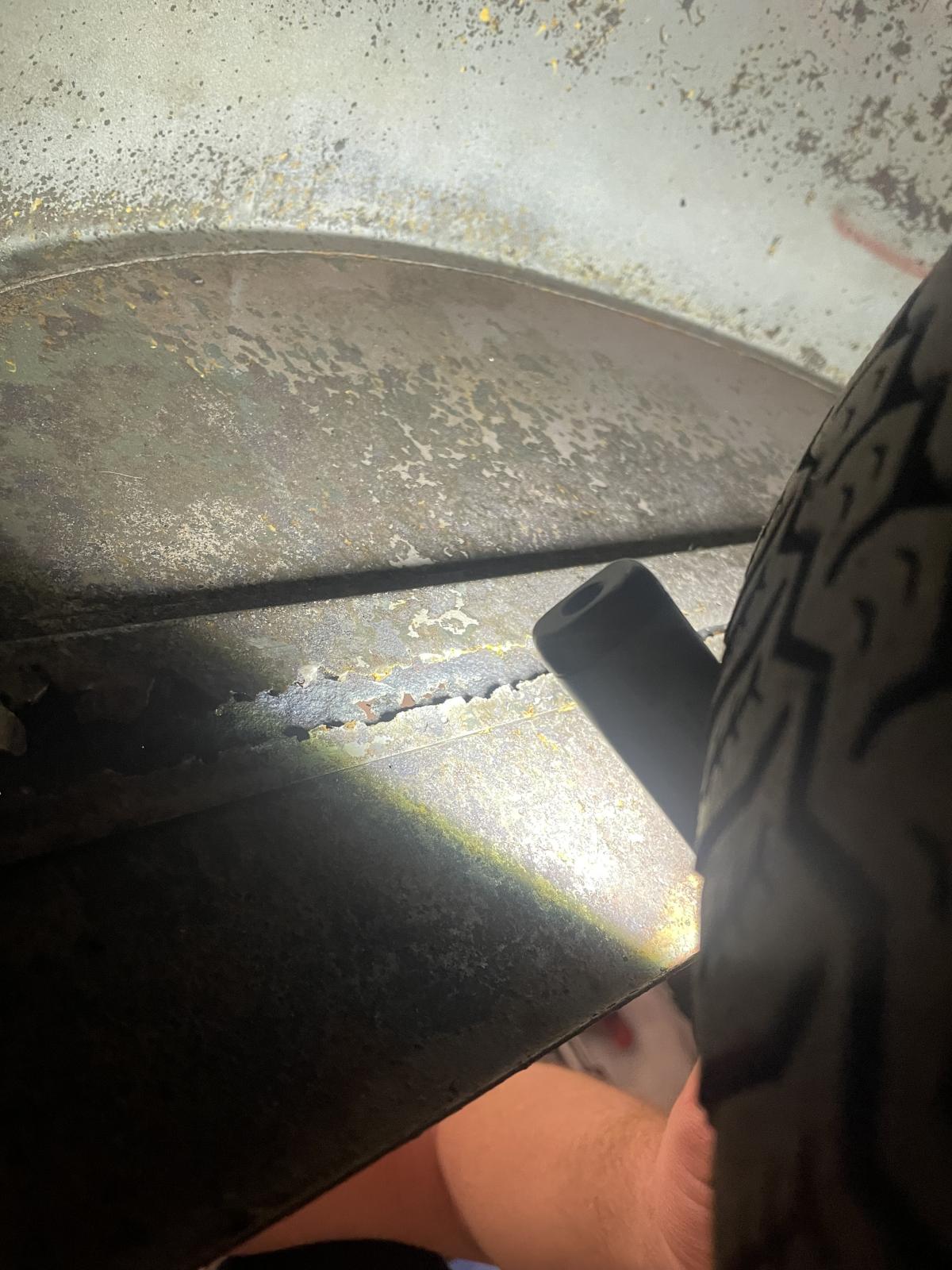

Are the reinforcements on the following pictures of the rear wheelhouse stock on a 1960 23W?
Thx in advance,
M |
|
| Back to top |
|
 |
Lind
Samba Member
Joined: November 06, 2000
Posts: 10215
Location: idaho
|
| Posted: Mon Jan 08, 2024 8:34 am Post subject: Re: Rear Wheelhouse reinforcement 1960 |
|
|
Maybe. They seemed to be intermittent for a while. They are terrible and should not be used in any restoration, even if they were originally on a bus. They trap dirt and water and promote rust.
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71510
Location: Phoenix 602
|
|
| Back to top |
|
|
Typ_24
Samba Member
Joined: June 19, 2022
Posts: 3
Location: Austria
|
| Posted: Mon Jan 08, 2024 9:08 am Post subject: Re: Rear Wheelhouse reinforcement 1960 |
|
|
| Lind wrote: |
| They are terrible and should not be used in any restoration, even if they were originally on a bus. They trap dirt and water and promote rust. |
Thx for the answer.
I absolutely agree.
I was just thinking about any "function" of this parts and thought maybe there is something "behind".
It seems It was not due to sunroof or any other "extra" right? I have to weld in a new right wheelhouse due to the above mentioned topic.
I was additionally thinking about spot welding it on the panel before welding the panel in to get more stiffness which will take away some stress from the panel during heat introduction but now I am thinking again to just leave it out  .
Br, M |
|
| Back to top |
|
|
Douglas Denlinger
Samba Member
Joined: May 23, 2003
Posts: 1404
Location: Arizona's version of the east coast
|
| Posted: Mon Jan 08, 2024 9:44 am Post subject: Re: Rear Wheelhouse reinforcement 1960 |
|
|
Seems like a 6 month run on the long side and passenger quarter strengtheners.
Yes they do trap enough road debris/moisture to cause issues. Yet I personally reinstall as they do provide the strength need to keep the sides from oil canning, flexing during body work. With todays sealers and caulk the chances of rusting out in our lifetime is unlikely.
_________________
Transporter Restorations
Upholstery Haus
Active 23 Window Samba Collector/Restorer,since 1986 |
|
| Back to top |
|
|
tpinthepack
Samba Member
Joined: July 11, 2004
Posts: 847
Location: clearwater,florida
|
| Posted: Tue Jan 09, 2024 2:42 am Post subject: Re: Rear Wheelhouse reinforcement 1960 |
|
|
My 60 Single Cab has them also, and it caused rust there too.
_________________
TP in the Pack (I am a cyclist)
1968 Manx N.O.S. w/ Barrett Chassis
1960 Single Cab 1914 w/ 40 DLRA's
1990 Vanagon DOKA
1972 Super Beetle
1979 Super Beetle Convertible
2011 Porsche Cayenne |
|
| Back to top |
|
|
55bundt
Samba Member
Joined: December 15, 2002
Posts: 173
|
| Posted: Tue Jan 09, 2024 5:22 am Post subject: Re: Rear Wheelhouse reinforcement 1960 |
|
|
| My July 59 also fell victim to these so called hat traps. |
|
| Back to top |
|
|
DSweinhagen
Samba Member
Joined: July 30, 2002
Posts: 410
Location: Phoenix, AZ
|
| Posted: Tue Jan 09, 2024 7:50 am Post subject: Re: Rear Wheelhouse reinforcement 1960 |
|
|
They seem to have been used only on deluxes and trucks. I've seen them as early as '52 and sometimes only on one side. If the customer is okay with it, I like to leave or reinstall them. They really help stiffen that area up. I assume not many restored buses are seeing dirt road driving and salt.
_________________
David S |
|
| Back to top |
|
|
Huetti_1989
Samba Member
Joined: February 13, 2011
Posts: 1332
Location: Austria
|
|
| Back to top |
|
|
Matthew Tolbert
Samba Member
Joined: March 27, 2004
Posts: 707
Location: Georgia
|
| Posted: Mon Jan 15, 2024 4:32 pm Post subject: Re: Rear Wheelhouse reinforcement 1960 |
|
|
My 10/60 doublecab has them. And if I were doing a restoration on a bus that had them I would put them back as well. They lasted this long without any real protection like a good epoxy primer on the insides and it’s not likely the bus will see a very hard life after being restored.
_________________
Matthew Tolbert
1958 ragtop
1961 doublecab
1965 Notchback S |
|
| Back to top |
|
|
tanhis
Samba Member
Joined: July 23, 2005
Posts: 659
Location: Rauma Finland
|
| Posted: Mon Jul 28, 2025 1:51 am Post subject: Re: Rear Wheelhouse reinforcement 1960 |
|
|
Does anyone have dimensions of these reinforcements.
I will make some for my ambulance and currently thinking of making these 10mm high and 25mm top and 10mm skirt.
_________________
-58 Typ2 ambulance
-62 Typ 34
-65 Typ 34
-73 411 variant all metal custom
-69 typ 2, 9 seater
-89 vanagon camper conversion matkaaja
-08 3.0tdi phaeton |
|
