'67 arm rest mounting?
Forum Index -> Type 3 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
trainwreck
Samba Member


Joined: April 07, 2009
Posts: 191
Location: U.S.A
trainwreck is offline
PostPosted: Thu Apr 22, 2010 8:50 am    Post subject: '67 arm rest mounting? Reply with quote
Anyone got pictures of the front arm rest mounting for their '67s? When I purchased mine she was gutted. Just need an idea
Back to top
View user's profile Send private message Classifieds Feedback
Mike Fisher
Samba Member


Joined: January 30, 2006
Posts: 18051
Location: Eugene, OR
Mike Fisher is offline
PostPosted: Thu Apr 22, 2010 9:08 am    Post subject: Reply with quote

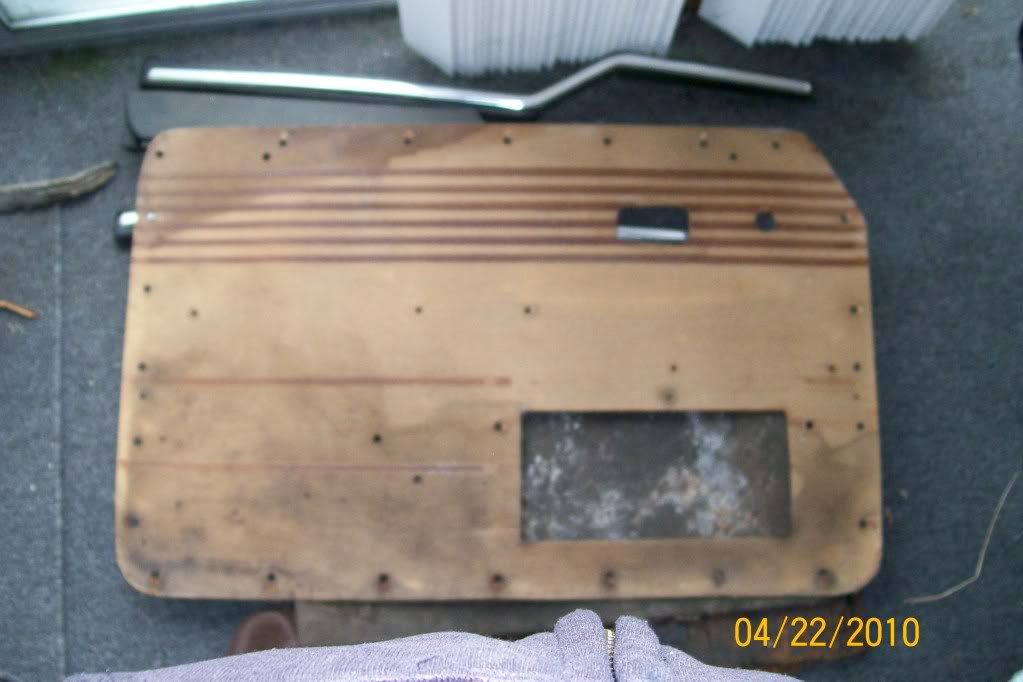

This is a 67 door card. The first screw hole 11" up from the bottom and 2.25" in from the leading edge.

Image may have been reduced in size. Click image to view fullscreen.

_________________
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold

Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
RareAir
Samba Member


Joined: May 11, 2002
Posts: 14577
Location: 18 miles North of the border
RareAir is offline
PostPosted: Thu Apr 22, 2010 2:32 pm    Post subject: Reply with quote
Image may have been reduced in size. Click image to view fullscreen.

_________________
1947 Typ 11a
1954 Typ 117
1956 Typ 151
1959 Typ 117
1959 Typ 265
1961 356B
1966 Typ 151
1966 Typ 241
Back to top
View user's profile Send private message Gallery Classifieds Feedback
trainwreck
Samba Member


Joined: April 07, 2009
Posts: 191
Location: U.S.A
trainwreck is offline
PostPosted: Thu Apr 22, 2010 3:43 pm    Post subject: Reply with quote
Two perfect posts, tech n visual! Thanks guys! Nice interior Rare
Back to top
View user's profile Send private message Classifieds Feedback
trainwreck
Samba Member


Joined: April 07, 2009
Posts: 191
Location: U.S.A
trainwreck is offline
PostPosted: Fri Apr 30, 2010 4:43 pm    Post subject: Reply with quote
The arm rest is attached to the panel only, not the metal?!
Back to top
View user's profile Send private message Classifieds Feedback
flyinglow94
Samba Member


Joined: January 17, 2005
Posts: 1173
Location: Las Vegas, Nevada
flyinglow94 is offline
PostPosted: Sat May 01, 2010 1:06 am    Post subject: Reply with quote
trainwreck wrote:
The arm rest is attached to the panel only, not the metal?!


No there is a clip on the back side of the vinyl door panel that is bolted to the arm rest and slides on to a tab that is welded to the door.
Back to top
View user's profile Send private message Send e-mail Visit poster's website MSN Messenger Gallery Classifieds Feedback
RareAir
Samba Member


Joined: May 11, 2002
Posts: 14577
Location: 18 miles North of the border
RareAir is offline
PostPosted: Sat May 01, 2010 9:43 am    Post subject: Reply with quote
flyinglow94 wrote:
trainwreck wrote:
The arm rest is attached to the panel only, not the metal?!


No there is a clip on the back side of the vinyl door panel that is bolted to the arm rest and slides on to a tab that is welded to the door.


Part #111867185
Image may have been reduced in size. Click image to view fullscreen.

_________________
1947 Typ 11a
1954 Typ 117
1956 Typ 151
1959 Typ 117
1959 Typ 265
1961 356B
1966 Typ 151
1966 Typ 241
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Critter1
Samba Member


Joined: August 04, 2004
Posts: 1579
Location: Sacramento
Critter1 is offline
PostPosted: Mon May 03, 2010 7:36 am    Post subject: Reply with quote
Drivers side. I couldn't find a pic of the back.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Justin
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
trainwreck
Samba Member


Joined: April 07, 2009
Posts: 191
Location: U.S.A
trainwreck is offline
PostPosted: Mon May 03, 2010 8:41 am    Post subject: Reply with quote
Thanks guys that helps alot, great to see so many type 3s at the bug in!!
