Anyone have prints for roll bar

mrafindley · Posted: Sat May 01, 2010 3:05 pm Post subject: Anyone have prints for roll bar

Looking for measurements and/or drawings of roll bar. Would like to use the screws that the seat belt hooks use for the front mounting and not sure on the rear. Also it would have to work with the factory soft top.
_________________
73 THING
67 Beetle

http://w2.wolfsburgii.com/downloads.htm

locky · Posted: Sat May 01, 2010 8:04 pm Post subject:

Check out Punchdrunk Monkey build. He has a really nice, and well thought out roll bar. I think I will go with that style for mine.

mrafindley · Posted: Sun May 02, 2010 2:11 pm Post subject:

Do you have the link? Sorry not sure what punchdrunk is I copy and pasted it in the search and brought up nothing
_________________
73 THING
67 Beetle

http://w2.wolfsburgii.com/downloads.htm

63ziggy · Posted: Sun May 02, 2010 7:10 pm Post subject: rol bar pic

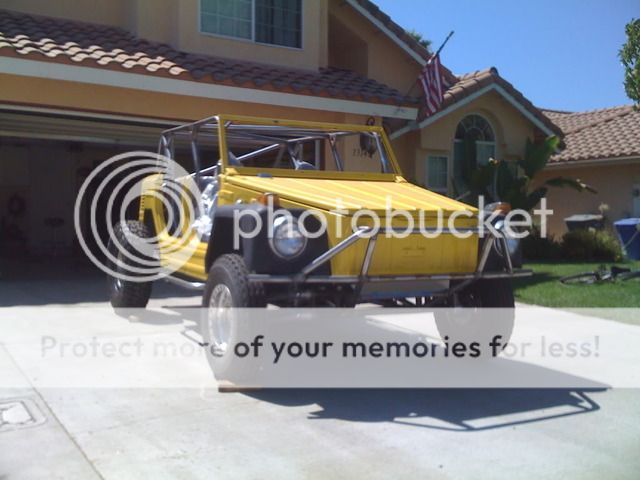

here are a couple of mine

used photos here from Samba.

dimension just went with it.

probably would do a little different instead of the 3 hoops that I did. If do long runs down length of vehicle, it does not give you potential head clearance issues.

Mine will fit under Thing Shop bikini top. only issue is rear hoop was a little too wide and interferes with top rear hoop. I would think regular top would work. may do some different lean in back than how I did.

Image may have been reduced in size. Click image to view fullscreen.

note center hoop has a angle iron bracket that uses bolt holes on front and rear door divider. it was bolted in place and then tacked to cage hoop.

early design stages, have top available while setting up cage designliatg

mrafindley · Posted: Mon May 03, 2010 2:48 pm Post subject:

Hey ziggy could you take a couple of shots of the mounting points? Where it fastens to the car
_________________
73 THING
67 Beetle

http://w2.wolfsburgii.com/downloads.htm

63ziggy · Posted: Mon May 03, 2010 5:35 pm Post subject:

let me see if can get some tonight, i thought io had some but no luck.

63ziggy · Posted: Mon May 03, 2010 6:19 pm Post subject: roll bar

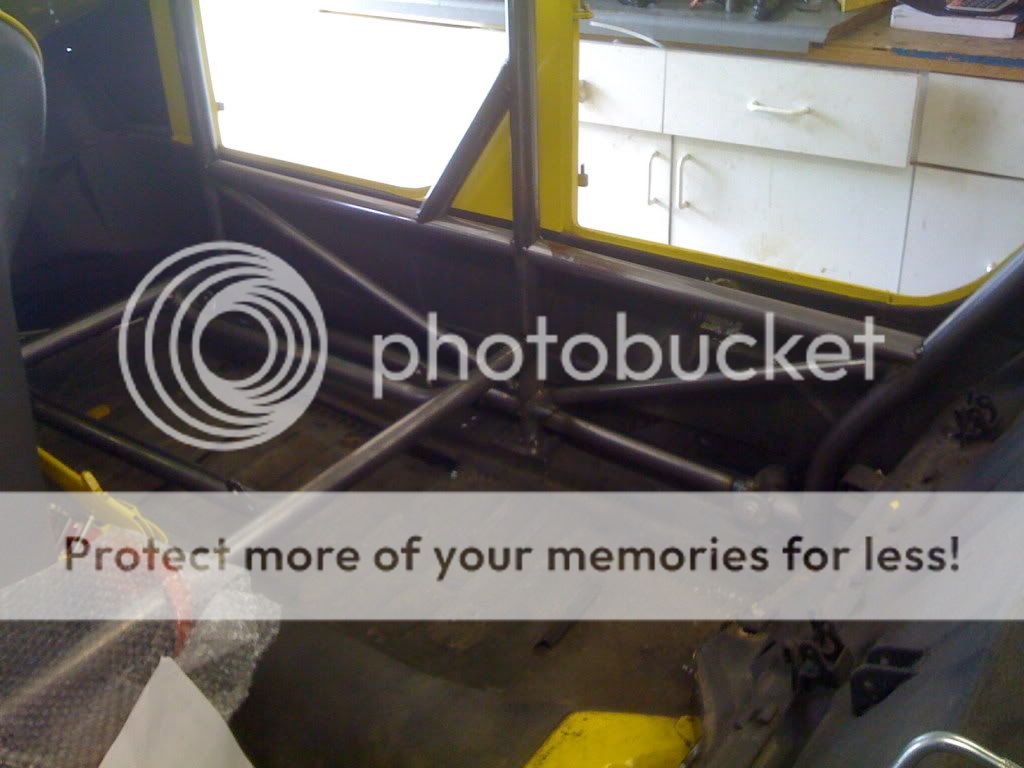

1st 2 pics are rear seat mounts

side mounts between doors

front feet mount on pan

center mount with front seat belt attachment points.

side overall look from front drivers corner

I used 3/16 plates for mounts and used back up plate on underside.
no intentions of offroad machine, just the look. should be plenty strong. 1 1/2 tubing.

hope this helps

mrafindley · Posted: Sat May 08, 2010 7:57 am Post subject:

man that helps alot. I love the look but I think on mine I will leave off the front portion. Does your top work with that set up?
_________________
73 THING
67 Beetle

http://w2.wolfsburgii.com/downloads.htm

Semper_Dad · Posted: Sat May 08, 2010 2:56 pm Post subject:

63ziggy,

That's the one best setups I've seen. Specifically, I like what you did with the 2 point seatbealt arrangement as well as the rocker and mid piller reenforcements. The rear passenger grab bars are also a nice addition.

I do think it should be tweeked so a standard soft top would fit (but I live in the Pacific Northwest where it's a bit "moister". What's your feeling on adding an athwartships crossbar on the middle bar for the rear passengers to grab on. Would have to be designed to take the rearest travel for the front seats into account.

63ziggy · Posted: Sat May 08, 2010 7:57 pm Post subject: roll bar

Thanks for the great compliments. borrowed a couple ideals here and there from The Samba members and then added a couple.

I thought about the cross bar behind front seats as well as possibly one parallel with dash.

I know it has been done. I had not realized the small area in the back seat once I put in the front seats and set them up for basic leg room. seemed tight and decided not to have something to bang knees into. all really opinion. it would definitely add some side to side strength ever got a dreaded t-bone accident.

it would not take much to work around a soft top. just have in place when pulling measurements and mocking up

this was my first try at bending as well as a cage. I am pleased with the way it came out. I did measure twice if not three times before cuts and bends. I was suggest having a notcher available. I cut my notches with cutoff wheels on grinder. takes time and manipulation for notches.

thanks again

punchdrunk monkey · Posted: Tue May 11, 2010 6:42 am Post subject:

Thanks Locky!

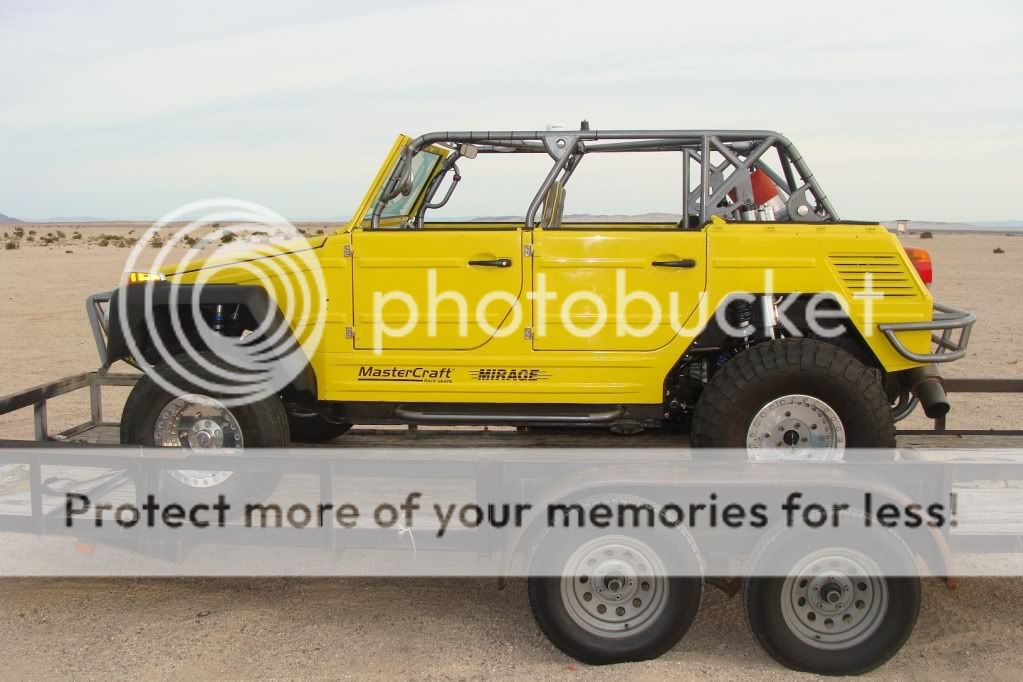

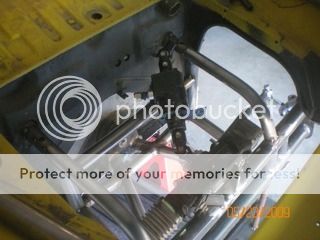

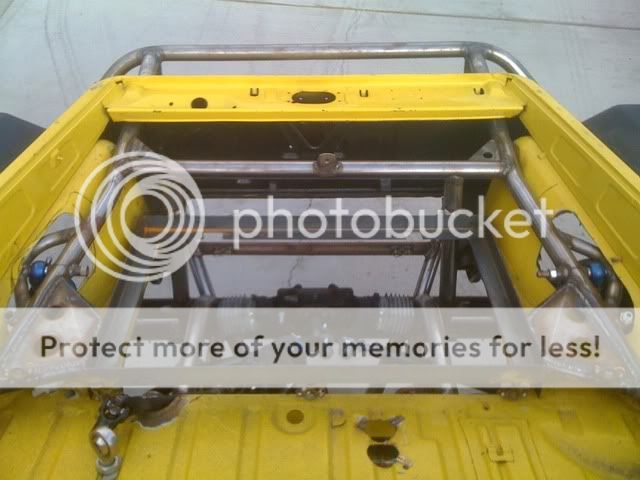

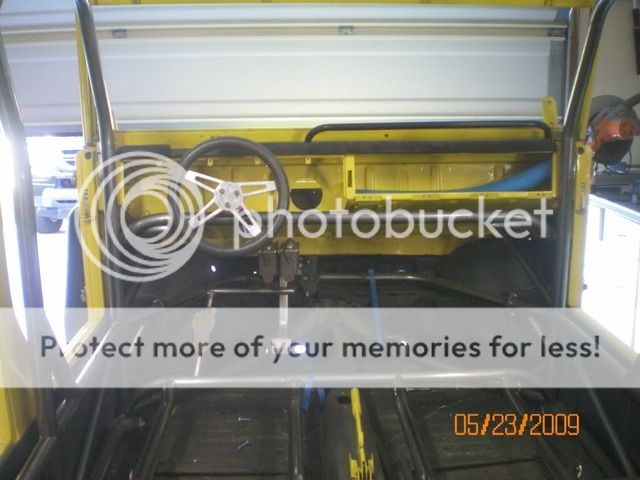

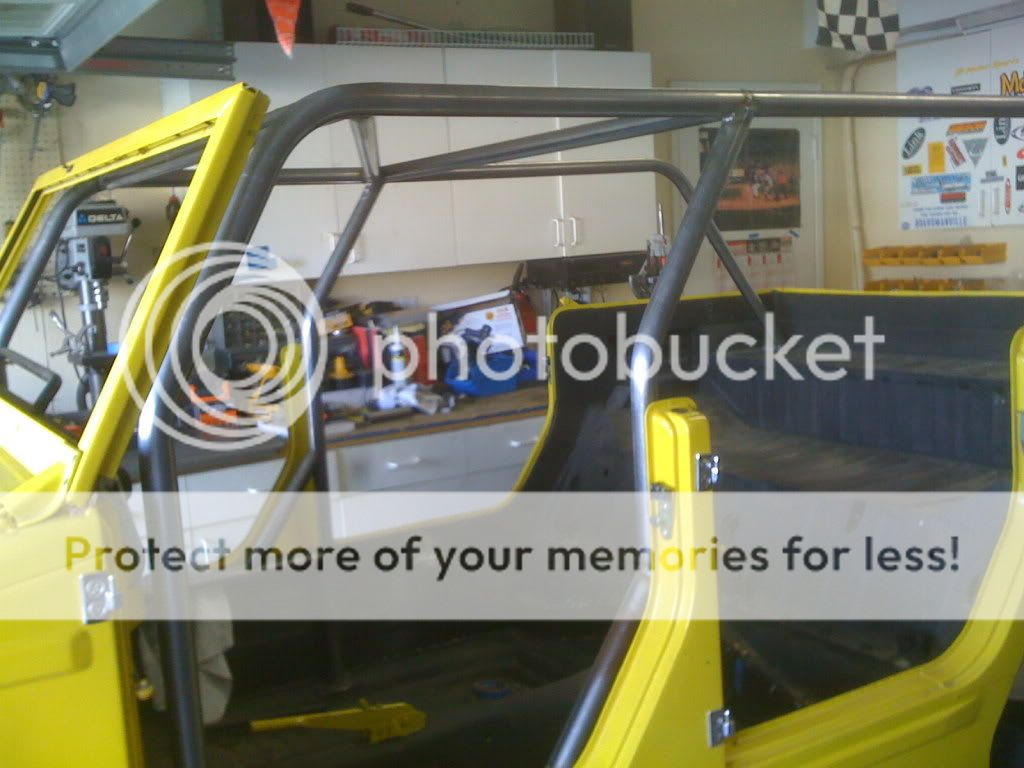

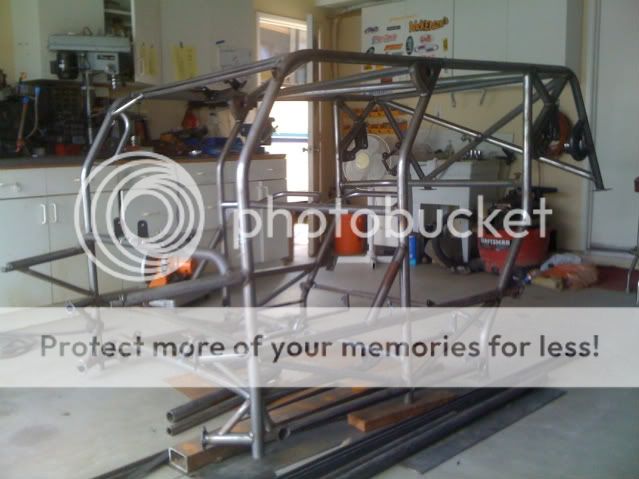

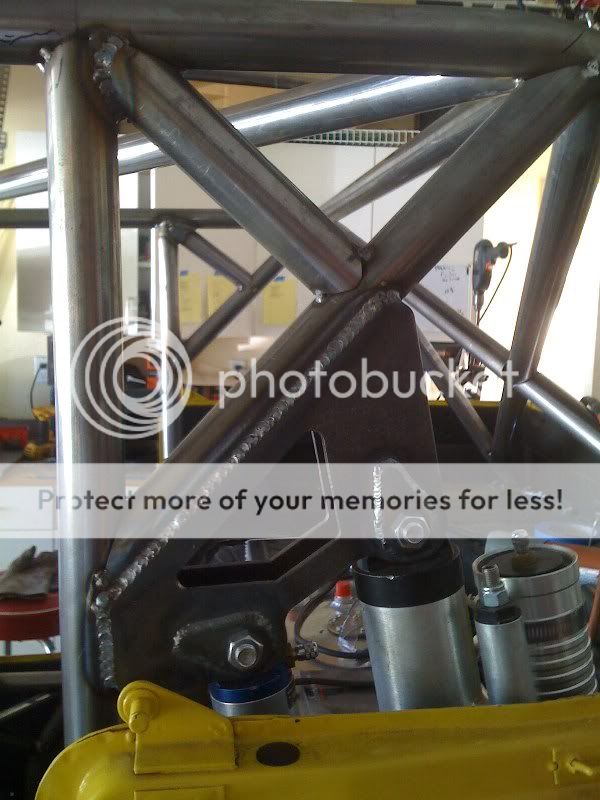

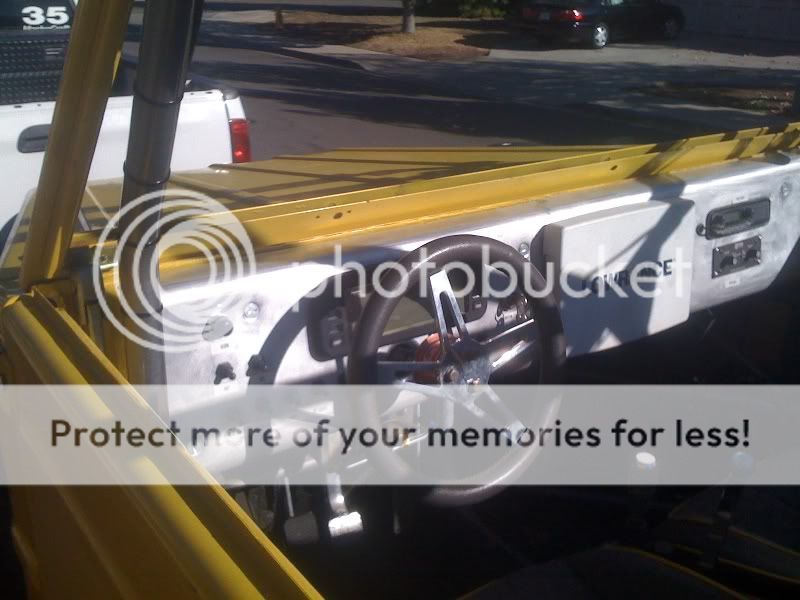

I never posted to many pictures of mine here due to "it shouldn't be here, it should be in the off-road section". Now that my gripe is over......My cage was not built to incorporate at top and I don't have stock seat belts. But here are a few pictures that might help with ideas.
