split door questions

[steven wood]

on split doors, are the interior door handles in different locations than early oval doors?

[johnshenry]

No.
_________________
John Henry

'57 Deluxe
'56 Single Cab

[steven wood]

so early oval door panels would fit a split door? if your looking at an early door that has a one piece split glass in it, How can you tell if it is a split door and NOT an early oval door that has been reworked to fit a split regulator and glass. Do you need to pull the door panel off to really know?

[Yustrn]

Hold up.

Oval door the window regulator is in a different spot, not buy much but it is different if I remember correct so no your door panels are going to be different on split vs early oval.

The second thing you need to look at Steven is that you can EASILY tell a split door from a Oval door, check out an Oval door where the vent wing is if your looking down the window channel there is a little bump inward to where it would meet up to the vent wing, a split window door the window channel is the same size all the way down there is not a little lip or a little bump on there.
_________________
I own a copy of "The Car of the Century" by Garwood. This means I am authorized to act like a twat in thesamba forums.

[type4split]

ok, i've done some searches and this looks like the best post.

i might be a bit confused. One says yes, one says no. which is it. i have a set of '54 door going on my '52 (until I find split doors)

are the door panels interchangable? will split door panels fit on the '54 doors?

when you say hte window reg. is slightly different how much are we talking?
_________________
'67 deluxe bus w/the little windows
'52 beetle
'55 convertible
'50-something convertible (*need ribbed 'vert quarter panel )
'63 "milo" beetle
Part, parts and more parts

[horatiocaine]

Yustrn is correct, exactly what he says in addition the door check strap is a slot on an split door and a hole on an oval door. If I recall correctly the bottom bracket built into the door for a split window door regulator is different or not present on an oval door, but I am old and its been a long time since I owned a split.

[Yustrn]

I have a split door here currently if you need better pics or measurements etc.

Might be willing to drop the price a little too if you want the door.

http://www.thesamba.com/vw/classifieds/detail.php?id=791907
_________________
I own a copy of "The Car of the Century" by Garwood. This means I am authorized to act like a twat in thesamba forums.

[splitmike]

Door panels will be interchange.... the location IS different.

[ZwitterND]

Nothing like cranking up a panel discussion to get a handle on things, this looks like an open and shut case....no split decision.
_________________
Bill

[Blue Baron]

[johan_l]

So, this door I bought have the "pin style" door stop, not the flat one... still it is "one piece" windows... What year? My early 51 had the flat door stops...

sorry, no better pics, door is in storage...
_________________
Johan, Sweden
1960 Karmann-Ghia coupé
1957 Oval window
Bastard Split window <-- Translate

[Bengt H]

The flat style was often replaced with a round pin because the flat one broke off, your door looks to bee a -50-52 door.

[drscope]

[johan_l]

It looked original, but i did not think much about it - just noted that it was not the same as the og-door. I'll post a pic of it next time I'm there...
_________________
Johan, Sweden
1960 Karmann-Ghia coupé
1957 Oval window
Bastard Split window <-- Translate

[Blue Baron]

Looks to be the older-style door, with the higher door handle.
_________________
We are striving for perfection, to make our cars run forever, if possible.

Heinz Nordhoff

[johan_l]

[virtanen]

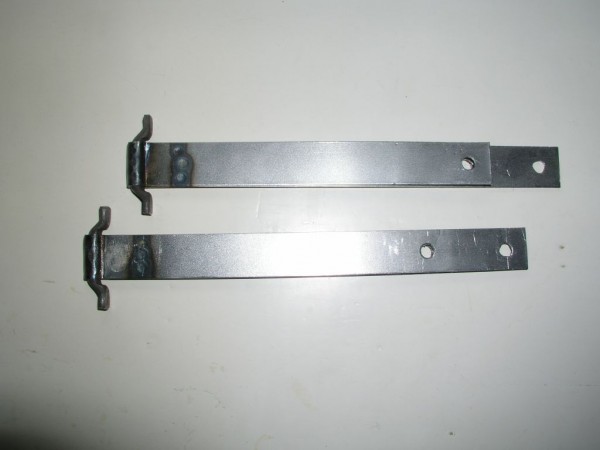

Do you mean these?

[johan_l]

Thanks!

probably are those, but as I cut them I don't know how they should look...

I'm searching for the split 50/51 door check straps...

If you could make me a "drawing" I would be very happy! I.e. with, length and thickness...

If I have luck, some of the parts are still left inside the doors, but as there are no bottom part of the door the chanses are slim... If I remember there were some squary piece somewhere too...
_________________
Johan, Sweden
1960 Karmann-Ghia coupé
1957 Oval window
Bastard Split window <-- Translate

[eurodub]

i can send you a door check. you can copy it and return it afterward?
i'll get a pic soon

Mihai
_________________
1960 1200 model 117 deluxe ragtop
1976 MK1 Golf

[johan_l]
