Accelerator tube from body, I am sure there was one...

[mr matt]

Hi,

Last week was the first time i pulled my 36hp engine, & among other things I noticed is there is no accel tube coming from the body to the engine. All there is a long fuel line tube - so it looks. and only went about a foot.

I am betting it was not designed like this, and would now explain why the accel tube going thru the fan shroud was hose-clamped right behind the shroud.

Have had the car ~ 15 years and the accel system worked fine, except letting off the gas, the carb return would not go all the way so was at a slightly fast idle.. Not sure if it is related to the fuel line tube or not.

If there was a metal tube coming from the body, how was it anchored there.?

Thanks!
_________________
1955 3-fold semaphore Oval beetle
1971 Convertible beetle
1977 Westfalia, FI, Berlin interior

[VW_Jimbo]

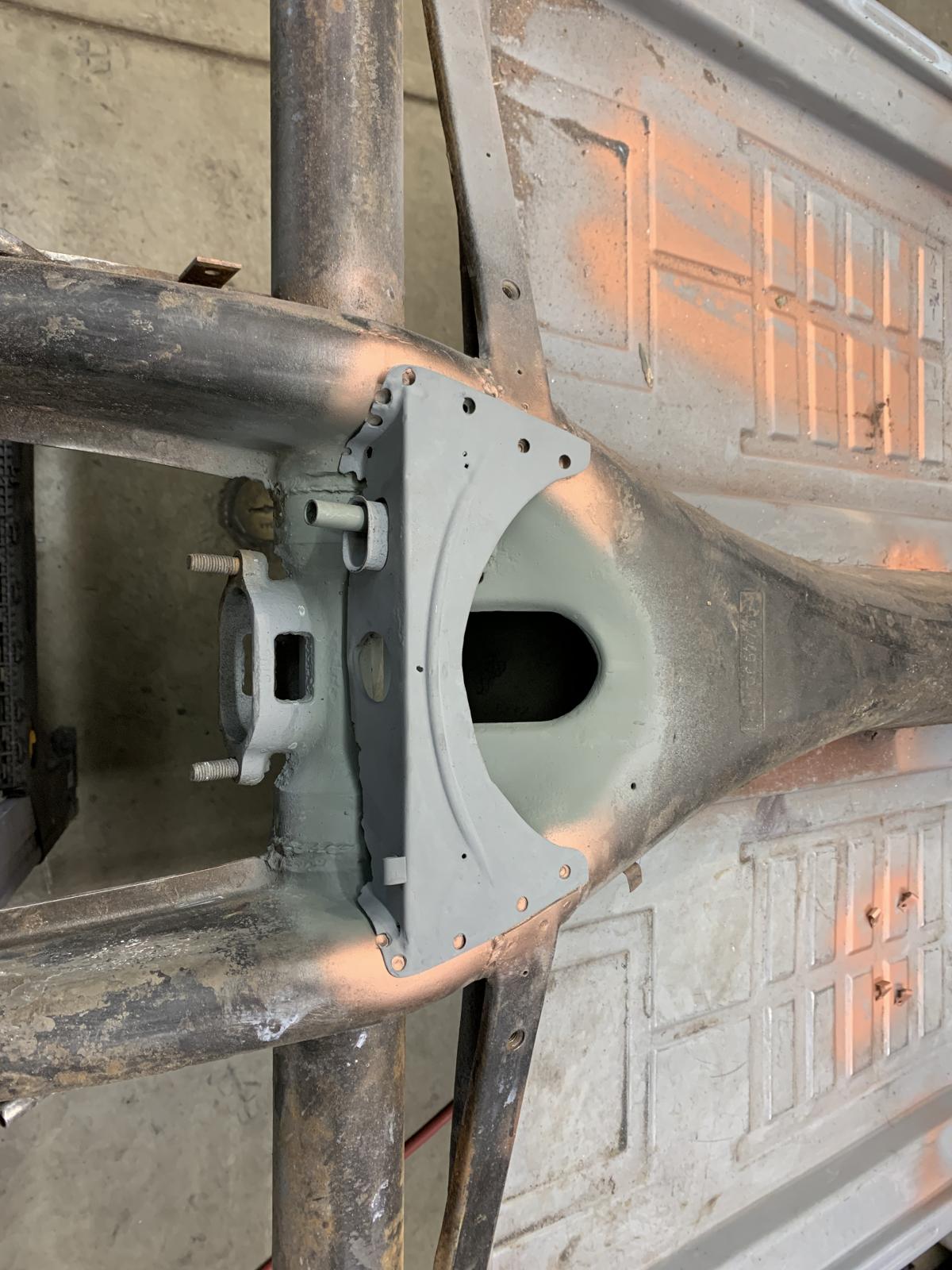

Is this what you are after?

Page 31 of my gallery has a few more! Hope it helps.
https://www.thesamba.com/vw/forum/album_search.php?search_id=1745593689&start=1500
_________________
Jimbo

There is never enough time to do it right the first time, but all the time necessary the second time!

[67rustavenger]

I might be wrong, and this is not my area of expertise.
But IIRC some of the earlier cars didn't have the "Bowden" tube between the tunnel accel cable tube and the firewall.

The hose clamp on the accel tube through the fan shroud, is to keep it from sliding fore and aft as the throttle is actuated.
_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!

There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!
2003 Astrovan? GFYS again, Xevin!
Don't let your bad ideas remain, ideas!

[janerick3]

The Bowden tube/flexible cable setup was first used with the 1966 model year.

Before that, the accelerator cable was a rigid wire.

For the later setup to work on an earlier car, you need the return spring setup found on 1966 and later carbs.
_________________
Thanks,
Jan K.

[nlorntson]

[mr matt]

OK, great, so I know.

My accel return spring is of the horizontal kind, which plays against the fan shroud - there is no spring between the accel cable and the carb.

Not sure why the PO - or mechanic of, put a fuel line over the cable to some extent. Possibly to protect it...?

Will be shuttling under the bug this weekend and look more closely, esp for that rubber seal
_________________
1955 3-fold semaphore Oval beetle
1971 Convertible beetle
1977 Westfalia, FI, Berlin interior

[mr matt]

[nlorntson]

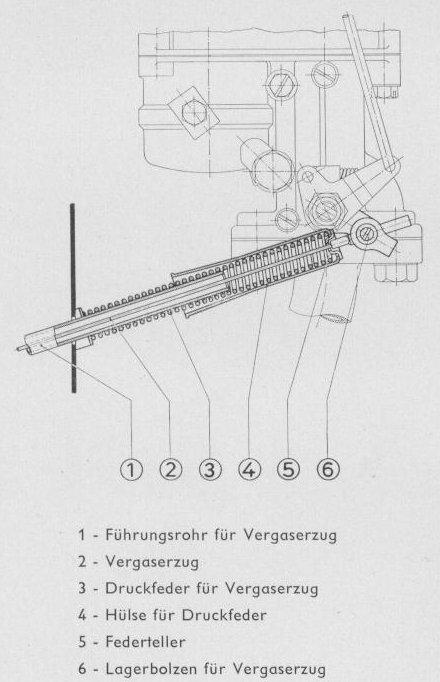

The spring and little round keeper (5) holds it tight.

[mr matt]

Thanks, will really have to look at that in detail in putting it back together..
_________________
1955 3-fold semaphore Oval beetle
1971 Convertible beetle
1977 Westfalia, FI, Berlin interior

[D. Haviland]

You also need the sleeve that fits over the spring. the little round keeper Nancy speaks of is held in place between the sleeve and throttle lever. and the Bowden tube has nothing to do with what you are talking about. Clutch cable goes through that.

[D. Haviland]

And i think I have some of those little round keepers if you need one.

[mr matt]

[Eric&Barb]

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
