| Author |
Message |
John W2
Samba Member
Joined: July 04, 2010
Posts: 37
Location: DFW
|
 Posted: Thu Jul 22, 2010 11:10 am Post subject: Fuel Gauge |
 |
|
What year/month was the fuel gauge introduced to the Type 1? The bug I just purchased is registered as a 61 and it has a a fuel gauge. the VIN on the chassis and plate behind the spare match and it puts it being a Jan/Feb 61 car.
Thanks
John |
|
| Back to top |
|
 |
EverettB
Administrator
Joined: April 11, 2000
Posts: 71471
Location: Phoenix 602
|
|
| Back to top |
|
|
John W2
Samba Member
Joined: July 04, 2010
Posts: 37
Location: DFW
|
| Posted: Thu Jul 22, 2010 12:38 pm Post subject: |
|
|
The VIN is 3630286 and our host VIN lookup states Jan 61 3628283 and Feb 61 3701251. According to that my is closer to Jan than Feb.
What month, say in 61, did the models roll off as 62 models?
Thanks
John |
|
| Back to top |
|
|
Helfen
Samba Member
Joined: January 19, 2009
Posts: 3481
Location: Vulcania
|
| Posted: Thu Jul 22, 2010 1:03 pm Post subject: |
|
|
| John W2 wrote: |
The VIN is 3630286 and our host VIN lookup states Jan 61 3628283 and Feb 61 3701251. According to that my is closer to Jan than Feb.
What month, say in 61, did the models roll off as 62 models?
Thanks
John |
That would be September of 61 for the 62 model year in the deluxe type 113
Don
Last edited by Helfen on Thu Jul 22, 2010 9:56 pm; edited 1 time in total |
|
| Back to top |
|
|
John W2
Samba Member
Joined: July 04, 2010
Posts: 37
Location: DFW
|
| Posted: Thu Jul 22, 2010 1:30 pm Post subject: |
|
|
Interesting - I guess someone might have changed out the fuel tank and added the fuel gauge. I have not checked to see if it has the mounting for the shoulder harness, which I assume was introduced in 62.
Thanks
John |
|
| Back to top |
|
|
PSScoots
Samba Member
Joined: January 06, 2007
Posts: 505
Location: Chattanooga TN
|
| Posted: Thu Jul 22, 2010 3:20 pm Post subject: |
|
|
| John W2 wrote: |
| Interesting - I guess someone might have changed out the fuel tank and added the fuel gauge. |
I think you're on the right track here. Because of the modular nature of the bug dashboard, it would probably take an hour to do the whole set up.
Look at the back of your gas gauge, it should be stamped with a date in black ink (Sometimes it's hidden under lock-in bridge). In my 66, the gauge is two months older than the car.
_________________
Rebuilt to drive not decorate. -VOLKSWAGNUT
"Service the car and it will give you good service." |
|
| Back to top |
|
|
John W2
Samba Member
Joined: July 04, 2010
Posts: 37
Location: DFW
|
| Posted: Thu Jul 22, 2010 3:45 pm Post subject: |
|
|
| Thanks will do |
|
| Back to top |
|
|
kahala46
Samba Member
Joined: April 16, 2007
Posts: 221
Location: Mesa Arizona
|
| Posted: Thu Jul 22, 2010 4:41 pm Post subject: |
|
|
| I think the fuel tank changed size when the fuel gage was added |
|
| Back to top |
|
|
fluxcap
Samba Member
Joined: February 07, 2006
Posts: 1969
Location: Newnan GA
|
| Posted: Thu Jul 22, 2010 6:32 pm Post subject: |
|
|
nah, the 61 gas tank is the same size/shape as the the 62-67 tanks, but it doesn't have a cut-out for the fuel gauge sender. Fuel gauges started on July 31, 1961 at vin number 4010995, which is the beginning of the 62 model year.
Sounds like somebody just added a gauge to your car somewhere down the road in it's life. do you still have the reserve lever (or the hole where the lever would be) in the front fire wall?
_________________
Eric - 1966 camper bus
"It's like, how much more black could this be, and the answer is none.......none more black." |
|
| Back to top |
|
|
Helfen
Samba Member
Joined: January 19, 2009
Posts: 3481
Location: Vulcania
|
| Posted: Thu Jul 22, 2010 10:01 pm Post subject: |
|
|
| kahala46 wrote: |
| I think the fuel tank changed size when the fuel gage was added |
The fuel tank was changed the year before (61) and that tank plus the ones in the standard models at least through 66 have the reserve tap. The top of the tank is the same as the 62 and above deluxe except there is a depression where the sending unit normally goes.
Don |
|
| Back to top |
|
|
John W2
Samba Member
Joined: July 04, 2010
Posts: 37
Location: DFW
|
| Posted: Fri Jul 23, 2010 4:53 pm Post subject: |
|
|
thanks guys
I just bought the car and have not had a chance to crawl all over it yet. there's not a fuel shut off lever instead some kind of bolt. |
|
| Back to top |
|
|
John W2
Samba Member
Joined: July 04, 2010
Posts: 37
Location: DFW
|
| Posted: Sat Jul 24, 2010 9:55 am Post subject: |
|
|
| Mystery solved. Pull the gauge and the year stamped on it is '63 and it is mechanical. I did notice though that in 60-61 the fuel gauge was an option. |
|
| Back to top |
|
|
John W2
Samba Member
Joined: July 04, 2010
Posts: 37
Location: DFW
|
| Posted: Tue Aug 31, 2010 10:09 am Post subject: |
|
|
Ok I just started to tear the car down. When I removed the "grill" panel with the fuel gauge I noticed that the sub-panel dash has a "factory" type cut-out for the gauge.
Did the '61 models have this cut-out in the sub-panel?
John |
|
| Back to top |
|
|
65'1300Deluxe
Samba Member
Joined: November 24, 2009
Posts: 584
Location: Auburn, Washington
|
| Posted: Tue Aug 31, 2010 10:53 am Post subject: |
|
|
Yes, they did. Although at the time a different version of VDO gas gauge was available to fill the spot. It was round and electric, with an electric sending unit, like the standard type 2 version. A VDO clock was also a popular item to install there, and it had the same shape as the mechanical gas gauges introduced later.
_________________
1965 Deluxe Beetle "Camilla"
1972 Super Beetle Barnfind "Roland"
2001 GTI 1.8L Turbo |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26524
Location: Douglas, WY
|
| Posted: Tue Aug 31, 2010 1:18 pm Post subject: |
|
|
VW also had squre accessory electric fuel gauges to fit there as well! I know, I put one in my 62 at one point - and found the body was not cut to fit it - those accessory gauges have "ears" either side that require the opening in the body to match, and in 62 they don't have it. In 61 they did. I had to cut the body on my 62 to make mine fit.

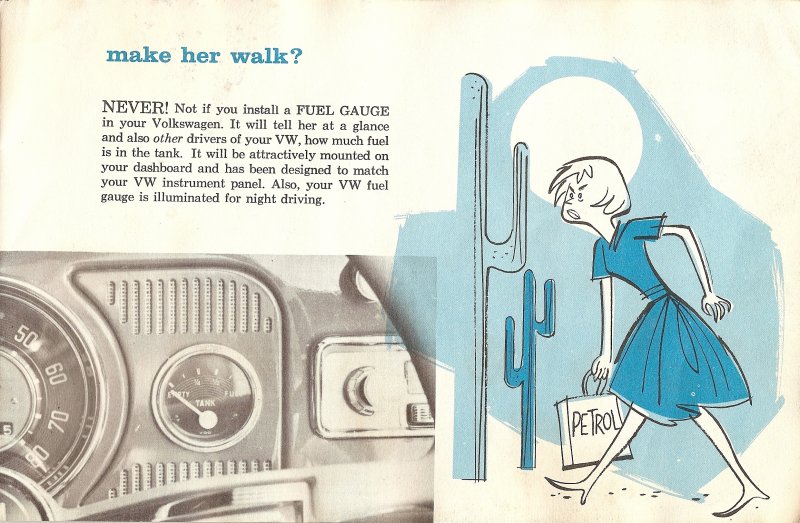

VDO/VW had round and square accessories to fit that hole - examples:
VW tech bulletin with the square fuel gauge:
And then there was the VW tech bulleting that had them installing the round fuel gauge here:
|
|
| Back to top |
|
|
John W2
Samba Member
Joined: July 04, 2010
Posts: 37
Location: DFW
|
| Posted: Tue Aug 31, 2010 4:24 pm Post subject: |
|
|
That's the cutout it has - square with two, half circle cutouts on either side.
Thanks
John |
|
| Back to top |
|
|
vanity12
Samba Member
Joined: March 01, 2014
Posts: 104
Location: long beach
|
| Posted: Fri Sep 13, 2019 2:40 pm Post subject: |
|
|
VW tech bulletin with the square fuel gauge:
Where can I get this clock.....I know Google is my friend but I've come up cold |
|
| Back to top |
|
|
car_cursed
Samba Member
Joined: February 19, 2008
Posts: 129
Location: Salt lake
|
| Posted: Fri Sep 13, 2019 3:31 pm Post subject: Re: Fuel Gauge |
|
|
| Best bet is to post a wanted ad. I have one. Need to see how to take off the trim and remove the paint. |
|
