| Author |
Message |
dcat917
Samba Member
Joined: April 13, 2014
Posts: 185
Location: Greenville, SC
|
|
| Back to top |
|
 |
Kmolenda
Samba Member
Joined: June 18, 2013
Posts: 309
Location: Cottage Grove Mn
|
 Posted: Mon Jul 07, 2014 7:38 pm Post subject: |
 |
|
| You could cut them off, drill a 1/4 " hole and push a Christmas tree clip through for the same type of attachment. They are available at napa, and used to hold up insulation under the hood generally |
|
| Back to top |
|
|
dcat917
Samba Member
Joined: April 13, 2014
Posts: 185
Location: Greenville, SC
|
| Posted: Sun Jul 20, 2014 12:22 am Post subject: |
|
|

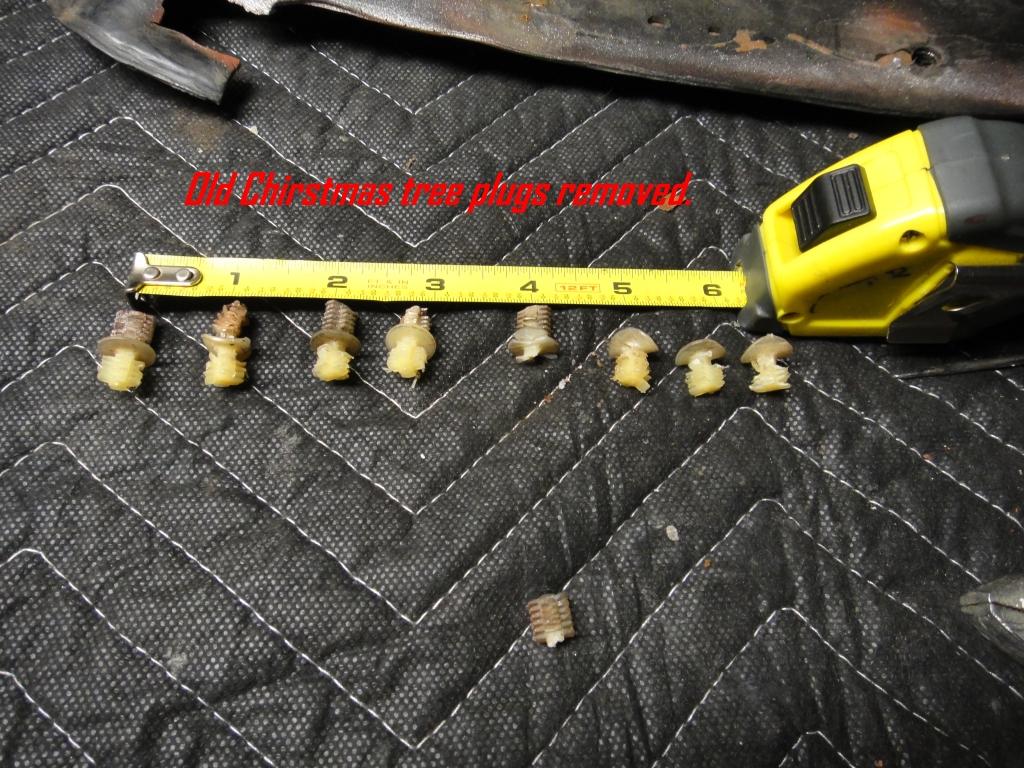

Here is my solution, first get your pliers and wiggle out the old ones. This leaves a hole in the underside of the dash pad.
Get some nylon 1/4"x20 bolts by 3/4" long, you need at least 8. Using your grinder grind the hex shaped heads of the bolt down to l face and round the top of the head of to look like a J-bolt
Mix up some epoxy and coat the hooked end of the bolt and set it in the hole of the dashpad and align vertically. Mix up another batch of epoxy and flow it into the hole for strength.
When the epoxy sets up, get out your tap and clean the bolts of and test fit your nylon nuts to the freshly cleaned nylon bolts. Now you can put your pad back in and snug it down.
The dashpad should be installed prior to the glove box or wiper assembly for ease of installation. It fits much better now but the damn holes in the dash that look like vent hole still pear out. What is the reason behind all those vent holes in the dash that are covered by the pad?
_________________
1981 Puma GTB http://www.thesamba.com/vw/forum/viewtopic.php?p=7794566#7794566
1971 Karmann Ghia http://www.thesamba.com/vw/forum/viewtopic.php?t=591290&highlight=
Past Projects:
1951 Studebaker Business Coupe https://goo.gl/photos/eHPuNo89m9PXZwBM8
1953 Studebaker 2-Door Sedan https://goo.gl/photos/pe38HEShzUrVSwcV8 |
|
| Back to top |
|
|
jpjohns
Samba Member
Joined: May 03, 2014
Posts: 882
Location: Harrisonburg, VA
|
| Posted: Sun Jul 20, 2014 1:34 pm Post subject: |
|
|
There's got to be somebody that sells these as a reproduction.
_________________
-Jared
"Scrapyards are for quitters" - Beetlenut (a Samba member) |
|
| Back to top |
|
|
jpjohns
Samba Member
Joined: May 03, 2014
Posts: 882
Location: Harrisonburg, VA
|
| Posted: Fri Jul 25, 2014 7:35 am Post subject: |
|
|
Actually, I just found out from KGPR that they don't have a source for those. They recommended checking the Samba classifieds.
On a better note, the repro dash pads come with threaded studs attached ready to install.
_________________
-Jared
"Scrapyards are for quitters" - Beetlenut (a Samba member) |
|
| Back to top |
|
|
dcat917
Samba Member
Joined: April 13, 2014
Posts: 185
Location: Greenville, SC
|
|
| Back to top |
|
|
jpjohns
Samba Member
Joined: May 03, 2014
Posts: 882
Location: Harrisonburg, VA
|
| Posted: Sat Jul 26, 2014 10:03 am Post subject: |
|
|
I wonder about finding a good original one and creating a mold and making them out of resin. Could be an idea. I've copied Revell model parts with resin molds and they come out nice.
_________________
-Jared
"Scrapyards are for quitters" - Beetlenut (a Samba member) |
|
| Back to top |
|
|
|
I want to restore mine and want to know what you did with this issue. I have watched most of the Utube videos but they are all concerned with the covering or foam.
Works great as well.
