 Posted: Tue Jun 21, 2011 12:46 am Post subject: Early Aluminum engine case |
 |
|
Guys,

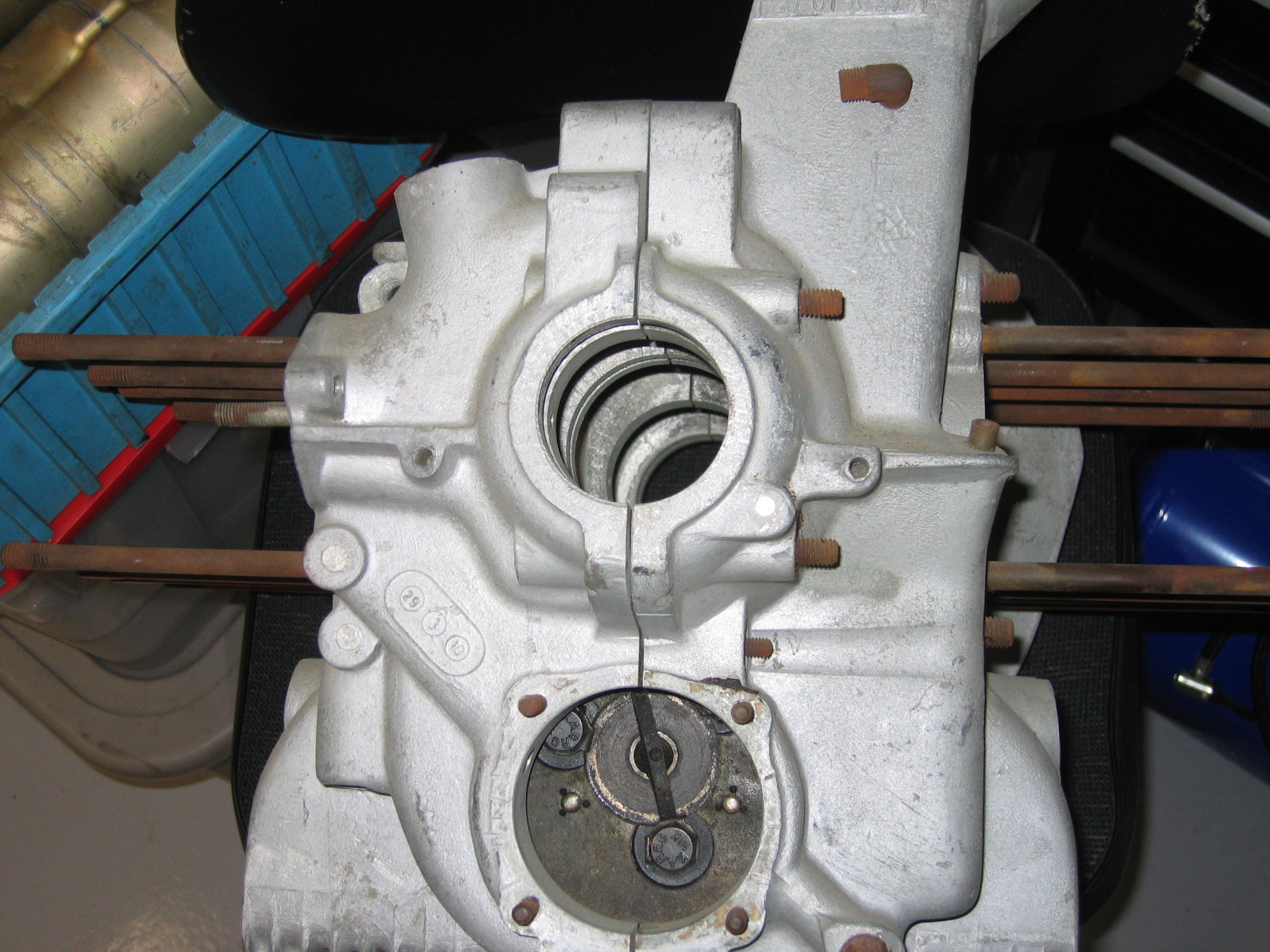

I have an early aluminum VW case which came in a part box with a 356 I purchased. Am I correct in interpreting the Samba VIN page that this is a Mar 1950 engine? It also came with a crankshaft mounted fan which I thought unusual. Not sure if the fan goes with this engine or not. Note the nice case match stamp (#1). Any ideas what I have?
|
|
| Back to top |
|
 |
Whatsthatsmoke
Samba Member
Joined: April 28, 2011
Posts: 52
Location: MyGarage
|
| Posted: Tue Jun 21, 2011 1:03 am Post subject: |
|
|
| VW bus engine, looks like it's hardly been used? |
|
| Back to top |
|
|
nlorntson
Crazy VW Lady
Joined: March 13, 2004
Posts: 3856
Location: Twin Cities, MN
|
| Posted: Tue Jun 21, 2011 8:24 am Post subject: |
|
|

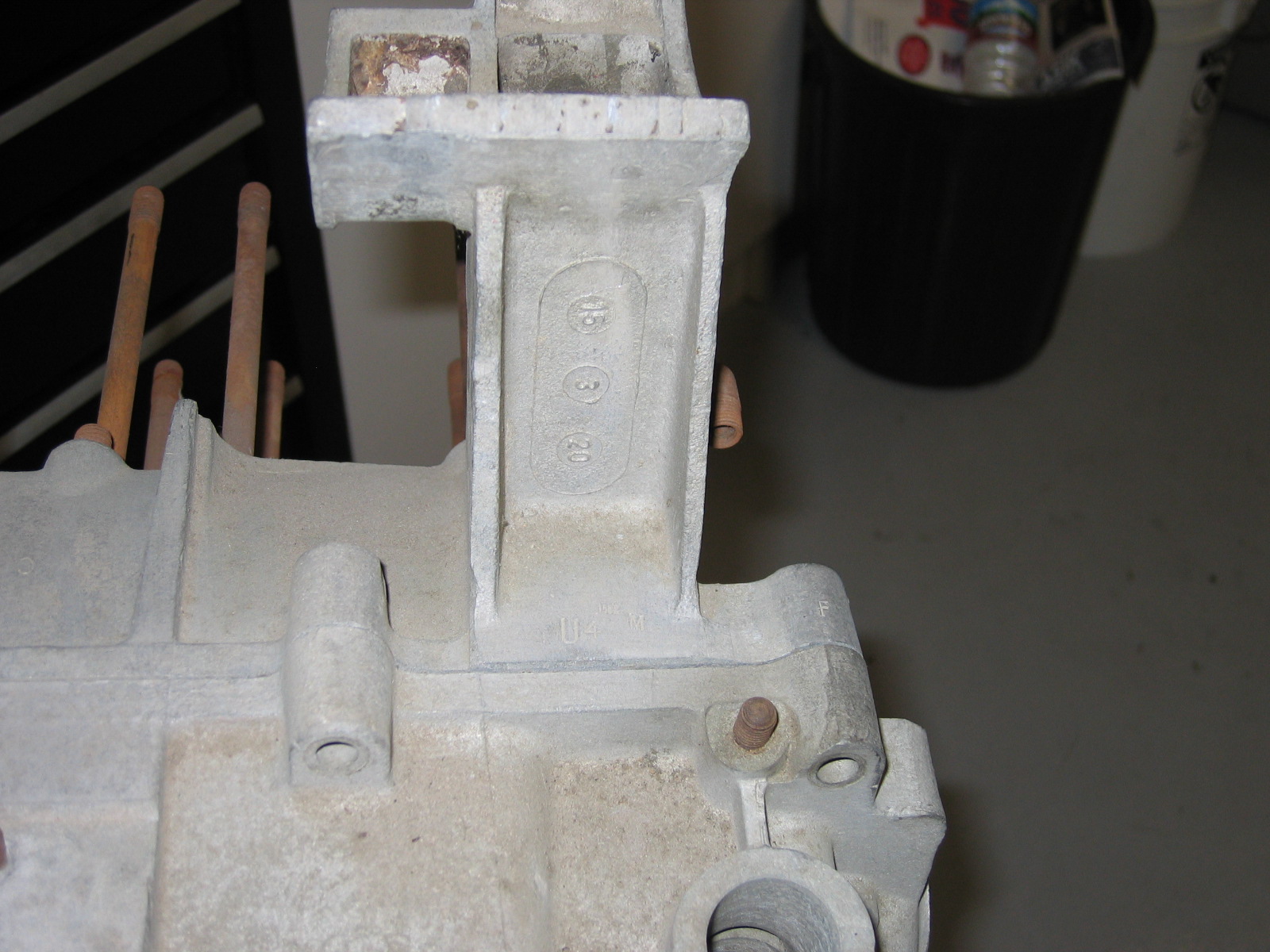

The casting information can be interpreted here:
29 = day
3 = month
10 = year (1st shift) 1950
0 = 1950, 1 = 1951, 2 = 1952, 3 = 1953, 4 = 1954, 5 = 1955, etc
It appears by the number to be a very early bus case (April 1950)
There should be a pair of numbers on the top near the front flange seam that match indicating the halves belong together.
The KD 299489 on the oil filler neck make me thing it was reconditioned at some point. What is the diameter of the cylinder openings? |
|
| Back to top |
|
|
ch356
Samba Member
Joined: June 21, 2011
Posts: 6
Location: So CA
|
| Posted: Tue Jun 21, 2011 9:12 am Post subject: |
|
|
| nlorntson wrote: |
The casting information can be interpreted here:
29 = day
3 = month
10 = year (1st shift) 1950
0 = 1950, 1 = 1951, 2 = 1952, 3 = 1953, 4 = 1954, 5 = 1955, etc
It appears by the number to be a very early bus case (April 1950)
There should be a pair of numbers on the top near the front flange seam that match indicating the halves belong together.
|
Thanks for the info. There is a case half matching number, although it's a little difficult to see in the photo. It's simply "1". |
|
| Back to top |
|
|
Tonny_Larsen
Samba Member
Joined: July 02, 2003
Posts: 371
Location: Denmark
|
| Posted: Tue Jun 21, 2011 12:58 pm Post subject: |
|
|
| nlorntson wrote: |
The casting information can be interpreted here:
29 = day
3 = month
10 = year (1st shift) 1950
0 = 1950, 1 = 1951, 2 = 1952, 3 = 1953, 4 = 1954, 5 = 1955, etc
It appears by the number to be a very early bus case (April 1950)
There should be a pair of numbers on the top near the front flange seam that match indicating the halves belong together.
The KD 299489 on the oil filler neck make me thing it was reconditioned at some point. What is the diameter of the cylinder openings? |
I have a engine stamped 4 - 7 - 20.
4 = day
7 = month
20 = year
Is 2 for second shift and 0 for 1950 ? What means shift ?
-Tonny |
|
| Back to top |
|
|
nlorntson
Crazy VW Lady
Joined: March 13, 2004
Posts: 3856
Location: Twin Cities, MN
|
| Posted: Tue Jun 21, 2011 5:11 pm Post subject: |
|
|
| a "shift" is the 8 or so hour period of a 24 hour day that the case was casted. Many manufacturing, healthcare, etc. industries have 1, 2, or 3 "shifts" in a workday. |
|
| Back to top |
|
|
KTPhil
Samba Member
Joined: April 06, 2006
Posts: 35900
Location: Conejo Valley, CA
|
| Posted: Wed Jun 22, 2011 4:28 pm Post subject: Re: Early Aluminum engine case |
|
|
| ch356 wrote: |
Guys,
I have an early aluminum VW case which came in a part box with a 356 I purchased. Am I correct in interpreting the Samba VIN page that this is a Mar 1950 engine? It also came with a crankshaft mounted fan which I thought unusual. Not sure if the fan goes with this engine or not. Note the nice case match stamp (#1). Any ideas what I have?
|
Pardon my ignorance, but what is the rusty fitting on the generator stand? Breather?
And please post a picture of the crank mounted fan. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71523
Location: Phoenix 602
|
|
| Back to top |
|
|
ch356
Samba Member
Joined: June 21, 2011
Posts: 6
Location: So CA
|
| Posted: Wed Jun 22, 2011 6:43 pm Post subject: |
|
|
| EverettB wrote: |
The fitting is probably for the 356 full flow oil filter, correct?
I've seen a few original 356 cases with a hole there. |
356 two piece cases (prior to late '54) have the fitting there for the oil filter return line (sorry, they only had a bypass filter, not full flow). If VW didn't do this, then it looks like someone used this case for a 356 at one time.
Is this case a particularly rare item or ho hum? |
|
