How do you lift a bay window?
Forum Index -> Bay Window Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
anyoldubwilldo
Samba Member


Joined: June 05, 2010
Posts: 2
Location: Merced, CA
anyoldubwilldo is offline

PostPosted: Wed Sep 08, 2010 12:12 pm    Post subject: How do you lift a bay window? Reply with quote

Hello. I have a 68 bus and I was curious to know how you go about lifting a bay window bus? Is it fairly inexpensive? I don't want it lifted too much, just enough to put beefier tires on. I have a project in mind and would love some info. Thanks in advance
Back to top
View user's profile Send private message Classifieds Feedback
josh
Samba Member


Joined: July 13, 2003
Posts: 1773
Location: laid back in the tall grass
josh is offline

PostPosted: Wed Sep 08, 2010 12:35 pm    Post subject: Reply with quote

Raising the rear a bit is easy and costs nothing if you do it yourself. It is a good idea to replace the spring plate bushings while you have things apart though.
You simply do some rear suspension disassembly and move the trailing arms down a spline or two on the torsion bar.

The front is a bit more difficult. Parts aren't expensive so if you are a good welder/fabricator you could do it pretty inexpensively. If you need someone else to do the cutting/welding the cost goes up
The best way to raise the front is to weld adjusters into the beam. They allow the torsion bars to be rotated to alter ride height.

Ironically some of the best info on raising a bus is in the how to lower a bus sticky. The same methods I mentioned for raising a bus are also preferred methods of lowering a bus except that things are moved in the opposite directions. When you've got the beam apart it's really a good time to overhaul the front end. This ads to the expense but is well worth the increased safety, handling, ride quality and peace of mind.

The shops mentioned that can build an adjustable beam for lowering should be able to build an adjustable beam for a lift.

Read the Bentley manual sections on front and rear suspension to get a good idea of how things work and go together.

Also before you buy any parts search the forums to see what people are saying about which parts are better and where to get them. There are some absolute garbage parts out there.

Good luck.
_________________
modok wrote:
...If If stoner A takes a hit and then stoner B goes right away(not waiting two seconds), he's trying to suck on it while it's still got a vaccum, doesen't get much of a hit at all! Cause it hasn't filled back up all the way yet.

Stoner A is cylinders #2/4 B is #1/3 The plugged bowl is the throttle, the bong is the manifold
Back to top
View user's profile Send private message Gallery Classifieds Feedback
69rulz
Samba Member


Joined: June 07, 2009
Posts: 867
Location: On a trip on my couch
69rulz is offline

PostPosted: Wed Sep 08, 2010 12:39 pm    Post subject: Reply with quote

with a jack Laughing
Back to top
View user's profile Send private message Classifieds Feedback
fastmc25
Samba Member


Joined: January 01, 2004
Posts: 1111
Location: NW, Louisiana
fastmc25 is offline

PostPosted: Wed Sep 08, 2010 4:31 pm    Post subject: Reply with quote

2-1/2" raised spindles on front......... rides like stock with much better tire clearance.... from www.wagenswest.com
Image may have been reduced in size. Click image to view fullscreen.


You can adjust the rear springplates and gain a couple inches height in the rear ... the ride will be a little stiffer but it's the cheap way to do it.....

Or you can do like i did ...... build lift plates and run 930 cv's with longer axles.... Not cheap... but 4" plus lift for much bigger tires... Cool

Image may have been reduced in size. Click image to view fullscreen.


But remember... taller tires will drop engine rpms and could cause your bus to overheat if you don't do your homework...
Smile
_________________
Peace,

Paul

1971 Transporter (Pickle)
1961 Deluxe Beetle (Christine)
1973 Adventurewagen Baja Bus (Clyde)

"I spent the first 20 years of my life trying to bag some weed....... and now the rest of my life ....just bagging weeds......"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
aeromech
Samba Member


Joined: January 24, 2006
Posts: 14260
Location: San Diego, California
aeromech is offline

PostPosted: Thu Sep 09, 2010 1:00 pm    Post subject: Reply with quote

Hey, how well does that thing handle on the road?
_________________
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
RatCamper
Samba Member


Joined: November 13, 2008
Posts: 3305
Location: Australia
RatCamper is offline

PostPosted: Thu Sep 09, 2010 2:17 pm    Post subject: Reply with quote

I was / am going to use beam adjusters on the front and on the back, I don't know, possibly boomerang plates to keep my suspension travel. I only want an inch or so of lift, combined with different wheels so I can add another inch or so via profile.
Lift spindles are illegal here, besides as cool as they are I don't want a monster truck ...er bus. Stock height it bottoms out on things more often than I'd like.
_________________
Vehicle: 1975 Special order delivery walkthrough panel based pop-top camper (LCA / Sunliner). Motor: Nippon 1.8L Single port Wasserboxer, Transmission: 3 rib 002.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
fastmc25
Samba Member


Joined: January 01, 2004
Posts: 1111
Location: NW, Louisiana
fastmc25 is offline

PostPosted: Thu Sep 09, 2010 8:45 pm    Post subject: Reply with quote

aeromech wrote:
Hey, how well does that thing handle on the road?

Hey Aeromech....... Surprisingly,It handles great.... hard to drive in high sidewinds sometimes ...... I've logged almost 20,000 miles on it... Handles even better with my trailer in tow.... Smile
I did finally drop it back down in ride height but have retained the same size tires..... I opted to do this for reliability ..... my 930 cv's were already starting to make more noise than i care for ...... knowing i had a couple 2000 mile trips coming up ..... it was the best solution... Cool
_________________
Peace,

Paul

1971 Transporter (Pickle)
1961 Deluxe Beetle (Christine)
1973 Adventurewagen Baja Bus (Clyde)

"I spent the first 20 years of my life trying to bag some weed....... and now the rest of my life ....just bagging weeds......"


Last edited by fastmc25 on Fri Sep 10, 2010 7:09 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 34804
Location: Retired so can be anywhere now
SGKent is offline

PostPosted: Thu Sep 09, 2010 9:25 pm    Post subject: Reply with quote

Quote:
I was curious to know how you go about lifting a bay window bus?


like this

Image may have been reduced in size. Click image to view fullscreen.

_________________
Ted Williams has always been my hero since the very first time my dad took me down to their dugout after a game. They flew together in WWII. Ted liked to fish. Maybe as I get older it's time to do some fishing too. Smile Have a great day with your bus!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nathansnathan
Samba Member


Joined: April 14, 2008
Posts: 1671

nathansnathan is offline

PostPosted: Fri Sep 10, 2010 7:38 am    Post subject: Reply with quote

click, click, click go the cv joints around every corner.

I had my back raised by an inch and a half or so only, up 1 course notch in back. New german cv joints I paid 240 for 4 of still clicked. The spec is 24 degrees I think on a type 4 engined bus, 22 on Type 1? for the cv joint angle. Going around a corner will take you past that with only that much lift.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
fastmc25
Samba Member


Joined: January 01, 2004
Posts: 1111
Location: NW, Louisiana
fastmc25 is offline

PostPosted: Fri Sep 10, 2010 7:51 am    Post subject: Reply with quote

Bus Cv's will..... so will Type 4 cv's with this high lift... 930's don't..

Mine didn't click on corners...... they made a occassional chatter noise on deceleration that i didn't care for... I had 930 cv's running at 23 degrees but clearanced for 27 degrees... and they were Indexed for best operation..
I removed and inspected them periodically and noticed no wear..... so it was nature of the beast... I just didn't like the chatter.... Rolling Eyes

Biggest thing i noticed was the CV heat increase....... My cv's will seep joint grease after 2000 miles running at those angles... even sealed with rtv they still seem to seep grease a little...
Rolling Eyes
I have a line on some axles made to run 45 degrees max and when i wanna pony up $1300. i'll get them.. Cool

http://www.highangledriveline.com/sandrails.html

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Peace,

Paul

1971 Transporter (Pickle)
1961 Deluxe Beetle (Christine)
1973 Adventurewagen Baja Bus (Clyde)

"I spent the first 20 years of my life trying to bag some weed....... and now the rest of my life ....just bagging weeds......"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Heathintexas
Samba Member


Joined: September 24, 2011
Posts: 128

Heathintexas is offline

PostPosted: Sat Oct 22, 2011 4:43 pm    Post subject: Reply with quote

josh wrote:
Raising the rear a bit is easy and costs nothing if you do it yourself. It is a good idea to replace the spring plate bushings while you have things apart though.
You simply do some rear suspension disassembly and move the trailing arms down a spline or two on the torsion bar.
.


could anyone explain in a little more detail on this, because i'm looking under the bus still with a little bit of confusion. My rear tires are leaning in at the top, and i would think that its because its because It sits kind of low in the back.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
babysnakes
Samba Member


Joined: August 19, 2008
Posts: 6578

babysnakes is offline

PostPosted: Sat Oct 22, 2011 5:12 pm    Post subject: Reply with quote

SGKent wrote:
Quote:
I was curious to know how you go about lifting a bay window bus?


like this

Image may have been reduced in size. Click image to view fullscreen.


I certainly hope those are OSHA approved 2x4's and rock chock block! Shocked
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nathansnathan
Samba Member


Joined: April 14, 2008
Posts: 1671

nathansnathan is offline

PostPosted: Sat Oct 22, 2011 5:40 pm    Post subject: Reply with quote

Heathintexas wrote:
josh wrote:
Raising the rear a bit is easy and costs nothing if you do it yourself. It is a good idea to replace the spring plate bushings while you have things apart though.
You simply do some rear suspension disassembly and move the trailing arms down a spline or two on the torsion bar.
.


could anyone explain in a little more detail on this, because i'm looking under the bus still with a little bit of confusion. My rear tires are leaning in at the top, and i would think that its because its because It sits kind of low in the back.


They are supposed to be like that on a late bus. I've read Amskeptic talk about it helping handling for the heavier engine and I've seen myself on plenty of late buses. It does not wear the tires to have that camber back there, and raising it or lowering it will not make it go away. The "lowering a bay" thread talks about using a washer between the .... can't remember what it is called and it sounds unsafe. I would leave the camber there. With that said, it probably does sit low in the back, but the camber is normal. Here is a pic of a tye 4 engined bus with rear camber that looks 'right' to me (edit: posted the wrong image before)
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 34804
Location: Retired so can be anywhere now
SGKent is offline

PostPosted: Sat Oct 22, 2011 5:43 pm    Post subject: Reply with quote

or you can just sell your bus and go buy a chevy truck.
_________________
Ted Williams has always been my hero since the very first time my dad took me down to their dugout after a game. They flew together in WWII. Ted liked to fish. Maybe as I get older it's time to do some fishing too. Smile Have a great day with your bus!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RatCamper
Samba Member


Joined: November 13, 2008
Posts: 3305
Location: Australia
RatCamper is offline

PostPosted: Sat Oct 22, 2011 5:48 pm    Post subject: Reply with quote

Heathintexas wrote:
josh wrote:
Raising the rear a bit is easy and costs nothing if you do it yourself. It is a good idea to replace the spring plate bushings while you have things apart though.
You simply do some rear suspension disassembly and move the trailing arms down a spline or two on the torsion bar.
.


could anyone explain in a little more detail on this, because i'm looking under the bus still with a little bit of confusion. My rear tires are leaning in at the top, and i would think that its because its because It sits kind of low in the back.


Your back wheels are supposed to do that.

There are some good explanations around the place on how to adjust the rear suspension height. You can't see the torsion leaves. They are in the big tube. See those plates sticking out from the tube, going out to the hub? Those are the spring plates. Essentially when the height is adjusted it involves removing stuff so you can remove the spring plates, and rotate the inner and outer ends of the torsion springs to change the ride height. They have a different number of splines on each end so fine adjustment is possible. eg you might go 3 splines CCW on the inside and 1 spline CW on the outside to adjust to where you want it. Personally i don't remember any of the details. If you want to adjust it, find a good explanation somewhere. They exist on thesamba. Don't attempt it wothout looking at them first, because remember you are dealing with big sprung loads.
_________________
Vehicle: 1975 Special order delivery walkthrough panel based pop-top camper (LCA / Sunliner). Motor: Nippon 1.8L Single port Wasserboxer, Transmission: 3 rib 002.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Heathintexas
Samba Member


Joined: September 24, 2011
Posts: 128

Heathintexas is offline

PostPosted: Sat Oct 22, 2011 7:55 pm    Post subject: Reply with quote

SGKent wrote:
or you can just sell your bus and go buy a chevy truck.


Ha funny you mentioned that, i wend from a 5.7 liter chevy to my 1.6 liter bus and have no intent on going back.

Thanks for the quick responses everybody
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rockerarm
Samba Member


Joined: December 16, 2009
Posts: 3552
Location: Los Angeles
rockerarm is offline

PostPosted: Sat Oct 22, 2011 9:15 pm    Post subject: Reply with quote

aeromech wrote:
Hey, how well does that thing handle on the road?


Well, aeromech, funny you should ask that question. And maybe SGKent might like this with his SCCA background. My first dealer job, first day outa high school, my shop foreman at Russ Thor VW, Torrance, Ca, used to race SCCA Modifieds and he told me when the Corvettes would enter the track, all the spectators would move to the inside of the turn, instead of the outside. When this inexperienced 18yo asked why, he said "damn understeering corvettes handle like a 3 legged dog."
Back to top
View user's profile Send private message Classifieds Feedback
Bulli Klinik
Samba Member


Joined: January 16, 2005
Posts: 1714
Location: Bulli Klinik, Colorado Springs
Bulli Klinik is offline

PostPosted: Sun Oct 23, 2011 7:35 am    Post subject: Re: How do you lift a bay window? Reply with quote

anyoldubwilldo wrote:
Hello. I have a 68 bus and I was curious to know how you go about lifting a bay window bus? Is it fairly inexpensive? I don't want it lifted too much, just enough to put beefier tires on. I have a project in mind and would love some info. Thanks in advance


Pull the beam and disassemble:
Image may have been reduced in size. Click image to view fullscreen.

You'll need to remove the center pin/pittman arm bracket and steering stops (which are welded back on in the photo):
Image may have been reduced in size. Click image to view fullscreen.

Drill out the holes for the center block and knock it out of the way so that you can slot the beam for the adjusters:
Image may have been reduced in size. Click image to view fullscreen.

Index your adjusters and weld them on. These are Beefcake adjusters:
Image may have been reduced in size. Click image to view fullscreen.

Weld the stops and steering bracket back on:
Image may have been reduced in size. Click image to view fullscreen.

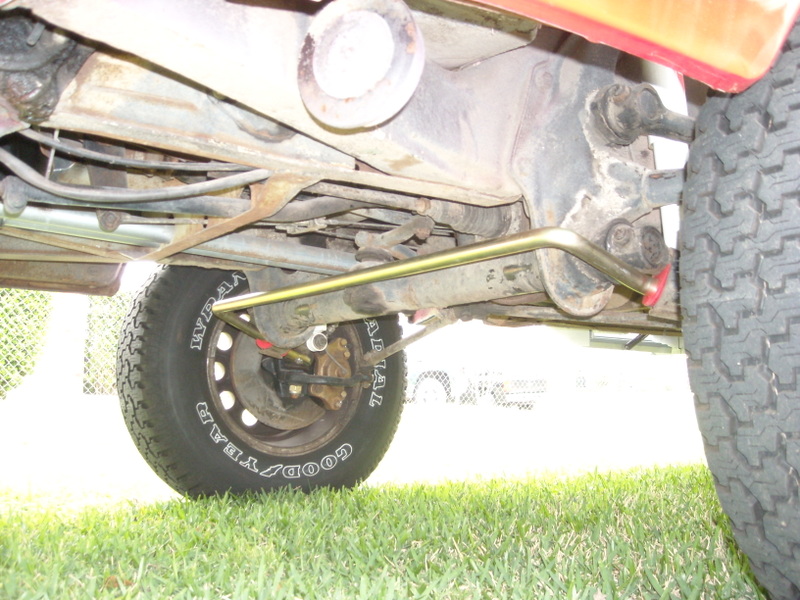

Paint it and put it all back together:
Image may have been reduced in size. Click image to view fullscreen.

_________________
I've never met a Bus I didn't like.
Mike K
Bulli Klinik
Colorado Springs
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
Bulli Klinik
Samba Member


Joined: January 16, 2005
Posts: 1714
Location: Bulli Klinik, Colorado Springs
Bulli Klinik is offline

PostPosted: Sun Oct 23, 2011 7:39 am    Post subject: Reply with quote

Keep in mind that you will be limited in lifting a ball joint beam due to the limited travel of the ball joints. You'll only be able to twist it one or two adjuster teeth before the ball joints will want to bind.

I think that if you're going big with a Bus, you really need some custom spindles.

Good luck!
_________________
I've never met a Bus I didn't like.
Mike K
Bulli Klinik
Colorado Springs
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
