March Hare
Samba Member
Joined: July 18, 2004
Posts: 206
Location: Pennsylvania
|
 Posted: Sun Apr 27, 2008 7:22 am Post subject: Hurst Rear Bumper Mounting |
 |
|
Ok,,since having learned ( perhaps the hard way ) about these beasts,,I have noticed that the rear mounting ones seemed to be 'flawed' ( least as far as I can see..Where the rear mounts to the 1/4 panel is there actually anything there besides sheet metal? ie some sub structural support or something ? Otherwise it would seem that if you got tagged in the back end that not only would you have bumper and the obvious damage to deal with,but also a nice tear in your 1/4 from the bar pushing forward.
_________________
"we know who you are Bronze and we know where you live ..."
#24312 |
|
| Back to top |
|
 |
campingbox
Samba Member
Joined: November 14, 2000
Posts: 10249
Location: Petaluma, CA
|
| Posted: Sun Apr 27, 2008 7:57 am Post subject: |
|
|
| I ran some 2" square washers on the very front bolt when I installed the set on the Boise bus. The center two bolts are inbetween the corner seam and the wheel well seam so I suspect it's a fairly strong area. |
|
| Back to top |
|
|
chiroracer
Samba Member
Joined: August 03, 2006
Posts: 347
Location: long beach
|
| Posted: Sun Apr 27, 2008 9:02 am Post subject: |
|
|
See you on the road skag!!!! EB
_________________
66 bajawestfalia
2/1600 buggy Kreger chassis 4 baja 1000(waiting to re emerge)
71 911 track car
65 kombi EZ camper (sold to OG owner in oregon)
69 class 11 racecar Sold to GH racing now the famous Dora SCOREchampion
70 class 11 prerunner |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12605
|
| Posted: Mon Apr 28, 2008 8:27 am Post subject: |
|
|

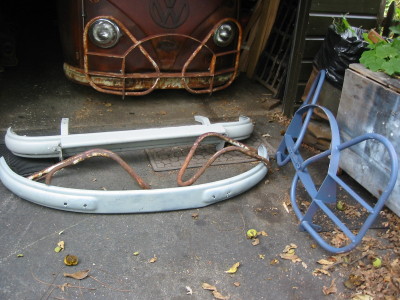

The Hurst bumpers have extra brackets as well as the bar that goes from left to right.
The Hurst brackets are white in the pic above.
The original brackets are grey.
Those early bumpers through 58 are just flimsy.
_________________
The Obsolete Air-Cooled Documentation Project http://oacdp.org/ |
|
| Back to top |
|
|
tantau
Samba Member
Joined: August 17, 2003
Posts: 52
Location: honolulu, hawaii
|
| Posted: Fri Oct 15, 2010 4:38 pm Post subject: |
|
|
What's the difference between "early" vs "late" on the rear hurst bumpers... is it something to due with the bumpers??? Looks like the rear would fit either way... (I have a '61)
M
_________________
"He who controls the spice, controls the universe" |
|
| Back to top |
|
|
EmpiGT
Samba Member
Joined: January 27, 2005
Posts: 2597
|
| Posted: Fri Oct 15, 2010 4:43 pm Post subject: |
|
|
On original Hursts early and late rears is where the lower tube stops. Early stopped at the lower mounting bolt on the bumper, like the one pictured above. On the later ones the tube extended past the mounting bolt on the bumper and wrapped into the wheel well some. But both types were for use on pressed bumpers. I think all repros out now are the early hurst style and that is the style you need to run on your late bumpers so they can sit farther back and you won't have the tube bent in to the side of the bumper or battery corner.

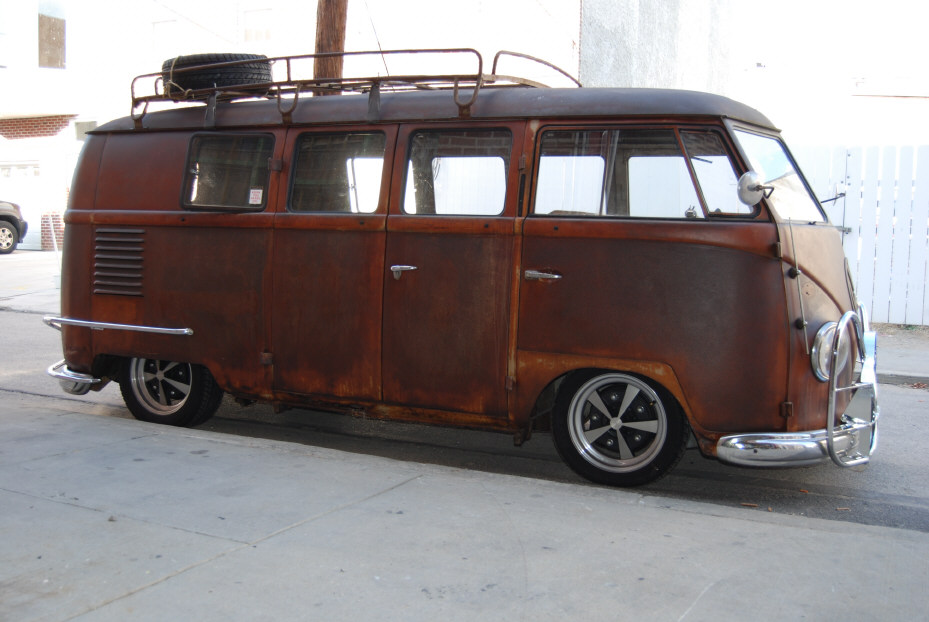

Here's a picture Clara posted. This is the best one I could find of late Hursts, notice the lower portion of the tube going into the wheel well.
|
|
| Back to top |
|
|
tantau
Samba Member
Joined: August 17, 2003
Posts: 52
Location: honolulu, hawaii
|
| Posted: Fri Oct 15, 2010 5:15 pm Post subject: |
|
|
I see what your saying for the "OG" style.... but for repros, your saying they commonly look like the top pic, but modified to fit properly?? Someone mentioned it's a bracketing thing for the repros...
Thx for the insight...
M
_________________
"He who controls the spice, controls the universe" |
|
| Back to top |
|
|
UZI
Platinum FUBU
Joined: February 08, 2002
Posts: 13335
Location: phila-DELFT-ia
|
| Posted: Fri Oct 15, 2010 5:18 pm Post subject: |
|
|

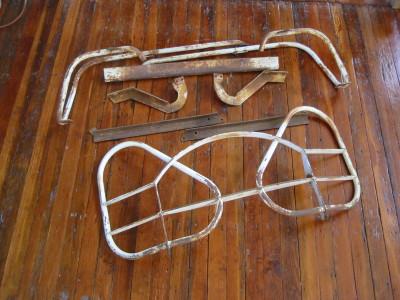

i've never seen these "early" rear hursts. every set i have had have all been this "late style"
_________________
Extravagant Lifestyle
| Quote: |
| mannys66: South Philly Van Club, only the most influential and freshest van club in the vw scene |
| Quote: |
| Cuñado: Chrome will get you home!!!!!!!!!! |
|
|
| Back to top |
|
|
EmpiGT
Samba Member
Joined: January 27, 2005
Posts: 2597
|
| Posted: Fri Oct 15, 2010 6:26 pm Post subject: |
|
|
That's funny Gibbs. you said this in 06
| UZI wrote: |
| that bus EmpiGT found appears to be a late 57/58. it also has the same type of rear hursts as the KING panel. i'm thinking the kind that snub off at the rear bumper are an earlier version. |
Alot of discussion about this on page 3 of this thread
http://www.thesamba.com/vw/forum/viewtopic.php?p=1425695&highlight=#1425695 |
|
| Back to top |
|
|
UZI
Platinum FUBU
Joined: February 08, 2002
Posts: 13335
Location: phila-DELFT-ia
|
| Posted: Fri Oct 15, 2010 6:30 pm Post subject: |
|
|
too much liquid LSD. what can i say. i still am not seeing any pics of original snub end rears.
_________________
Extravagant Lifestyle
| Quote: |
| mannys66: South Philly Van Club, only the most influential and freshest van club in the vw scene |
| Quote: |
| Cuñado: Chrome will get you home!!!!!!!!!! |
|
|
| Back to top |
|
|
campingbox
Samba Member
Joined: November 14, 2000
Posts: 10249
Location: Petaluma, CA
|
| Posted: Fri Oct 15, 2010 7:06 pm Post subject: |
|
|
| UZI wrote: |
| too much liquid LSD. what can i say. i still am not seeing any pics of original snub end rears. |
Ten for you and ten for me.
I have the set off busnutbob's '58 sunroof standard, the one with the glass cab divider, and they are the snub end type. |
|
| Back to top |
|
|
UZI
Platinum FUBU
Joined: February 08, 2002
Posts: 13335
Location: phila-DELFT-ia
|
| Posted: Fri Oct 15, 2010 7:17 pm Post subject: |
|
|
is that how many rears i've had? 10? i think i've had 14 fronts.
_________________
Extravagant Lifestyle
| Quote: |
| mannys66: South Philly Van Club, only the most influential and freshest van club in the vw scene |
| Quote: |
| Cuñado: Chrome will get you home!!!!!!!!!! |
|
|
| Back to top |
|
|
kombicol
Samba Member
Joined: January 11, 2008
Posts: 212
Location: Perth Australia - Now in Texas y'all
|
| Posted: Fri Oct 15, 2010 7:37 pm Post subject: |
|
|
While on the topic of rear hursts, does anyone know if there was another set for single cabs?
I have a set of the volkscafe early rear set and they foul on the sharp corners, wheras the ones of this single clear easily. Was there another set made with a tighter radius for the single cabs?
|
|
| Back to top |
|
|
campingbox
Samba Member
Joined: November 14, 2000
Posts: 10249
Location: Petaluma, CA
|
| Posted: Fri Oct 15, 2010 8:56 pm Post subject: |
|
|
| UZI wrote: |
| is that how many rears i've had? 10? i think i've had 14 fronts. |
I have no idea how many you have had. I'm not sure there are ten original rear sets in existance. |
|
| Back to top |
|
|
Sunroofgod
Samba Member
Joined: October 20, 2004
Posts: 402
|
| Posted: Fri Oct 15, 2010 9:46 pm Post subject: |
|
|
| kombicol wrote: |
While on the topic of rear hursts, does anyone know if there was another set for single cabs?
I have a set of the volkscafe early rear set and they foul on the sharp corners, wheras the ones of this single clear easily. Was there another set made with a tighter radius for the single cabs?
|
These are sets that Damon out of Old Volks Stockton made about 10+ years ago. One or two sets were made for single cab corners. |
|
| Back to top |
|
|
kombicol
Samba Member
Joined: January 11, 2008
Posts: 212
Location: Perth Australia - Now in Texas y'all
|
| Posted: Fri Oct 15, 2010 10:05 pm Post subject: |
|
|
^^ Thanks,
At least now I know why the set I have don't fit and his did.
Now I need to decide if I want to try and modify the ones I have or forget about putting them on the rear. |
|
| Back to top |
|
|
UZI
Platinum FUBU
Joined: February 08, 2002
Posts: 13335
Location: phila-DELFT-ia
|
| Posted: Sat Oct 16, 2010 5:22 am Post subject: |
|
|
| campingbox wrote: |
| UZI wrote: |
| is that how many rears i've had? 10? i think i've had 14 fronts. |
I have no idea how many you have had. I'm not sure there are ten original rear sets in existance. |
there has to be. i have had at least six.
_________________
Extravagant Lifestyle
| Quote: |
| mannys66: South Philly Van Club, only the most influential and freshest van club in the vw scene |
| Quote: |
| Cuñado: Chrome will get you home!!!!!!!!!! |
|
|
| Back to top |
|
|
bill may
Samba Member
Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
|
| Posted: Sat Oct 16, 2010 9:24 am Post subject: |
|
|
Heil Machine Co. is making the rear hurst copies now. Justin made a set for Robzkombi and i am picking them up at octo to deliver to Rob. Rob has a DCab. i am not sure on year of it. stop by my green 65 bus if you want to see them,or Justin should have extras for sale at octo.
_________________
Admin note: Bill Passed away - July, 2017
1965 panel bus-Kermit
"Camping is cheaper than therapy"
www.sv2s.com
www.steeringboxscrapers.net
SBS #100
http://www.thesamba.com/vw/forum/viewtopic.php?t=453617 |
|
| Back to top |
|
|
FritzCP
Samba Member
Joined: October 23, 2005
Posts: 478
Location: Wisconsin
|
| Posted: Mon Oct 18, 2010 6:03 pm Post subject: |
|
|
| Quote: |
These are sets that Damon out of Old Volks Stockton made about 10+ years ago. One or two sets were made for single cab corners. |
Thats my 58 sc I sold last spring. I still have the bumpers front and rear if anyone is interested in them. PM me if you do - thanks
_________________
Fritz Custom Products
Fritz 10 - Tin Screw Torquer
Fritz 124 - Crank Pulley Puller
Fritz 70 - 6306 Bearing Puller
Fritz 44 - Dizzy Puller |
|
| Back to top |
|
|
Lou V.
Samba Member
Joined: October 29, 2003
Posts: 1018
Location: Placerville,CA
|
| Posted: Tue Oct 19, 2010 7:49 am Post subject: |
|
|
There should be a flat stock washer about 4" long and has square holes for carriage bolts. that's what came with the original rears that I had.
