 Posted: Tue Oct 19, 2010 12:55 pm Post subject: My 3rd stupid question this week |
 |
|
I told you guys it wouldn't take me long to come up with another stupid question so here goes...
Type 1 engine, full flowed and using an external filter. Can the original oil strainer (screen) be eliminated? Would the oil pick-up tube still function properly?
From the gallery
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
 |
Randy in Maine
Samba Member
Joined: August 03, 2003
Posts: 34890
Location: The Beach
|
| Posted: Tue Oct 19, 2010 12:57 pm Post subject: |
|
|
| Keep it in there. |
|
| Back to top |
|
|
bsairhead
Samba Member
Joined: October 08, 2008
Posts: 4556
Location: viroqua wi.
|
| Posted: Tue Oct 19, 2010 12:58 pm Post subject: |
|
|
| You can get rid of it but it does no harm in place. |
|
| Back to top |
|
|
babysnakes
Samba Member
Joined: August 19, 2008
Posts: 7173
|
| Posted: Tue Oct 19, 2010 1:01 pm Post subject: |
|
|
| My 1600 is full flowed with external oil filter and I'm keeping the strainer. |
|
| Back to top |
|
|
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17746
Location: San Diego, California
|
| Posted: Tue Oct 19, 2010 1:01 pm Post subject: |
|
|
| Randy in Maine wrote: |
| Keep it in there. |
Any particular reason?
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
|
VDubTech
Samba Member
Joined: December 29, 2002
Posts: 9156
Location: Syracuse, NY
|
| Posted: Tue Oct 19, 2010 1:53 pm Post subject: |
|
|
| aeromech wrote: |
| Randy in Maine wrote: |
| Keep it in there. |
Any particular reason? |
I can't in 1000 years imagine why you would want LESS protection in filtering the oil. Why would you want to remove the screen?
_________________
First Trip in the RustyBus:
http://www.thesamba.com/vw/forum/viewtopic.php?t=279077&highlight=
| borninabus wrote: |
| a measurement of your rod would be extremely useful. |
| notchboy wrote: |
| my dad wasnt a belittling cock when he tought me how to wrench on cars. |
| EverettB wrote: |
One photo = good for reference.
10 photos = douchebaggery |
|
|
| Back to top |
|
|
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17746
Location: San Diego, California
|
| Posted: Tue Oct 19, 2010 2:09 pm Post subject: |
|
|
| VDubTech wrote: |
| aeromech wrote: |
| Randy in Maine wrote: |
| Keep it in there. |
Any particular reason? |
I can't in 1000 years imagine why you would want LESS protection in filtering the oil. Why would you want to remove the screen? |
It seems redundant. What's the screen going to catch that the filter misses?
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
|
VDubTech
Samba Member
Joined: December 29, 2002
Posts: 9156
Location: Syracuse, NY
|
| Posted: Tue Oct 19, 2010 2:11 pm Post subject: |
|
|
| aeromech wrote: |
| VDubTech wrote: |
| aeromech wrote: |
| Randy in Maine wrote: |
| Keep it in there. |
Any particular reason? |
I can't in 1000 years imagine why you would want LESS protection in filtering the oil. Why would you want to remove the screen? |
It seems redundant. What's the screen going to catch that the filter misses? |
You never know. It's also redundant in the T4 which came from the factory with a screen and a filter, and the screen still catches stuff and should be cleaned with every oil change. With oil filtration, I'll take as much redundancy as I can get.
_________________
First Trip in the RustyBus:
http://www.thesamba.com/vw/forum/viewtopic.php?t=279077&highlight=
| borninabus wrote: |
| a measurement of your rod would be extremely useful. |
| notchboy wrote: |
| my dad wasnt a belittling cock when he tought me how to wrench on cars. |
| EverettB wrote: |
One photo = good for reference.
10 photos = douchebaggery |
|
|
| Back to top |
|
|
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17746
Location: San Diego, California
|
| Posted: Tue Oct 19, 2010 2:12 pm Post subject: |
|
|
| VDubTech wrote: |
| aeromech wrote: |
| VDubTech wrote: |
| aeromech wrote: |
| Randy in Maine wrote: |
| Keep it in there. |
Any particular reason? |
I can't in 1000 years imagine why you would want LESS protection in filtering the oil. Why would you want to remove the screen? |
It seems redundant. What's the screen going to catch that the filter misses? |
You never know. It's also redundant in the T4 which came from the factory with a screen and a filter, and the screen still catches stuff and should be cleaned with every oil change. With oil filtration, I'll take as much redundancy as I can get. |
That's a good point
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
|
El_Güero
Samba Member
Joined: August 02, 2006
Posts: 573
|
| Posted: Tue Oct 19, 2010 4:51 pm Post subject: |
|
|
| aeromech wrote: |
| VDubTech wrote: |
| aeromech wrote: |
| Randy in Maine wrote: |
| Keep it in there. |
Any particular reason? |
I can't in 1000 years imagine why you would want LESS protection in filtering the oil. Why would you want to remove the screen? |
It seems redundant. What's the screen going to catch that the filter misses? |
Now your onto your fourth "stupid question".... are you trying to set a record here??? |
|
| Back to top |
|
|
Desertbusman
Samba Member
Joined: June 03, 2005
Posts: 14654
Location: Arizona
|
| Posted: Tue Oct 19, 2010 5:12 pm Post subject: |
|
|
| Quote: |
| My 3rd stupid question this week |
You're on a roll Gary
If nuts, bolts, bearings, or anything else falls to the bottom of the case it will prevent them from going thru the pump. And if you don't have it you'll probably never pull the drain plate to inspect for any particles, sludge or whatever. Also the sump plate studs then might be too long and the acorn nuts bottom out instead of sealing.
_________________
71 Superbug
71 Westy |
|
| Back to top |
|
|
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17746
Location: San Diego, California
|
| Posted: Tue Oct 19, 2010 5:33 pm Post subject: |
|
|
| Desertbusman wrote: |
| Quote: |
| My 3rd stupid question this week |
You're on a roll Gary
If nuts, bolts, bearings, or anything else falls to the bottom of the case it will prevent them from going thru the pump. And if you don't have it you'll probably never pull the drain plate to inspect for any particles, sludge or whatever. Also the sump plate studs then might be too long and the acorn nuts bottom out instead of sealing. |
Much better points and all well taken.
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
|
78Kombi
Samba Member
Joined: October 05, 2006
Posts: 1043
Location: Western Mass
|
| Posted: Tue Oct 19, 2010 5:38 pm Post subject: |
|
|
aeromech I understand where yer coming from, if anything is so big that a screen that size needs to catch it, well yer fukked anyway..
_________________
78 hightop 2.0 FI
| Wildthings wrote: |
no engine that I know of will run off of hype.
|
|
|
| Back to top |
|
|
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 52718
|
| Posted: Tue Oct 19, 2010 7:08 pm Post subject: |
|
|
Even I would leave the screen in place, who knows what lurks in the depths on your engine. Pulled one engine I had previously assembled apart to find a fir code in the sump thanks to some squirrel looking for a place to store his winter feast. I have certainly found a bunch of other weird crap hiding in pans and sumps over the years.
I have heard of people leaving the screens off to increase oil flow, but I have never heard of anyone actually having a starvation problem with them in place.
I would leave it there and then just not clean it more than once every 50K or so after the initial break in period. |
|
| Back to top |
|
|
atom
Samba Member
Joined: March 02, 2005
Posts: 131
Location: Austin, TX
|
| Posted: Tue Oct 19, 2010 7:41 pm Post subject: |
|
|

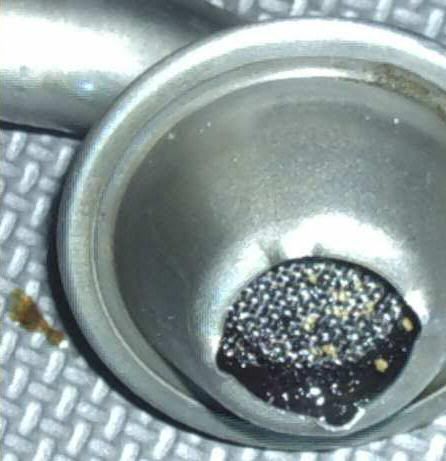

Just want to reiterate the point made here, with some pictures of modern oil pick-up tubes. Seems like a good plan to keep the screen with filter, since that engineering is still used. I clean these when replacing oil pans, so with a filter, they don't need regular cleaning, but also not forgotten.
| VDubTech wrote: |
| aeromech wrote: |
| VDubTech wrote: |
| aeromech wrote: |
| Randy in Maine wrote: |
| Keep it in there. |
Any particular reason? |
I can't in 1000 years imagine why you would want LESS protection in filtering the oil. Why would you want to remove the screen? |
It seems redundant. What's the screen going to catch that the filter misses? |
You never know. It's also redundant in the T4 which came from the factory with a screen and a filter, and the screen still catches stuff and should be cleaned with every oil change. With oil filtration, I'll take as much redundancy as I can get. |
|
|
| Back to top |
|
|
Desertbusman
Samba Member
Joined: June 03, 2005
Posts: 14654
Location: Arizona
|
| Posted: Tue Oct 19, 2010 8:46 pm Post subject: |
|
|
Next question?
_________________
71 Superbug
71 Westy |
|
| Back to top |
|
|
Hoody
Samba Member
Joined: November 28, 2007
Posts: 1948
|
| Posted: Tue Oct 19, 2010 10:00 pm Post subject: |
|
|
| The best reason to keep it? Old German engineers decided it should be their. |
|
| Back to top |
|
|
Hoody
Samba Member
Joined: November 28, 2007
Posts: 1948
|
| Posted: Tue Oct 19, 2010 10:05 pm Post subject: |
|
|
Just put a coffee filter in there and you will be good
Last edited by Hoody on Tue Oct 19, 2010 10:07 pm; edited 1 time in total |
|
| Back to top |
|
|
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 52718
|
| Posted: Tue Oct 19, 2010 10:06 pm Post subject: |
|
|
| Hoody wrote: |
| The best reason to keep it? Old German engineers decided it should be their. |
Old German engineers also didn't bother to use a filter on an engine sold well into the 1970's. Inexcusable oversight if you ask me. |
|
| Back to top |
|
|
BusterBrown
Samba Member
Joined: December 15, 2009
Posts: 1397
Location: Arizona
|
| Posted: Tue Oct 19, 2010 10:08 pm Post subject: |
|
|
aeromech;
You only asked what many of us have wondered about. I changed my oil, filter, and cleaned the sump screen just this past weekend, and wondered that very thing.
I too anticipate your next silly question. And it's OK for you to ask them, 'cause you're not a noobie!
_________________
1978 Sage Green Westfalia (Happy Trails, SOLD)
1977 Transporter
Life is short. Can I have some of yours? |
|
