1957 Euro Semaphore/Ragtop Vintage Speed Project
Page: 1, 2, 3 ... 10, 11, 12  Next
Jump to:
Forum Index -> Vintage Speed Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Rwoodshvac
Samba Member


Joined: March 21, 2010
Posts: 202
Location: VA
Rwoodshvac is offline

PostPosted: Fri Nov 05, 2010 12:31 pm    Post subject: 1957 Euro Semaphore/Ragtop Vintage Speed Project Reply with quote

Ok here is my story. My very first car when i was 15 years old. A 57 VW Sedan. So at the age of 50 i have decide i wanted to relive all those great memories that 57 gave me. So i found a pretty solid 57 for a restro project. As i have worked on the 57 for the past 6 months or so i stumbled upon this fourm Vintage Speed. So i made the decision to put some of the info from here into my 57.

I will share with you as i go.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rwoodshvac
Samba Member


Joined: March 21, 2010
Posts: 202
Location: VA
Rwoodshvac is offline

PostPosted: Fri Nov 05, 2010 12:41 pm    Post subject: 57 Euro Reply with quote

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

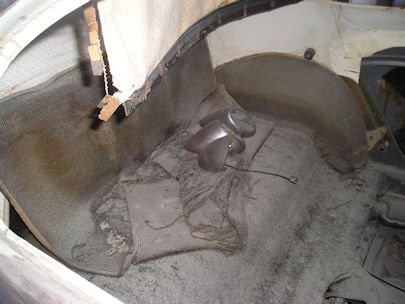

This is how she looked the day i picked her up.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rwoodshvac
Samba Member


Joined: March 21, 2010
Posts: 202
Location: VA
Rwoodshvac is offline

PostPosted: Fri Nov 05, 2010 12:54 pm    Post subject: Heart of My Vintage Speed Build Reply with quote

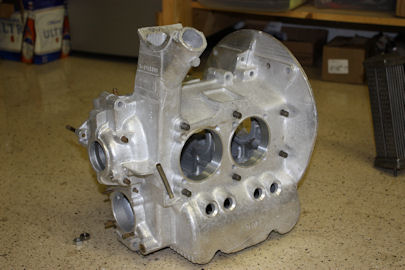

The 57 came with its original 36Hp. How ever i came accross. A 1948 solid aluminum case that will be the basis for my Vintage Speed engine. I will leave the original engine alone at this time. After all plugs removed and oil galleys cleaned along with a good case cleaning the case was sent to Rimco for a once over and a Bore job for bigger P&Cs . The case has been dirlled and taped for oil galley plugs and for full flow .

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
baked beetle
Samba Member


Joined: September 23, 2006
Posts: 1162
Location: Alberta, Canada
baked beetle is offline

PostPosted: Fri Nov 05, 2010 2:09 pm    Post subject: Reply with quote

very nice case. Cool Cool
_________________
These days people like me are hard to find- we don't give a damn what you think, about what we think. - JR
____________________
66' His
57' Theirs
63' Hers
62' Drag Bug - Theirs 13.1 @ 101 mph (GONE)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Julio Iniguez
Samba Member


Joined: April 19, 2004
Posts: 127

Julio Iniguez is offline

PostPosted: Fri Nov 05, 2010 3:56 pm    Post subject: Reply with quote

Bling bling!!!!
Glad you found this thread and decided to join us, good luck on you project and keep us informed.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
splitpile
Samba's Worst Speller


Joined: May 03, 2000
Posts: 5926
Location: back to living where hell meets the suface
splitpile is offline

PostPosted: Fri Nov 05, 2010 5:59 pm    Post subject: Re: Heart of My Vintage Speed Build Reply with quote

Rwoodshvac wrote:
T

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Beautiful case, what a great platform to work from
_________________
Stocking distributor of "The Funky Green Panels"
www.BUSTORATION.com metal and more for your bus
"no more hacking my sig line"
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Gallery Classifieds Feedback
jasonvw
Samba Member


Joined: June 22, 2005
Posts: 717
Location: so cal since 87
jasonvw is offline

PostPosted: Fri Nov 05, 2010 9:11 pm    Post subject: Reply with quote

You might consider selling that case to someone with an early car in need of that specific case for their project, and picking up a good later 36HP case. They are cheap and easy to find, whereas the pre 49 cases are not..... something to consider.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
tstracy39
Samba Member


Joined: May 14, 2008
Posts: 3288
Location: West Philadelphia, PA
tstracy39 is offline

PostPosted: Fri Nov 05, 2010 9:44 pm    Post subject: Reply with quote

Aluminum cases were born to be hopped up. Throw a supercharger and twin plug ignition on there while you're at it.
_________________
Check my classifieds for kewl gauges:

http://www.thesamba.com/vw/classifieds/search.php?username=tstracy39

EverettB wrote:
I like your fork.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rwoodshvac
Samba Member


Joined: March 21, 2010
Posts: 202
Location: VA
Rwoodshvac is offline

PostPosted: Sat Nov 06, 2010 11:41 am    Post subject: If you build a Hot Engine Better good running gear Reply with quote

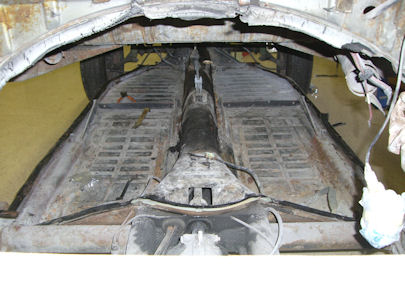

Here is the pan before i started. They were in pretty good shape the left was good but the right had eaten thru in the battery tray. So i decided to replace both with WW pans so both sides will match

Image may have been reduced in size. Click image to view fullscreen.
[/img]
Pans cut out
Image may have been reduced in size. Click image to view fullscreen.

Pans fit and welded back in
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rwoodshvac
Samba Member


Joined: March 21, 2010
Posts: 202
Location: VA
Rwoodshvac is offline

PostPosted: Sat Nov 06, 2010 12:01 pm    Post subject: Pan and chassis work Reply with quote

I decided on using the Master Sieries Paints Two coats

Image may have been reduced in size. Click image to view fullscreen.


I did a total restoration of the Pan
Rebuild Trans, Rebuild Cluster Assy. New bearings on all four coners including trailing arms, New Bushings in rear swing plates. New Kings, Ti rods Etc. New brakes on all four corners to include New master cylinder New brake cylinders on all four corners All new brake lines shoes Etc.
Image may have been reduced in size. Click image to view fullscreen.

All new hardware in Stainless. New gromets and new cables as well, Shocks
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


With Chassis finished its time for some Vintage Speed Engine Work
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rwoodshvac
Samba Member


Joined: March 21, 2010
Posts: 202
Location: VA
Rwoodshvac is offline

PostPosted: Sat Nov 06, 2010 7:16 pm    Post subject: Quality Reply with quote

Just one word on Quality do your homework. I tried to save a few buks on the pans. But in the end i was dissatisfied and ended up getting the WW pans. They were much nicer than the budjet ones . Heads and sholders above. Had the hassel of resale the inferior ones I will not mention name
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rwoodshvac
Samba Member


Joined: March 21, 2010
Posts: 202
Location: VA
Rwoodshvac is offline

PostPosted: Mon Nov 08, 2010 2:14 pm    Post subject: Reply with quote

Ok I have the case to build my Vintage Speed Engine. Time to make a decision on the internals
I read a lot of different posts in the vintage speed forum and asked a lot of questions regarding the fitment of Porsche cranks into a 36 hp VW case. I got a lot of different answers. So I just decided to go ahead and figure it out hands on. I have friend who had a friend with some Porsche 356 stuff to play with . So I took my case and a two hour trip up the road to play. So here is what I have seen first hand A Porsche 356 Crank in Pre-A , A or B will drop right in with no mod's or clearance issues at all. A 356 C crank is a different story it is not a drop in and will require case work.

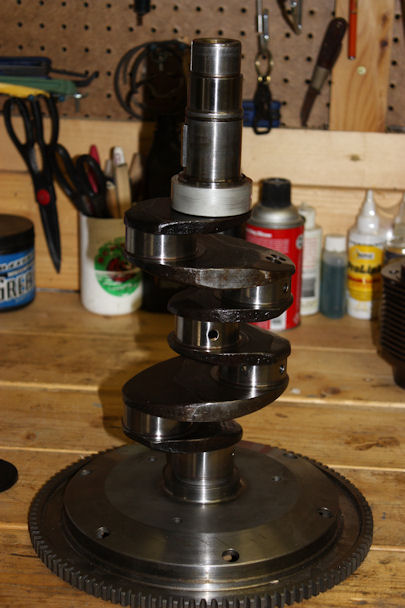

So I decided on a Porsche 356 B crank for my build. I found a 356 B crank in great shape from a guy on the 356 Registry site. I sent it in to have it checked out. We ended up maching all the bearing surffices .25 mm 1st Cut. Did all the other work Balance , Magna fluxed Etc.
Image may have been reduced in size. Click image to view fullscreen.


So here is the reasons i decided to go this route
74 mm Stroke Crank
No clearance issues as Porsche had all that worked out
No machining needed to be done to the case A true Drop in
you can use VW bearings for the mains , readily avalible at a very good cost.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
gimmesomeshelter
Samba Member


Joined: May 08, 2004
Posts: 1428
Location: San Carlos, CA
gimmesomeshelter is offline

PostPosted: Mon Nov 08, 2010 2:36 pm    Post subject: Reply with quote

Hello-

If you regrind the crank, does that mean you have to nitride it as well?

Thanks,

Paul
_________________
"I would rather have questions that can't be answered than answers that can't be questioned."

Richard Feynman
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rwoodshvac
Samba Member


Joined: March 21, 2010
Posts: 202
Location: VA
Rwoodshvac is offline

PostPosted: Mon Nov 08, 2010 2:53 pm    Post subject: Reply with quote

Paul
Yes that is what i was told. So i paid the price But im not a expert. I just pay the bill. Maybe an expert can chime in and let us know if its worth the price.
Rick
Back to top
View user's profile Send private message Gallery Classifieds Feedback
grueni
Samba Member


Joined: November 03, 2008
Posts: 576
Location: Germany
grueni is offline

PostPosted: Mon Nov 08, 2010 3:18 pm    Post subject: Reply with quote

Rwoodshvac wrote:

No machining needed to be done to the case A true Drop in

messure the main journals...are they all 50mm? then it is plug and play there.
and don't forgett that you will use connection rods on a crank Wink
_________________
1956 oval 1192cc 36hp Supercharged 70HP at 3900RPM / 150NM at 2000RPM @ 13 psi

1960 1641cc Twin scroll turbocharged, intercooled @17 psi 318nm/3430rpm 160hp/4790rpm
with cb2280 cheater cam 222@ 0.05"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rwoodshvac
Samba Member


Joined: March 21, 2010
Posts: 202
Location: VA
Rwoodshvac is offline

PostPosted: Mon Nov 08, 2010 3:52 pm    Post subject: Reply with quote

Grueni

Yes i agree rods a probably as important as any other part of the engine. With the Porsche crank having Porsche rod demension it makes sense to use Porsche Rods. My new friend suggested that the Porshe B and later rods were the strongest. Part # 616.103.101.01 So for this build i found a set of B Rods for a good price and sent them off to Rimco for a refurbishing and Rebushing. I should have them in the in a day or two as i sent them out last week. Once i get them back i will balance them to a 10th of a gram or so.
Another positive thing for these rods. good german bearings are easy to come by for around 50 Bucks
Back to top
View user's profile Send private message Gallery Classifieds Feedback
grueni
Samba Member


Joined: November 03, 2008
Posts: 576
Location: Germany
grueni is offline

PostPosted: Mon Nov 08, 2010 4:20 pm    Post subject: Reply with quote

Wink
what i mean was that you can't put a 74mm crank into the 36hp case without porting it, the crank will fit, but not with the connection rods on them.
for sure the 616 are the strongest, but the most do not need them in 36hp cases i only would use them with over 100hp goals. but everybody think a little bit different in those things.
the non 616 are up to 100gramm less in weight. and machining them to late 616 rod bearings is very easy. but when you have them use the 616.
_________________
1956 oval 1192cc 36hp Supercharged 70HP at 3900RPM / 150NM at 2000RPM @ 13 psi

1960 1641cc Twin scroll turbocharged, intercooled @17 psi 318nm/3430rpm 160hp/4790rpm
with cb2280 cheater cam 222@ 0.05"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rwoodshvac
Samba Member


Joined: March 21, 2010
Posts: 202
Location: VA
Rwoodshvac is offline

PostPosted: Tue Nov 09, 2010 11:49 am    Post subject: Reply with quote

Grueni

I guess i failed to say i did a mock up before i sent my Rods to Rimco. In my Case and i would assume it would be true for all 36hp cases. If you use a Poarshe 356 Pre-a, A or B crank with Porsche B rods you do not have to do any Clearancing or porting of the case or the rods. They drop right in with no clearance issues at all.
Once i get the rods back i will take pictures of the closet tolerances.

On another note
I am even thinkinng with a little clearancing work you may could run a Reground Porsche crank in 75 or 76mm but in not sure on that i would need some time to figure that out with all the components in hand.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
gimmesomeshelter
Samba Member


Joined: May 08, 2004
Posts: 1428
Location: San Carlos, CA
gimmesomeshelter is offline

PostPosted: Tue Nov 09, 2010 11:58 am    Post subject: Reply with quote

Hello-

To fit a crank with a stroke longer than 74mm, you'll need decrease the diameter of the rod journals. I've heard that you can use rods from a Honda, but I've never seen it done.

Paul
_________________
"I would rather have questions that can't be answered than answers that can't be questioned."

Richard Feynman
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rwoodshvac
Samba Member


Joined: March 21, 2010
Posts: 202
Location: VA
Rwoodshvac is offline

PostPosted: Tue Nov 09, 2010 12:12 pm    Post subject: Reply with quote

Paul
I have not heard of that. Sounds interesting. When i mocked up my engine before sending the crank of rods off it appeared that i had at least 3 or 4 mm of clearance at the smallest clearance that was between the rod and cam. I mocked the engine up with a cam that has the Porsche 1500s profile.
I was thinking if you used a cam with less lobes and a set of ratio rockers you may could get 76 mm . As i said i do not have all the parts in hand so once i get them in i will do some serious measuring for maybe a future project.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
