nlorntson Crazy VW Lady

Joined: March 13, 2004 Posts: 3835 Location: Twin Cities, MN
|
Posted: Tue Dec 07, 2010 10:11 pm Post subject: Cable brake information |
|
|
Some of us have cars with cable brakes so I though it might be good to make a post with some of the details about the parts of the system, adjustment and maintenance.

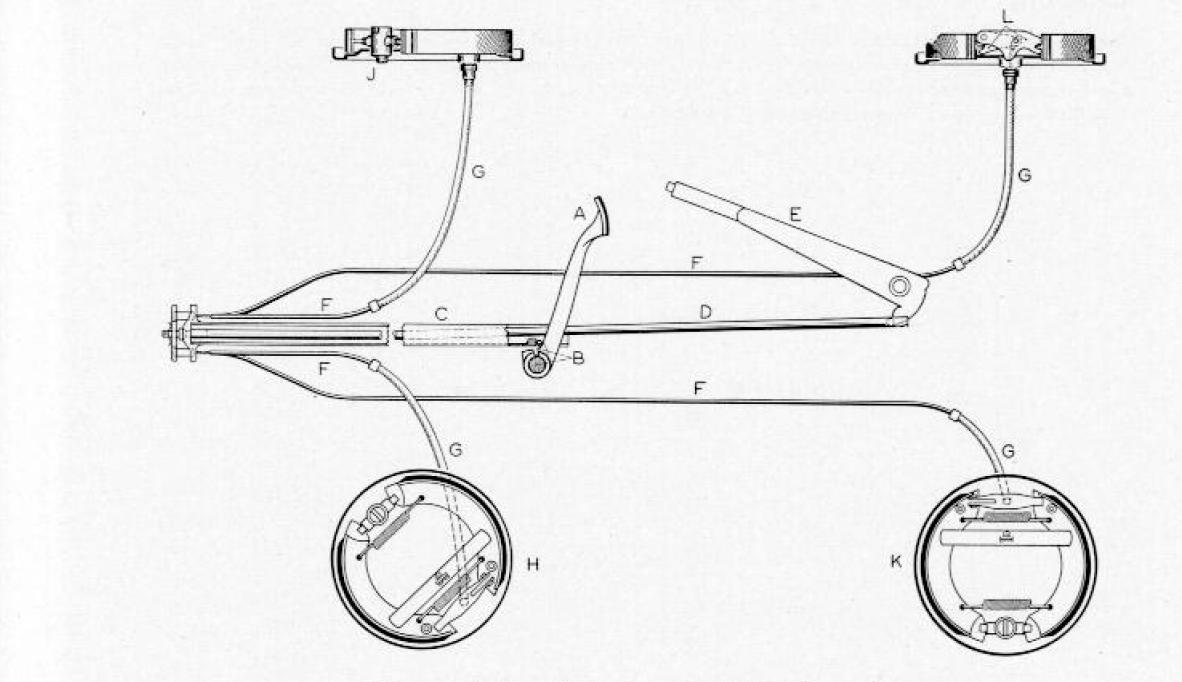

The whole system:
Below is a diagram of some of the parts in the tunnel. This is from the 1950 spare parts book

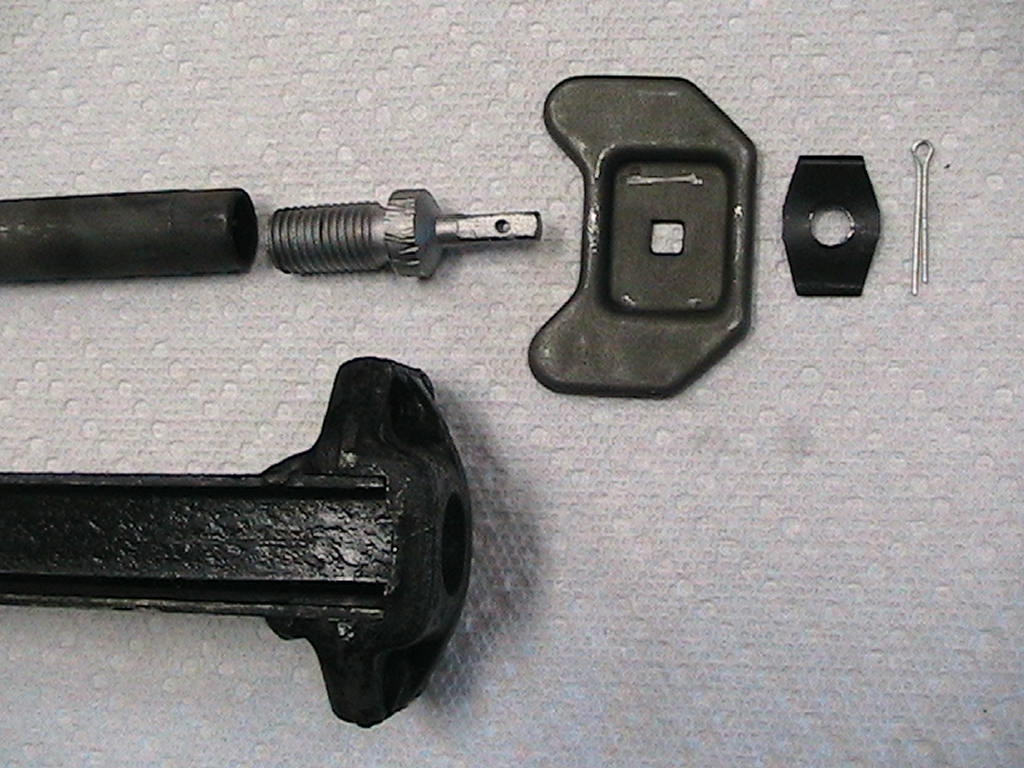

Below are all the pieces of the front end of the brake setup. On top is the hand brake rod, the fine adjustment pin, the cable end retainer, a small spring plate retainer to keep tension on the hand brake when the foot brake is applied, and a cotter pin to hold it all together. At the bottom is the foot brake actuating rod.
Below is a shot of the foot pedal push bar and the spring arch that supports and puts tension on the hand brake rod as it runs at an angle down from the hand brake lever to the framehead.
Another view
This is the front end of the foot brake rod. It is flipped over to show the bottom where hook that the tension spring attaches to. The other end of the spring attaches to a tab inside the frame head. It's a bit tricky to get it reattached inside, especially if the body is on the chassis.
Below is a picture of the back end of the foot brake rod where the brake pedal connects to it. The two pieces are separated a bit to show the thicker welded on piece the pedal lug pushes on whe the pedal is pushed.
Below is a shot looking towards the front of the car of the foot brake rod and the pedal cluster
This is the brake light switch. Pressing the foot or hand brake pushes both rods forward and removes tension on the switch and closes the circut.

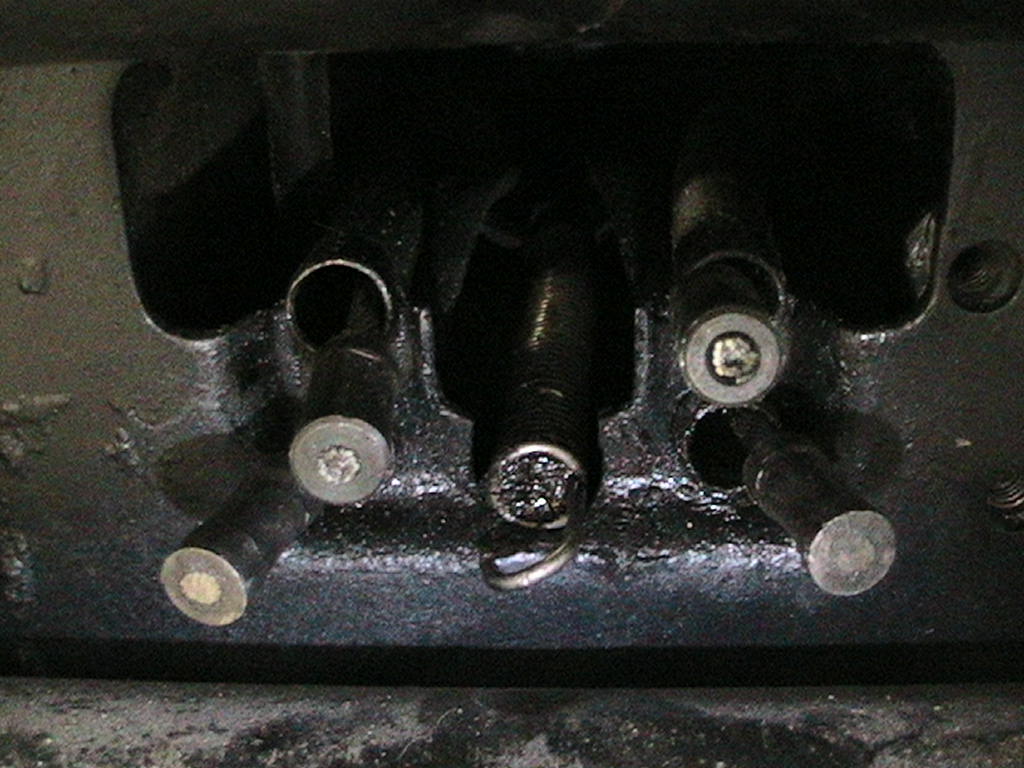

Below is a shot of the frame head where all four cable ends are ready to hook into the front of the foot brake rod. In the center of the four cable ends is the tensioner spring that attaches to the hook on the bottom of the foot brake rod seen above.
Below is the rear end of the hand brake actuator rod. The end of the hand brake slips into the groove and the ball end presses against a solid plug inside the rod where you see the rod narrowing. The slit in the hand brake rod just serves to center the hand brake.
Below is the foot brake and hand brake rods assembled and inserted in the frame tunnel, the cable ends are in the retainers and the spring is attached. The square pin in the center is the fine adjustment for the hand brake rod
Below is a shot at the left side of the assembly near where the brake switch will mount.

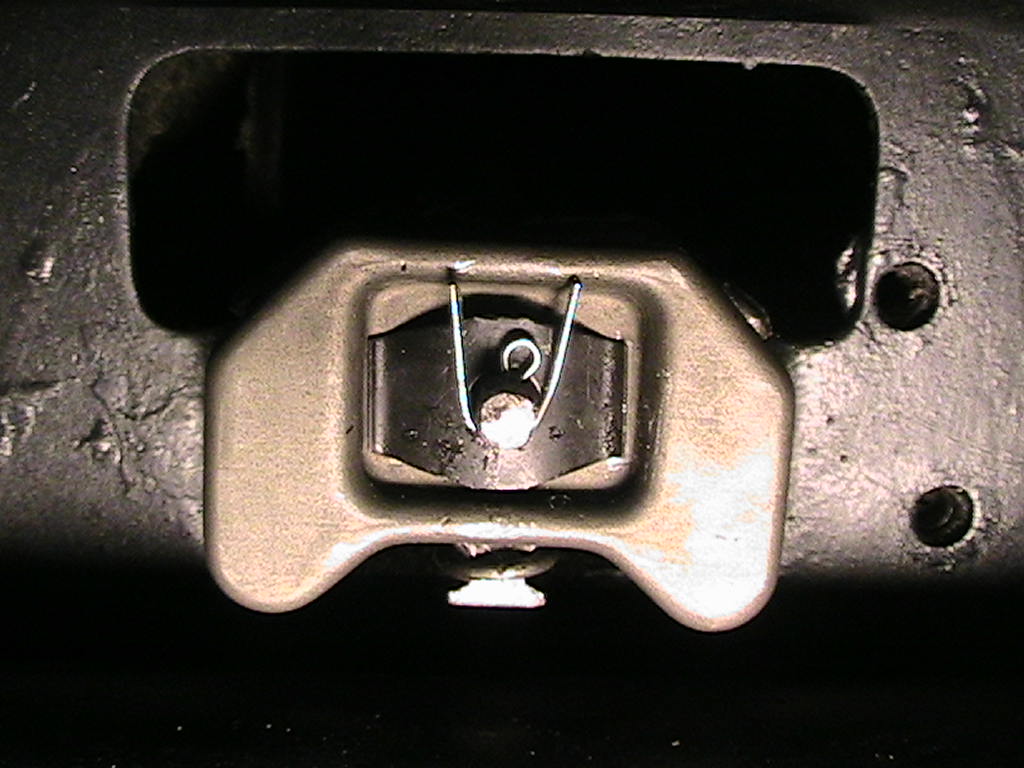

Below is the finished assembly
Here is the brake switch installed
Here is the whole works.
The bigger bolts and washers on the sides are what hold the cover on. The cover is very similar to the early hydraulic brake setup, but there is a notch for the wires to the brake switch. The early 49 cars had no rubber gasket between the cover and the frame head.
The next installment will be information about the wheel end of things.
Last edited by nlorntson on Wed Dec 08, 2010 12:52 pm; edited 3 times in total |
|
Back to top |
|
 |
maesdieter Samba Member

Joined: December 29, 2008 Posts: 118 Location: Belgium / Europ
|
|
Back to top |
|
 |
79SuperVert Samba Member

Joined: May 31, 2002 Posts: 9758 Location: Elizabeth, NJ & La Isla Del Encanto
|
Posted: Wed Dec 08, 2010 6:46 am Post subject: |
|
|
Thanks for posting this info. I've always been interested in how the mechanical brakes work. Who knows, maybe one day I'll have a car with them!  _________________ Central Jersey VW Society
Wanted: Art Collins VW (Savannah, Georgia) items - license plate surrounds and other items. Also ivory "AM", "FM" and "SW" buttons for a US Blaupunkt Frankfurt. |
|
Back to top |
|
 |
Blue Baron VW Aficionado

Joined: June 16, 2006 Posts: 26675 Location: Free State of Florida
|
Posted: Wed Dec 08, 2010 10:58 am Post subject: |
|
|
I always wondered why the clutch cable was so blasted hard to feed into the tube in my oval, and why the tube was way over on the right side of the tunnel. Now I know. It's because the actuator parts for the mechanical brakes took up the space in between.
_________________ We are striving for perfection, to make our cars run forever, if possible.
Heinz Nordhoff |
|
Back to top |
|
 |
Brezelwerks Samba Member

Joined: March 17, 2003 Posts: 1421 Location: Tyngsboro, MA
|
Posted: Wed Dec 08, 2010 12:17 pm Post subject: |
|
|
Very nice review, would be nice if this info could be archived or be made a sticky here. |
|
Back to top |
|
 |
nlorntson Crazy VW Lady

Joined: March 13, 2004 Posts: 3835 Location: Twin Cities, MN
|
Posted: Wed Dec 08, 2010 12:21 pm Post subject: |
|
|
Spare parts diagram from 1950

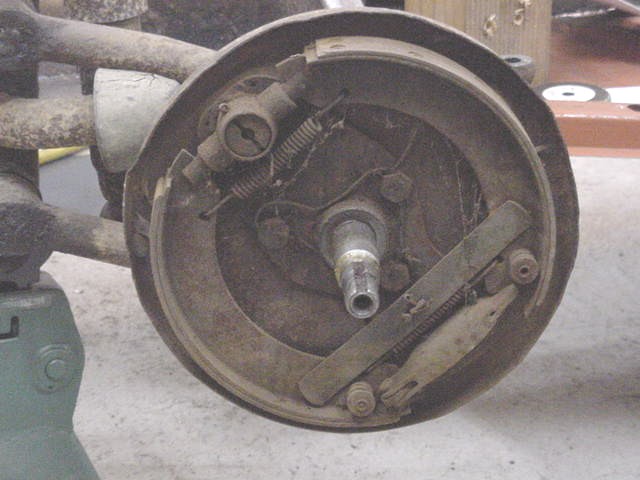

Below are the pieces of the brake components seen at all four wheels. There is no independent emergency brake connection since the hand brake just pushes on a rod that actuates the brakes on all four wheels.
Below are the components all cleaned up. At the top is the special adjustment screw. Just below that is the adjustment cam this screws into from the back (seen at the 11 o'clock position above). The back of this piece is tapered so as the bolt is tightened from the back, it is drawn into the cup and it pushes on the adjustment pins forcing the shoes out. You can see a cotter pin runs through the center to keep this piece in the cup.
Arrows point to the next two pictures
Below, you can see there are two different lengths for the adjusting pins. Anyone know why? These are oriented so the tapered cam mentioned above pushes them out.
The bolt that screws into the adjustment cam from the back is a special bolt with tiny lugs on the bottom surface. These mesh with similar grooves on the backing plate and serve to lock the bolt in place after adjusting the brakes.

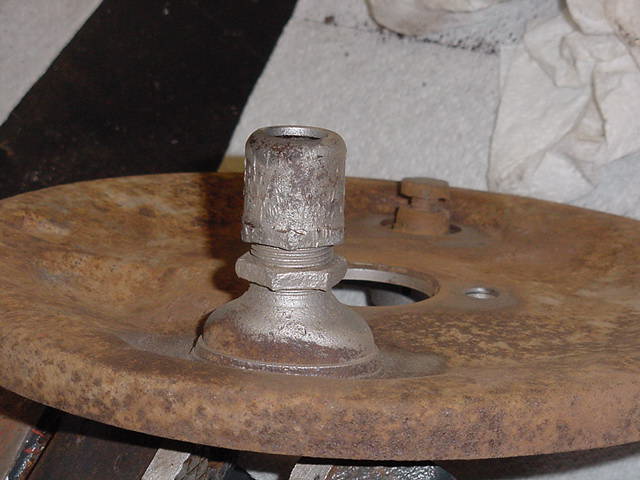

Below you can see the backing plate and the adjustment for the cable as it enters the backing plate. Brake adjustment is basically done by screwing out the top piece so it puts pressure on the cable as it enters the wheel. The locking nut is tightened against the adjustment cone. you can see the special bolt mentioned above in the background.
The cable enters the backing plate and attaches to this assembly. As tension is put on the cable by the foot or handbrake, the cable pulls on this piece and it acts as a lever to push the shoes apart and apply the brake.
This is a better shot of how this assembly actuates the shoes.
The adjustment procedure is as follows:
Adjustment
1. Lift the car and release the hand brake.
2. Check the clearance between the handbrake push bar and the foot brake push bar (approximately 0.04) at the handbrake lever. If necessary, adjust the handbrake push bar. You do this by removing the tiny cotter pin and spring plate at the front and screwing the fine adjustment pin in or out as needed. Basically the hand brake should not be putting any pressure on the foot brake.
3. Eliminate the free movement of the brake pedal by correcting the position of the stop plate.
4. Start at any wheel. Release the adjusting sleeve locknut at the backing plate where the cable enters.
5. Turn the adjusting sleeve and locknut clockwise, that is, towards the brake back plate. Tighten the brake shoe adjusting bolt until the brake drum can no longer be turned by hand. If the wheel has just been installed, turn the adjusting bolt until a heavy drag is felt.
6. Turn the adjusting sleeve out, away from the backing plate until there is very little clearance between the end piece of the cable and the adjusting sleeve. Tighten the adjusting sleeve locknut against the sleeve.
7. Loosen the brake shoe adjusting bolt until the brake drum can be turned freely. A light tap against the bolt will place the brake shoes and the adjuster cone in the correct position and seat the little bumps into the notches on the backing plate.
8. Repeat on the other wheels.
9. Pull up the handbrake by three notches and check equal braking effect on all four wheels. In case there is a difference in the braking effect among the four wheels, release the handbrake and loosen the brake shoe adjusting screw on the wheel with the highest braking resistance. At the fourth notch on the handbrake it should be impossible to turn the wheels by hand.
10. Lower the car and make a road test to ensure proper brake operation.
11. After road test re-check the brakes as follows:
12. Lift the car and release the handbrake.
Tighten the brake shoe adjusting bolts of all four wheels until the brake drums can still be turned freely.
13. Pull up the handbrake by three notches and check equal braking effect on all four wheels. In case there is a difference in the braking effect among the four wheels, release the handbrake and loosen the brake shoe adjusting screw on the wheel with the highest resistance. At the fourth notch on the handbrake it should be impossible to turn the wheels by hand.
14. Lower the car and make a road test to ensure proper brake operation. |
|
Back to top |
|
 |
johnshenry Samba Member

Joined: September 21, 2001 Posts: 9403 Location: Northwood, NH USA
|
Posted: Wed Dec 08, 2010 1:14 pm Post subject: |
|
|
Wow, great stuff Nancy, thanks for poisting. I am fortunate to have all the cable brake parts for my '51 std. I have to figure out how to get the TONS of grease out of the tunnel head before sending the chassis to the media blaster.
Common problem was mechanics "pushed" grease in from the zerk fittings at the ends of the cables (at the wheels) and didn't pay attention to how much was coming out of the front (although the theory is that you were supposed to push all of the "old" grease out at service intervals).
And if you didn't take the framehead cover off, all of that grease just got pushed back into the tunnel.....!! _________________ John Henry
'57 Deluxe
'56 Single Cab |
|
Back to top |
|
 |
cancunsplit51 Samba Member
Joined: January 22, 2011 Posts: 1 Location: cancun mexico
|
Posted: Sat Jan 22, 2011 9:08 pm Post subject: HELP!...i need to buy the whole brake system for my split 51 |
|
|
: i just bought a split window delux 1951, but unfurtunately its missing the whole brake system, can somebody tell me where to find it, i have checked some sites and companies, and havent been lucky finding it...... |
|
Back to top |
|
 |
nlorntson Crazy VW Lady

Joined: March 13, 2004 Posts: 3835 Location: Twin Cities, MN
|
Posted: Sat Jan 22, 2011 9:29 pm Post subject: |
|
|
If its got cable brakes, good luck. The only source I konw of is the classifieds on this site. If you need hydraulic brakes, those parts are readily available in the classifieds as well as new at places like wolfsburg west, cip1, vintage parts, and others. |
|
Back to top |
|
 |
johan_l Samba Member

Joined: March 14, 2004 Posts: 533
|
|
Back to top |
|
 |
Harris Samba Member

Joined: June 11, 2004 Posts: 1317 Location: Texas
|
Posted: Mon Jan 24, 2011 6:45 am Post subject: Cable Brakes |
|
|
Quote: |
These type of posts is great, not that I have the mech-breaks but I like to see how they look. Really good description an pictures! This is what is great with thesamba and the members!
|
X2 here. Super post. |
|
Back to top |
|
 |
nlorntson Crazy VW Lady

Joined: March 13, 2004 Posts: 3835 Location: Twin Cities, MN
|
Posted: Mon Jan 24, 2011 7:00 am Post subject: |
|
|
Thanks fellas.
Even I found it useful the other day as a place I could go to quickly reference something without digging through a book
Nancy |
|
Back to top |
|
 |
VWKDF Samba Member

Joined: March 17, 2011 Posts: 376 Location: NJ
|
Posted: Fri Dec 28, 2012 9:33 am Post subject: |
|
|
I was just checking this thread out as I am working on a cable brake chassis at this time and I thought a nice addition to all the information here would be the date of the last cable brake VW, anyone know? |
|
Back to top |
|
 |
Grant Reiling Samba Slow-Change Artist

Joined: November 28, 2003 Posts: 493 Location: behind the wheel
|
Posted: Fri Dec 28, 2012 2:43 pm Post subject: Re: Cable Brakes |
|
|
Harris wrote: |
Quote: |
These type of posts is great, not that I have the mech-breaks but I like to see how they look. Really good description an pictures! This is what is great with thesamba and the members!
|
X2 here. Super post. |
X3 !
Where's the "like" button?
Shouldn't there be a "contributor tips" one too?
Happy New Year's and an abundant, and smooth-running 2 0 1 3 to Fellow Sambaistas!
Drive intelligently,
GRR |
|
Back to top |
|
 |
nlorntson Crazy VW Lady

Joined: March 13, 2004 Posts: 3835 Location: Twin Cities, MN
|
Posted: Fri Dec 28, 2012 3:49 pm Post subject: |
|
|
VWKDF wrote: |
I was just checking this thread out as I am working on a cable brake chassis at this time and I thought a nice addition to all the information here would be the date of the last cable brake VW, anyone know? |
Might be tough to know because they were different for different markets and standard versus deluxe. I bet a trip through Progressive Refinements might clear it up. |
|
Back to top |
|
 |
volksfahrer Samba Member
Joined: March 23, 2010 Posts: 114 Location: Europe
|
Posted: Sat Dec 29, 2012 5:22 am Post subject: |
|
|
VWKDF wrote: |
I was just checking this thread out as I am working on a cable brake chassis at this time and I thought a nice addition to all the information here would be the date of the last cable brake VW, anyone know? |
once I saw a jan.67 standard bug with cable brakes, looked very original... |
|
Back to top |
|
 |
8287111 Samba Member
Joined: January 02, 2010 Posts: 141 Location: Finland
|
Posted: Sat Dec 29, 2012 7:57 am Post subject: |
|
|
Last cable brake Standard is 4 630 937 manufactured 5.4-62. |
|
Back to top |
|
 |
nautica4u Samba Member
Joined: February 16, 2013 Posts: 6 Location: Eastvale
|
Posted: Tue Jun 18, 2013 8:21 pm Post subject: 1954 cable brakes are the later models bigger |
|
|
I have a 1954 standard with cable brakes. would the later years have bigger brakes. If so what would I have to do. _________________ Kimbel ritch
54 Standard
54 Convertible |
|
Back to top |
|
 |
Brezelfahrer Samba Member

Joined: March 26, 2010 Posts: 65 Location: Vlaanderen
|
Posted: Wed Jun 19, 2013 6:03 am Post subject: |
|
|
hello nautica
I am restoring a 1952 standard, and had the chance last month to buy a driving 1959 ragtop euro standard. The brakes have not changed in that period, that's for sure.
From your question, I assume you want better brakeperformance. But good adjusted cablebrakes have the same performance as good hydraulic ones. So you'd better give them a good treat!
Most of the time it is just the lack of adjustment of the brakes, because they require more maintenance than hydraulics.
But I can name you one solution to "upgrade" your system: work with later hydraulic VW model brakeshoes that are wider. But these will only fit by carfully cutting out your drums.
I saw a German standard last year september, with a small caravan on a meeting. The owner explained me this type of upgrade, to be able to drive safely with his 400kg caravan and loaded oval for the holidays.
One thing will not change, the calf fitness you receive when applying your cable brakes. This is the only comfort advantage I see when comparing to hydraulic brakes. You gotta love the system (and the system will love you)
Hope these lines are of some use for you,
greetz, Peter _________________ 1952 typ 1 european standard
1959 typ 1 european standard sunroof |
|
Back to top |
|
 |
Kapt. Q Samba Member
Joined: May 28, 2011 Posts: 256 Location: UK
|
Posted: Wed Jun 19, 2013 3:40 pm Post subject: |
|
|
It's not all negative with cable brakes, a broken cable with a a schwimmwagen or kubelwagen in WW2 still left the operator with three good brakes, unlike a jeep where one broken hydraulic line meant the loss of all brakes in its single circuit system! A distinct advantage in a military vehicle.
