 Posted: Tue Dec 21, 2010 5:06 pm Post subject: Wiper assy |
 |
|

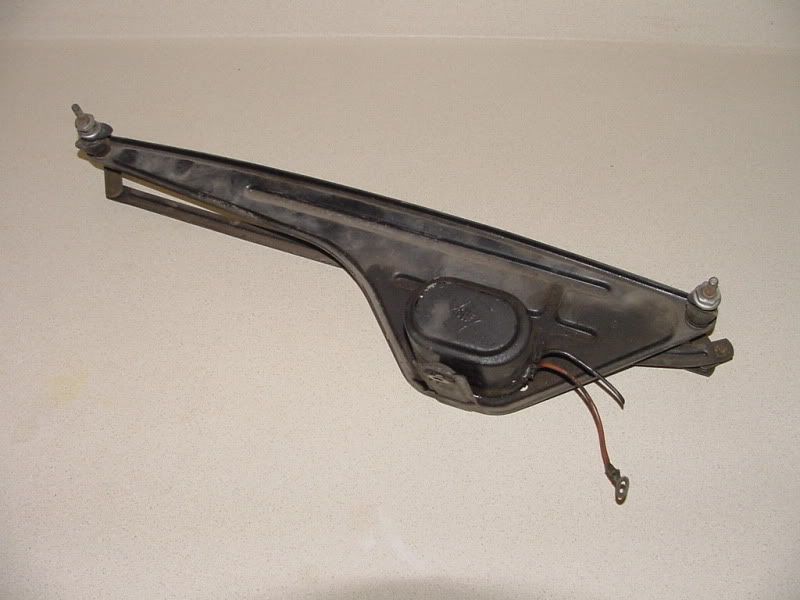

Anyone know what years this wiper assy is used? Can't find a part number. Is therer a number or date code on it somewhere? Made by SWF Thanks
_________________
Bill |
|
| Back to top |
|
 |
eurodub
Samba Member
Joined: August 05, 2007
Posts: 1321
|
| Posted: Tue Dec 21, 2010 5:15 pm Post subject: |
|
|
hey!
my split wiper motor has FD stamped on it, that makes it June 52 like my 52 cc. the wiper assembly is the same, and i think these were used up to 1954 with slight differences. you know where to get the date codes, don't you?
Hohoho!
_________________
1960 1200 model 117 deluxe ragtop
1976 MK1 Golf |
|
| Back to top |
|
|
ZwitterND
Samba Member
Joined: September 08, 2005
Posts: 1453
Location: Fargo, ND
|
| Posted: Tue Dec 21, 2010 9:39 pm Post subject: |
|
|

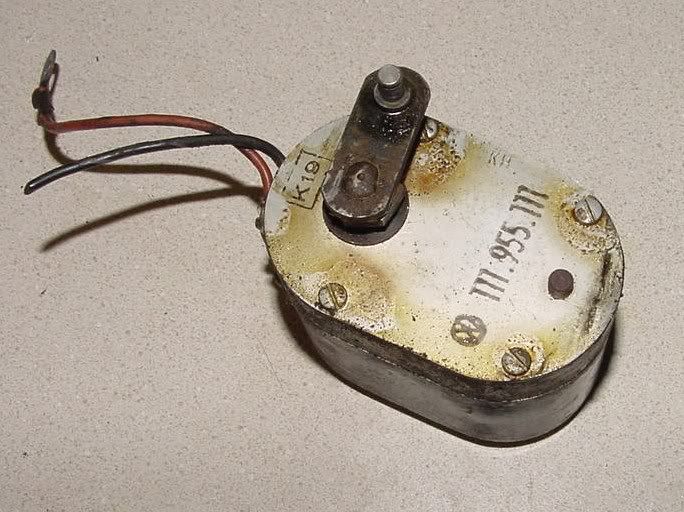

So then it is a Nov 52 which would be correct for a zwitter, however it must be the standard wiper because the wiring diagram shows an optional wiper motor that has the auto stop (for Deluxe models) with 3 screw terminal whereas this one only has two.
_________________
Bill |
|
| Back to top |
|
|
johan_l
Samba Member
Joined: March 14, 2004
Posts: 533
|
|
| Back to top |
|
|
ZwitterND
Samba Member
Joined: September 08, 2005
Posts: 1453
Location: Fargo, ND
|
| Posted: Wed Dec 22, 2010 6:11 am Post subject: |
|
|
| johan_l wrote: |
| was the parking feature on all deluxe models or was it introduced after a while? |
Thats a good question because my zwitter is a deluxe and this is the wiper assembly that came with the car and is wired accordingly. There is a possiblity it was replaced at some time.
_________________
Bill |
|
| Back to top |
|
|
Zwitterkafer
Samba Member
Joined: November 17, 2007
Posts: 995
Location: Lanark County, Ontario, Canada
|
| Posted: Wed Dec 22, 2010 11:09 am Post subject: |
|
|
AFAIK the auto-park feature was standard equipment on the Deluxe models as of Oct '52. This new auto-park motor was a bit bigger and had an aluminum cover instead of the black painted cover. My Nov '52 has this auto-park motor. A manual park motor for Standards or CDN Customs survived to at least 1960, but early on in that period the small (black cover) motor was phased out in favor of the newer looking version, minus the auto-park wiring and cam / brake band arrangement.
_________________
"Criticism comes easier than Craftsmanship"
- Zeuxius, 400 BC |
|
