 Posted: Fri Dec 17, 2010 3:17 pm Post subject: E-brake spring clip thing |
 |
|

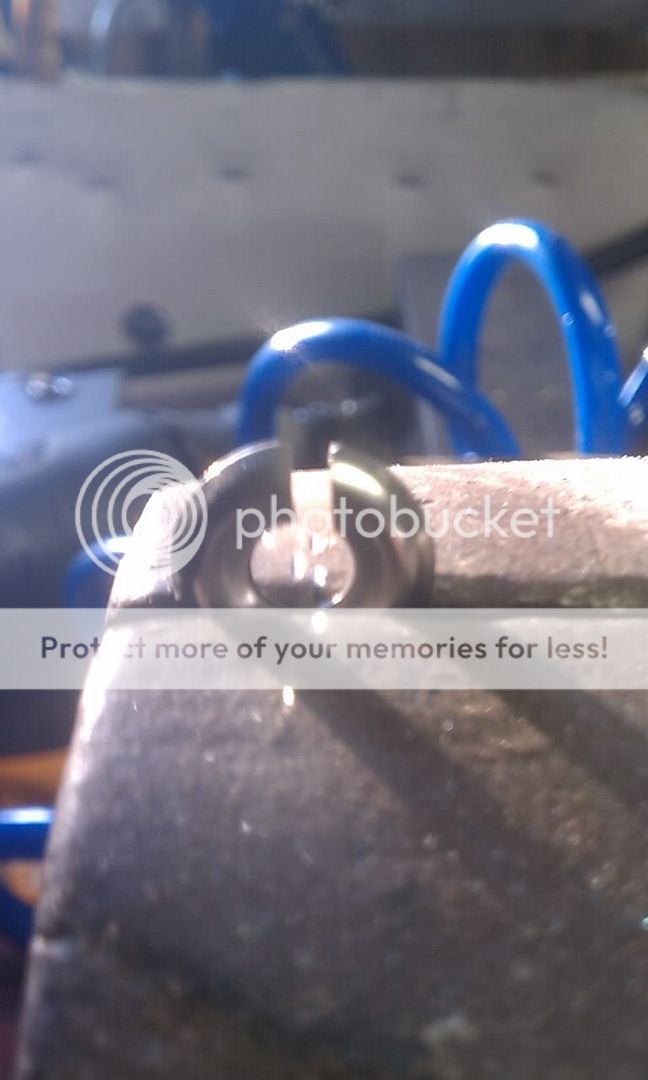

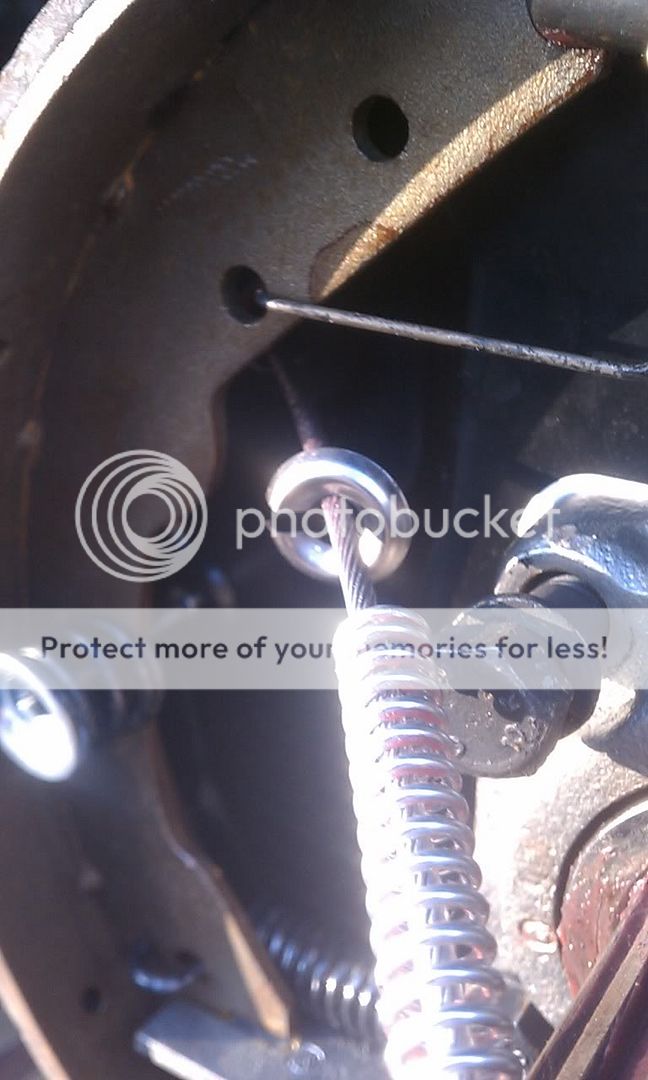

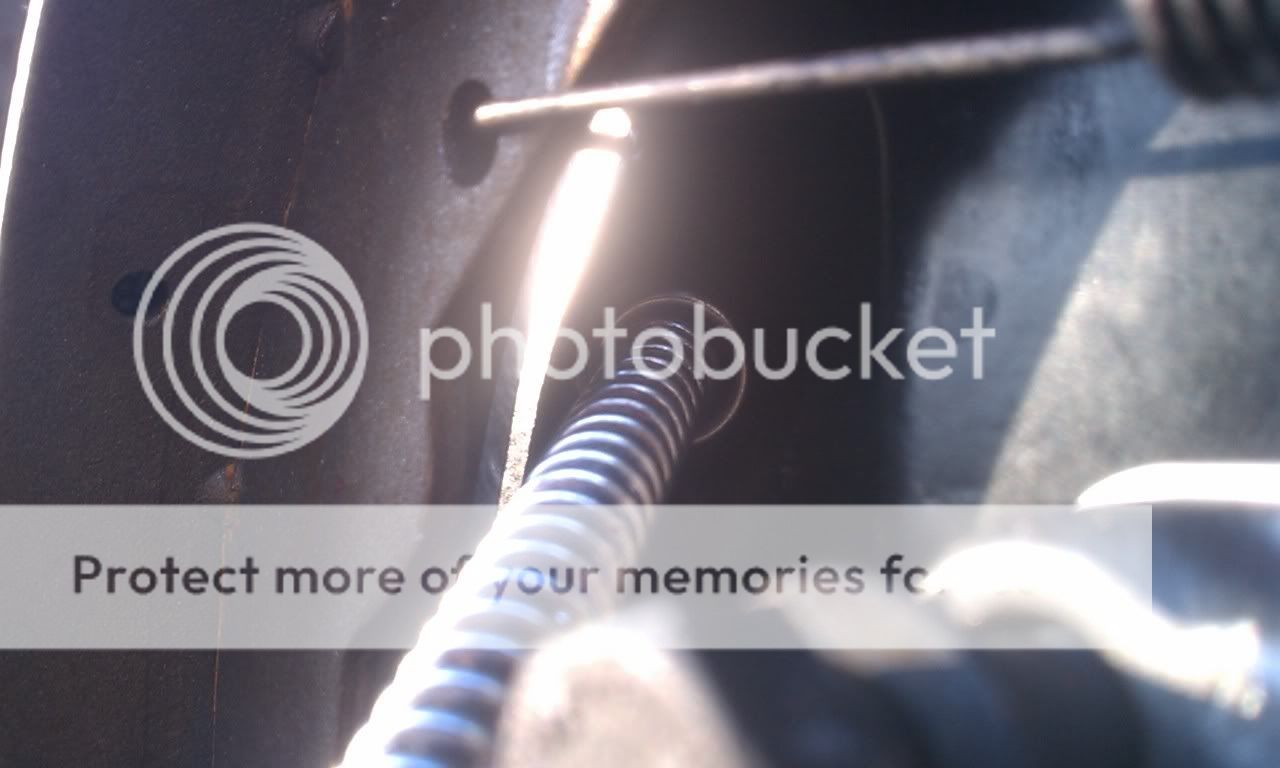

There is a retaining clip that keeps tension on the ebrake spring going to the brake shoe that I always hear about. It's often missing, and people just say "just use a washer" etc. Here's some pics of how I went about it for others to reference.

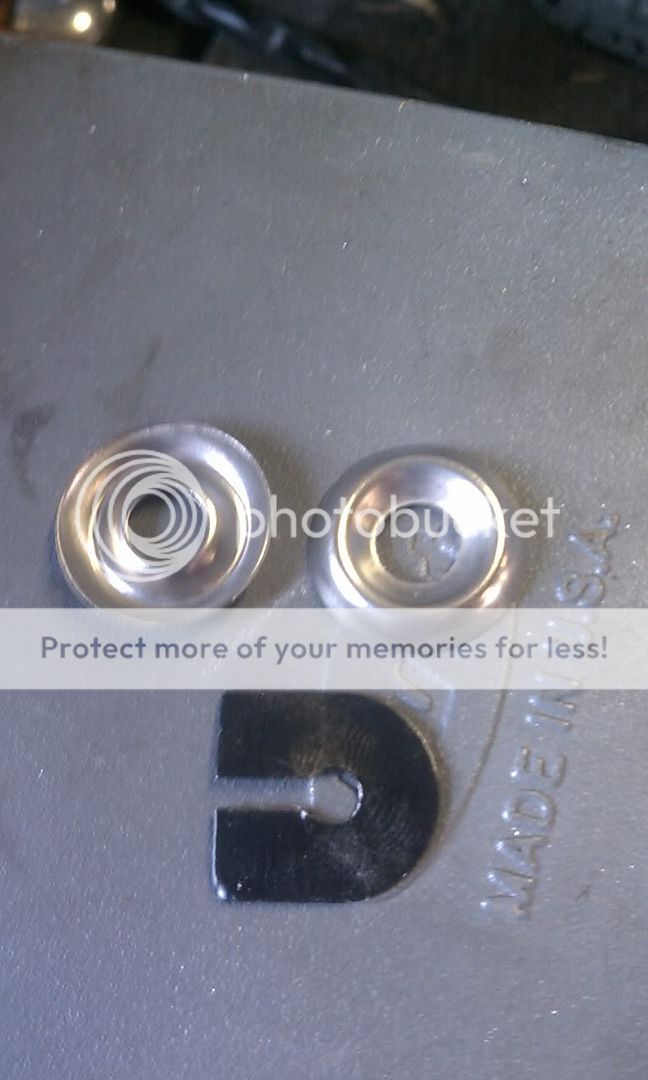

I had one original clip (black sheetmetal looking piece), so I was able to see exactly what needed to happen. I used finishing washers, which not only center on the backing plate, but also help keep the spring centered as well. And it's stainless.
$1 and 5 minutes later:
_________________
1957 Beetle
1966 Bus |
|
| Back to top |
|
 |
Ian
Samba Moderator
Joined: August 28, 2002
Posts: 4961
Location: 713
|
| Posted: Fri Dec 17, 2010 3:19 pm Post subject: |
|
|
nice job, i usually just cut them from a scrap piece of steel or aluminum, when they are missing
baywindows use the same piece, so i save them from those and use them on splits
this is an easy one to reproduce...
_________________
All your Buses are belong to us.
Love and good roads!
IN LOVING MEMORY OF ROB CRESS 1968-2012 & KEN CRIMMINS 1957-2024 |
|
| Back to top |
|
|
GLHTurbo
Samba Member
Joined: March 30, 2009
Posts: 1376
Location: New Jersey
|
| Posted: Fri Dec 17, 2010 3:21 pm Post subject: |
|
|
| Ian wrote: |
nice job, i usually just cut them from a scrap piece of steel or aluminum, when they are missing
baywindows use the same piece, so i save them from those and use them on splits
this is an easy one to reproduce... |
Good to know also! Kill a bay, save a split?
_________________
1957 Beetle
1966 Bus |
|
| Back to top |
|
|
norcal relics
Samba Member
Joined: September 19, 2008
Posts: 29
Location: West Sacramento
|
| Posted: Fri Dec 17, 2010 3:31 pm Post subject: |
|
|
| GLHTurbo wrote: |
| Kill a bay, save a split? |
Absolutely!!! Except if it's a true commercial bay, I save those too. |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10804
Location: the past
|
| Posted: Fri Dec 17, 2010 3:59 pm Post subject: |
|
|
| i've used the "horseshoe" clips that are also used for the e-brake arm pin. I crimp them slightly so that they are not tight on the cable and the spring holds them in place. |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15463
Location: Casa de Oro, California
|
| Posted: Tue Mar 14, 2017 3:03 pm Post subject: Re: E-brake spring clip thing |
|
|
Ok I made two of the finishing washer versions. It works good putting two into the vise at the same time.
I have the original e-brake cables with original e-brake compression spring not those shiny ones in the picture. The shape of the cone is perfect for fitting over the backing plate metal grommet but for some reason the very end of the coil-y spring hunts for the cut in the washer and embeds itself into the cable when you pull the e-brake. It still works but the cone shape makes it jam where normally it would sit flat against the flat style. I think I'll just let some grease and steel play their little game.
I might try the hazetguy method next. If anyone finds a source for the original style e-brake spring clip thing post it up please. |
|
| Back to top |
|
|
Starbucket
Samba Member
Joined: April 30, 2007
Posts: 4215
Location: WA
|
| Posted: Tue Mar 14, 2017 3:33 pm Post subject: Re: E-brake spring clip thing |
|
|
| BarryL wrote: |
Ok I made two of the finishing washer versions. It works good putting two into the vise at the same time.
I have the original e-brake cables with original e-brake compression spring not those shiny ones in the picture. The shape of the cone is perfect for fitting over the backing plate metal grommet but for some reason the very end of the coil-y spring hunts for the cut in the washer and embeds itself into the cable when you pull the e-brake. It still works but the cone shape makes it jam where normally it would sit flat against the flat style. I think I'll just let some grease and steel play their little game.
I might try the hazetguy method next. If anyone finds a source for the original style e-brake spring clip thing post it up please.
|
Why not just make one thin cut (like tin snips) and twist the washer just e'nuff to slip the cable in then twist back less to snag. |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15463
Location: Casa de Oro, California
|
| Posted: Tue Mar 14, 2017 6:58 pm Post subject: Re: E-brake spring clip thing |
|
|
| Starbucket wrote: |
| BarryL wrote: |
Ok I made two of the finishing washer versions. It works good putting two into the vise at the same time.
I have the original e-brake cables with original e-brake compression spring not those shiny ones in the picture. The shape of the cone is perfect for fitting over the backing plate metal grommet but for some reason the very end of the coil-y spring hunts for the cut in the washer and embeds itself into the cable when you pull the e-brake. It still works but the cone shape makes it jam where normally it would sit flat against the flat style. I think I'll just let some grease and steel play their little game.
I might try the hazetguy method next. If anyone finds a source for the original style e-brake spring clip thing post it up please.
|
Why not just make one thin cut (like tin snips) and twist the washer just e'nuff to slip the cable in then twist back less to snag. |
Thanks! That's actually how I made mine: one cut. I found some original e-brake springs that come to a conclusion spiral that end in a flat that I'll now use. |
|
