Different VW seats
Page: 1, 2  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
szegedin
Samba Member


Joined: February 26, 2010
Posts: 21
Location: San Francisco, CA
szegedin is offline

PostPosted: Sun Dec 19, 2010 12:54 pm    Post subject: Different VW seats Reply with quote

Hey all,
The front seats in my base-model 1990 vanagon are pretty shot. Will the seats from any other VW - Golf, Jetta, etc - fit in there without any major retrofitting?

thanks,
Back to top
View user's profile Send private message Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Sun Dec 19, 2010 12:56 pm    Post subject: Reply with quote

Earlier eurovans have the armrests. Anything else gives them up.
http://www.thesamba.com/vw/forum/viewtopic.php?t=338291&highlight=eurovan+seats
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Mon Dec 20, 2010 12:50 am    Post subject: Reply with quote

See the seat section the Best Threads sticky (FAQ.) See link in my signature below:
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Robw_z
Samba Member


Joined: April 28, 2007
Posts: 983

Robw_z is offline

PostPosted: Mon Dec 20, 2010 12:00 pm    Post subject: Reply with quote

Short answer is no. There is no other seat that will just go in. Eurovan seats need a little work even before they can go in. I modified a set of '89 Jetta Recaros to fit in my van, but I had to cannibalize my stock seats to do so, and I think a non-Recaro Golf/Jetta/Rabbit seat would be even harder. VW passenger cars utilize a completely different seat track concept which is not remotely adaptable to use in a Vanagon.

-Rob
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Mon Dec 20, 2010 1:39 pm    Post subject: Reply with quote

Recaros are sort of standard when it comes to those that have a bolt on guides system. There is a frame you can buy from Recaro. Look for the part number in the threads. You can also modify your old tracks. This is discussed in the threads.
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
davevickery
Samba Member


Joined: July 16, 2005
Posts: 2887
Location: Fort Collins, CO
davevickery is offline

PostPosted: Mon Dec 20, 2010 3:34 pm    Post subject: Eurovan seats in a vanagon Reply with quote

I just did this today. Many thanks to whoever discovered that they can fit fairly easily.

It took maybe an hour to cut the extra lip off the eurovan tracks. Just aim the grinder (with a thin metal cutting wheel) in the corner where the extra lip sticks down. It takes about 10-15 min each track x 4 tracks. The seats look awesome. After doing it, they slide in perfectly and it now seems silly that I spent any time at all trying to clean up the old original 87 seats I had in there. It makes sense to buy a very good set of Eurovan seats if you are going to do this.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
campism
Samba Member


Joined: September 07, 2007
Posts: 4482
Location: Richmond VA
campism is offline

PostPosted: Mon Dec 20, 2010 4:22 pm    Post subject: Reply with quote

What he said. I did this, too, and it's more trouble finding the seats and fetching them home than it is modifying them to fit. Honest. Cost/ease/benefit ratio can't be beat unless someone gives you Recaros and installs them for you.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
CREGAN
Samba Member


Joined: April 26, 2008
Posts: 230
Location: Leduc, Alberta - CANADA
CREGAN is offline

PostPosted: Mon Dec 20, 2010 6:47 pm    Post subject: Reply with quote

Please lead us to the land of magical wrecked Eurovans so I can vulture some seats! Wink Here in the land of the sierra ram tundra half ton, finding a euro-seat is impossible. I have been trying for a couple of years now. Were eurovans just not that popular here in Canada or did they all just spontaneously combust (not a reference to fuel lines)?
Back to top
View user's profile Send private message Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Mon Dec 20, 2010 8:36 pm    Post subject: Re: Eurovan seats in a vanagon Reply with quote

davevickery wrote:
I just did this today.

Pictures or it ain't true! Smile Smile
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Gauche1968
Samba Member


Joined: April 13, 2006
Posts: 1518

Gauche1968 is offline

PostPosted: Mon Dec 20, 2010 9:29 pm    Post subject: Reply with quote

CREGAN wrote:
Please lead us to the land of magical wrecked Eurovans so I can vulture some seats! Wink Here in the land of the sierra ram tundra half ton, finding a euro-seat is impossible. I have been trying for a couple of years now. Were eurovans just not that popular here in Canada or did they all just spontaneously combust (not a reference to fuel lines)?


Canada got Eurovan versions never seen in the States. They are out there. Probably more common in the East and B.C.
_________________
1984 Vanagon GL
1984 Vanagon Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
davevickery
Samba Member


Joined: July 16, 2005
Posts: 2887
Location: Fort Collins, CO
davevickery is offline

PostPosted: Sat Dec 25, 2010 9:45 am    Post subject: Pics of eurovan seats in a vanagon Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

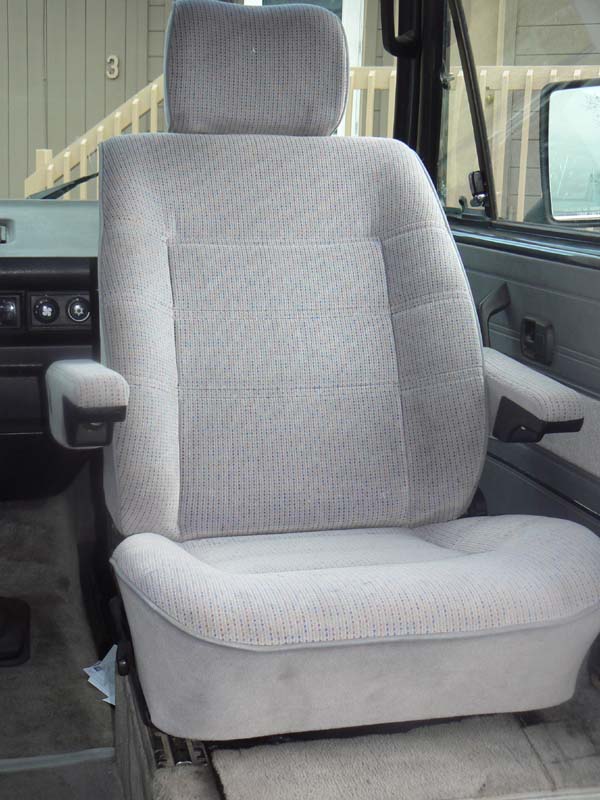

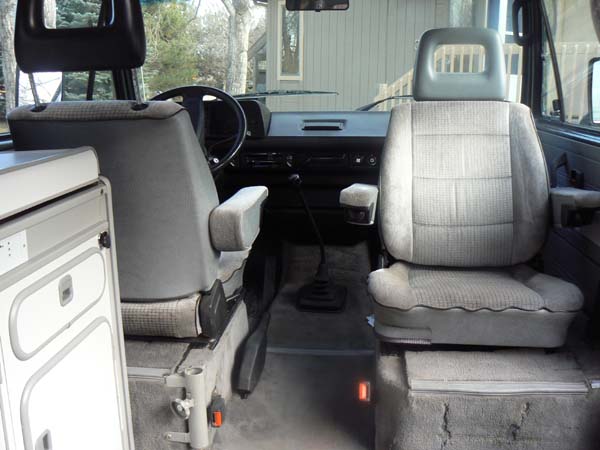

My first try at posting a link to photos. I see other people posted photos in the gallery section of eurovan seats in a vanagon, so no new ground here, just my 2 cents.

I am happy with them, you do sit up higher but that is going from a Westy that has shorter seats to Eurovan passenger seats. The Vanagon passenger seats are also taller than a vanagon westy. Anyway, you notice it and the wheel is closer to your legs, but they work fine for me. The larger seat base is a huge improvement in leg support and comfort.
The last photos is what you cut off the eurovan tracks.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
davevickery
Samba Member


Joined: July 16, 2005
Posts: 2887
Location: Fort Collins, CO
davevickery is offline

PostPosted: Thu Jan 03, 2013 9:45 pm    Post subject: Reply with quote

I can't say if this will be a good mod or a blunder, but I'd heard that you could cut the seat foam down (from the bottom) to bring the seat height back down when using eurovan seats in a vanagon. They stick up about an inch more than a vanagon passenger van seat and about 2" more than a stock westy seat. That is the only thing I didn't like about them. So I finally decided to try cutting down the foam. I was surprised to see the contoured base and not as much foam to work with as I thought.

Has anyone else done this? It seems to have come out o.k. but I am cautiously looking forward to a test drive. I only cut off about 1 inch of foam in those 3 slivers. The cover goes back wth no modifications.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shizzon
Samba Member


Joined: July 25, 2006
Posts: 596
Location: Boulder, CO
shizzon is offline

PostPosted: Wed Jan 09, 2013 1:35 pm    Post subject: Reply with quote

davevickery wrote:
I can't say if this will be a good mod or a blunder, but I'd heard that you could cut the seat foam down (from the bottom) to bring the seat height back down when using eurovan seats in a vanagon. They stick up about an inch more than a vanagon passenger van seat and about 2" more than a stock westy seat. That is the only thing I didn't like about them. So I finally decided to try cutting down the foam. I was surprised to see the contoured base and not as much foam to work with as I thought.

Has anyone else done this? It seems to have come out o.k. but I am cautiously looking forward to a test drive. I only cut off about 1 inch of foam in those 3 slivers. The cover goes back wth no modifications.
Image may have been reduced in size. Click image to view fullscreen.


How hard was it to remove the base/seat cover and cut the foam out? What is the verdict on comfort and height with some of the foam missing?

I'm thinking about doing this, but I have no power steering and thus a big steering wheel, so its important for me not to raise the seat !!!
_________________
1989 Bostig Syncro Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
campism
Samba Member


Joined: September 07, 2007
Posts: 4482
Location: Richmond VA
campism is offline

PostPosted: Wed Jan 16, 2013 7:44 am    Post subject: Reply with quote

For those who have not had the chance to compare, here’s a look at the difference between an '86 GL Vanagon seat (the brown one) and a '93 Eurovan seat (the blue one). Both of these are shown in my '87 Westy and are in place of the stock Westy seats. I had already installed the EV seats in my van because I could never find regular GL seats. The stock Westy seats were in great original condition but were extremely uncomfortable. I later found these GL seats and grabbed them for resale. If they’d been grey I’d have sold the EV seats instead, but that’s life. Here you can see that both have good bolsters for good support and they appear similar. Both are vastly more comfy than Westy seats, and both are shown as installed on the stock seat swivels. The EV seat did require minor surgery to the rails in order to fit and that is well documented elsewhere, but the GL seat simply slid into place.
Image may have been reduced in size. Click image to view fullscreen.

_________________
'87 Westy in Wolfram Grey Metallic
Back to top
View user's profile Send private message Gallery Classifieds Feedback
davevickery
Samba Member


Joined: July 16, 2005
Posts: 2887
Location: Fort Collins, CO
davevickery is offline

PostPosted: Thu Jan 17, 2013 10:02 am    Post subject: Reply with quote

campism wrote:
For those who have not had the chance to compare, here’s a look at the difference between an '86 GL Vanagon seat (the brown one) and a '93 Eurovan seat (the blue one).

Is the eurovan seat higher than the stock non westy vanagon seat? It doesn't look like it in your photo, but my initial impression without measuring them, was that the non westy seat is higher than the westy seat and the eurovan seat is higher still. Since you had them side by side, maybe you can settle that.

I ams still working on modifications to the eurovan seat foam. That first bit of trimming above did not get good results. It feels like I created a hole in the middle of the seat and the edges all are too high now, especially the front from the seam forward. I may have ruined the seat, but I'll trim some more and see it I can improve it. I should have practiced on the passenger seat.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shizzon
Samba Member


Joined: July 25, 2006
Posts: 596
Location: Boulder, CO
shizzon is offline

PostPosted: Thu Jan 17, 2013 10:36 am    Post subject: Reply with quote

I think I will embark on my foam cutting this weekend .. Davevickery, any tips you have would be great!

Can you upload higher res versions of your pics?

Did you just make a straight cut across the bottom, or did you cut on each face of the foam?
_________________
1989 Bostig Syncro Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Thu Jan 17, 2013 11:32 am    Post subject: Reply with quote

davevickery wrote:
Is the eurovan seat higher than the stock non westy vanagon seat? It doesn't look like it in your photo, but my initial impression without measuring them, was that the non westy seat is higher than the westy seat and the eurovan seat is higher still. Since you had them side by side, maybe you can settle that.

The EV seat is 1/2" taller than a non westy seat from what i measured long ago.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
campism
Samba Member


Joined: September 07, 2007
Posts: 4482
Location: Richmond VA
campism is offline

PostPosted: Thu Jan 17, 2013 12:53 pm    Post subject: Reply with quote

What he said. I would add that the EV seat feels a little firmer so would probably not "settle" as much as the GL seat that is a little taller. In use they would wind up being about the same with a person seated in either one. Keep in mind that I only had the brown seats for a short time a couple years ago and did not use them since I was selling them.
_________________
'87 Westy in Wolfram Grey Metallic
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shizzon
Samba Member


Joined: July 25, 2006
Posts: 596
Location: Boulder, CO
shizzon is offline

PostPosted: Thu Jan 17, 2013 1:14 pm    Post subject: Reply with quote

Uhm, actually, he said that the EV seats are taller than the GL seats, not the other way around...
_________________
1989 Bostig Syncro Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
campism
Samba Member


Joined: September 07, 2007
Posts: 4482
Location: Richmond VA
campism is offline

PostPosted: Thu Jan 17, 2013 3:03 pm    Post subject: Reply with quote

Okay, so I was wrong.
_________________
'87 Westy in Wolfram Grey Metallic
Back to top
View user's profile Send private message Gallery Classifieds Feedback
