 Posted: Sat Apr 02, 2011 2:04 pm Post subject: Working on a set of heads |
 |
|
OK
I working on a set of 36hp heads and would appreciate a little input.

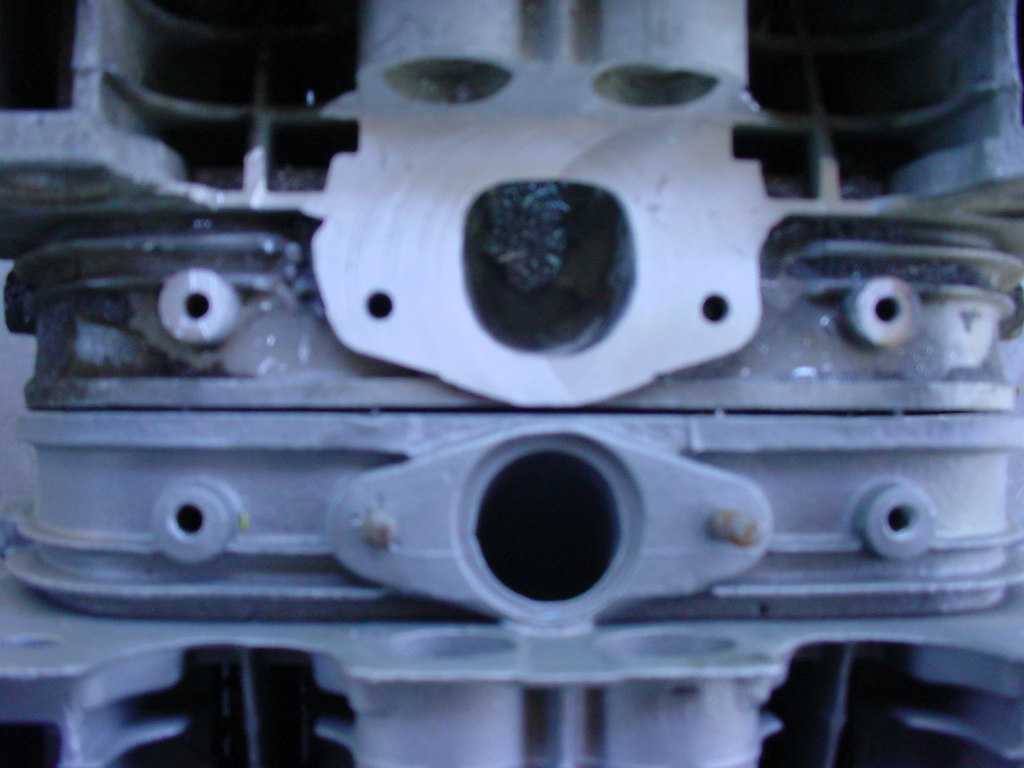

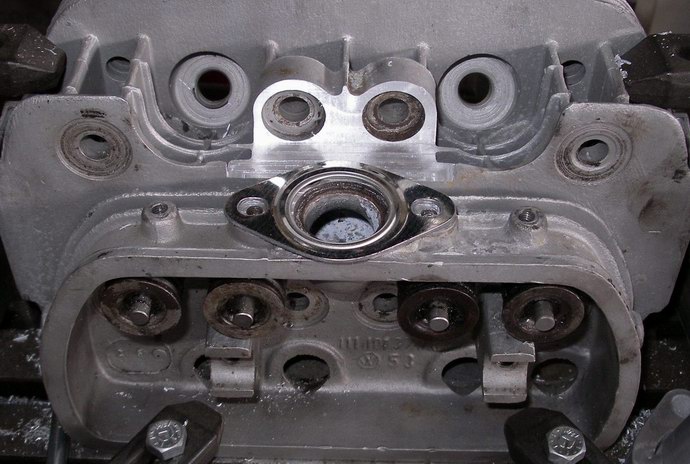

I'm thinking about moving the port back about 1/4" to get the manifold over the open part of the "Y" in the head, will this hurt flow? I can leave it where it is but will have a little valve cover clearance problem, which is not a big deal since I'm going to make a set of fabricated valve covers.

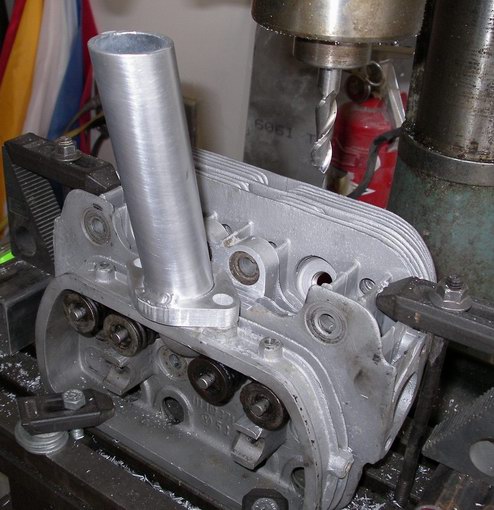

the port will basicly look a 1600 exhaust port, I'm making a set of intakes that will mount a set of 34mm Weber ICT's
I'm going to install larger valves in the heads, what would be a good size valves for a with 83mm big bore p&c's? I have a set of 38mm x32mm valves with dual springs I'm thinking about using but I think they might be a little big. what would be a good cam for a motor like this? This motor will see very little street use, its a motor I would like to use for the "36hp Challenge" at Bonneville. Thank you for any help.
Casey
_________________
74 CLASS 11 LOOK-A-LIKE
69 DUNE BUGGY
79 INTERNATIONAL SCOUT II
05 SCION XB SERIES RELEASE 2[#437]
95 Chevy C3500 dually
98 Ford E150
Link to Kelly J. Nolte 3/20/53 - 11/6/08
https://time-zonelabs.blogspot.com/p/about-kelly.html
DEATH TO CHINGERS!
[From a military recruitment poster in the novel "The Stainless Steel Rat" By Harry Harrison] |
|
| Back to top |
|
 |
Mr. Motorhead
Mad Scientist
Joined: January 06, 2004
Posts: 717
Location: Practitioner of 36hp alchemy
|
|
| Back to top |
|
|
Roadcow
Samba Member
Joined: November 14, 2003
Posts: 1012
Location: Stockton, Ca. area
|
| Posted: Sat Apr 02, 2011 5:21 pm Post subject: |
|
|
Nice work Casey! Can't wait to meet you on the Salt.
_________________
71 Westy Roadcow
67 Panel
63 Bug
66 Ghia Bonneville 2014
74 Ghia Vert
69 Bonneville Ghia 150 in Chico
69 Bonneville Ghia in Ireland
80 Cabby 2.1 16v
98 Passat |
|
| Back to top |
|
|
Art Thraen
Samba Member
Joined: January 19, 2004
Posts: 478
Location: Utah
|
| Posted: Sun Apr 03, 2011 8:19 am Post subject: |
|
|

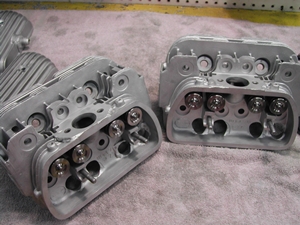

These are the Black line Racing heads.. Now have moved on to dual port.
Im sure yours will improve flow.. Install bigger valves too! |
|
