PostPosted: Sun Apr 10, 2011 5:56 pm    Post subject: Shocks: Koni + General Install Tips & Review Reply with quote

This weekend I installed my new Koni adjustable shocks on my bus. I thought I'd pass along some info/tips/etc that I learned along the way.

My setup: 1984 2wd, Carat springs, 15" SA wheels, 195/70-15 Conti VancoContact 2 tires. Bus weighs 3400 lb - no middle or rear seats.

For both front and rear: The Konis are not gas pressurized, so they do not extend automatically. I recommend turning them upside-down and stroking the shock rod until you notice a large decrease in damping. Then set the damping level to where want and and extend them fully while still upside-down. The twin-tube design means they starve for oil when upside-down, so this enables you to extend them prior to installation, even when set on stiff. If you don't do this, it's a lot more work to extend them when set to stiff. Remember, the adjustment is only on rebound. It's easy to compress them while installing, so it's best to have them too long than too short.

Rear: No rear-specific tips. The rears are very easy and accessible on a Vanagon.

Fronts: The Konis do not have a "blade" on top of the shock rod like the stockers. The have a 5mm female allen head. My 5mm allen did not fit in there once you have the shock on the bus. I recommend going to Lowe's, etc., and getting a set of allen wrenches for $4, use an angle grinder to shorten the 5mm, and then bend it so that the long arm clears the structure of the bus. Here's a picture of what I made, compared to an unaltered 5mm:

Image may have been reduced in size. Click image to view fullscreen.


I found it difficult to find a combo of tools that would insert into the front of the lower control arm (LCA) without interfering with that support strut that goes to the sta-bar link area. The best combo I found was a breaker bar, a shorty 1/2" extension, and a non-impact 7/8" or 22mm socket:

Image may have been reduced in size. Click image to view fullscreen.


Impact sockets are thicker and can get stuck in the LCA. Nothing you can't handle with some jiggling around, but it's easier with the thinner sockets. For the rear side of the LCA, access is easy. I used a deep-well 7/8" socket. Again, same thing - impacts are thicker and don't have as much clearance.

I recommend putting the bolts in from the front if you can. My van wasn't symmetric - I could only do this on the driver's side, so do whatever works on your van. Torque is 110 lb-ft on that bolt. The upper nut is 22 lb-ft, but there's no torque wrench I have that fits up there. 22 lb-ft is essentially "not much," so I did it by hand.

I set all my shocks to full stiff for the initial install, just to see how far they could go. I was surprised at how livable this setup was. Not harsh and a big increase in body control. However, I found that this setup induced some seat shake (caused by the rears - I installed them first and drove the van), and it was a bit abrupt and over-damped up front. The bus would get choppy (a 5-7Hz bounce) on certain surfaces, and was just too vertically busy for max comfort.

Today was such a nice day (81 in Detroit!) that I decided to adjust the shocks. I backed the rears off 1/2 turn from full stiff, and backed the fronts off by, let's say, 5/8 turn. It was more than 1/2, but not 3/4, so there you go.

This helped quite a bit. Most of the seat shake is gone, and now the van breathes a bit more over the small stuff without being floaty. I *may* have gone a bit more soft than I'd like on the front, so I might go a real 1/2 turn out if I get bored someday. However, in this setup, my van is a very nice place to be and is a lot more responsive, etc. Ok, fine, it's not a limo, but it never will be. It's not harsh, probably even less harsh than with my original shocks, and well controlled. I think the rolling plushness is better as well. Even if I lived in CA with smooth roads, I'd still back them off of max with these springs to regain a calm freeway ride.

As a bonus, at full-stiff, the incessant squeaking of the front end was reduced drastically since the van simply didn't move as much. Since going softer, the squeaking has increased a bit and is ammo for maybe making one more adjustment up there.

I'm very happy with the purchase. The adjustability did exactly what I wanted - I was able to pick *my* level of control, and the Konis seem to have a nice range of adjustment. I was initially unsure of what I was getting with these, but I'm now very pleased. We'll see how it goes as I get more miles on them and possibly adjust them one more time.
_________________
CTB
Back to top
View user's profile Send private message Classifieds Feedback
speedtek
Samba Member


Joined: August 19, 2010
Posts: 234
Location: Prince Albert, SK
speedtek is offline

PostPosted: Sun Apr 10, 2011 6:47 pm    Post subject: Reply with quote

So, you can adjust them so they are fairly stiff? I'm looking to limit suspension travel a little in the front of mine as the bigger tires can catch the fenders in full luck turns and hitting a good bump.
Back to top
View user's profile Send private message Classifieds Feedback
CTB
Samba Member


Joined: July 19, 2010
Posts: 152

CTB is offline

PostPosted: Sun Apr 10, 2011 7:31 pm    Post subject: Reply with quote

If hitting a bump is your problem, these won't help. Your situation could be band-aided by more compression damping, and no Vanagon shocks I know of have compression adjustment. The Konis are rebound-adjustable only - the compression has one setting. What you really need are taller bump stops to physically limit your suspension travel. You could do that with your current shocks by removing them, putting an additional ring of jounce bumper material under the one that's already there (inside the plastic dust shield), and then reinstalling. The downside of that is you will bottom out more, and that's generally a harsh event. I'd pick something made of MCU to make the impact less harsh, which many modern jounce bumpers are made of these days. It's that yellowish foam stuff you see on cars now.

Image may have been reduced in size. Click image to view fullscreen.

_________________
CTB
Back to top
View user's profile Send private message Classifieds Feedback
presslab
Samba Member


Joined: September 29, 2008
Posts: 1730
Location: Sonoma County
presslab is offline

PostPosted: Sun Apr 10, 2011 9:26 pm    Post subject: Reply with quote

speedtek wrote:
So, you can adjust them so they are fairly stiff? I'm looking to limit suspension travel a little in the front of mine as the bigger tires can catch the fenders in full luck turns and hitting a good bump.


My 2WD with 215-75-15 rubbed under a similar situation, so I put a 3/4" thick suspension bushing over the shock shaft under the bump stop. It was something I found in the junk bin, just plain rubber.

It has worked well, I have never bottomed my tires out since. You might also want to consider stiffer springs as stock are pretty soft.
_________________
1986 Vanagon Westfalia EJ25
1988 Subaru GL-10 EJ20G --- 2000 Honda XR650L
2010 Titus El Guapo --- 2011 On-One 456 Ti
Back to top
View user's profile Send private message Gallery Classifieds Feedback
CTB
Samba Member


Joined: July 19, 2010
Posts: 152

CTB is offline

PostPosted: Mon Apr 11, 2011 5:41 am    Post subject: Reply with quote

With the Vanagon suspension's motion ratio, a little goes a long way. That is, a small reduction of travel at the shock will be a much larger one at the wheel. I'd start small and work my way up. I forget the exact ratio, but 3/4" at the shock is around 1.25" or so at the wheel. That's a lot.
_________________
CTB
Back to top
View user's profile Send private message Classifieds Feedback
climberjohn
Samba Member


Joined: January 11, 2005
Posts: 1840
Location: Portland Orygun
climberjohn is offline

PostPosted: Mon Apr 11, 2011 11:01 am    Post subject: Reply with quote

CTB,

That's a very nice write up and photos, thanks for the helpful post.
(I wish I had this to read before I put mine in last year!)

BTW, shox.com has generally good prices on Konis, if folks are looking to buy some.

-CJ
_________________
'86 Westy, 2.5 Subaru power
Know your limits. Exceed them often.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
CTB
Samba Member


Joined: July 19, 2010
Posts: 152

CTB is offline

PostPosted: Mon Apr 11, 2011 11:27 am    Post subject: Reply with quote

Thanks, CJ.

I had already ordered mine from Tire Rack during the 20% off Koni sale (might still be on?) when I remembered Shox.com. They would have saved me the cost of shipping. Oh well, at least I've always gotten good service from Tire Rack over the years, so I didn't feel too bad.
_________________
CTB
Back to top
View user's profile Send private message Classifieds Feedback
Kombi///M3
Samba Member


Joined: March 16, 2011
Posts: 427
Location: Vancouver, BC
Kombi///M3 is offline

PostPosted: Wed May 11, 2011 9:39 pm    Post subject: Re: Shocks: Koni + General Install Tips & Review Reply with quote

CTB wrote:
This weekend I installed my new Koni adjustable shocks on my bus. I thought I'd pass along some info/tips/etc that I learned along the way.

My setup: 1984 2wd, Carat springs, 15" SA wheels, 195/70-15 Conti VancoContact 2 tires. Bus weighs 3400 lb - no middle or rear seats.

For both front and rear: The Konis are not gas pressurized, so they do not extend automatically. I recommend turning them upside-down and stroking the shock rod until you notice a large decrease in damping. Then set the damping level to where want and and extend them fully while still upside-down. The twin-tube design means they starve for oil when upside-down, so this enables you to extend them prior to installation, even when set on stiff. If you don't do this, it's a lot more work to extend them when set to stiff. Remember, the adjustment is only on rebound. It's easy to compress them while installing, so it's best to have them too long than too short.

Rear: No rear-specific tips. The rears are very easy and accessible on a Vanagon.

Fronts: The Konis do not have a "blade" on top of the shock rod like the stockers. The have a 5mm female allen head. My 5mm allen did not fit in there once you have the shock on the bus. I recommend going to Lowe's, etc., and getting a set of allen wrenches for $4, use an angle grinder to shorten the 5mm, and then bend it so that the long arm clears the structure of the bus. Here's a picture of what I made, compared to an unaltered 5mm:

Image may have been reduced in size. Click image to view fullscreen.


I found it difficult to find a combo of tools that would insert into the front of the lower control arm (LCA) without interfering with that support strut that goes to the sta-bar link area. The best combo I found was a breaker bar, a shorty 1/2" extension, and a non-impact 7/8" or 22mm socket:

Image may have been reduced in size. Click image to view fullscreen.


Impact sockets are thicker and can get stuck in the LCA. Nothing you can't handle with some jiggling around, but it's easier with the thinner sockets. For the rear side of the LCA, access is easy. I used a deep-well 7/8" socket. Again, same thing - impacts are thicker and don't have as much clearance.

I recommend putting the bolts in from the front if you can. My van wasn't symmetric - I could only do this on the driver's side, so do whatever works on your van. Torque is 110 lb-ft on that bolt. The upper nut is 22 lb-ft, but there's no torque wrench I have that fits up there. 22 lb-ft is essentially "not much," so I did it by hand.

I set all my shocks to full stiff for the initial install, just to see how far they could go. I was surprised at how livable this setup was. Not harsh and a big increase in body control. However, I found that this setup induced some seat shake (caused by the rears - I installed them first and drove the van), and it was a bit abrupt and over-damped up front. The bus would get choppy (a 5-7Hz bounce) on certain surfaces, and was just too vertically busy for max comfort.

Today was such a nice day (81 in Detroit!) that I decided to adjust the shocks. I backed the rears off 1/2 turn from full stiff, and backed the fronts off by, let's say, 5/8 turn. It was more than 1/2, but not 3/4, so there you go.

This helped quite a bit. Most of the seat shake is gone, and now the van breathes a bit more over the small stuff without being floaty. I *may* have gone a bit more soft than I'd like on the front, so I might go a real 1/2 turn out if I get bored someday. However, in this setup, my van is a very nice place to be and is a lot more responsive, etc. Ok, fine, it's not a limo, but it never will be. It's not harsh, probably even less harsh than with my original shocks, and well controlled. I think the rolling plushness is better as well. Even if I lived in CA with smooth roads, I'd still back them off of max with these springs to regain a calm freeway ride.

As a bonus, at full-stiff, the incessant squeaking of the front end was reduced drastically since the van simply didn't move as much. Since going softer, the squeaking has increased a bit and is ammo for maybe making one more adjustment up there.

I'm very happy with the purchase. The adjustability did exactly what I wanted - I was able to pick *my* level of control, and the Konis seem to have a nice range of adjustment. I was initially unsure of what I was getting with these, but I'm now very pleased. We'll see how it goes as I get more miles on them and possibly adjust them one more time.


Nice write up..thx for the info..just got my Koni's and weitec.
I'm a little confuse on adjusting the shocks front and rear while
installed...I guess the rears just pull the bolt and adjust..fro the front,
do you just loosen the top nut and turn the allen key hole?
and lastly what are yuo running for springs?
Thanks again for the info..I'll tackle the job tomorrow.
Cheers,
Ogi
Back to top
View user's profile Send private message Gallery Classifieds Feedback
CTB
Samba Member


Joined: July 19, 2010
Posts: 152

CTB is offline

PostPosted: Thu May 12, 2011 2:59 am    Post subject: Reply with quote

You can't adjust the Konis while installed. The rears are easy - remove the lower bolt, compress the shock, adjust it, extend, and re-bolt. The fronts have to come off completely because, like the rears, you have to compress them to adjust them. There's no easy way to do the fronts, but you do get pretty good at doing shock jobs after doing it twice. Smile

I have Carat springs.

As an update, I backed the rears off a bit more since I wrote the post above. I'm now running them backed off one full turn from full stiff. This helped with the seat shake. I'm still debating doing another front adjustment, mostly because of the time/work involved. The rears can be done in 15 minutes.
_________________
CTB
Back to top
View user's profile Send private message Classifieds Feedback
Kombi///M3
Samba Member


Joined: March 16, 2011
Posts: 427
Location: Vancouver, BC
Kombi///M3 is offline

PostPosted: Thu May 12, 2011 8:17 am    Post subject: Reply with quote

Sounds good..thx for the update.
got my Koni's from Shox.com and
the fronts came with only 1 white washer Shocked
do I even need this? maybe I can make another
one.

Cheers,
Ogi
Back to top
View user's profile Send private message Gallery Classifieds Feedback
CTB
Samba Member


Joined: July 19, 2010
Posts: 152

CTB is offline

PostPosted: Thu May 12, 2011 9:13 am    Post subject: Reply with quote

I didn't use either of the white washers on mine. I'm not saying that's right, but so far no issues without them.
_________________
CTB
Back to top
View user's profile Send private message Classifieds Feedback
SteelB12
Samba Member


Joined: December 21, 2010
Posts: 591
Location: Central Virginia
SteelB12 is offline

PostPosted: Fri Oct 17, 2014 7:26 am    Post subject: Reply with quote

I ordered Konis for the rear and they just don't seem to want to slide into the bracket so that I can bolt them on. Any ideas??



The shocks I am replacing easily slide into the mounting bracket.
_________________
1987 Westy
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
Jake de Villiers
Samba Member


Joined: October 24, 2007
Posts: 5911
Location: Tsawwassen, BC
Jake de Villiers is offline

PostPosted: Fri Oct 17, 2014 7:55 am    Post subject: Reply with quote

SteelB12 wrote:
I ordered Konis for the rear and they just don't seem to want to slide into the bracket so that I can bolt them on. Any ideas??
The shocks I am replacing easily slide into the mounting bracket.


Take a large Crescent wrench and bend open the bracket a little bit.
_________________
'84 Vanagon GL 1.9 WBX
'86 Westy Weekender Poptop/2.5 Subaru/5 Speed Posi/Audi Front Brakes/16 x 7 Mercedes Wheels - answers to 'Dixie'
@jakedevilliersmusic1
http://sites.google.com/site/subyjake/mydixiedarlin%27
www.crescentbeachguitar.com
www.thebassspa.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
SteelB12
Samba Member


Joined: December 21, 2010
Posts: 591
Location: Central Virginia
SteelB12 is offline

PostPosted: Fri Oct 17, 2014 7:57 am    Post subject: Reply with quote

i'll give it a go, but it being me, i'll tear off the entire bracket
_________________
1987 Westy
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
oldhuldy67
Samba Member


Joined: November 25, 2008
Posts: 506
Location: somewhere with a southern exposure
oldhuldy67 is offline

PostPosted: Fri Oct 17, 2014 5:36 pm    Post subject: Reply with quote

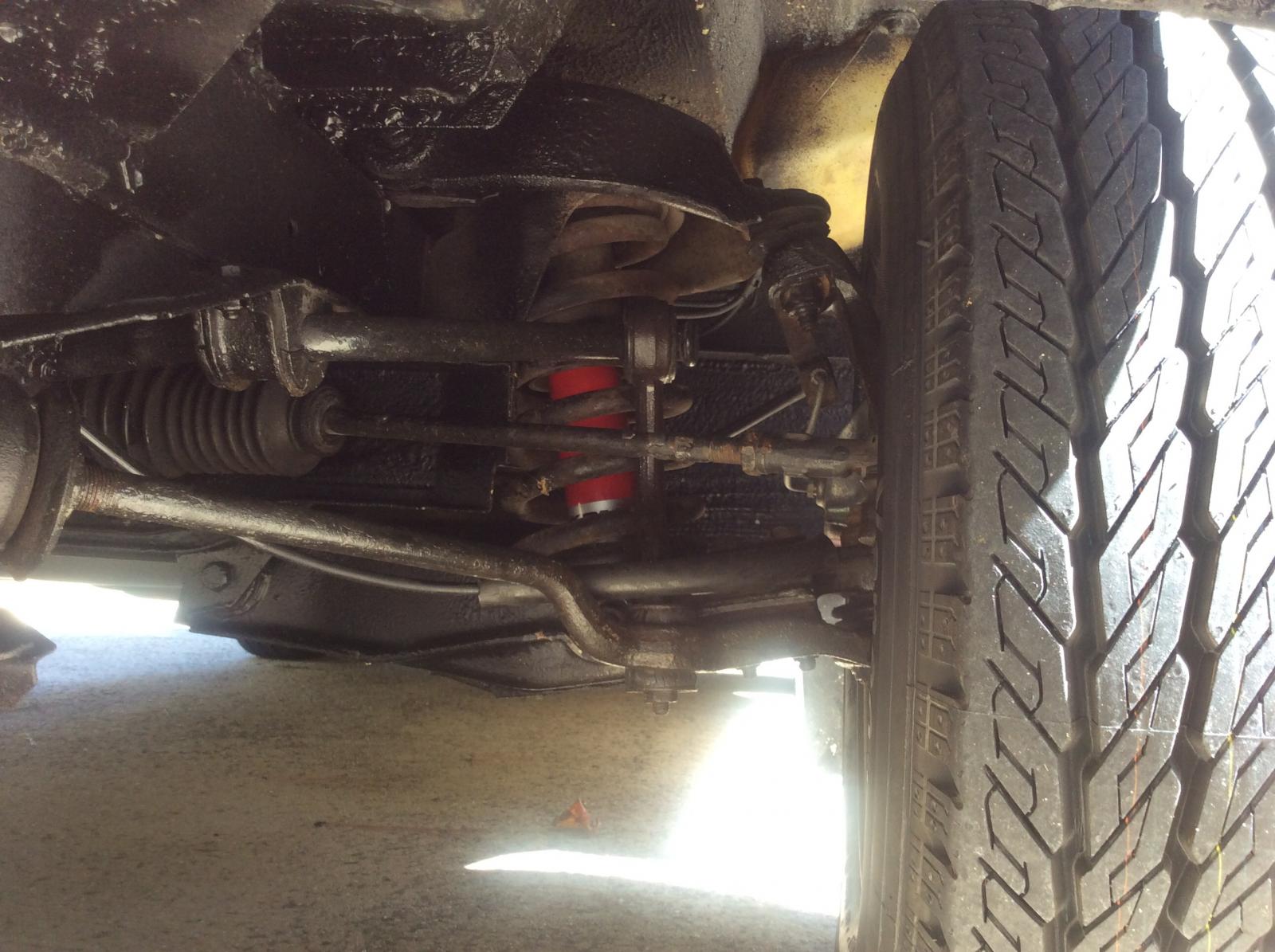

Thanks for the great write up. I just had 4 KONIs installed by my mechanic, who also has an early AC Vanagon, all 4 set on softest setting. The thinking is to stiffen them up over time as needed as they age.. So, without any test tuning I find the improvement in handling much to my liking. Of course, anything would be better than the factory shocks..and with a fresh set of D load rated Continental VANCOs driving this underpowered, overweight marvel of late 20th century automotive engineering and design actually feels...safe..
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Thanks all! All the best, John in GA
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
porterbrown
Samba Member


Joined: February 25, 2005
Posts: 718
Location: Bentonville, AR
porterbrown is offline

PostPosted: Sat Jul 18, 2020 11:35 am    Post subject: Reply with quote

CTB wrote:
I didn't use either of the white washers on mine. I'm not saying that's right, but so far no issues without them.


Resurrecting this thread in regard to the white washer sub-topic. What's the consensus on the white nylon washer?...use it or don't?
_________________
'90 Westfalia GL Automatic
Back to top
View user's profile Send private message Gallery Classifieds Feedback
porterbrown
Samba Member


Joined: February 25, 2005
Posts: 718
Location: Bentonville, AR
porterbrown is offline

PostPosted: Thu Jul 23, 2020 3:06 pm    Post subject: Reply with quote

porterbrown wrote:
CTB wrote:
I didn't use either of the white washers on mine. I'm not saying that's right, but so far no issues without them.


Resurrecting this thread in regard to the white washer sub-topic. What's the consensus on the white nylon washer?...use it or don't?


Bumping once more regarding the white nylon washer...
_________________
'90 Westfalia GL Automatic
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sagebus
Samba Member


Joined: July 26, 2004
Posts: 310
Location: Temescal Valley, Corona California
sagebus is offline

PostPosted: Thu Jul 23, 2020 3:36 pm    Post subject: Re: Shocks: Koni + General Install Tips & Review Reply with quote

I just bought a pair, just opened one box, i have not put them on yet. It did not have a white nylon washer. I saw your post and looked in the other box, Viola a white washer on the shaft! I have read other folks post on koni install, adjustment and the like. I dont recall anyone mentioning the white washer.I know i did not answer you question but now you have me wondering if i need said washer now..
_________________
1984 Vanagon GL, Wolfsburg Westy 1.9 ltr
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
porterbrown
Samba Member


Joined: February 25, 2005
Posts: 718
Location: Bentonville, AR
porterbrown is offline

PostPosted: Thu Jul 23, 2020 7:49 pm    Post subject: Re: Shocks: Koni + General Install Tips & Review Reply with quote

sagebus wrote:
I just bought a pair, just opened one box, i have not put them on yet. It did not have a white nylon washer. I saw your post and looked in the other box, Viola a white washer on the shaft! I have read other folks post on koni install, adjustment and the like. I dont recall anyone mentioning the white washer.I know i did not answer you question but now you have me wondering if i need said washer now..


thanks for contributing--hoping somebody knows the answer!

If you're also doing the rears, I'll give you a heads up about having to spread the shock mounts in order to fit the width of the Koni mounting points. Took me several tries to get frame mounts spread far enough apart to accept the shocks.
_________________
'90 Westfalia GL Automatic
Back to top
View user's profile Send private message Gallery Classifieds Feedback
porterbrown
Samba Member


Joined: February 25, 2005
Posts: 718
Location: Bentonville, AR
porterbrown is offline

PostPosted: Tue Aug 04, 2020 6:47 am    Post subject: Re: Shocks: Koni + General Install Tips & Review Reply with quote

One final attempt to get an answer on the white plastic washer/ring. I'm putting these puppies on today!
_________________
'90 Westfalia GL Automatic
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
