What's the location of the karmann badge on a convertible?
Page: 1, 2  Next
Forum Index -> Beetle - 1958-1967 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
myklsmyth
Samba Member


Joined: November 22, 2005
Posts: 515

myklsmyth is offline

PostPosted: Sun Apr 17, 2011 10:38 pm    Post subject: What's the location of the karmann badge on a convertible? Reply with quote

Hello,
I have a 61 convertible beetle. The holes were covered where the karmann badge is located on the passenger side quarter panel. Can anyone provide the correct dimensions so that I can relocate the badge in its proper place? Thanks, Mike
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
GüteAndTite
Early Convertible G�ru


Joined: June 16, 2005
Posts: 2144
Location: Low So Cal
GüteAndTite is offline

PostPosted: Mon Apr 18, 2011 1:40 am    Post subject: Reply with quote

does your car have a square badge or the weird oval shaped one?
_________________
Official 58-60 "Early Big Window" Convertible Thread & Registry
http://www.thesamba.com/vw/forum/viewtopic.php?t=426481
F&S Saxomat Automatic Clutch System Thread
http://www.thesamba.com/vw/forum/viewtopic.php?t=462533
61-67 Delanair Air conditioning Thread
http://www.thesamba.com/vw/forum/viewtopic.php?t=457944&highlight=air+conditioning

PUNCTUATION CHANGES THE WORLD: "I need to help my uncle, Jack, off a horse" is way better than, "I need to help my uncle jack off a horse"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
VOLKSWAGNUT
Fastest VW Belt Changer


Joined: October 14, 2007
Posts: 11126
Location: Flippin' a Belt........ .... Off-n-On ... NC USA
VOLKSWAGNUT is offline

PostPosted: Mon Apr 18, 2011 6:52 am    Post subject: Reply with quote

61 would have the odd shaped badge similar to a Ghia. I have a 61 too, and I can provide you those later if someone else does not post it. Still loving that color on that vert Smitty (Mike).
_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited


Last edited by VOLKSWAGNUT on Mon Apr 18, 2011 2:44 pm; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
myklsmyth
Samba Member


Joined: November 22, 2005
Posts: 515

myklsmyth is offline

PostPosted: Mon Apr 18, 2011 7:11 am    Post subject: Reply with quote

Yes, Ken you are correct. It has the oval shaped badge and I sure would appreciate it. Thanks and thanks for the compliments on the color. I'm getting it done. Haven't posted many pictures but I made good progress this last weekend. Very Happy
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
GüteAndTite
Early Convertible G�ru


Joined: June 16, 2005
Posts: 2144
Location: Low So Cal
GüteAndTite is offline

PostPosted: Mon Apr 18, 2011 1:58 pm    Post subject: Reply with quote

smittys61vert wrote:
Yes, Ken you are correct. It has the oval shaped badge and I sure would appreciate it. Thanks and thanks for the compliments on the color. I'm getting it done. Haven't posted many pictures but I made good progress this last weekend. Very Happy


okay, my 58 has the square one, id send you measure ments, but obviously that wont help, lol
_________________
Official 58-60 "Early Big Window" Convertible Thread & Registry
http://www.thesamba.com/vw/forum/viewtopic.php?t=426481
F&S Saxomat Automatic Clutch System Thread
http://www.thesamba.com/vw/forum/viewtopic.php?t=462533
61-67 Delanair Air conditioning Thread
http://www.thesamba.com/vw/forum/viewtopic.php?t=457944&highlight=air+conditioning

PUNCTUATION CHANGES THE WORLD: "I need to help my uncle, Jack, off a horse" is way better than, "I need to help my uncle jack off a horse"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
myklsmyth
Samba Member


Joined: November 22, 2005
Posts: 515

myklsmyth is offline

PostPosted: Mon Apr 18, 2011 4:09 pm    Post subject: Reply with quote

Thanks for the help anyway! Very Happy
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
VOLKSWAGNUT
Fastest VW Belt Changer


Joined: October 14, 2007
Posts: 11126
Location: Flippin' a Belt........ .... Off-n-On ... NC USA
VOLKSWAGNUT is offline

PostPosted: Mon Apr 18, 2011 4:34 pm    Post subject: Reply with quote

ALL RIGHT here we go. I have both a Ruby Red 61 (in spots) and a Yukon Yellow 66 Karmann Beetles at the moment that the bodies haven't been altered in that panel area.
The 61 is on my lift waiting it's turn and the 66 is parts only.

It would seem by these 2 they are not exactly the same but very close.

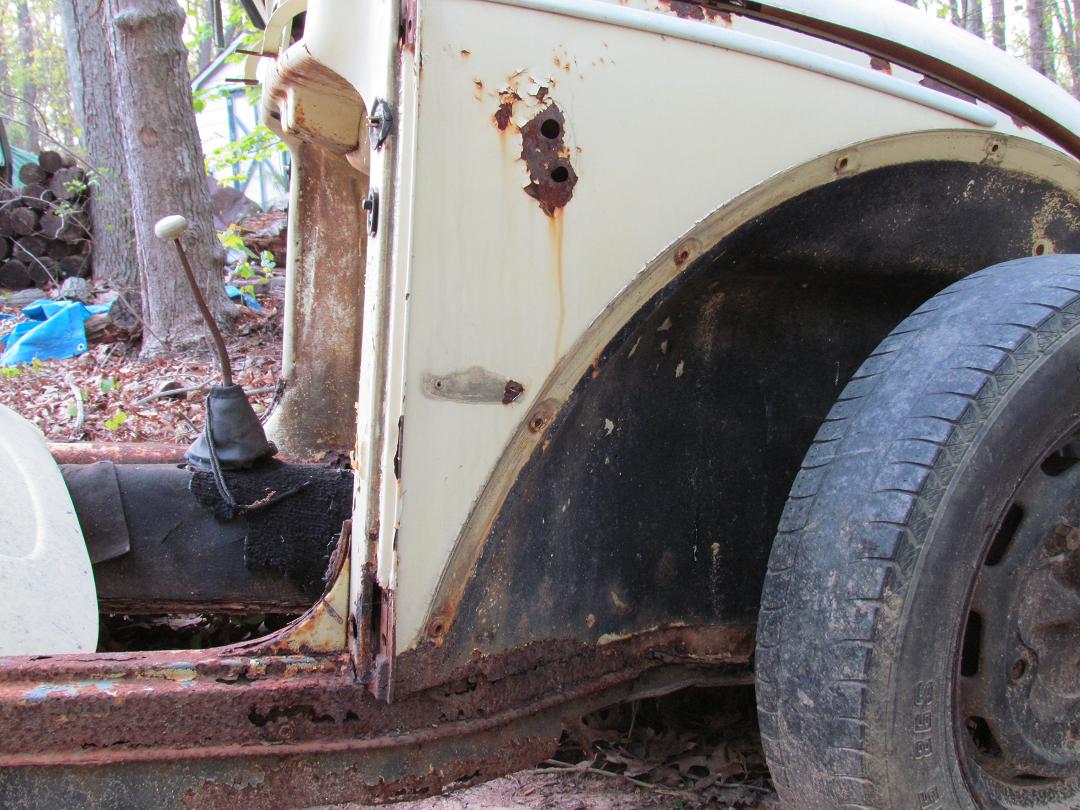

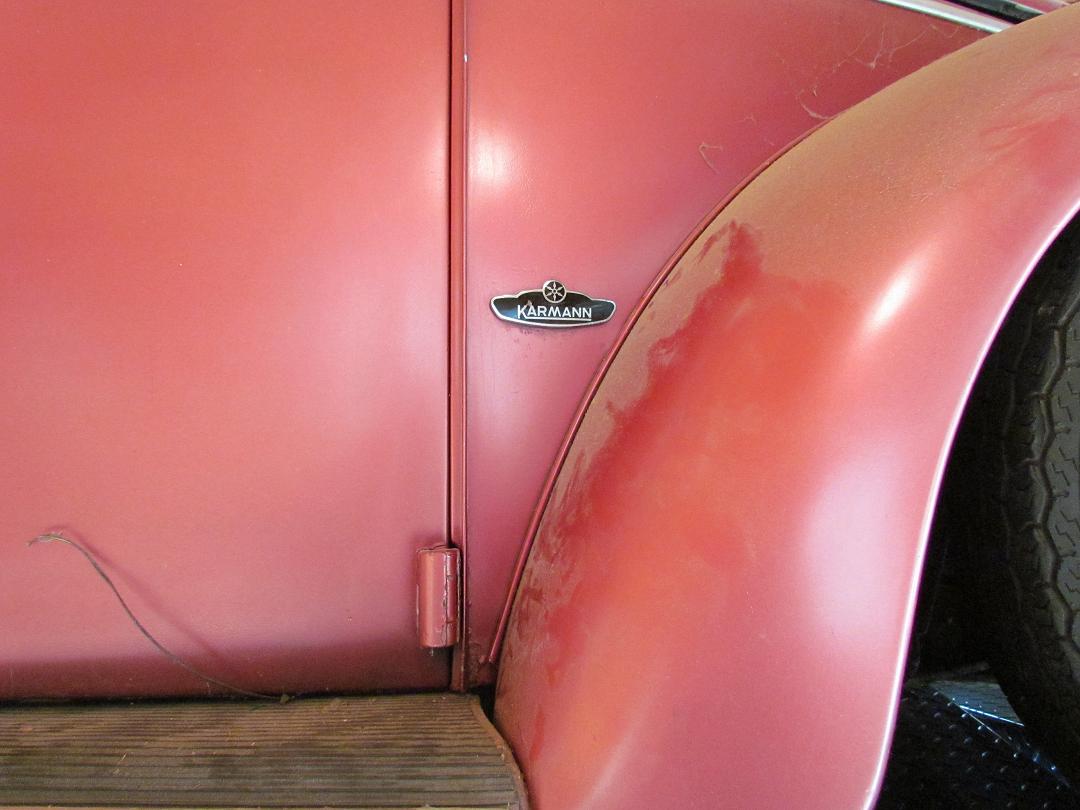

I measured from the bottom of the pinch seam up and from the forward edge of the seam. I'm sure these will help you get it close. Just be sure it's level or you'll hate yourself.

The 61 badge is centered approximately 10 3/8 - 10 1/2 up from the bottom and the first hole is approximately 1 1/16 to 1 1/8 from the forward edge.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.




The 66 was about the same height but measured a little further forward. Approx 1 1/4

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited


Last edited by VOLKSWAGNUT on Mon Apr 18, 2011 5:18 pm; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
myklsmyth
Samba Member


Joined: November 22, 2005
Posts: 515

myklsmyth is offline

PostPosted: Mon Apr 18, 2011 5:10 pm    Post subject: Reply with quote

Awesome! Thanks Ken...just what I needed. Applause
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
VOLKSWAGNUT
Fastest VW Belt Changer


Joined: October 14, 2007
Posts: 11126
Location: Flippin' a Belt........ .... Off-n-On ... NC USA
VOLKSWAGNUT is offline

PostPosted: Tue Apr 19, 2011 5:29 am    Post subject: Reply with quote

Glad I could help
Arrow By the way.... If you dont want to redrill holes in the body, simply pull or cut the pins off the badge and use double sided tape. Good way to install without worries of chipping or scratching the paint, or having holes for potential water to enter.
_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
myklsmyth
Samba Member


Joined: November 22, 2005
Posts: 515

myklsmyth is offline

PostPosted: Tue Apr 19, 2011 7:58 am    Post subject: Reply with quote

Cool thanks! Very Happy
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
myklsmyth
Samba Member


Joined: November 22, 2005
Posts: 515

myklsmyth is offline

PostPosted: Thu Apr 21, 2011 11:42 am    Post subject: Reply with quote

Got the badge installed! Dancing

Before


Image may have been reduced in size. Click image to view fullscreen.


After

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Thanks for the help!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
VOLKSWAGNUT
Fastest VW Belt Changer


Joined: October 14, 2007
Posts: 11126
Location: Flippin' a Belt........ .... Off-n-On ... NC USA
VOLKSWAGNUT is offline

PostPosted: Thu Apr 21, 2011 11:48 am    Post subject: Reply with quote

Pins or tape?
Looks great either way. Applause
_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
myklsmyth
Samba Member


Joined: November 22, 2005
Posts: 515

myklsmyth is offline

PostPosted: Thu Apr 21, 2011 12:48 pm    Post subject: Reply with quote

I used your measurements and the pins.
Very Happy
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Nubby
Samba Member


Joined: August 28, 2010
Posts: 605
Location: Down by the river
Nubby is offline

PostPosted: Mon Jul 18, 2011 11:50 pm    Post subject: Reply with quote

smittys61vert wrote:
I used your measurements and the pins.
Very Happy


How did you secure it?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
VOLKSWAGNUT
Fastest VW Belt Changer


Joined: October 14, 2007
Posts: 11126
Location: Flippin' a Belt........ .... Off-n-On ... NC USA
VOLKSWAGNUT is offline

PostPosted: Tue Jul 19, 2011 5:23 am    Post subject: Reply with quote

You need the pin retaining sockets that press into the body holes. Similar to the sockets that hold the VW 3 pin hood emblem. You can see the sockets are still on the body in my photos with the measurements above. Simply press those in the body, then press your emblem in the sockets.

Sockets are here:
http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=113853615GR
_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
myklsmyth
Samba Member


Joined: November 22, 2005
Posts: 515

myklsmyth is offline

PostPosted: Tue Jul 19, 2011 3:34 pm    Post subject: Reply with quote

Yep, Ken's got it right. Those are the ones I used
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Nubby
Samba Member


Joined: August 28, 2010
Posts: 605
Location: Down by the river
Nubby is offline

PostPosted: Tue Jul 19, 2011 11:31 pm    Post subject: Reply with quote

Got it. Thx.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
VOLKSWAGNUT
Fastest VW Belt Changer


Joined: October 14, 2007
Posts: 11126
Location: Flippin' a Belt........ .... Off-n-On ... NC USA
VOLKSWAGNUT is offline

PostPosted: Sun Jan 24, 2021 1:57 pm    Post subject: Re: What's the location of the karmann badge on a convertible? Reply with quote

Request of information relevant to topic
Need 58-60 Karmann Cabriolet rectangular badge locations added to this topic please.

Image may have been reduced in size. Click image to view fullscreen.
.

Seems like I remember its a little lower than the 61-67?

Image may have been reduced in size. Click image to view fullscreen.

_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
VeeDee
Samba Member


Joined: February 02, 2020
Posts: 212
Location: Wolfsburg, Germany
VeeDee is offline

PostPosted: Sun Jan 24, 2021 2:32 pm    Post subject: Re: What's the location of the karmann badge on a convertible? Reply with quote

I made it for this special car...
_________________
Always Aircooled


VeeDee
Back to top
View user's profile Send private message Gallery Classifieds Feedback
VOLKSWAGNUT
Fastest VW Belt Changer


Joined: October 14, 2007
Posts: 11126
Location: Flippin' a Belt........ .... Off-n-On ... NC USA
VOLKSWAGNUT is offline

PostPosted: Sun Jan 24, 2021 2:37 pm    Post subject: Re: What's the location of the karmann badge on a convertible? Reply with quote

VOLKSWAGNUT wrote:
Request of information relevant to topic
Need 58-60 Karmann Cabriolet rectangular badge locations added to this topic please.

Image may have been reduced in size. Click image to view fullscreen.
.

Seems like I remember its a little lower than the 61-67?

Image may have been reduced in size. Click image to view fullscreen.

_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - 1958-1967 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
