Starter problems

[dzeak7]

Bear with me as I blab and give you some back story here. I'm gonna start by saying that I am no mechanic by any means but I do what I can. I recently got a 66 beetle. The previous owner told me that before they garage it 7 years ago that the starter was acting up on them. Only in the last 2 weeks have I seen any problems with it not starting so it became irritating and I decided to change it out. Went to autozone and they set me up with a new one. When I started her up, it would hit real hard and it turns out that the drive was bad. Swapped it out for another. The second one they gave me had a bad solenoid. It would give me one click when I turned the key. Went and swapped it for a third, they tested it in store and it worked fine. Get it home, set it up and get the hard banging sound again. Them after about 3 starts, it now won't even turn over, just get a single click. NOW, I can't get it off! I unplug it and take the bolts out and it won't even wiggle. After the second starter failed on me, I put the old original back on and it worked fine. I did that to rule out a problem with the car itself. so, any ideas of how to get this new starter off? And I doubt I've been screwed by 3 new failed starters...but any ideas there....? Anything helps....thank you

[63beryl]

Let's start with more info about your car...is it still 6 volt or did someone convert it to 12 volts? As for you're starter problems..did you replace the starter bushing that's in the transmission case? Did you put a bit of grease in the bushing? Now go read this link and follow the test to figure out what other starter problems you're having.

http://www.vw-resource.com/starter.html

[dzeak7]

12 volt. And no

[63beryl]

That little bushing is very very important to the correct operation of a vw starter. It must be changed and greased every time you replace the starter. The easiest way to remove the bushing with the motor in is use a tap that's just larger than the inside diameter of the bushing. Twist the tap into the bushing until it's in nice and tight, then wiggle and pull on the tap until the bushing comes out. Installing the bushing takes a little care because you don't want to smash or bend it. If you get it started with your fingers you can usually tap it in with a small piece of wood until it's flush with the transmission case. Put small dab a grease inside the bushing..install the starter and you'll be in good shape for many miles/years.

[dzeak7]

Thank you autozone management for telling me differently. Ok I can do that....but my other problem is that I can't get the damn thing off. Everything loosened and the starter won't wiggle. I'm about to beat it with a hammer to see if that helps. Any ideas? Do I need a tool together the bushing in and what about the old one, how do I get it out?

[63beryl]

Gently rotate the motor (by hand)...the starter is likely stuck on the flywheel. It should free up if you rotate the motor one direction or the other. One last bit, you'll need a 6/12 volt bushing. It's a bushing that fits into a 6 volt transmission, but has the smaller inside diameter for the 12 volt starter shaft. If someone gives you the wrong one you'll still have problems.

[dzeak7]

The starter came with one, can it be used? Is there an old one that needs to be taken out cause nothing came out when I took out the old starter. Another question for ya....would doing this with the bushing stop the hard clanking sound when it turns over with the new starter?

[63beryl]

The one that came with the starter should be correct. You need to look into the hole the starter came out of to see the bushing...it's on the far side pressed into the transmission case. It will not come out without some help....use a tap from a tap and die set. I'll go get you a picture if you hang on a minute.

[63beryl]

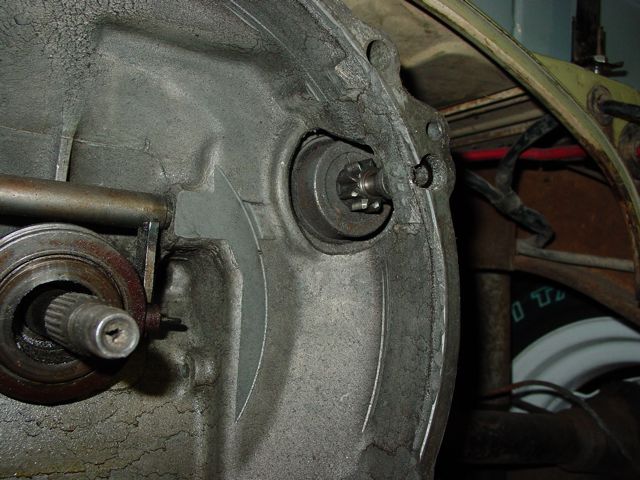

The bushing is inside the hole you can see the starter shaft in. With the motor out you can remove/install the bushing in either direction.

[63beryl]

The transmission case is broken in this picture, so it allows you to see the little brass bushing inside the trans case.

[dzeak7]

Ok. So should this eliminate the hard clanking sound I was getting?

[63beryl]

This is what you need to remove the bushing. The bushing is still on the tap in this photo.

[63beryl]

Yes...Once you replace the bushing and use some grease your car should start without clanking, clicking, or grinding. If it does you have other problems.

[dzeak7]

THank you! I'm headed home now to give it a shot

[dzeak7]

Any comment on why the old starter doesn't have a bushing and why the new one doesn't fit in the hole? And why the bushing that came with the new starter fits on it, but not on the old starter?

[gimpy60]

Simply buy an autostick starter & forget about the bushing. Another thing, don't buy aircooled parts from FLAPS.
_________________
How the hell ya spost ta fix it, ya don't even know how it works boy

[fluxcap]

There are different bushings with different inner and outer dimensions depending on whether the bushing is for 6 or 12 volt, and then there is also a hybrid 6/12 bushing.

It make take an extra day, but you should just save yourself the headache and get an autostick starter. It is self supporting and doesn't use a bushing. Just ask for a starter from a later (maybe 74 beetle) and specify "autostick", they may have to order it though.

Also, I know you said the car is 12 volt, but are you sure the engine has a 12 volt flywheel? Sometimes people do a 12 volt conversion and leave the old 6 volt flywheel on. They then change the solenoid on the starter to 12v but use the old 6v starter body. The teeth on the starter MUST match the teeth on the flywheel.

edit: haha, Gimpy beat me to it! I got slow fingers
_________________
Eric - 1966 camper bus

"It's like, how much more black could this be, and the answer is none.......none more black."

[gimpy60]

Flux is right, your car may be bastardized beyond repair.........it happens. Do look at the old one & compare it with what you been gettin from the idiots at AZ. Visual diff. between 6 & 12v. drive gears. Good luck!!!!!
_________________
How the hell ya spost ta fix it, ya don't even know how it works boy

[dzeak7]

Ok...pulled out the tape measure and the old starter drive is larger than the new one. So does that mean I have the 6 volt flywheel in there? So now what? Explain the autostick to me, is this what I have to do?
