oil temp sensor install

[MTT3107]

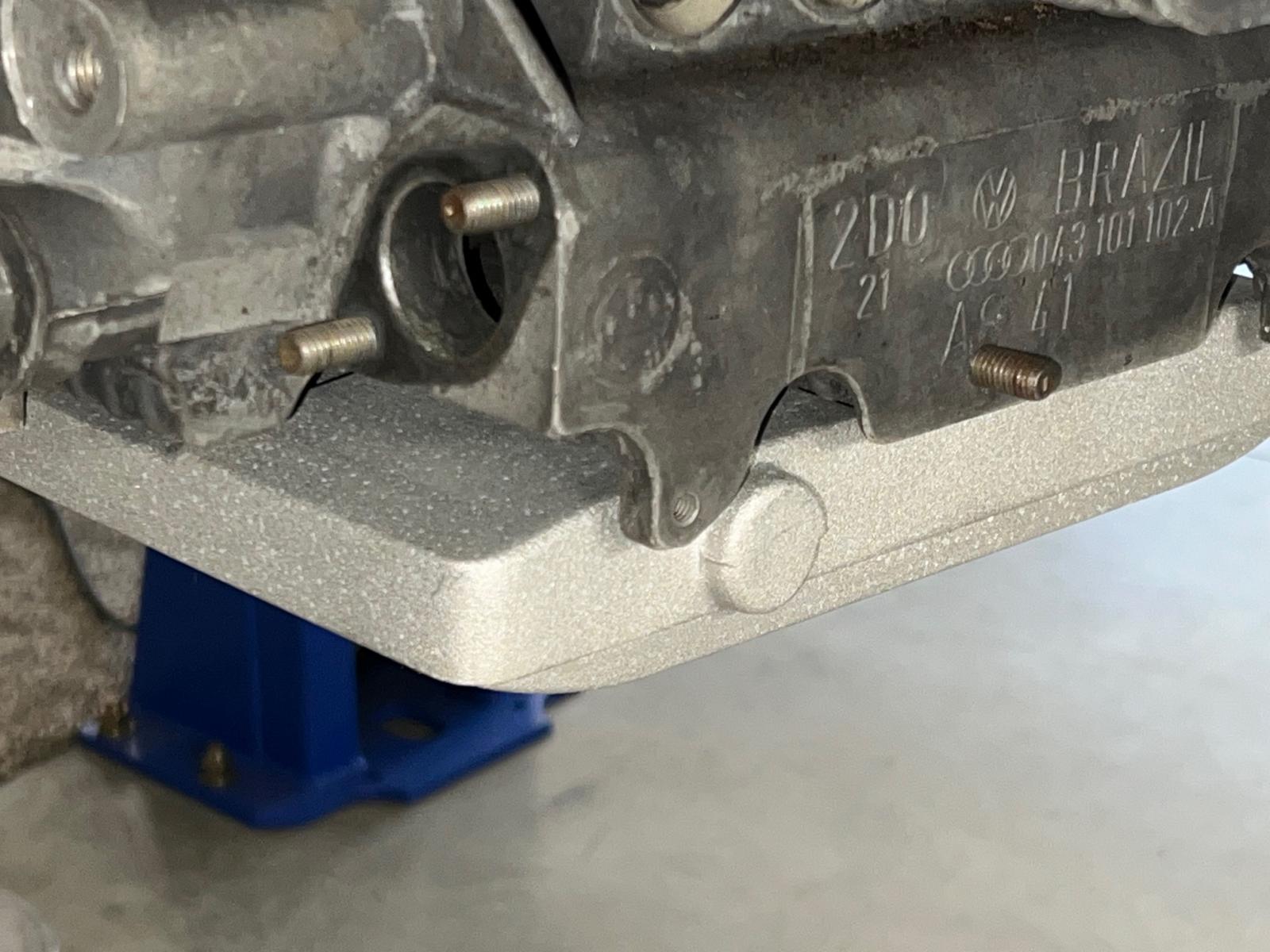

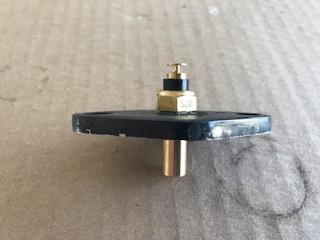

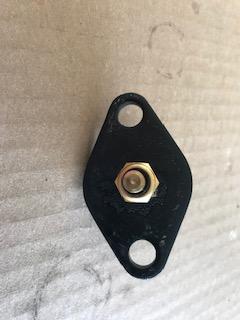

Hi, I want to install this oil temp sensor on my engine, on the blank plate at the bottom of the case.
Can anybody here tell me what kind of tap I need to cut those threads ?
Outside diameter of the threads is just over 10mm.

[Dale M.]

Are the threads SAE or Metric.....

What is exact thread count and what is exact diameter of threads?

They make gauges to tell you all this!
_________________
“Fear The Government That Wants To Take Your Guns"
"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ...

[Dan_Lockwood]

Not to hijack this thread, but is the 2-bolt plate a "good" place to mount the oil temp sender?

Regardless of the work required to do so, is there a "better" place to install the oil temp sender?

Thanks, Dan

[Glenn]

It's a good place
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי

[Dan_Lockwood]

[Dan_Lockwood]

Glenn, got to thinking about my build and with the sump on the bottom, would it be better to drill/tap the side casting and insert my sensor there? I'll have a skid plate protecting that area when finished.

[MTT3107]

[67rustavenger]

It appears to me, that the sensor has tapered threads. Like 1/8" NPT.
Who is the sensor manufacturer?

Dan, You can tap the sump. But you'll likely get different temp readings than from the T3 sump plate.
_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!

There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!
2003 Astrovan? GFYS again, Xevin!
Don't let your bad ideas remain, ideas!

[Don Jones]

I've tried mounting the sensor in the oil filter bracket, oil relief plug and finally in the steel plate talked about here. Plate mounting is the strongest as it's steel and the easier to get to if you have to remove / install. Oil temp readings are the same at all locations.

Here's the size, at least that is what mine is:

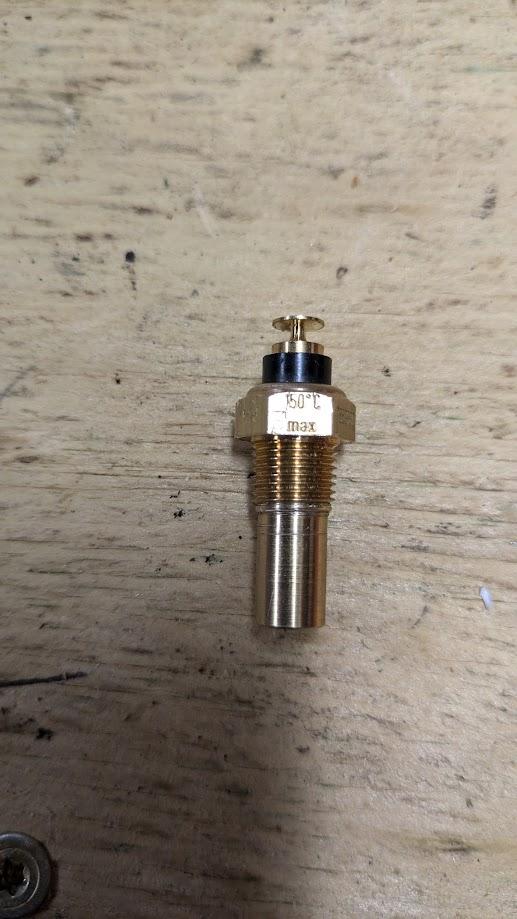

VDO-323-057 - 323057 - 300F DEGREE OIL TEMPERATURE SENDER / SENDING UNIT 1/8-27 NPT

[MTT3107]

@ Don Jones :
Thanks !
Just ordered the corresponding tap.

@rustavenger :
Manufacturer is VDO.

[fl59bug]

I can't remember where I bought mine from, but I'm running this exact oil temp sender and location. I purchased it already drilled and tapped.

Here is one from Appletree Automotive:

https://www.appletreeauto.com/type-3-dipstick-bloc...h0QAvD_BwE

Ted

[MTT3107]

Thanks for that tip !
But I just ordered the tap from amazon.

$ 6.56, so I saved some money !

[Don Jones]

[Murt]

How are these senders connected electrically to the gauge?

_________________
1966 VW Beetle ‘Jules’
1967 Kombi Splitscreen ‘Barney’
2018 VW Caddy Maxi R Line
2017 Golf GTD saloon
2008 VW EOS 2.0 TFSi

[Glenn]

[RWK]

Don't tap too deep, pipe taps are tapered, if you go too deep it will not seal, try 4-5 turns then check with sender, you want a few threads left above the plate on the sender. 3-4 turns on pipe threads is the min.
