CB Antenna for Fiberglass Westfalia Roof - No Ground Plane

[EZ Gruv]

I was tired of using a magnetic mount CB antenna on the tiny piece of steel on my Westy roof, so I decided to up my game with an antenna designed for fiberglass RVs/Boats. A 'No Ground Plane' antenna system made by Firestik.

For starters, I wanted to mount it to my Westy luggage rack, so for the first time ever, I took it off.

Could have been worse for 40 years. Thankfully the bus has always been in the desert climate.

After washing:

After a coat of wax:

Inverted the rack for more cleaning:

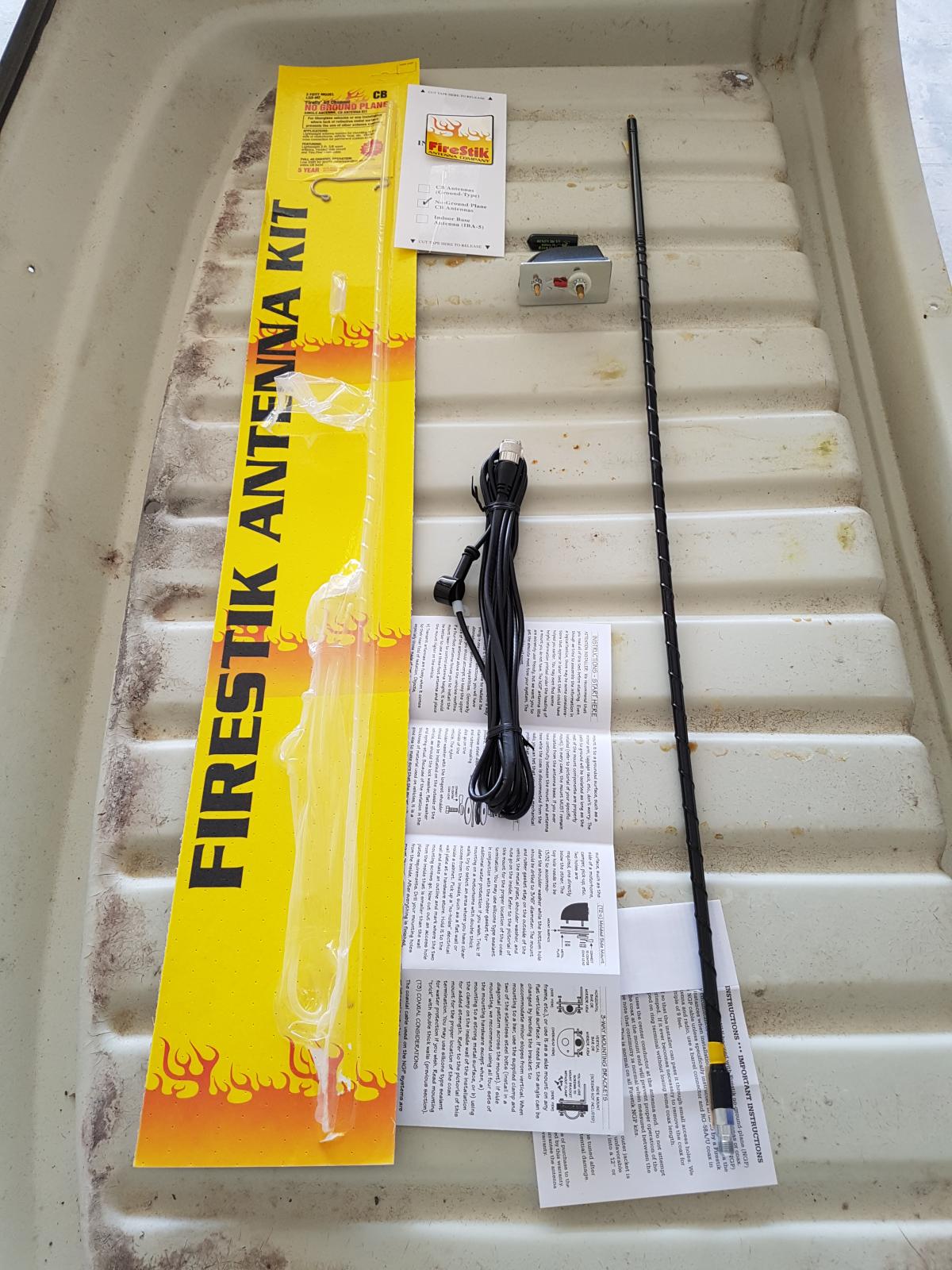

Here's the antenna:

My CB radio is mounted under my dash, so I wanted to route the cable UP the passenger side A pillar, so I pulled the headliner (also a first for me).

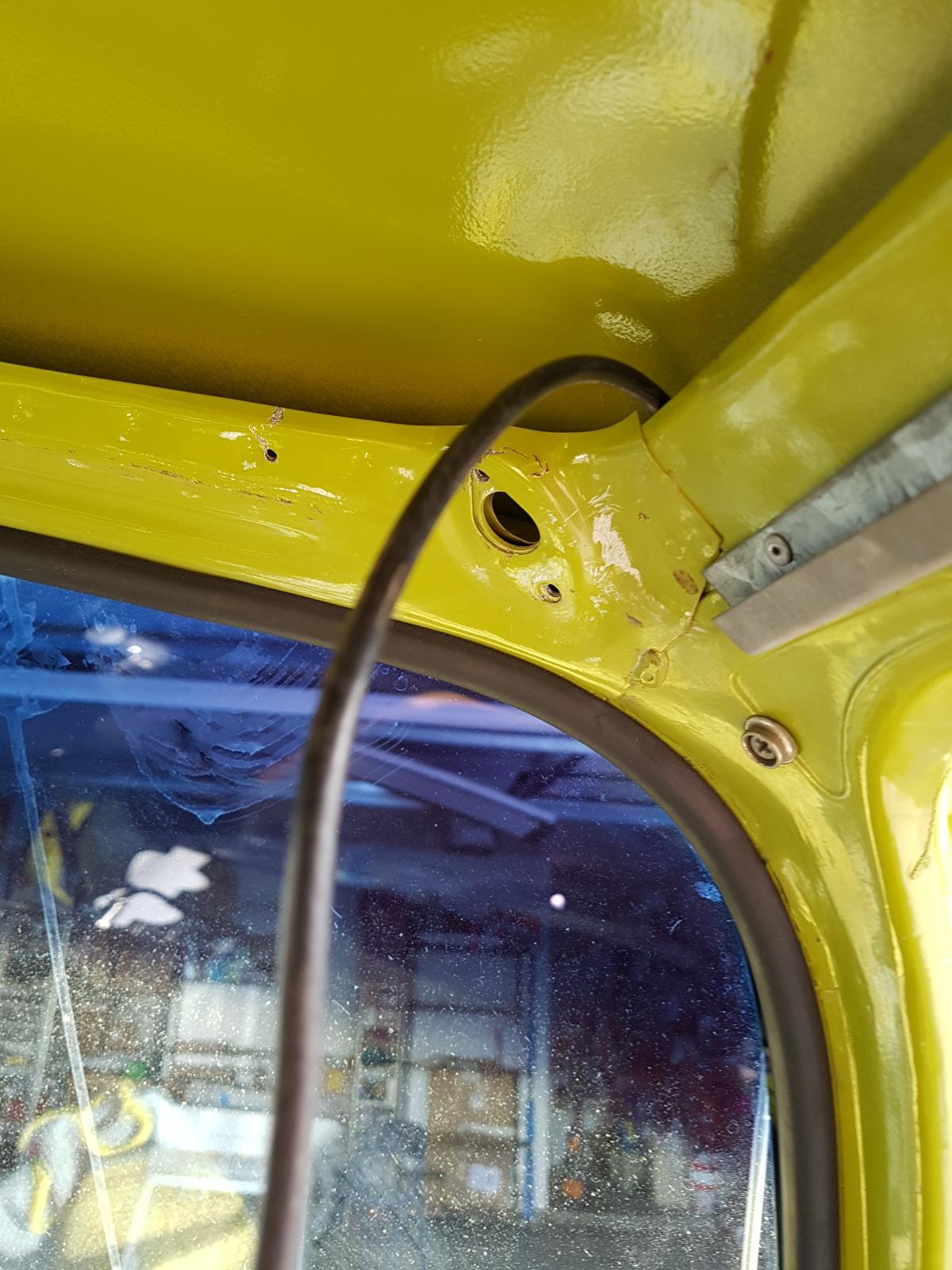

I had to drop a guide wire down the chute, tape the antenna cable to the wire and fish it up.

It then goes between the headliner and the ceiling:

From there it will exit the headliner at the pop-top opening and go out via the screen:

Now to install the antenna mount.

I marked off where I wanted the mount to live, and started drilling. Yes, drilling.

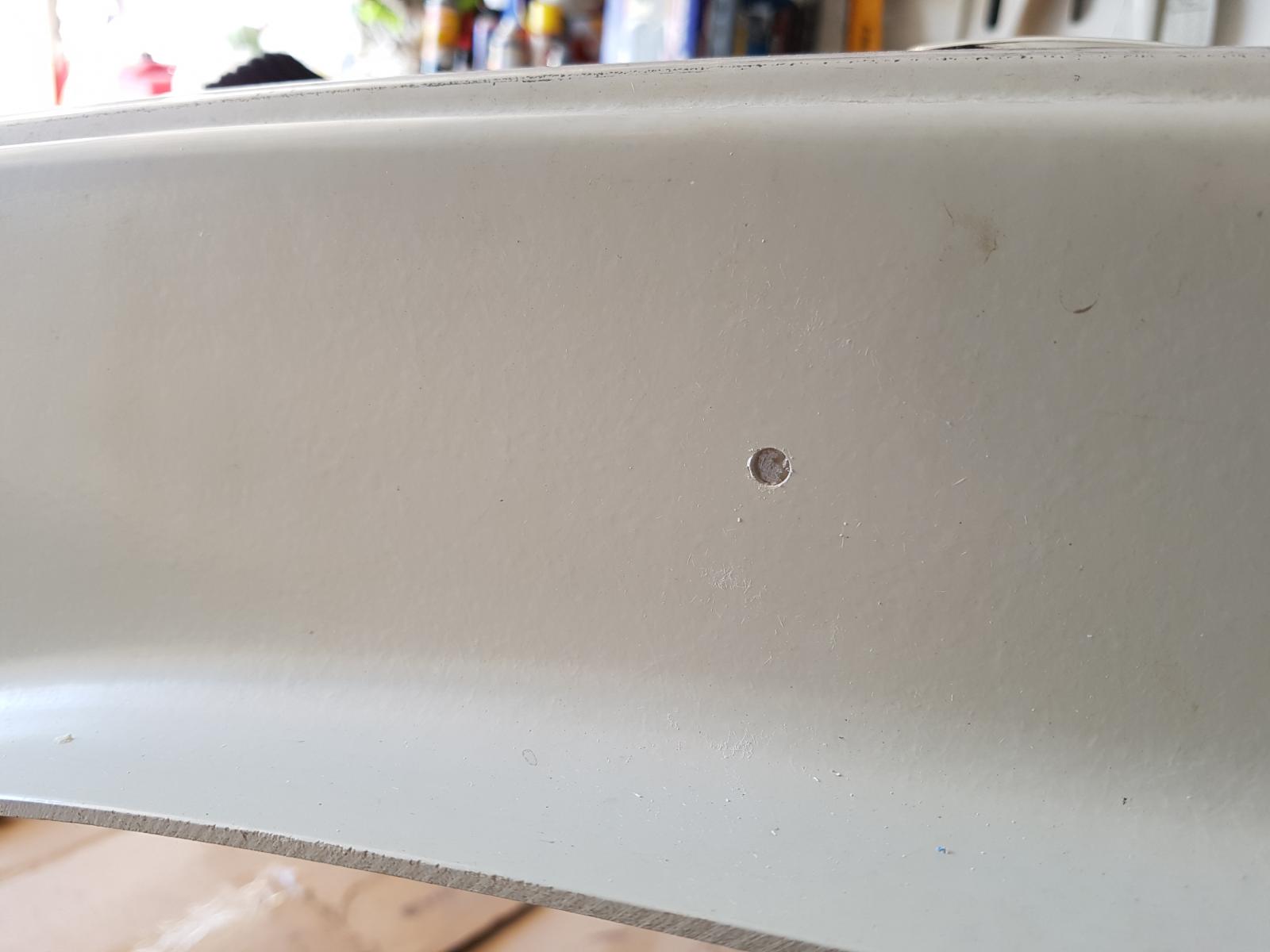

I drilled another hole in the rear for the cable to enter the space below the rack.

The mount itself:

Inside view:

Time to connect the antenna cable to the mount. Instructions say to solder, not crimp, as the length of the cable is imperative for the ground to function.

I then had to put the rack back on the roof, upside down, to connect the ring terminal to the inside mount. No pics of this, as it was pretty precarious.

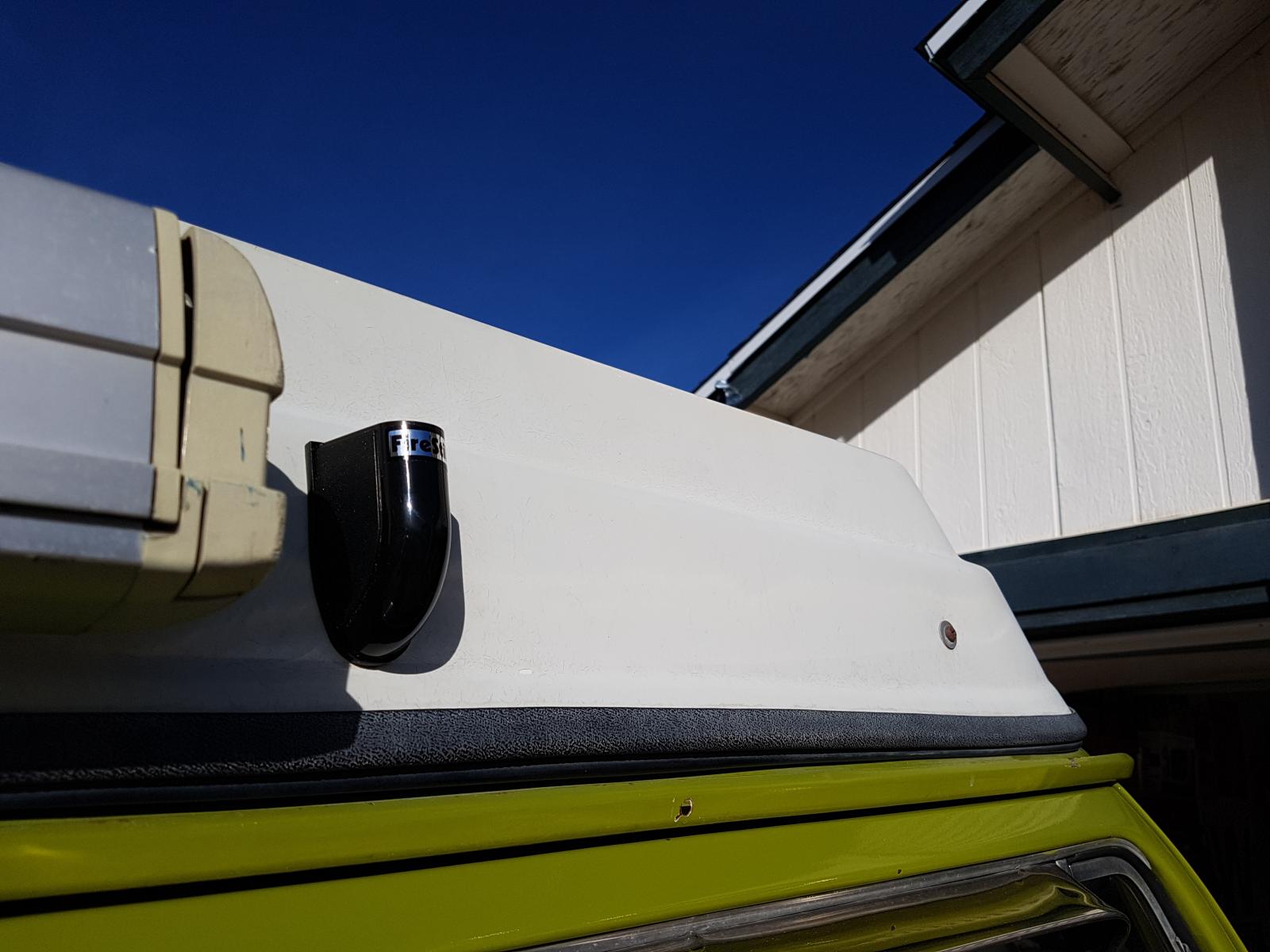

I had to flip the rack and re-install the rack. Note the placement of the mount just forward of my awning:

Here is where the cable exits the space beneath the rack and goes into the pop-top screen:

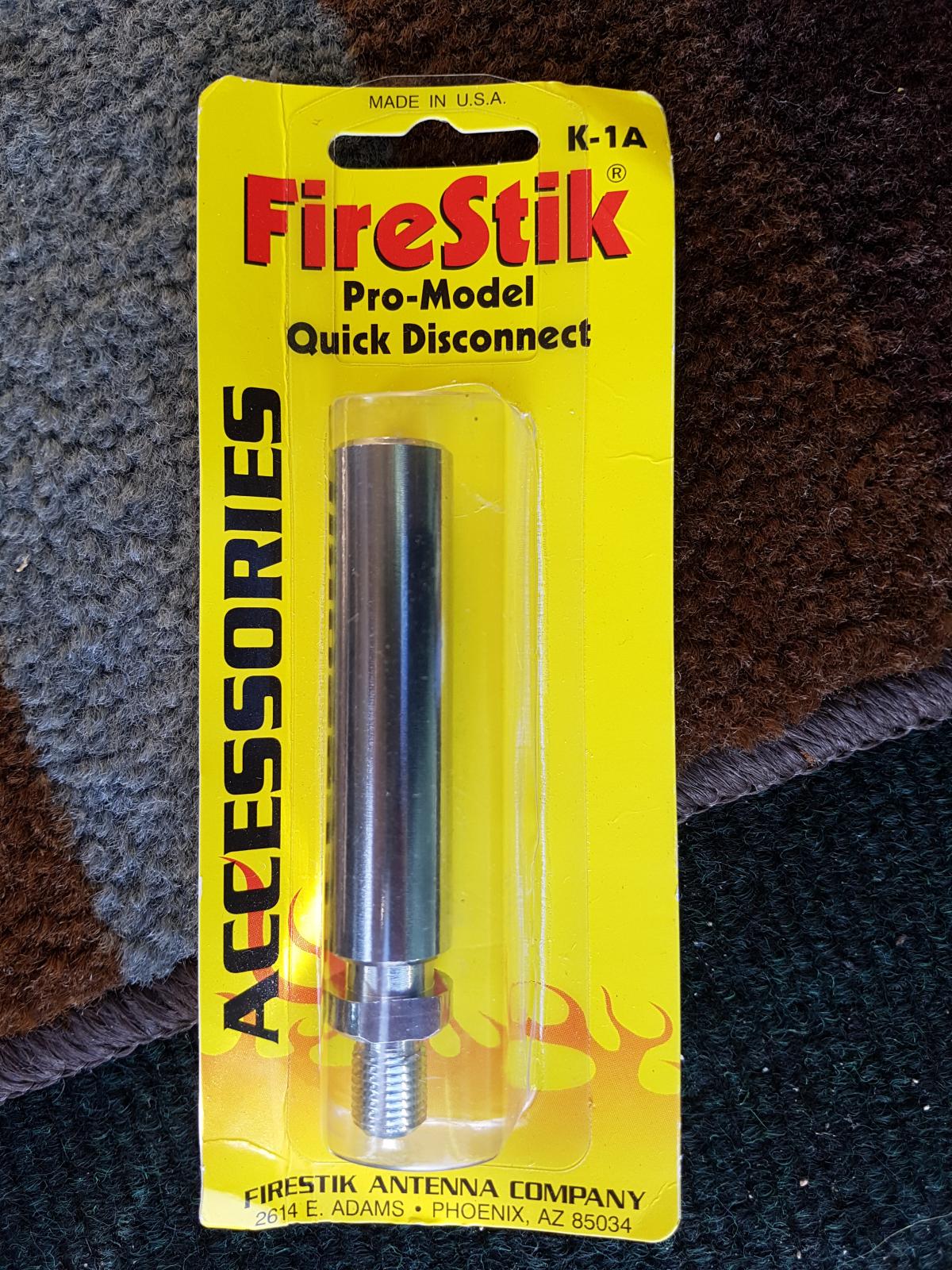

I also installed a Firestik Quick Connect, so I can still garage the bus:

Here is the whole thing installed:

I tested while sitting in my driveway. I received from the truck stop 5.2 miles away. I was transmitting as well, but I don't know how far yet.
I still need to get the SWR tuned in, but so far so good.

Very pleased with the install.

Hopefully this helps anyone with a Westfalia, and a CB, with an idea for an antenna solution.

Thanks
