 Posted: Tue Jun 14, 2011 10:30 am Post subject: Type 3 off-road |
 |
|
Hi,

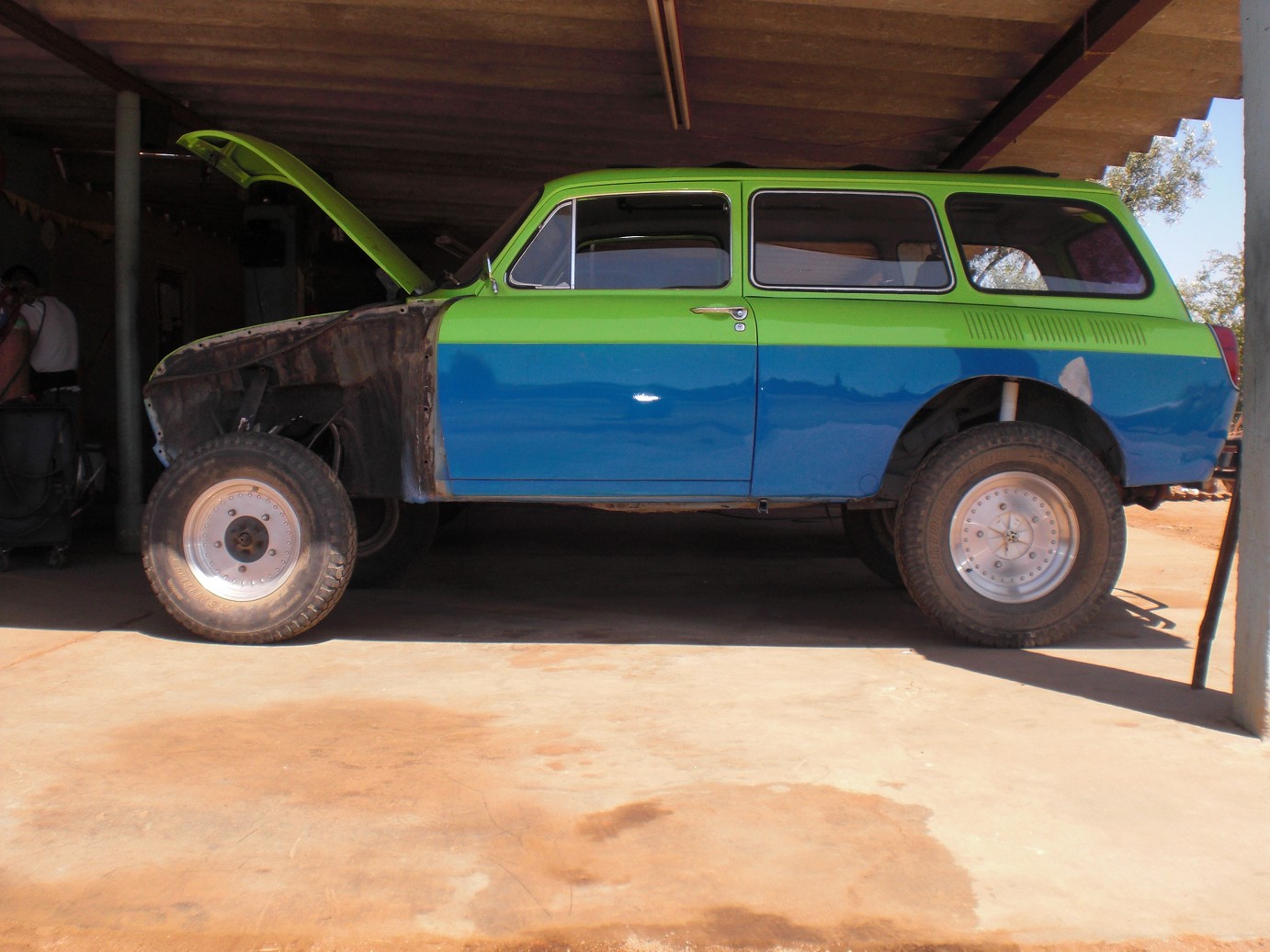

I bought this type 3 in California and I'm hoping you experts can help me with information regarding the rebuild. First problem I am addressing: this car has type 1 link-pin front end with type 2 trailing arms (2 and 1/2 inches longer and 1 inch out than stock type 1). It has front type 2 knuckles and brake drums. Also, rack-and-pinion steering... Previous owner installed rack-and-pinion and front axle incorrectly- car was undriveable. Since retiring a few years ago and moving to Baja Mexico to ride my dirt bikes and off-road cars, I found an excellent off-road fabrication shop in the town here. I will be posting pictures of the build- they are fabbing a complete sub-frame to hold the front axle which is moved 12 inches forward of the stock location. Car also has 3x3 rear trailing arms. Hopefully, as I post the pictures of the rebuild as things progress, I get benefit from any recommendations, experiences, etc., that you may have regarding this type of vehicle...!
|
|
| Back to top |
|
 |
nerfer
Samba Member
Joined: July 09, 2010
Posts: 508
Location: Chicagoland
|
| Posted: Wed Jun 15, 2011 9:01 am Post subject: |
|
|
Looks cool! I assume you've seen the Type 3 Truck thread, for something like this but in more northern climes. What kind of engine does it have in it?
_________________
A '68 fastback owner, and maybe a driver |
|
| Back to top |
|
|
bajatrailrider
Samba Member
Joined: May 03, 2011
Posts: 59
Location: Baja, MEXICO
|
| Posted: Wed Jun 15, 2011 7:07 pm Post subject: |
|
|
| Im not sure on engine,but think its the stock 2 carb .It runs great.My first work is to make it drive well off road.As it has 10 inch travel front end.When I got the car you could only use 3 inches of travel,and the rack would only turn the front wheels half way.Now that is fixed,so test drive is next.We are having trouble to bleed the brakes,so I may need to get master cylinder.I will post more pictures soon.Are type 2 brake drums the same as type 3 brake drums(5 lug) |
|
| Back to top |
|
|
57baja
Samba Member
Joined: April 15, 2008
Posts: 1166
Location: Kaddie Shack Temple City
|
|
| Back to top |
|
|
bajatrailrider
Samba Member
Joined: May 03, 2011
Posts: 59
Location: Baja, MEXICO
|
| Posted: Sun Jun 19, 2011 10:30 pm Post subject: |
|
|
| Thanks for your answer,it does have type 2 drums on front.Is there any way to tell what axles it has on back.With 3x3 trailing arms?Your type 3 is cool. |
|
| Back to top |
|
|
57baja
Samba Member
Joined: April 15, 2008
Posts: 1166
Location: Kaddie Shack Temple City
|
| Posted: Mon Jun 20, 2011 11:39 am Post subject: |
|
|
It will likely have Type 2 CV's, Type 4 CV's (same bolt pattern), or 930 CV's. Depending on what CV joints it has, it will have axles to match. With a bus trans, the axles will be 19-1/4" long, with a bug trans, they'll be 18-3/4" with the 3x3's. If it has VW CV's (T2 or T4), the axles will have 33 splines. If 930 CV's, they'll have 28 splines.
Most guys run aftermarket longer front trailing arms with a Type 1 beam, rather than bus ones. I've never see that set-up you have. Interesting.
_________________
KaddieShack.com - Kadron Carburetor Specialists, VW Parts and Accessories
Have fun with the KS crew on Facebook and keep up to date on the latest builds and happenings |
|
| Back to top |
|
|
bajatrailrider
Samba Member
Joined: May 03, 2011
Posts: 59
Location: Baja, MEXICO
|
| Posted: Mon Jun 20, 2011 10:26 pm Post subject: |
|
|
| Yes your right,the guys here in baja.Have not ever seen type 2 trailing arms,spindles,brake drums on type 1 front beam.They are 2 and a half longer,one inch out then stock.Also type 2 spindle rises car up 3 inches.The problem they had was streeing arms on spindles are on bottom.Thats where they went wrong,so we moved str arms on top of spindle.Also moved rack up to top beam.Now I need to get pair fox 8.5 travel front shocks. |
|
| Back to top |
|
|
bajatrailrider
Samba Member
Joined: May 03, 2011
Posts: 59
Location: Baja, MEXICO
|
| Posted: Mon Jun 20, 2011 10:32 pm Post subject: |
|
|
| I forgot it has a type 1 trans.It has 12v battery,but 6v starter.What do I need to change to 12v starter other than fly wheel, and bushing. |
|
| Back to top |
|
|
BugZyla.com
Samba Member
Joined: July 11, 2004
Posts: 642
Location: Mesa, AZ
|
|
| Back to top |
|
|
bajatrailrider
Samba Member
Joined: May 03, 2011
Posts: 59
Location: Baja, MEXICO
|
| Posted: Thu Jun 23, 2011 11:52 am Post subject: |
|
|

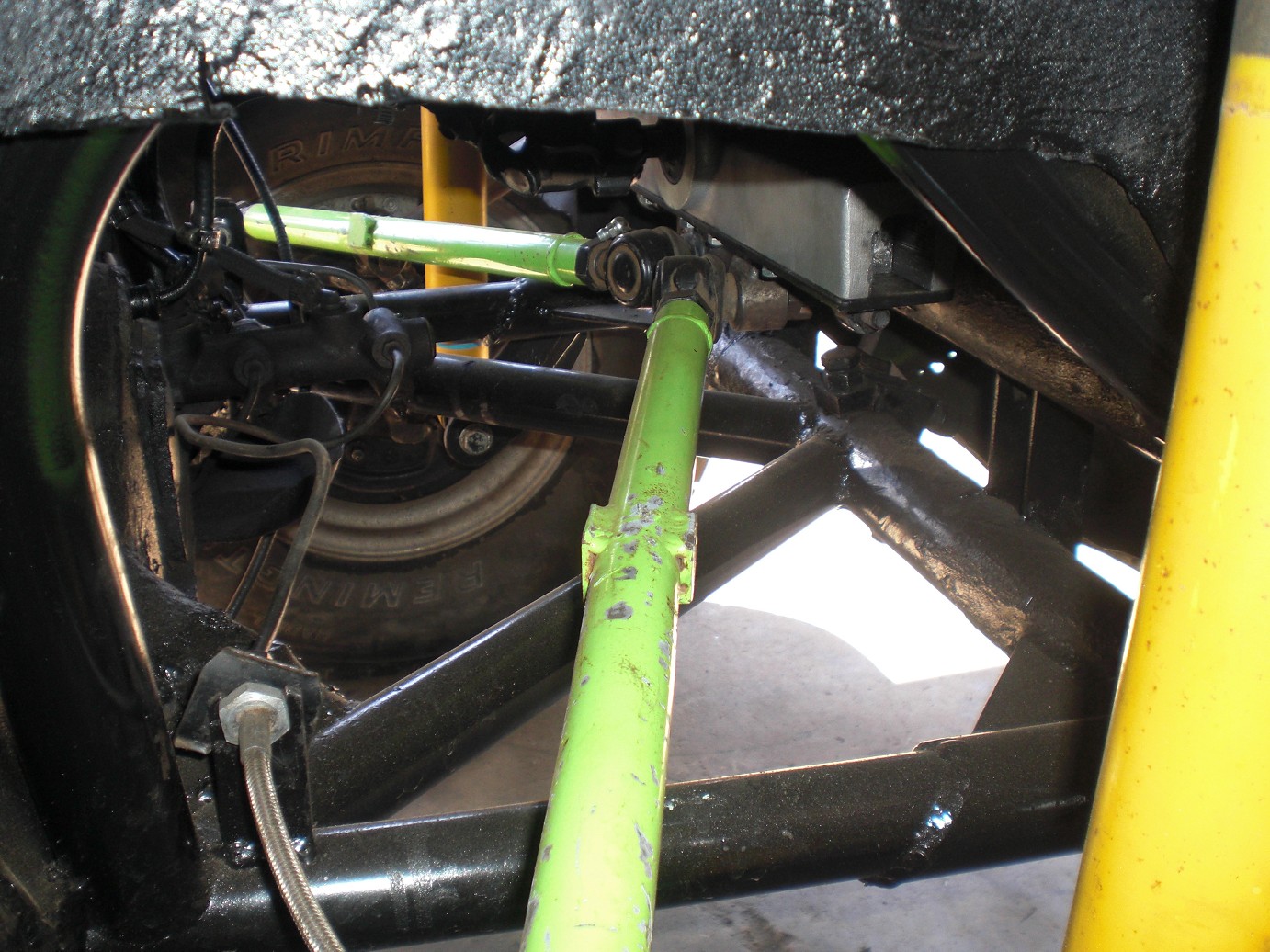

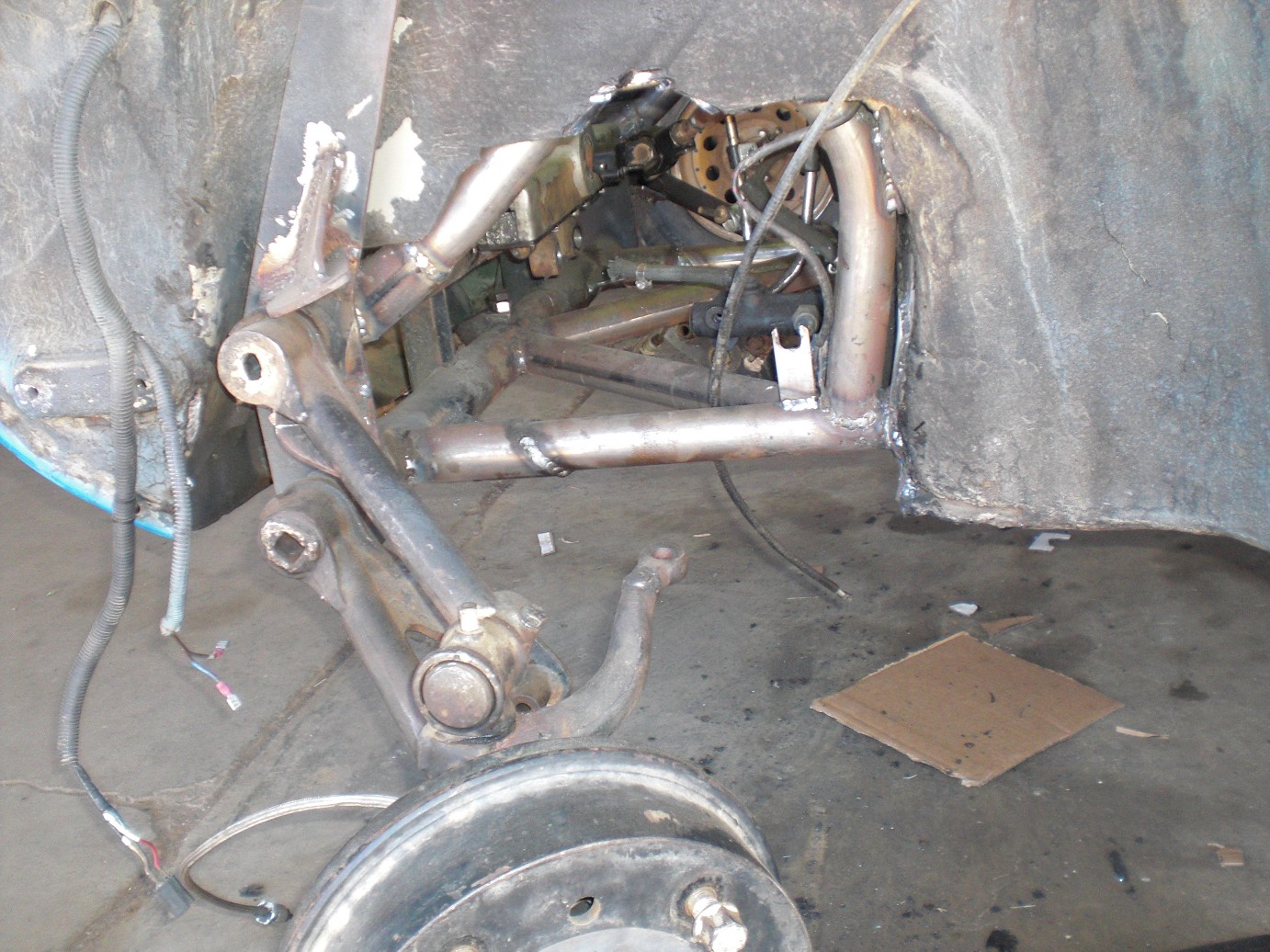

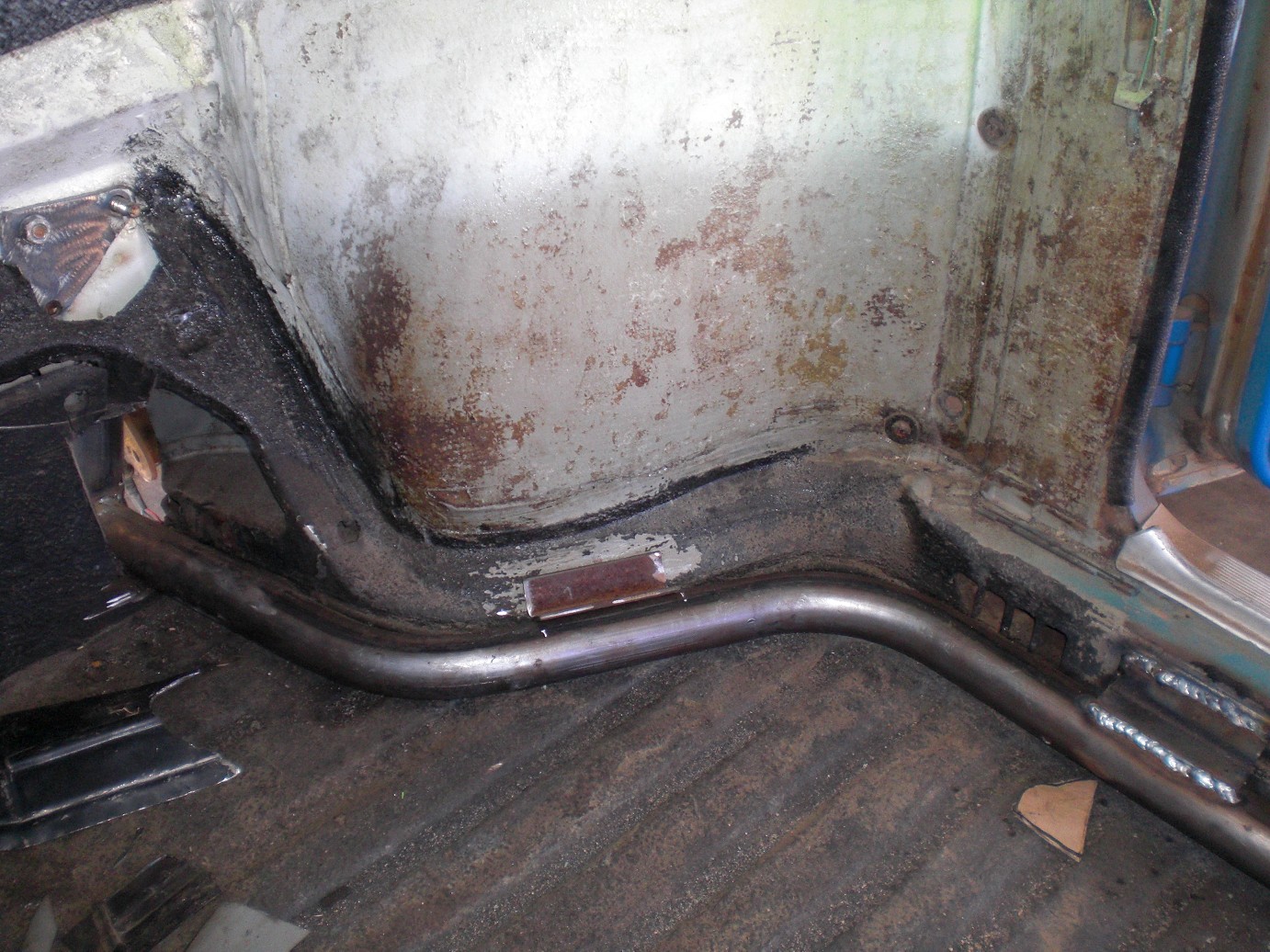

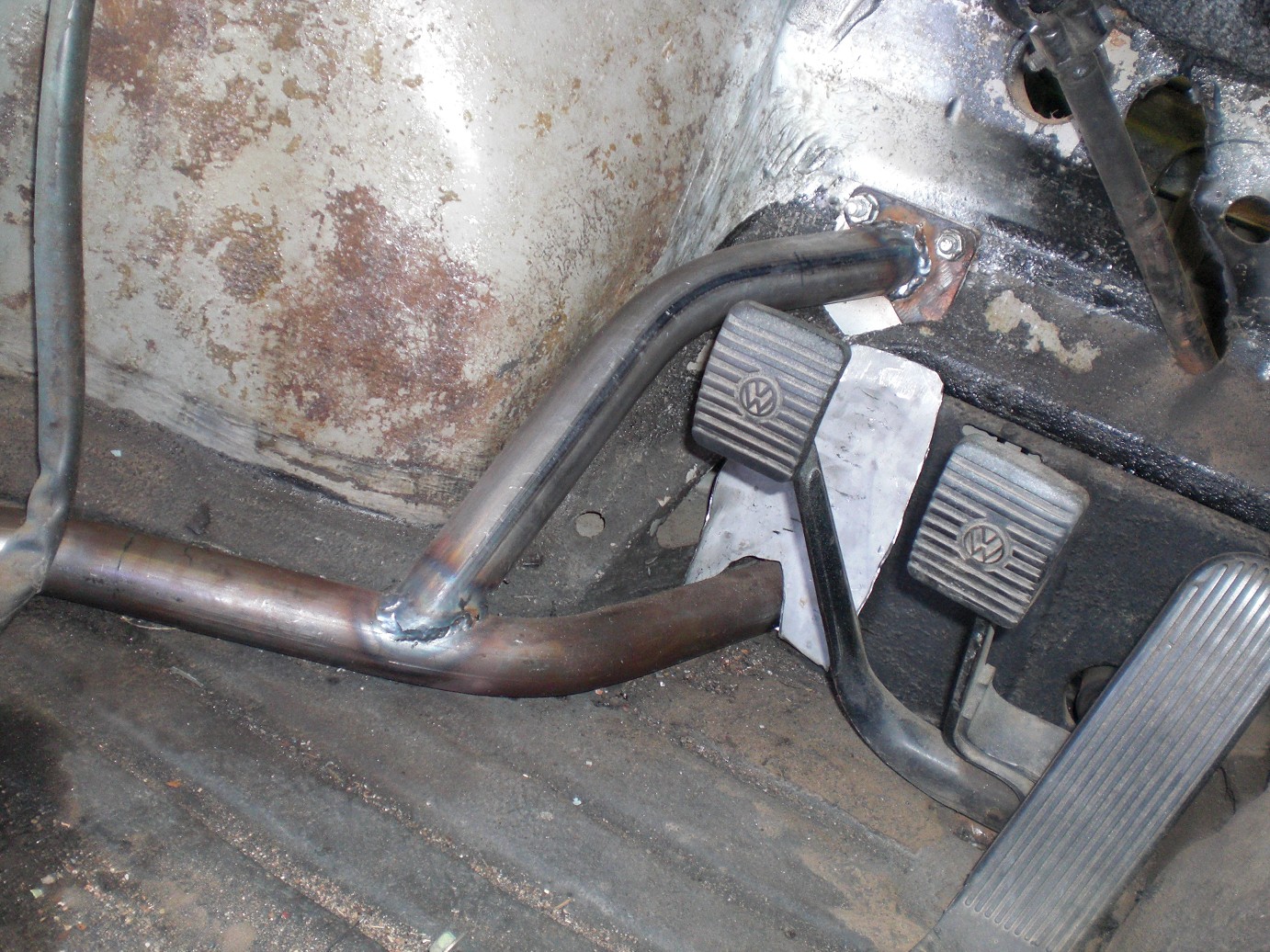

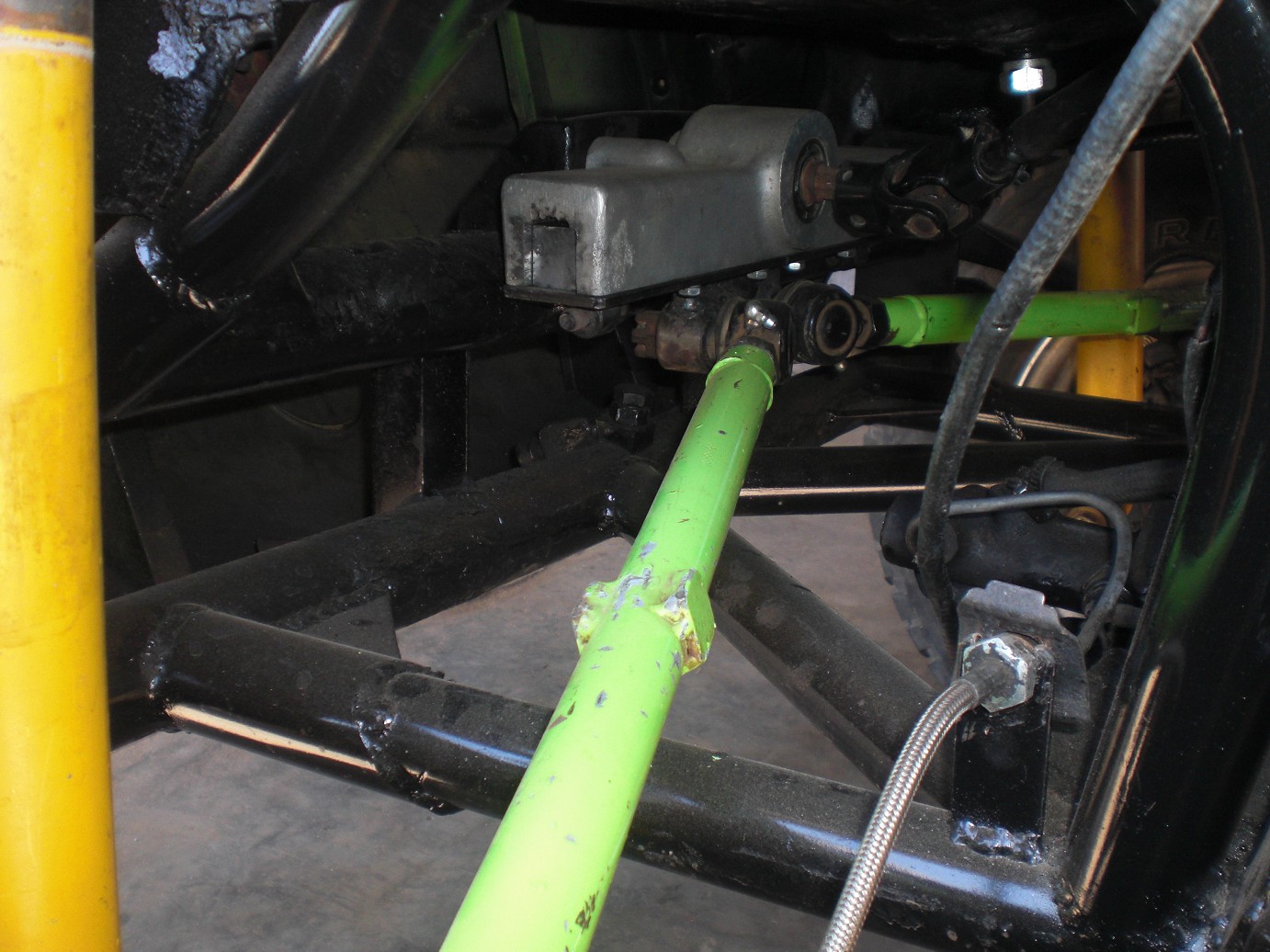

Here are some photos of the subframe work (including 'finished') FOX shocks will be next...
|
|
| Back to top |
|
|
Mike Fisher
Samba Member
Joined: January 30, 2006
Posts: 18051
Location: Eugene, OR
|
| Posted: Thu Jun 23, 2011 12:34 pm Post subject: |
|
|
Heavy Duty! You guys can probably still find ways to wreck them up Off Road.
_________________
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold
Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey |
|
| Back to top |
|
|
bajatrailrider
Samba Member
Joined: May 03, 2011
Posts: 59
Location: Baja, MEXICO
|
| Posted: Thu Jun 23, 2011 5:26 pm Post subject: |
|
|
| That is the joke in town.The streets here are much harder than the Baja 1000.Its not a joke it is true. |
|
