| Author |
Message |
Bassyaks
Samba Member
Joined: October 06, 2010
Posts: 1140
Location: S.E. Connetitcut
|
 Posted: Sun Jul 17, 2011 11:12 am Post subject: Idle Control Relay? |
 |
|
Does anyone know the value of the burnt transistor on the idle control unit??
Is it replaceable
THX Steve[/url] |
|
| Back to top |
|
 |
crazyvwvanman
Samba Member
Joined: January 28, 2008
Posts: 10372
Location: Orbiting San Diego
|
| Posted: Sun Jul 17, 2011 11:18 am Post subject: Re: Idle Control Relay ??? |
|
|
Yes, it is replaceable with a standard off the shelf part. I have replaced a few over the years in B version ICUs. I will look for the replacement number and post it if I find it.
Mark
| Bassyaks wrote: |
Does anyone know the value of the burnt transistor on the idle control unit??
Is it replaceable
|
|
|
| Back to top |
|
|
Bassyaks
Samba Member
Joined: October 06, 2010
Posts: 1140
Location: S.E. Connetitcut
|
| Posted: Sun Jul 17, 2011 11:24 am Post subject: |
|
|
Mark, thanks
the warm weather driving is ok but If it's not repaired before winter it's going to really suck.
THX
Steve |
|
| Back to top |
|
|
crazyvwvanman
Samba Member
Joined: January 28, 2008
Posts: 10372
Location: Orbiting San Diego
|
| Posted: Sun Jul 17, 2011 11:44 am Post subject: |
|
|
The replacement for the transistor that commonly fails in the B version of the 2.1 ICU is an NTE 185 replacement part.
Here is the earliest instance I know of where a Vanagon owner fixed this problem and shared the info on the web. 15 years ago
http://gerry.vanagon.com/cgi-bin/wa.exe?A2=ind9605&L=vanagon&P=R24946&D=0
Mark
| Bassyaks wrote: |
Mark, thanks
the warm weather driving is ok but If it's not repaired before winter it's going to really suck.
THX
Steve |
|
|
| Back to top |
|
|
Bassyaks
Samba Member
Joined: October 06, 2010
Posts: 1140
Location: S.E. Connetitcut
|
| Posted: Thu Jul 21, 2011 6:35 pm Post subject: |
|
|

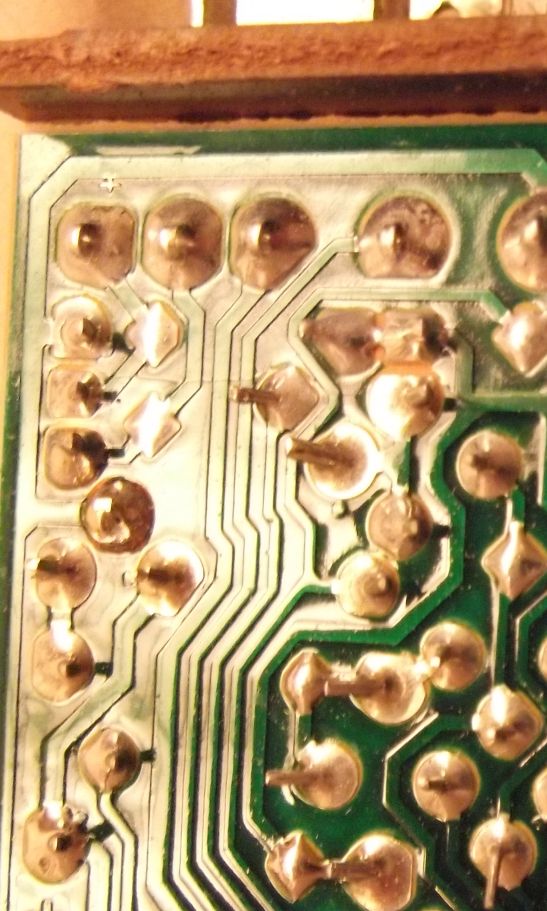

Dose anyone have a photo of the green side of the board, mine is burnt and I can't see the copper tracks, one of my contacts is gone and I have to jump the track for the transistor
Thank
Steve |
|
| Back to top |
|
|
crazyvwvanman
Samba Member
Joined: January 28, 2008
Posts: 10372
Location: Orbiting San Diego
|
| Posted: Thu Jul 21, 2011 8:43 pm Post subject: |
|
|
| Bassyaks wrote: |
Dose anyone have a photo of the green side of the board, mine is burnt and I can't see the copper tracks, one of my contacts is gone and I have to jump the track for the transistor
Thank
Steve |
|
|
| Back to top |
|
|
Timwhy
Samba Member
Joined: January 01, 2009
Posts: 4091
Location: Maine
|
|
| Back to top |
|
|
insyncro
Banned
Joined: March 07, 2002
Posts: 15086
Location: New York
|
| Posted: Fri Jul 22, 2011 7:10 am Post subject: |
|
|
| Timwhy wrote: |
Does this control unit, if operating correctly bennefit from cleaning the spade connectors
and applying some dielectic grease? |
Yes, and make sure all connections are seated in the plastic relay holder.
I only use the D series units from late models...that goes for ECUs too. |
|
| Back to top |
|
|
insyncro
Banned
Joined: March 07, 2002
Posts: 15086
Location: New York
|
| Posted: Fri Jul 22, 2011 7:11 am Post subject: |
|
|
| Timwhy wrote: |
Does this control unit, if operating correctly bennefit from cleaning the spade connectors
and applying some dielectic grease? |
Yes, and make sure all connections are seated in the plastic relay holder.
I only use the D series units from late models...that goes for ECUs too. |
|
| Back to top |
|
|
Bassyaks
Samba Member
Joined: October 06, 2010
Posts: 1140
Location: S.E. Connetitcut
|
| Posted: Fri Jul 22, 2011 3:05 pm Post subject: |
|
|
Thanks guys, great photo it should help.
Dylan I have a B will the D work in it's place??
Steve |
|
| Back to top |
|
|
87Enterprise
Samba Member
Joined: January 05, 2009
Posts: 134
Location: sodak
|
| Posted: Fri Jul 22, 2011 3:14 pm Post subject: |
|
|
| D will interchange with a B relay, and I have all late model D's in my 87 van. |
|
| Back to top |
|
|
Bassyaks
Samba Member
Joined: October 06, 2010
Posts: 1140
Location: S.E. Connetitcut
|
| Posted: Fri Jul 22, 2011 4:11 pm Post subject: |
|
|
It worked, that beats $625 , the transistor cost me $2.75 and 10 mins.
I owe you guys a beer
Stay cool
Steve |
|
| Back to top |
|
|
climberjohn
Samba Member
Joined: January 11, 2005
Posts: 1840
Location: Portland Orygun
|
| Posted: Fri Jul 22, 2011 4:29 pm Post subject: |
|
|
| Bassyaks wrote: |
| It worked, that beats $625 |
Uh . . . does an idle control relay really costs $625!?!?
-CJ
_________________
'86 Westy, 2.5 Subaru power
Know your limits. Exceed them often. |
|
| Back to top |
|
|
crazyvwvanman
Samba Member
Joined: January 28, 2008
Posts: 10372
Location: Orbiting San Diego
|
| Posted: Fri Jul 22, 2011 4:37 pm Post subject: |
|
|
Yes, they did, when you could still get them new. Might be some around somewhere still. They are not actually relays, much more than that inside, but in a plastic case that looks like a relay and with relay style connectors.
My locals yards consider them relays, so $7 when I find one not already gone.
Mark
| climberjohn wrote: |
| Bassyaks wrote: |
| It worked, that beats $625 |
Uh . . . does an idle control relay really costs $625!?!?
-CJ |
|
|
| Back to top |
|
|
Bassyaks
Samba Member
Joined: October 06, 2010
Posts: 1140
Location: S.E. Connetitcut
|
| Posted: Fri Jul 22, 2011 5:43 pm Post subject: |
|
|
one of the parts suppliers like Van Cafe has them listed for $625 ,Samba members have offered them to me for $245.
If the weather is constant you can run without one, but it you have a change of season or A/C it helps.
It's 108 degrees here today and my A/C died, it popped the low pressure line, I guess the 25 years caught up with it. |
|
