| Author |
Message |
Buck Naked
Samba Member
Joined: March 11, 2009
Posts: 401
Location: El Dorado County,CA
|
 Posted: Mon Sep 12, 2011 10:44 am Post subject: Fan shroud hole |
 |
|
This shows where the throttle tube comes thru my fan shroud is there supposed to be some kind of grommet to help fill the gap? I believe the shroud is off a `67 but not completly sure; I tried searching but couldn`t find any reference or pics. Thanks for your time.
_________________
Be unique, like everyone else.
'63 Beetle Ragtop |
|
| Back to top |
|
 |
Culito
11010101
Joined: December 07, 2006
Posts: 5879
Location: Columbia Missourah
|
| Posted: Mon Sep 12, 2011 10:54 am Post subject: |
|
|
I think there is a small plastic piece that fills the gap between the throttle cable tube and shroud, at least on later models.
Wouldn't know where to find it.
_________________
© CJ Industries, Inc.
'64 standard w/2.0L type 4
'62 bug
| johnnypan wrote: |
| ...dont pay no attention to Culito,he's a cornhole.. |
|
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79661
Location: Sneaking up behind you
|
| Posted: Mon Sep 12, 2011 11:00 am Post subject: |
|
|
| Culito wrote: |
I think there is a small plastic piece that fills the gap between the throttle cable tube and shroud, at least on later models.
Wouldn't know where to find it. |
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Buck Naked
Samba Member
Joined: March 11, 2009
Posts: 401
Location: El Dorado County,CA
|
| Posted: Mon Sep 12, 2011 11:50 am Post subject: |
|
|
Thanks, now I have to dig one up.
_________________
Be unique, like everyone else.
'63 Beetle Ragtop |
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6808
Location: Pentwater, Michigan
|
| Posted: Mon Sep 12, 2011 8:37 pm Post subject: |
|
|
It's flexible rubber rather than plastic and yes it is hard to find. A more common solution is a small fuel line clamp on the throttle tube.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
OilLeaker65
Samba Member
Joined: September 01, 2011
Posts: 8
Location: Temecula
|
| Posted: Mon Sep 12, 2011 9:18 pm Post subject: |
|
|
| tasb wrote: |
| It's flexible rubber rather than plastic and yes it is hard to find. A more common solution is a small fuel line clamp on the throttle tube. |
Thats what I run, a hose clamp. |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26534
Location: Douglas, WY
|
| Posted: Mon Sep 12, 2011 10:58 pm Post subject: |
|
|
Me too.

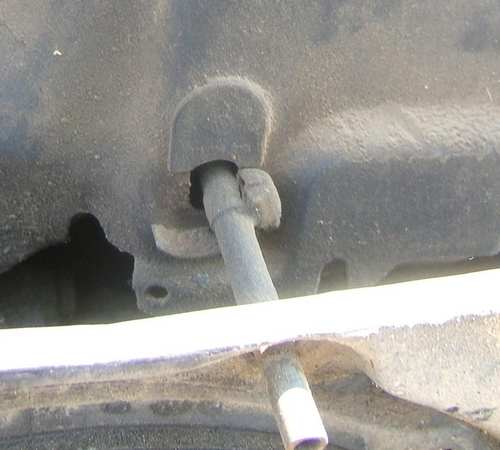

Here's an example of a shroud with part of the original grommet still in place plus a hose clamp..!
|
|
| Back to top |
|
|
Buck Naked
Samba Member
Joined: March 11, 2009
Posts: 401
Location: El Dorado County,CA
|
| Posted: Tue Sep 13, 2011 10:58 am Post subject: |
|
|
It looks like cip1 has them , listed for later model shrouds. I'll get one and see if it fits in there. I'm in the process of putting ALL the tins, flaps and thermostat back in and didn't want any air leaks; I'll run a hose clamp to make sure it stays put for the mean time.
_________________
Be unique, like everyone else.
'63 Beetle Ragtop |
|
| Back to top |
|
|
fluxcap
Samba Member
Joined: February 07, 2006
Posts: 1969
Location: Newnan GA
|
| Posted: Tue Sep 13, 2011 11:37 am Post subject: |
|
|
| Buck Naked wrote: |
| It looks like cip1 has them , listed for later model shrouds. I'll get one and see if it fits in there. I'm in the process of putting ALL the tins, flaps and thermostat back in and didn't want any air leaks; I'll run a hose clamp to make sure it stays put for the mean time. |
Got a link? I just searched their website for a few minutes and couldn't find it.
Edit: wait, I think I may have found it???
http://www2.cip1.com/ProductDetails.asp?ProductCode=C16-211-217
_________________
Eric - 1966 camper bus
"It's like, how much more black could this be, and the answer is none.......none more black." |
|
| Back to top |
|
|
Shadd
Samba Member
Joined: January 18, 2007
Posts: 883
Location: Lancaster, Ohio
|
| Posted: Tue Sep 13, 2011 12:58 pm Post subject: |
|
|
| You can split a peice of fuel hose and slip it around the conduit and then install the hose camp. This reduces the chance of it rattling. |
|
| Back to top |
|
|
Buck Naked
Samba Member
Joined: March 11, 2009
Posts: 401
Location: El Dorado County,CA
|
| Posted: Tue Sep 13, 2011 2:29 pm Post subject: |
|
|
Yes the above link is the one I saw.
I may try the fuel hose trick and see what I get. While no rattles would be nice I'm more worried about an air leak, I know it's small but better safe than sorry.
_________________
Be unique, like everyone else.
'63 Beetle Ragtop |
|
| Back to top |
|
|
Her74buggy
Samba Member
Joined: September 29, 2013
Posts: 367
Location: Houston
|
| Posted: Mon Jun 23, 2014 4:46 pm Post subject: |
|
|
I know this is an old post but I just split a vacuum hose and made a grommet in two minutes. Fits well, no metal to metal and cost next to nothing since it was leftover hose.
In the front I used a 20 cent round universal grommet from the hardware store.
No rattles.... |
|
| Back to top |
|
|
KTPhil
Samba Member
Joined: April 06, 2006
Posts: 35978
Location: Conejo Valley, CA
|
| Posted: Mon Jun 23, 2014 5:14 pm Post subject: |
|
|
If you look on that gas line, you can see a little wear from the lack of a grommet some time in its past. The shroud can cut through the line from vibration. So while a clamp will keep it in place, the rubber or plastic will keep it from getting cut and leaking gasoline on your #3 exhaust manifold. |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26066
Location: Olympia Wash Rinse & Repeat
|
| Posted: Mon Jun 23, 2014 6:32 pm Post subject: |
|
|
Use a fender washer to plug the rest of that hole and give the hose clamp something better to push against.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
gitchesum
Samba Member
Joined: November 10, 2003
Posts: 515
Location: North Cali
|
| Posted: Tue Jun 24, 2014 6:09 pm Post subject: |
|
|
| Eric&Barb wrote: |
| Use a fender washer to plug the rest of that hole and give the hose clamp something better to push against. |
x2
_________________
Looking for SP Kadron manifolds...please !!
57 SC
61 rag w/356B brakes
61 356B
Honda XLR 250, 69 Z50, Yamaha 100 Enduro...and others.
GMC SLT 4x4 Dmax
Kubota L3710, not enuf attachments.
And various VW's that come and go... |
|
| Back to top |
|
|
61SNRF
Samba Member
Joined: March 29, 2009
Posts: 4656
Location: Whittier 90602
|
| Posted: Tue Jun 24, 2014 6:47 pm Post subject: |
|
|
| KTPhil wrote: |
If you look on that gas line, you can see a little wear from the lack of a grommet some time in its past. The shroud can cut through the line from vibration. So while a clamp will keep it in place, the rubber or plastic will keep it from getting cut and leaking gasoline on your #3 exhaust manifold. |
Dude, no fuel there, that's the throttle cable tube
More importantly, Her74buggy's pic show's the Doghouse oil cooler is missing the Hoover Bit that the fan shroud has a slot for (as well as the thermostat return spring).
_________________
-Bruce
An ounce of prevention is worth a pound of cure. |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26066
Location: Olympia Wash Rinse & Repeat
|
| Posted: Tue Jun 24, 2014 7:20 pm Post subject: |
|
|
Looks like missing Sealing bracket AKA the Hoover bit. Need that for proper cooling.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6808
Location: Pentwater, Michigan
|
| Posted: Wed Jun 25, 2014 9:45 am Post subject: |
|
|
I had one of the original grommets and it fell off at some point. I didn't realize that it required a pair as in the cip1 listing.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
60ragtop
Bonneville Belt Bitch
Joined: March 13, 2006
Posts: 7801
Location: Big Wonderful WYO 82401
|
| Posted: Wed Jun 25, 2014 10:13 am Post subject: |
|
|
sold as a pair so you have an extra
_________________
Rick
Certified Mechanic by the State of Michigan in 1977
ASA certified in 1987
Certified Hunter Wheel Alignment Master Technician 1986
| tasb wrote: |
I've restored a large number too, but I don't toot my horn quite as loud.
|
| sb001 wrote: |
| maybe he just snapped cause his car sucked |
|
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26066
Location: Olympia Wash Rinse & Repeat
|
|
| Back to top |
|
|
|
