PostPosted: Fri Sep 23, 2011 5:43 am    Post subject: USB ports and 12v power Reply with quote

Anyone hardwire and install a usb power source without having to go throught a cigarette lighter or have a clunky adapter kicking around?

Want to power up the USB for another phone. My iphone charges off the ipod interface of the audio unit, but the wife was asking if I could install something for her droid (and my droid too).

Was thinking a USB port would be best idea, not having to have clunky adapters and such taking up space and getting in the way. Maybe mount one up front and one in rear somewhere.

Have seen some adapter type items (three 12v plugs and a USB) that look to be able to be disassembled and installed, but I was wondering if anyone went this route yet?

LP
_________________
Its a mistress; an expensive, whiney, needy bitch of a mistress. She is a chunky, dirty girl with bad skin, little motivation and yet she always makes me smile. She sure has been around before shacking up with me. She has a direct line to my wallet, plays with my emotions, is consistantly jovial yet with a sarcastic and sardonic side, is consistant in her inconsistancy, and every once in a while gives me a great ride and a fantastic memory.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
rubbachicken
Samba Member


Joined: October 05, 2004
Posts: 3058
Location: socal
rubbachicken is offline

PostPosted: Fri Sep 23, 2011 6:20 am    Post subject: Reply with quote

i know some inverters have USB outlets
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
chojinchef
Samba Member


Joined: February 17, 2011
Posts: 1535
Location: Central Massachusetts
chojinchef is offline

PostPosted: Fri Sep 23, 2011 6:36 am    Post subject: Reply with quote

Still trying to determine which inverter I wanted to go with. That is for later this winter to determine. I was hoping this port could be separate from anything and running off aux battery.
_________________
Its a mistress; an expensive, whiney, needy bitch of a mistress. She is a chunky, dirty girl with bad skin, little motivation and yet she always makes me smile. She sure has been around before shacking up with me. She has a direct line to my wallet, plays with my emotions, is consistantly jovial yet with a sarcastic and sardonic side, is consistant in her inconsistancy, and every once in a while gives me a great ride and a fantastic memory.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
fairweather
Samba Member


Joined: August 26, 2007
Posts: 663
Location: Aspen, CO
fairweather is offline

PostPosted: Fri Sep 23, 2011 6:51 am    Post subject: Reply with quote

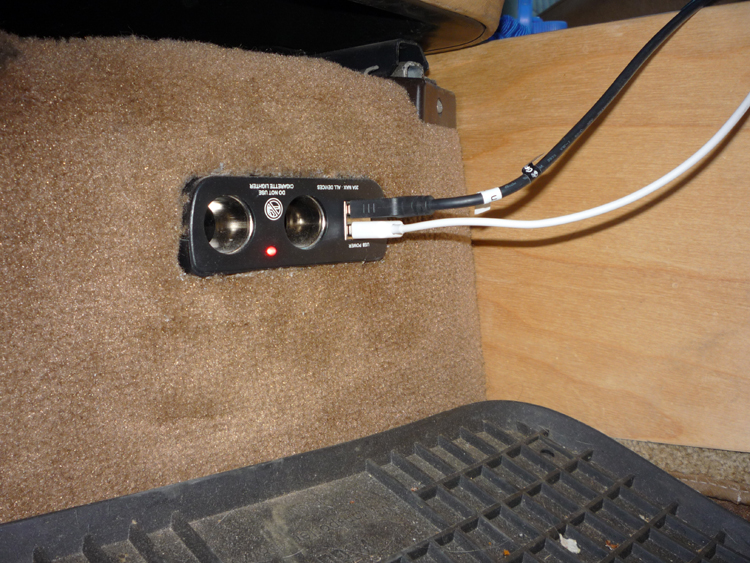

I put this under the passenger seat, got it off ebay.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
squeegee_boy
Samba Member


Joined: April 27, 2008
Posts: 590
Location: Langley, BC, Canada
squeegee_boy is offline

PostPosted: Fri Sep 23, 2011 8:51 am    Post subject: Reply with quote

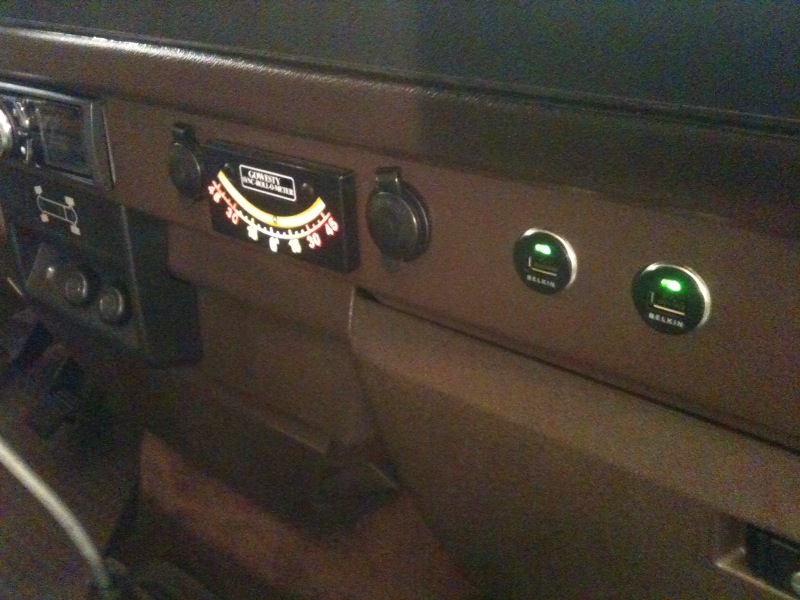

I did this:

Image may have been reduced in size. Click image to view fullscreen.


They use a cigarette lighter outlet, but are anything but clunky Smile

Whatever USB power solution you use, be certain that it supports at least 1 amp of current. If it won't supply that, many devices won't work right (iphone especially).

Robyn
_________________
1984 FrankenSyncro Westy. EJ25 swap in progress
1971 Super Beetle with an EJ22. Oh yes. Daily driver
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shepherdsond
Samba Member


Joined: April 25, 2005
Posts: 437
Location: Portland, Oregon
shepherdsond is offline

PostPosted: Fri Sep 23, 2011 9:05 am    Post subject: Reply with quote

squeegee_boy wrote:
I did this:


They use a cigarette lighter outlet, but are anything but clunky Smile

Whatever USB power solution you use, be certain that it supports at least 1 amp of current. If it won't supply that, many devices won't work right (iphone especially).

Robyn


Robyn,
Just to clarify, are those USB outlets or USB adapters inserted into a 12v output? Do you have a URL?
Thanks
Back to top
View user's profile Send private message Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 12211
Location: Syracuse, NY
danfromsyr is online now

PostPosted: Fri Sep 23, 2011 9:14 am    Post subject: Reply with quote

they're USB adapters,

they're all over Fleabay for $5ea to $2ea shipped.
I order them by the (5) pack..

they're $10~15 ea at local retail shops & truck stops..
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
WAgrower
Samba Member


Joined: March 25, 2011
Posts: 182
Location: Seattle
WAgrower is offline

PostPosted: Fri Sep 23, 2011 9:23 am    Post subject: Reply with quote

If you want a truly hard wired one, you could use a 7805 voltage regulator (radio shack) to supply power to pin 1(+) and pin 5(-) of a USB port.
Less then $5 worth of parts and only a little soldering.
Let me know if that's what your looking for and I can give you a better explanation.
Back to top
View user's profile Send private message Classifieds Feedback
whafalia
Samba Member


Joined: January 28, 2009
Posts: 614
Location: San Francisco
whafalia is offline

PostPosted: Fri Sep 23, 2011 9:54 am    Post subject: Reply with quote

Hey grower, do you know what that would give in amps? My android runs at a deficit plugged into its adapter when using nav.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bosruten
Samba Member


Joined: February 11, 2011
Posts: 543

bosruten is offline

PostPosted: Fri Sep 23, 2011 10:30 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

_________________
'87 Syncro Weekender
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9548
Location: San Diego
r39o is offline

PostPosted: Fri Sep 23, 2011 10:36 am    Post subject: Reply with quote

I(peak) is 2.2AMPS - BUT, BUT, BUT it is gonna get hot!

Sticking in a 7805 and the like for low current draw applications is simple.

But, for higher current and noisy environments they can leave something to be desired.

http://www.engineersgarage.com/electronic-components/7805-voltage-regulator-ic

These days cheap off the shelf boost buck converters like you can buy enmasse for many voltages tends to be a better solution.

PLUS wiring to and mounting most standard (surplus) USB connectors can be a challenge to the hobbyist.

Best just spend for something off eBay.
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!
1990 Multivan EJ 22 running well...

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9548
Location: San Diego
r39o is offline

PostPosted: Fri Sep 23, 2011 10:40 am    Post subject: Reply with quote

bosruten,

I *REALLY* likes that cup holder.

Where you get that?????
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!
1990 Multivan EJ 22 running well...

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
squeegee_boy
Samba Member


Joined: April 27, 2008
Posts: 590
Location: Langley, BC, Canada
squeegee_boy is offline

PostPosted: Fri Sep 23, 2011 10:47 am    Post subject: Reply with quote

shepherdsond wrote:
squeegee_boy wrote:
I did this:


They use a cigarette lighter outlet, but are anything but clunky Smile

Whatever USB power solution you use, be certain that it supports at least 1 amp of current. If it won't supply that, many devices won't work right (iphone especially).

Robyn


Robyn,
Just to clarify, are those USB outlets or USB adapters inserted into a 12v output? Do you have a URL?
Thanks


They plug into generic 12v outlets that I bought at Canadian Tire, but AutoZone will have them, too.

Here's the product data:

http://www.belkin.com/IWCatProductPage.process?Product_Id=489423


I do have to note that you should buy a good unit. The $3 ones on eBay may or may not support 1A of current, and even if they say they do, they may not actually do it in real life. Really weird behaviour will result, ask me how I know. Yay for spec inflation.

Stick with a name brand if you want everything to be guaranteed to work.

Edit: Yeah, you're right, r39o, if you have an iPad, you need something with more current capacity. The above won't allow you to charge and operate it at the same time.

Edit again: Ahh, here we go: http://www.cyberguys.com/product-details/?productid=51740

Belkin makes one, too, in the same form factor as the ones I currently (hah!) have: http://www.belkin.com/IWCatProductPage.process?Product_Id=525940

Robyn
_________________
1984 FrankenSyncro Westy. EJ25 swap in progress
1971 Super Beetle with an EJ22. Oh yes. Daily driver


Last edited by squeegee_boy on Fri Sep 23, 2011 11:03 am; edited 3 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 12211
Location: Syracuse, NY
danfromsyr is online now

PostPosted: Fri Sep 23, 2011 10:50 am    Post subject: Reply with quote

you could mount an Jeep/motorcyle all weather USB plug like this

http://cgi.ebay.com/ebaymotors/USB-All-Weather-Pow...35b4f4ee61

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
bosruten
Samba Member


Joined: February 11, 2011
Posts: 543

bosruten is offline

PostPosted: Fri Sep 23, 2011 12:09 pm    Post subject: Reply with quote

r39o wrote:
bosruten,

I *REALLY* likes that cup holder.

Where you get that?????


...Canadian Tire. Had to saw the bottom few inches and paint it, screwed it to the wall. I want easy access to the back so this works for me.
_________________
'87 Syncro Weekender
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9548
Location: San Diego
r39o is offline

PostPosted: Fri Sep 23, 2011 12:41 pm    Post subject: Reply with quote

bosruten wrote:
r39o wrote:
bosruten,

I *REALLY* likes that cup holder.

Where you get that?????


...Canadian Tire. Had to saw the bottom few inches and paint it, screwed it to the wall. I want easy access to the back so this works for me.

No Canadian Tire stores near me.

Got a part number or URL to it?
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!
1990 Multivan EJ 22 running well...

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vanis13
Samba Member


Joined: August 15, 2010
Posts: 959
Location: ABQ NM
vanis13 is offline

PostPosted: Fri Sep 23, 2011 12:45 pm    Post subject: Reply with quote

I just picked up a handful of 12v-> USB cigarette lighter plug-ins at Dollar Tree for $1 each. each of these have 2 USB ports.

for a $1 I could think alot of uses for them like changing some LED lights I really like which run on 3xAAAs into something I can power from the 12V westy power.
_________________
83.5 Westy with Subaru 2.5, 4 spd manual, center seat, COLD A/C on 134a!, Winter camp heated with an Espar B4 gasoline furnace

I can send you the capacitor to Fix/prevent Vanagon Syndrome and/or smooth out idle - See here - http://www.thesamba.com/vw/forum/viewtopic.php?p=5445671#5445671
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bosruten
Samba Member


Joined: February 11, 2011
Posts: 543

bosruten is offline

PostPosted: Fri Sep 23, 2011 12:49 pm    Post subject: Reply with quote

r39o wrote:
bosruten wrote:
r39o wrote:
bosruten,

I *REALLY* likes that cup holder.

Where you get that?????


...Canadian Tire. Had to saw the bottom few inches and paint it, screwed it to the wall. I want easy access to the back so this works for me.

No Canadian Tire stores near me.

Got a part number or URL to it?


Sure... http://www.canadiantire.ca/AST/browse/4/Auto/Vehic...?locale=en
_________________
'87 Syncro Weekender
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
randywebb
Samba Member


Joined: February 15, 2005
Posts: 3815
Location: Greater Metropolitan Nimrod, Orygun
randywebb is offline

PostPosted: Fri Sep 23, 2011 12:52 pm    Post subject: Reply with quote

anyone know if that cup holder can be purchased in the US?
_________________
1986 2.1L Westy 2wd Auto Trans.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
WAgrower
Samba Member


Joined: March 25, 2011
Posts: 182
Location: Seattle
WAgrower is offline

PostPosted: Fri Sep 23, 2011 1:23 pm    Post subject: Reply with quote

whafalia wrote:
Hey grower, do you know what that would give in amps? My android runs at a deficit plugged into its adapter when using nav.


Good question with two answers...

There are a plethora of regulators out there, rated from 500ma to 5a. So get a larger one and you can make a USB power hub of sorts.
In fact the ones I've gotten from radio shack were rated at 1amp.

You could create a pass transistor circuit with a PNP transistor rated at your desired amperage.
Most data sheets for the 7805 will show you a pass circuit.


Just remember to mount it to a heat sink- could use the dash or any metal bit in the van- use a little toothpaste as heat sink compound.
Back to top
View user's profile Send private message Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
