 Posted: Tue Nov 15, 2011 4:01 am Post subject: Poptop wood board dimensions needed.....now found : ) |
 |
|
Does anyone have the dimensions and info on the attachment of my wood for the inside on a poptop? Mine didn't have one and I'll be repainting it the correct color silver white and making the wood for it.
_________________
American Red Cross Safe And Well:
https://www.redcross.org/about-us/news-and-events/...bsite.html
Maui Roadsters
www.mauiroadsters.com
http://www.oacdp.org
| Lind wrote: |
| Have you considered simply starting with a nicer bus? I don't know what your skills are, but the race is easier if you can see the finish line. If you are not a runner, don't start off doing a marathon. |
Last edited by LAGrunthaner on Thu Nov 17, 2011 2:48 am; edited 1 time in total |
|
| Back to top |
|
 |
zundapp
Samba Member
Joined: August 16, 2004
Posts: 514
Location: Never far from Fahrvergnügen
|
| Posted: Tue Nov 15, 2011 9:47 am Post subject: |
|
|
Linda,
The pop top doesn't get wood.
Just painted fiberglass. |
|
| Back to top |
|
|
74 Cosa
Samba Member
Joined: June 06, 2006
Posts: 535
Location: The Midwest
|
| Posted: Tue Nov 15, 2011 10:18 am Post subject: |
|
|
| The wood pieces you see on the inside are the points to staple the canvas to. They won't be seen after the canvas is in. You'll just see the smooth painted fiberglass. |
|
| Back to top |
|
|
crofty
Judas of the North
Joined: August 09, 2000
Posts: 19883
Location: Land of Whine and Phonies
|
| Posted: Tue Nov 15, 2011 12:11 pm Post subject: |
|
|
| zundapp wrote: |
Linda,
The pop top doesn't get wood.
Just painted fiberglass. |
Theres a wood frame inside the pop top
_________________
Your Vanagon sucks, Stop waving at me.
| HamburgerBrad wrote: |
I slept on crofty's tent once. I passed out drunk from two bottles of Everett's brother's wine. |
|
|
| Back to top |
|
|
LAGrunthaner
Samba Member
Joined: March 18, 2007
Posts: 5636
Location: 1st Coast
|
| Posted: Tue Nov 15, 2011 3:58 pm Post subject: |
|
|
Yes this is the wood dimensions I am looking for and mounting information.
| crofty wrote: |
| zundapp wrote: |
Linda,
The pop top doesn't get wood.
Just painted fiberglass. |
Theres a wood frame inside the pop top |
_________________
American Red Cross Safe And Well:
https://www.redcross.org/about-us/news-and-events/...bsite.html
Maui Roadsters
www.mauiroadsters.com
http://www.oacdp.org
| Lind wrote: |
| Have you considered simply starting with a nicer bus? I don't know what your skills are, but the race is easier if you can see the finish line. If you are not a runner, don't start off doing a marathon. |
|
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53122
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Tue Nov 15, 2011 4:28 pm Post subject: |
|
|
They were fiberglassed in, sure there's no trace of where they were inside?
From the gallery:
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
LAGrunthaner
Samba Member
Joined: March 18, 2007
Posts: 5636
Location: 1st Coast
|
| Posted: Tue Nov 15, 2011 4:51 pm Post subject: |
|
|
OK between this photo and yours busdaddy, the wooden frame is located just next to the aluminum lift frame, then it appears there is a flat board with handles, How is the frame attached and how is the wooden board attached? I saw a top for sale and asking if the owner would just sell the wood part. Unless I get dimensions. I also see the cloth poptop is stapled to the wooden frame. Still haven't figured out how the wood attaches to the top unless it is the bolts with plate I see on the outside of my top.
| busdaddy wrote: |
They were fiberglassed in, sure there's no trace of where they were inside?
From the gallery:
|
_________________
American Red Cross Safe And Well:
https://www.redcross.org/about-us/news-and-events/...bsite.html
Maui Roadsters
www.mauiroadsters.com
http://www.oacdp.org
| Lind wrote: |
| Have you considered simply starting with a nicer bus? I don't know what your skills are, but the race is easier if you can see the finish line. If you are not a runner, don't start off doing a marathon. |
|
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53122
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Tue Nov 15, 2011 5:38 pm Post subject: |
|
|
The frame is glassed in with cloth and resin, there is no "board" in the center section, that's the inner side of the fiberglass (one single layer) you see and the handles bolt through it.
If that's your top the only thing you need is a hold down and some canvas.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
Busryder
Samba SuperHero
Joined: September 17, 2007
Posts: 1663
Location: In Your Face...
|
| Posted: Tue Nov 15, 2011 6:50 pm Post subject: |
|
|
| busdaddy wrote: |
The frame is glassed in with cloth and resin, there is no "board" in the center section, that's the inner side of the fiberglass (one single layer) you see and the handles bolt through it.
If that's your top the only thing you need is a hold down and some canvas. |

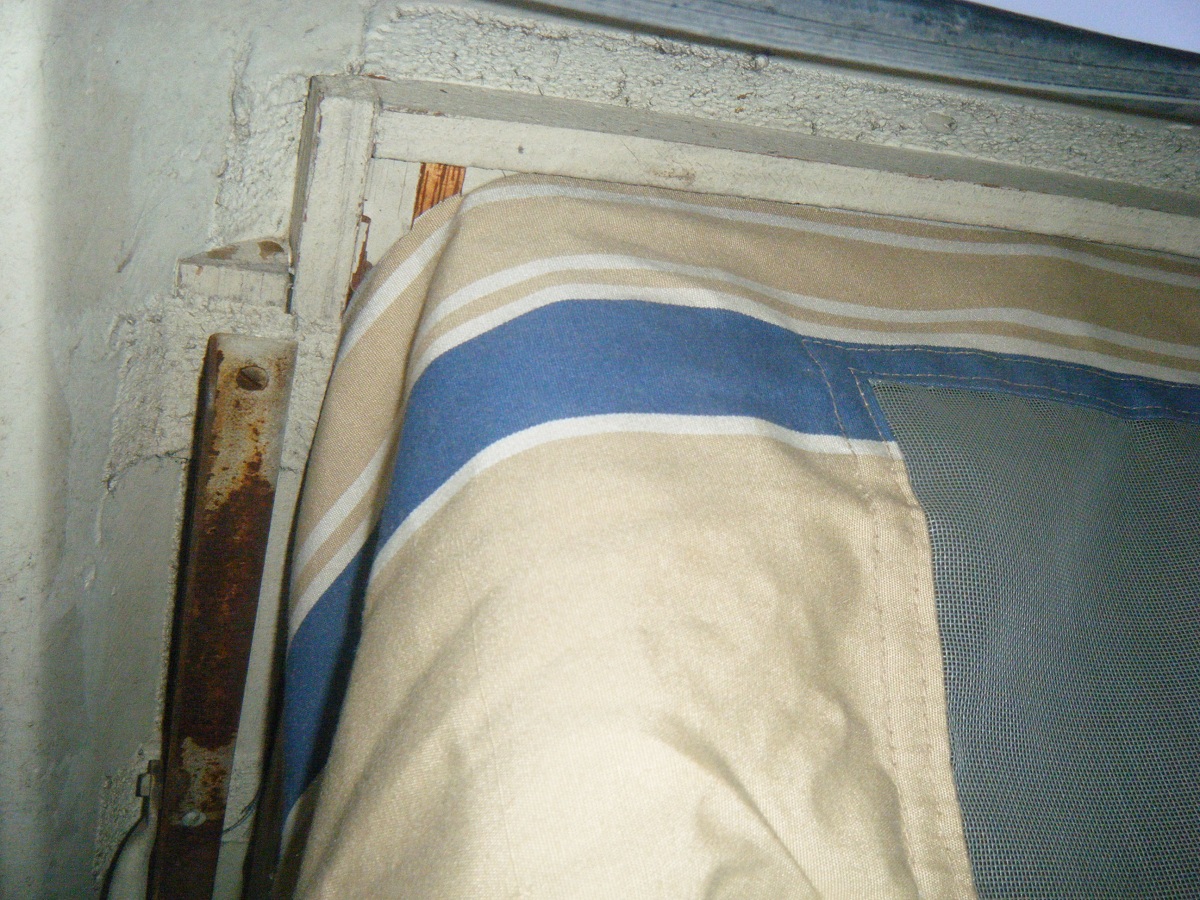

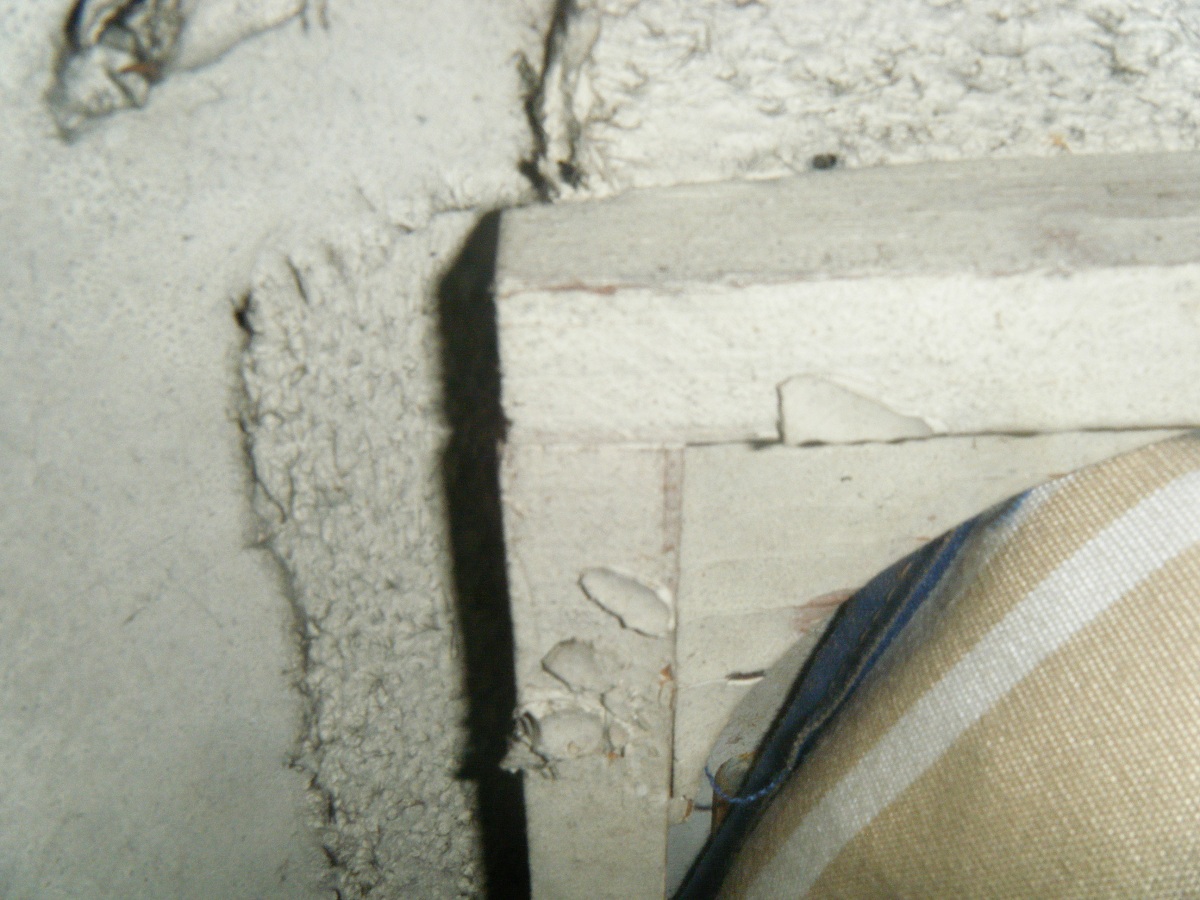

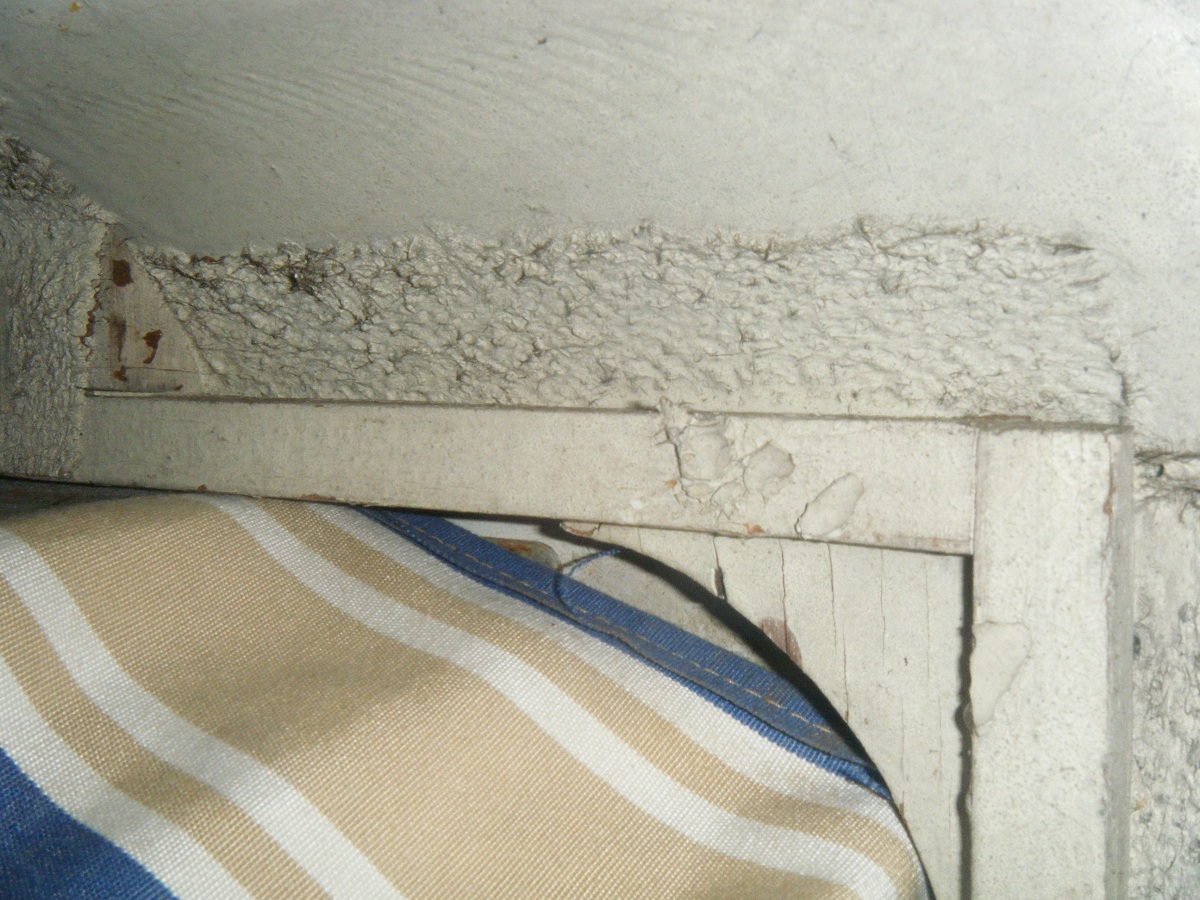

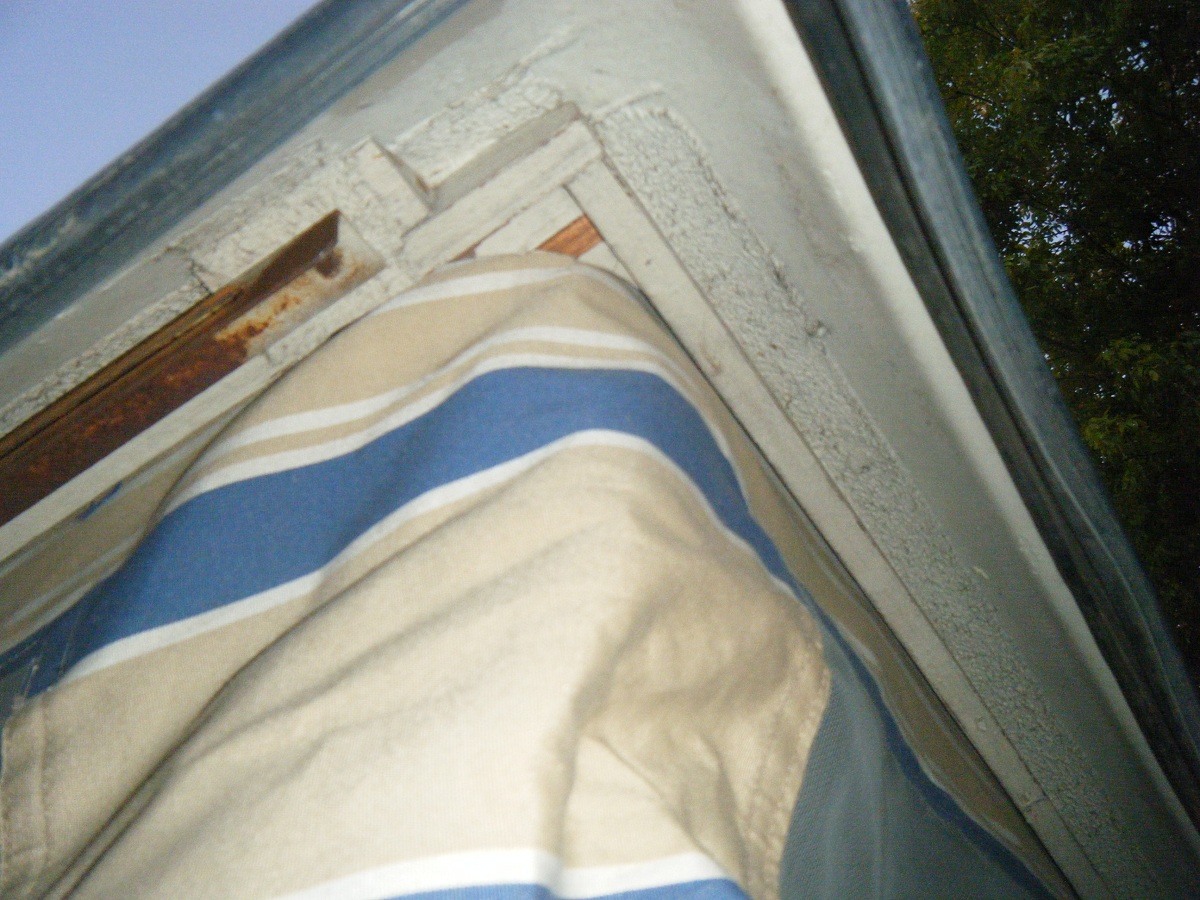

Linda, I had very little time to take, resize, and then upload these pic's for you.... BUT if you need any more detailed measurements or photo's.... please let me know.
I only occasionally login, thus there is a delay in my responses to PM's.
I would also have had a better written description for you here... BUT, I am now outta time. I need to haul ass to make it to pick up my girls from their after-school programs... I will do the best that I can with measurements as time allows, Linda, if you really need me to.
Best wishes,
-Damian
Keep on truckin' Lin... your Westy is damn sexy!
My once NOS aftermarket 4 window screen canvass... a gift from my fellow Old Volks brother Kevin... Thanks again man.
OVP Public Policy Enforcer, Madera 09'.
The Busryder
_________________
| Lind wrote: |
| Apparently I was just the lucky asshole that showed up at the right time. |
I am a Dick, hear me roar-
Me, an OVP Lifer... |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53122
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Tue Nov 15, 2011 7:01 pm Post subject: |
|
|
OK, went and measured and took pics of an OG top:
This is the longitudinal stringer, end to end measurement:
Sorry, I couldn't find a metric tape but the height was a little short of an inch:
Yeah, this one sucks, the other end of the tape was on the end of the crossways stick and ended up 5/8" long of however many inches that is, that doesn't include the width of the longitudinal piece:
And a little detail shot of the corner:
If I can find the time I'll pull the top out of where it's stored and do better.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
LAGrunthaner
Samba Member
Joined: March 18, 2007
Posts: 5636
Location: 1st Coast
|
| Posted: Thu Nov 17, 2011 3:06 am Post subject: |
|
|
busdaddy & Busryder, I guess it's time to get those new bifocals I didn't see the wood frame and thought there was a wood board inside where the handles go. I have looked at this top several times and I guess the dirt in the inside kept me from seeing there is no board inside and I don't know why I didn't see the wooden frame. Thanks so much for opening my eyes here is mine below yes I need new glasses. Not in vain as I'm sure this post will help someone down the road. Thanks again for all your help, I'm trying to get a lot done before the awful cold and snow of the north east so I am not seeing what is in front of my face I am embarrassed,  So glad I didn't buy the one for sale (it sold the previous day)...still
I know I'm pushing it but what type of screws did you use to attach to the bus? I thought there was still one attached to the frame when I got the bus back from the body shop and it looked like a pan-head sheet-metal style screw, yes it goes through the hole in the metal roof then to the wooden frame on the bus roof.
mine
_________________
American Red Cross Safe And Well:
https://www.redcross.org/about-us/news-and-events/...bsite.html
Maui Roadsters
www.mauiroadsters.com
http://www.oacdp.org
| Lind wrote: |
| Have you considered simply starting with a nicer bus? I don't know what your skills are, but the race is easier if you can see the finish line. If you are not a runner, don't start off doing a marathon. |
|
|
| Back to top |
|
|
Busryder
Samba SuperHero
Joined: September 17, 2007
Posts: 1663
Location: In Your Face...
|
| Posted: Fri Nov 18, 2011 12:19 pm Post subject: |
|
|
| Linda Grunthaner wrote: |
I know I'm pushing it but what type of screws did you use to attach to the bus? I thought there was still one attached to the frame when I got the bus back from the body shop and it looked like a pan-head sheet-metal style screw, yes it goes through the hole in the metal roof then to the wooden frame on the bus roof. |

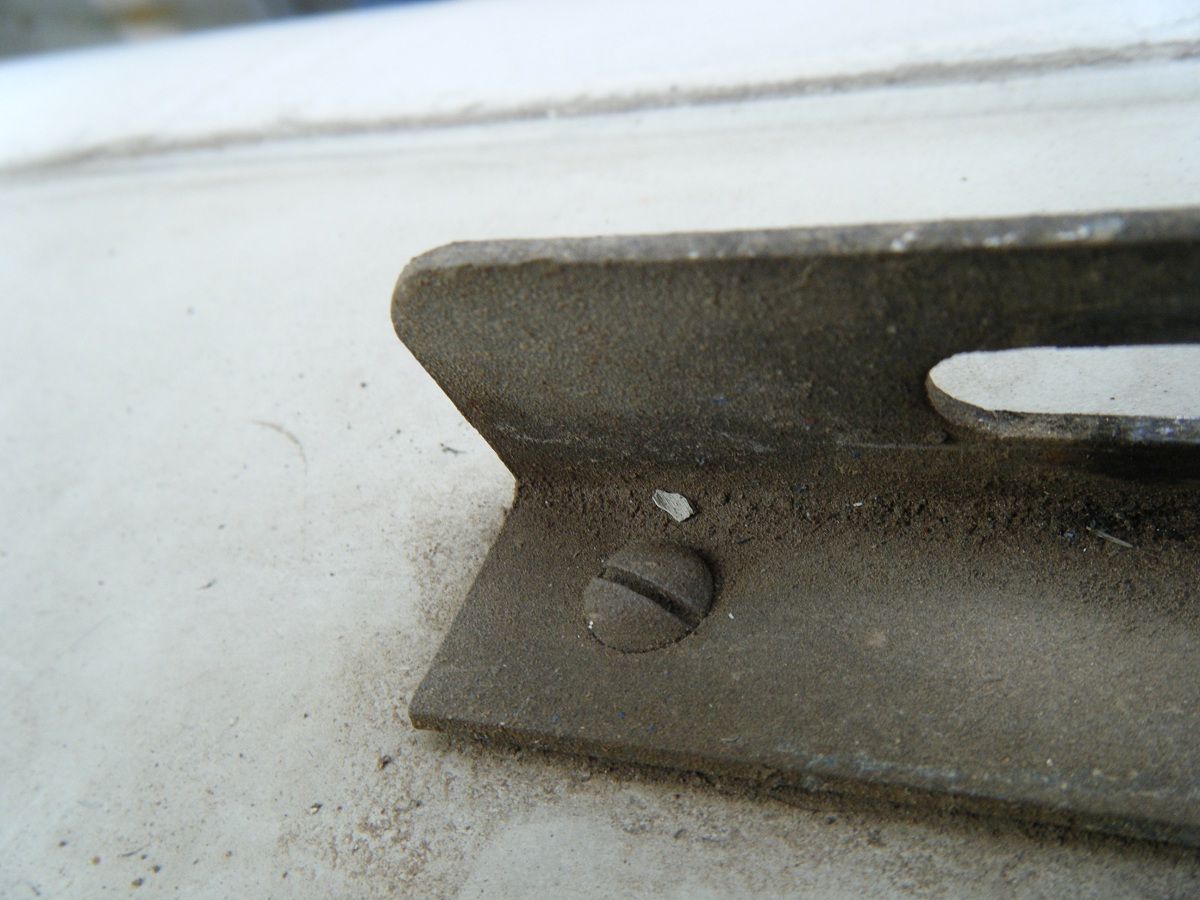

Linda, they appear to be the exact same screws as the ones that hold the scissor mechanism to the top portion of the Pop-Top wooden frame. I did not, however, attempt to back the screws out to determine they're length.
Hope this helps a little.
| Quote: |
| I guess it's time to get those new bifocals... |
Don't trip Linda, we're ALL getting older.
_________________
| Lind wrote: |
| Apparently I was just the lucky asshole that showed up at the right time. |
I am a Dick, hear me roar-
Me, an OVP Lifer... |
|
| Back to top |
|
|
LAGrunthaner
Samba Member
Joined: March 18, 2007
Posts: 5636
Location: 1st Coast
|
| Posted: Fri Nov 18, 2011 11:08 pm Post subject: |
|
|
That is very helpful Busryder, I am taking the mechanism off (taking photos & labeling of course) so I can clean and paint both the inside and out. I just tried the Krylon paint and find it very fast drying and covers well. I'll post once done. Thanks again for all your help
