PostPosted: Fri Nov 25, 2011 6:35 pm    Post subject: Speedometer Support-plastic tab repair Reply with quote

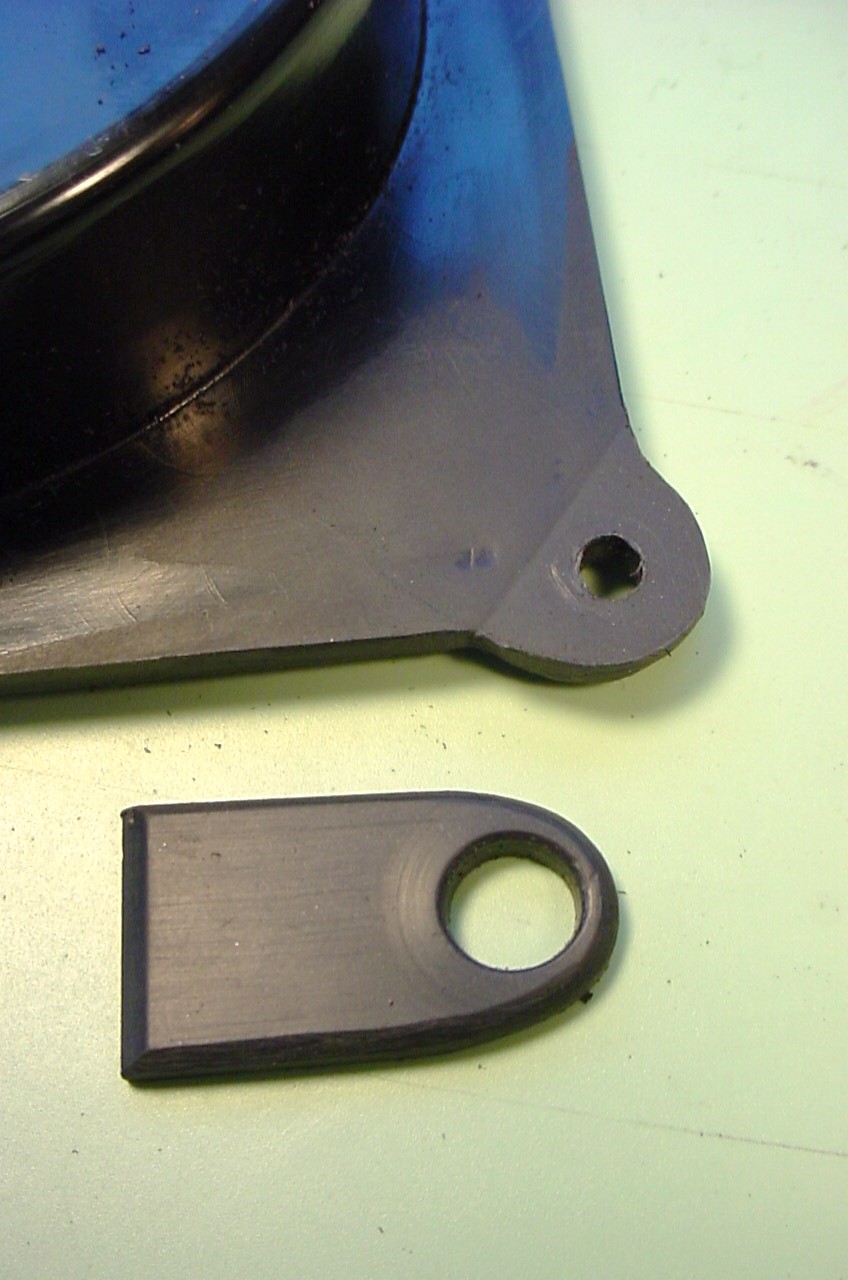

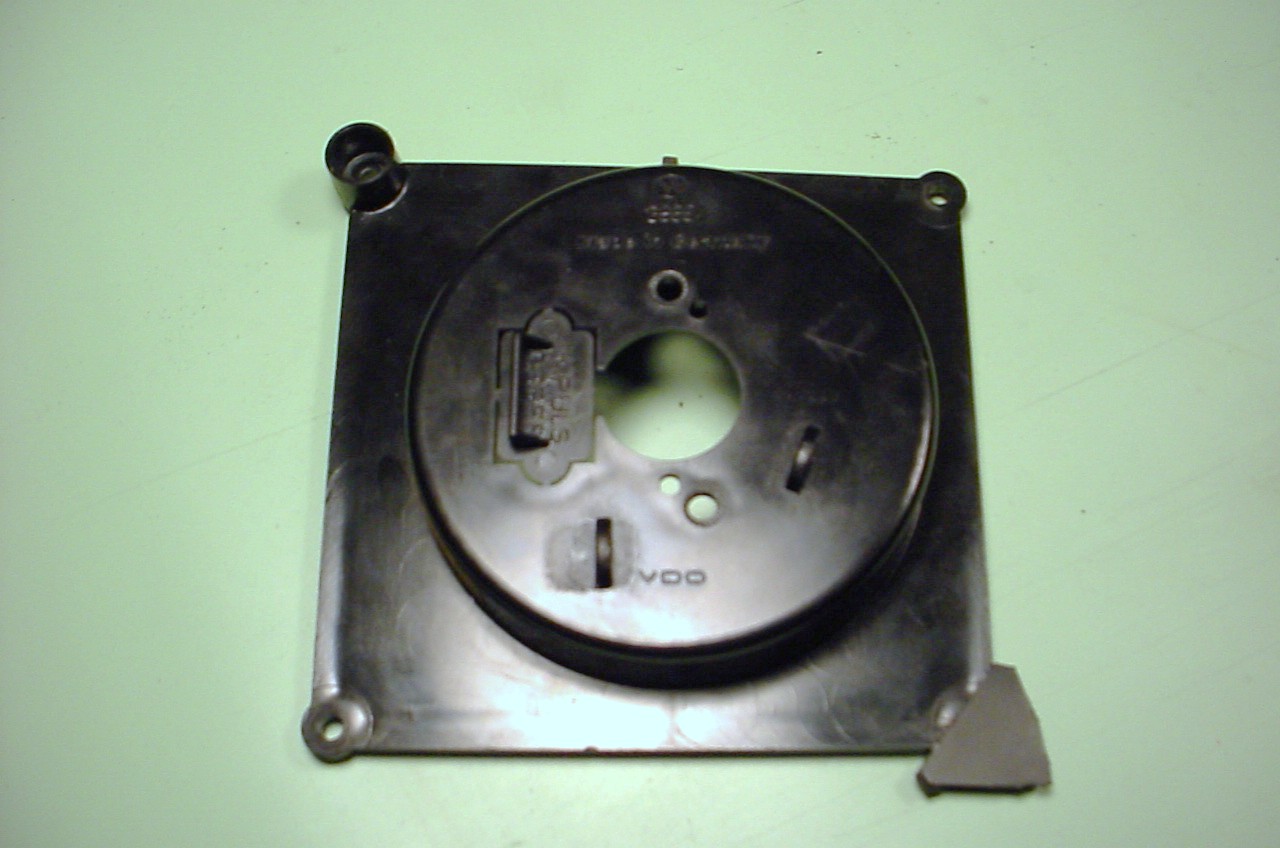

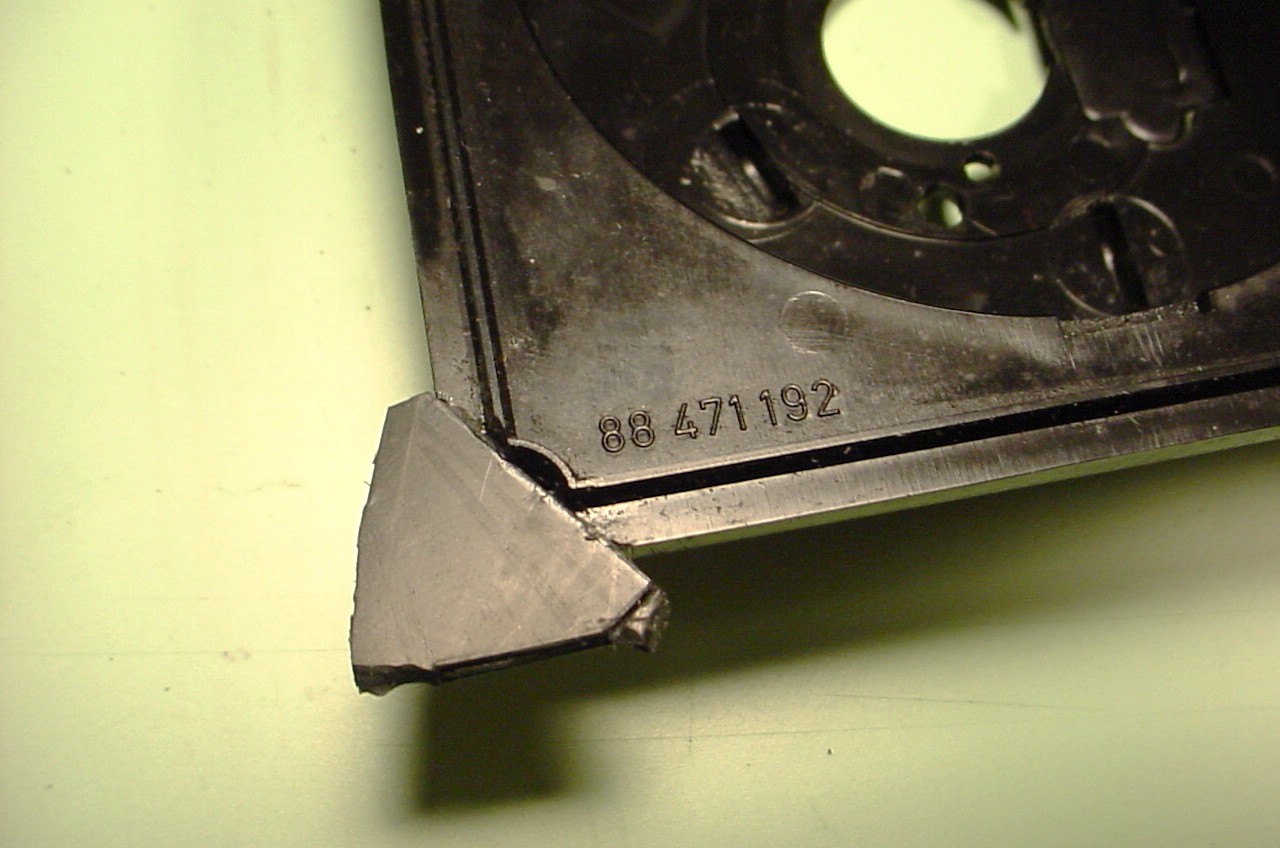

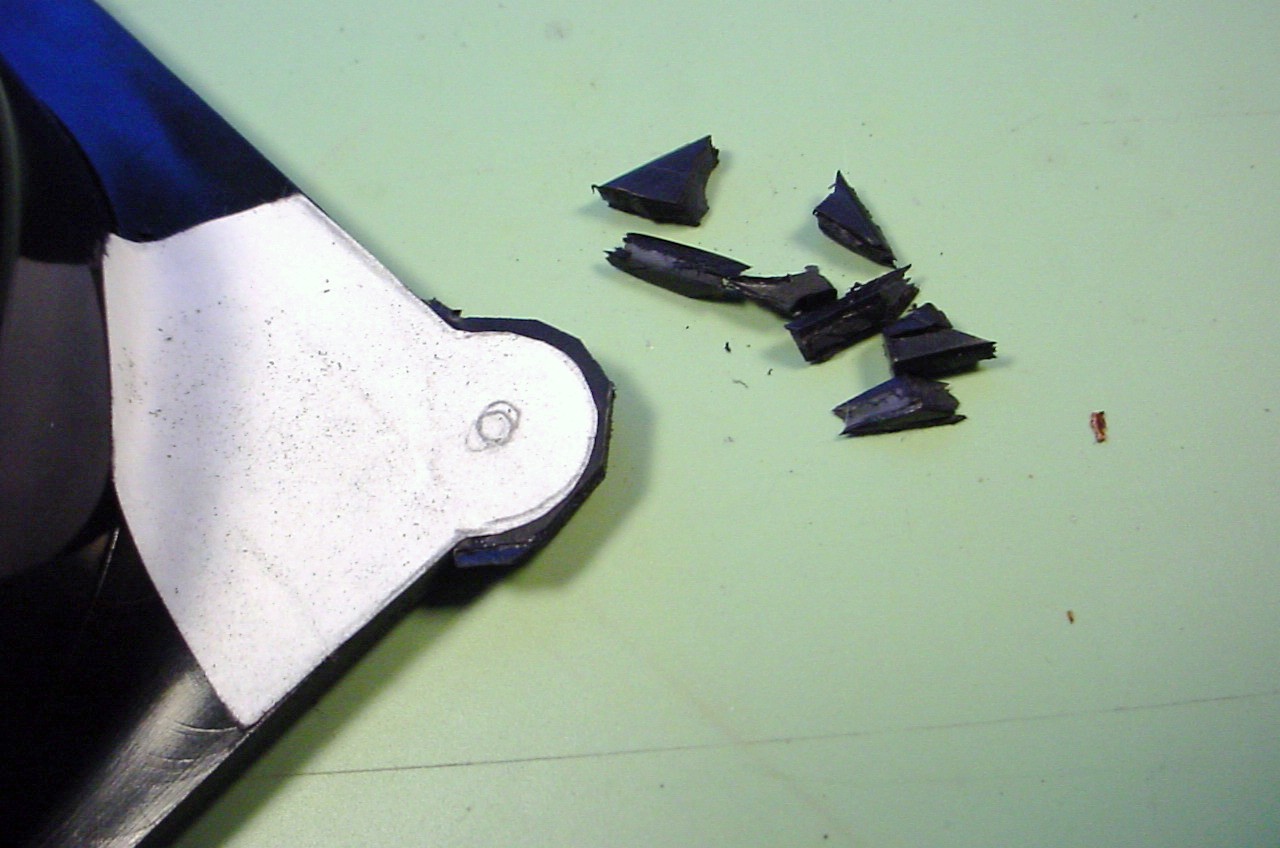

Utilizing some ABS and Styrene plastic from various sourcesin my garage, I was able to reconstruct and reenforce a damaged corner on the speedometer plastic support.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Solvent glue was used to smooth out the repaired area.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



Hope this helps.

-T25 Pilot


1999 MKIII Jetta
1984 1.9L Vanagon
1972 Super Beetle
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Perales
Samba Member


Joined: May 07, 2007
Posts: 2046
Location: Nova Scotia
Perales is offline

PostPosted: Fri Nov 25, 2011 7:45 pm    Post subject: Reply with quote

Very nice work! Smile
_________________
-- 1987 Westfalia automatic (Captain Vino)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Classifieds Feedback
Saguache
Samba Member


Joined: December 28, 2009
Posts: 360
Location: Gunnison, CO
Saguache is offline

PostPosted: Fri Nov 25, 2011 7:56 pm    Post subject: Reply with quote

Wow really nice work.
_________________
Matt Thyer
http://zenoswagen.wordpress.com/
Back to top
View user's profile Send private message Visit poster's website Twitter Classifieds Feedback
meyle
Samba Member


Joined: February 11, 2009
Posts: 13
Location: In a land, used to be known as USA
meyle is offline

PostPosted: Fri Nov 25, 2011 9:09 pm    Post subject: Reply with quote

x3 Really clean repair!
Back to top
View user's profile Send private message Classifieds Feedback
rubbachicken
Samba Member


Joined: October 05, 2004
Posts: 3058
Location: socal
rubbachicken is offline

PostPosted: Fri Nov 25, 2011 9:15 pm    Post subject: Reply with quote

that's a very nice repair, what about the other part

my dash pod is all broken where the screws would go through your repair into the dash pod
_________________
lucy our westy

lucy's BIG adventure

meet 'burni'


markswagen {mobile mechanic} san diego area all early VW's cared for.

619 201 0310 or 617 935 4182
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
DWC
Samba Member


Joined: October 02, 2007
Posts: 223
Location: San Jose CA
DWC is offline

PostPosted: Fri Nov 25, 2011 9:52 pm    Post subject: Reply with quote

Now that's a sweet repair. Great job & thanks for the photos and write up!
_________________
83.5 Westy Waterboxer
71 Squareback
81 Westy
59 Panel van
Back to top
View user's profile Send private message Classifieds Feedback
purplepeopleeater
Samba Member


Joined: July 23, 2005
Posts: 3117
Location: E. Washington
purplepeopleeater is offline

PostPosted: Fri Nov 25, 2011 9:57 pm    Post subject: Reply with quote

Nice, I need to do this to my spare...the syncro and westy have broken up speedo plastic.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
reluctantartist
Samba Member


Joined: August 13, 2006
Posts: 1927
Location: Bloomington, IN
reluctantartist is offline

PostPosted: Fri Nov 25, 2011 10:04 pm    Post subject: Reply with quote

Can you be more specific on the type of glue used? Also any hints on how to identify the types of plastic?
_________________
1982 Westy, 1974 412 Variant... Yes, Aircooled's are great! Oh and I do have modern computer controlled vehicles too, but I just don't care about them.
Back to top
View user's profile Send private message MSN Messenger Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 6304
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Fri Nov 25, 2011 10:47 pm    Post subject: Reply with quote

That is some master fix man Cool

same questions:what type of glue did you use for fixing that corner?

bye!
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Perales
Samba Member


Joined: May 07, 2007
Posts: 2046
Location: Nova Scotia
Perales is offline

PostPosted: Sat Nov 26, 2011 6:27 am    Post subject: Reply with quote

Technically it is dichloromethane (or methylene chloride) but is sold commercially as Plastic Weld or other such brand names. It is a solvent and works amazingly well with certain plastics such as styrene, ABS and acrylic (on some other plastics it does nothing at all). It fuses the pieces together without adding "glue". I have used it for many similar repairs and I am a big fan. It is usually available in hobby shops.

Image may have been reduced in size. Click image to view fullscreen.

_________________
-- 1987 Westfalia automatic (Captain Vino)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Classifieds Feedback
teej
Samba Member


Joined: November 26, 2010
Posts: 897
Location: Seattle
teej is offline

PostPosted: Sat Nov 26, 2011 6:55 am    Post subject: Reply with quote

Great useful information, thanks for posting!
_________________
1986+ Wolfsburg Weekender Pop-Top 2.3 WBX Manual Trans
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MacFhearguis
Samba Member


Joined: March 03, 2011
Posts: 179
Location: Flagstaff
MacFhearguis is offline

PostPosted: Sat Nov 26, 2011 10:00 am    Post subject: Reply with quote

Good work indeed!

I had to repair the ear on my power mirror adjuster on my 80 series LC, and did something similar.

I used some small nails(picture frame nails) as imbeds into the existing plastic, and then used some epxoy called AquaMend. It comes in a small roll, and is a two part mix that you mash together kind of like play dough. You can form it to whatever shape you need and then modify the shape to what you need.
Back to top
View user's profile Send private message Classifieds Feedback
T25 Pilot
Samba Member


Joined: November 15, 2008
Posts: 26
Location: Houston, Texas
T25 Pilot is offline

PostPosted: Sat Nov 26, 2011 5:29 pm    Post subject: Speedometer Support-solvent glue/ cement Reply with quote

The plastic cement I used for these repairs was made by Testors. It contains methyl ethyl ketone (MEK), however, in the past i have also
used the Plastic Weld mentioned by Perales. Both of these plastic cements/solvents are available at most craft stores, Walmarts, Kmarts, as well as hobby stores.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


In identifying suitable plastics for your repairs there are a couple of methods I use. One is to look for the recyleable triangle with the letters "PS"below it.
The other method involves testing a plastic piece with a drop of solvent to see if the plastic is softened, or try joining two test pieces together.
I've used wire spools, food containers, broken toy parts anythig I can get my hands on, preferably black in color.
Image may have been reduced in size. Click image to view fullscreen.


Hope this helps.

-T25 Pilot

1999 MKIII Jetta
1984 1.9L Vanagon
1972 Super Beetle
