1968 VW Beetle vent window rebuild
Forum Index -> Beetle - Late Model/Super - 1968-up Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
65 VW BUGTUSSEL
Samba Member


Joined: January 28, 2015
Posts: 4
Location: Pearl, Ms
65 VW BUGTUSSEL is offline

PostPosted: Thu Aug 06, 2015 11:45 am    Post subject: 1968 VW Beetle vent window rebuild Reply with quote

Anyone have any info on how to replace vent window, vent window lock and vent window felt channel for a 68 vw bug?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
65 VW BUGTUSSEL
Samba Member


Joined: January 28, 2015
Posts: 4
Location: Pearl, Ms
65 VW BUGTUSSEL is offline

PostPosted: Thu Aug 06, 2015 1:35 pm    Post subject: Reply with quote

Ok going at it alone. How hard can it be? It's a VW!!! Will try to post some pics of this journey.....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Andymon
Samba Member


Joined: February 24, 2015
Posts: 170
Location: Medford, OR
Andymon is offline

PostPosted: Thu Aug 06, 2015 2:02 pm    Post subject: Reply with quote

65 VW BUGTUSSEL wrote:
Ok going at it alone. How hard can it be? It's a VW!!! Will try to post some pics of this journey.....


I replaced the outer window scraper and had to remove the wing window. Get the factory manual...you'll need it. Get replacement door panel clips and the little rubber boots. Take your time, there's lots of little sharp things just waiting for you to meet up.
_________________
"Blanche" '85 Westy
"Too many freaks and not enough circuses".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
darg
Samba Member


Joined: March 30, 2014
Posts: 167
Location: VIRGINIA
darg is offline

PostPosted: Thu Aug 06, 2015 4:23 pm    Post subject: vent wndow Reply with quote

I replaced the rubber on my vent window. On the piv. arm, I used pop riv. and screws. Drill the old ones out.

darg
Back to top
View user's profile Send private message Classifieds Feedback
65 VW BUGTUSSEL
Samba Member


Joined: January 28, 2015
Posts: 4
Location: Pearl, Ms
65 VW BUGTUSSEL is offline

PostPosted: Thu Aug 06, 2015 7:01 pm    Post subject: Reply with quote

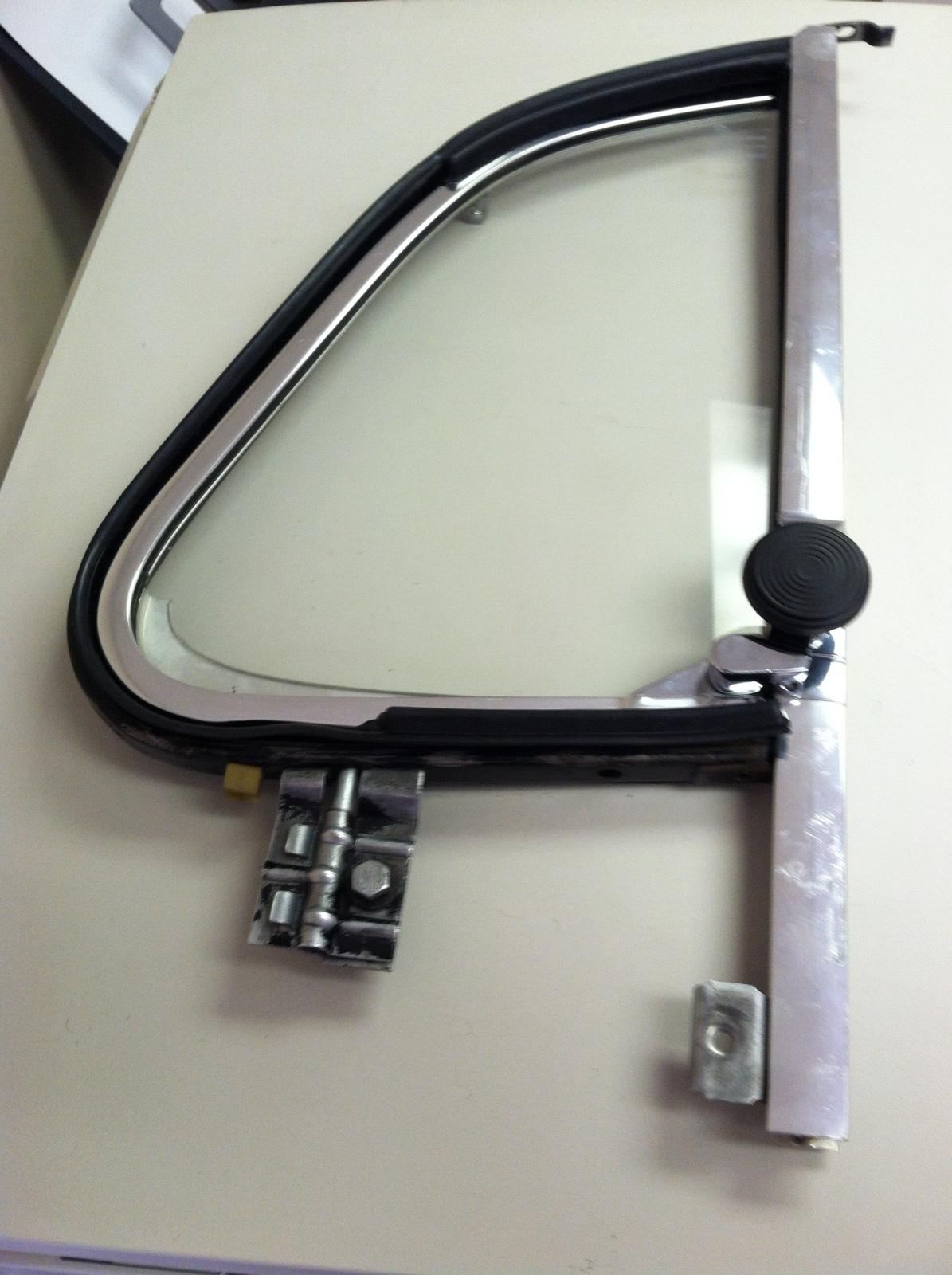

darg I also had to drill out rivot on pivot arm to get vent window seal installed. I put a washer between where pivot arms meet and put in a pop rivot.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
65 VW BUGTUSSEL
Samba Member


Joined: January 28, 2015
Posts: 4
Location: Pearl, Ms
65 VW BUGTUSSEL is offline

PostPosted: Thu Aug 06, 2015 8:01 pm    Post subject: Reply with quote

Now to replace the vent lock latch. I had to remove the vent window glass to get to the vent window lock. The glass just pulls out but you do have to pull on it hard. I was very careful and was able to reuse the old felt channel for reinstallation of the vent glass. I hear it is very difficult to reinstall vent glass with a new felt channel. With the glass out I then had to drill out the rivets that hold the vent lock in the chrome channel. One hole on the new vent lock didn't match up, so I drilled out hole to match and mounted new vent lock with pop rivets. Reinstalled vent glass and mounted back in frame. If I can do this, anyone can. Just be VERY PATIENT!!!!
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
[img]
Image may have been reduced in size. Click image to view fullscreen.
https://www.thesamba.com/vw/gallery/pix/1388221.jpg[/img]
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
