 Posted: Thu Feb 09, 2012 11:36 am Post subject: Laminate Repair...tutorial w photos FAQ |
 |
|
A brief guide to repairing damaged cabinets or parts
A brief guide to repairing damaged cabinets or parts:
#1 I purchased a mid 70's cabinet for my 69 bus.
#2The laminate was broken off the drawer.

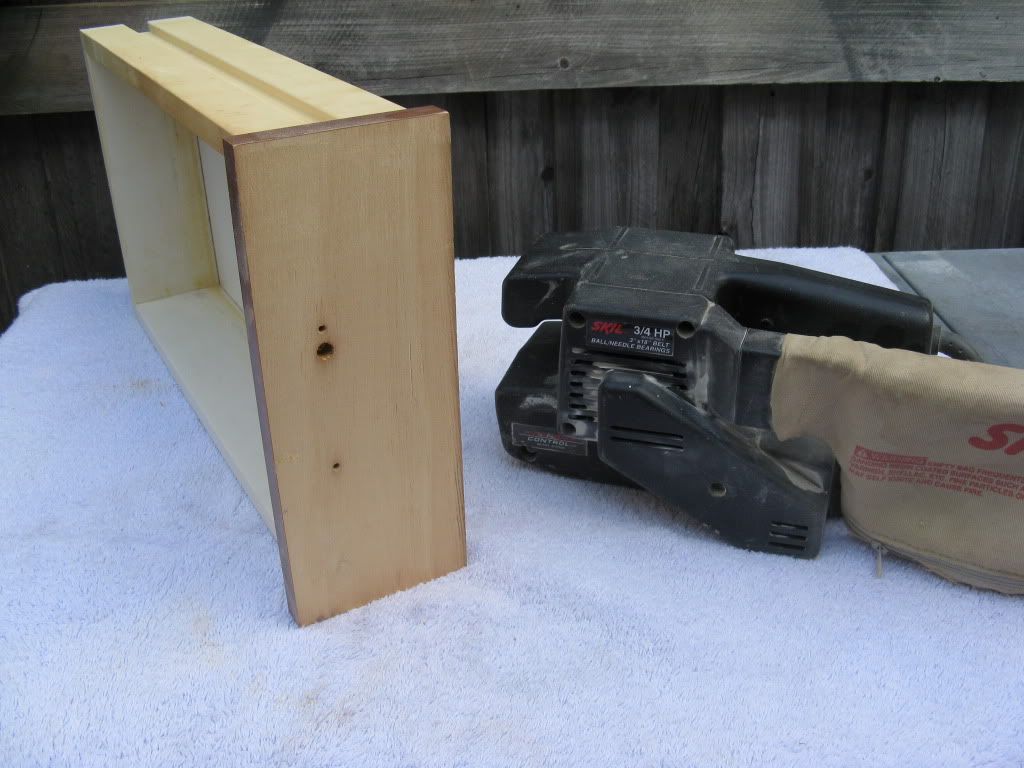

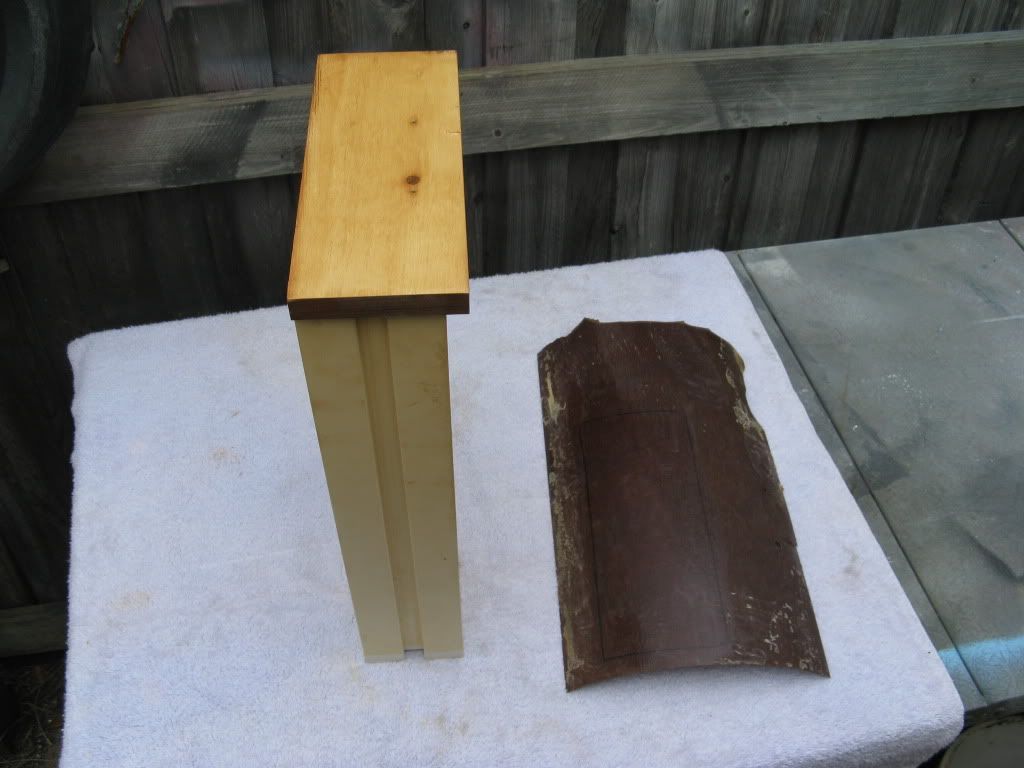

#3 Remove old laminate with a belt sander

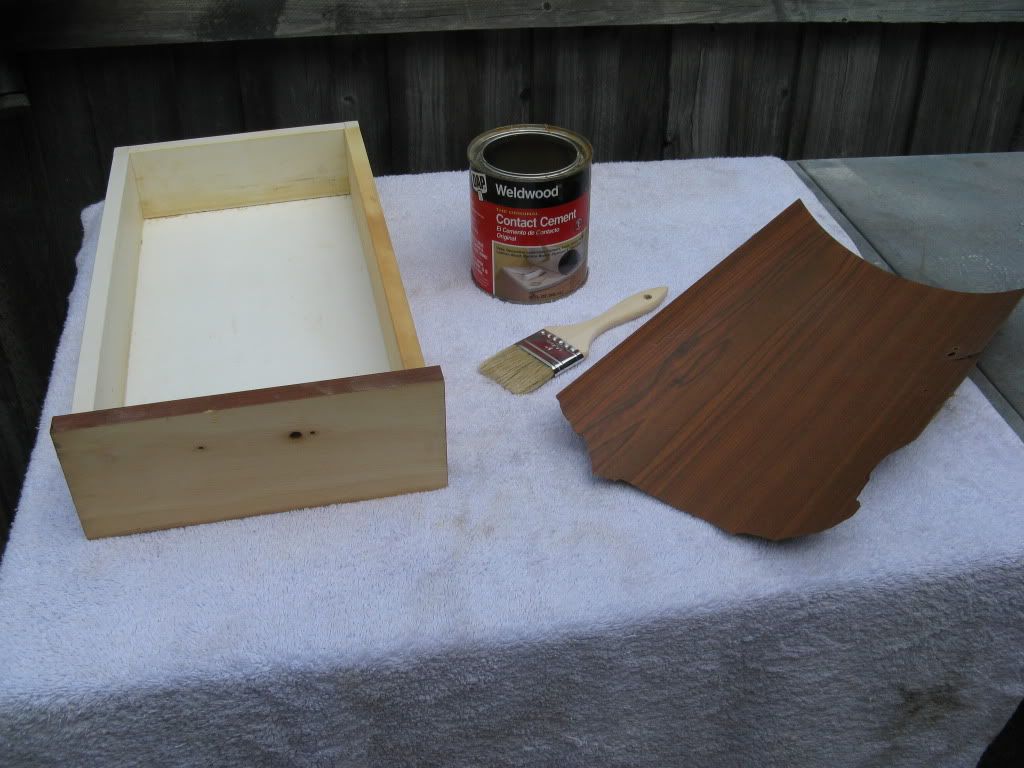

#4 Materials - cleaned drawer, recycled laminate (thank you samba member Tom S. of Stanford CA), contact cement & disposable brush.
#5 Contact cement evenly spread over BOTH surfaces....let dry 20 minutes.

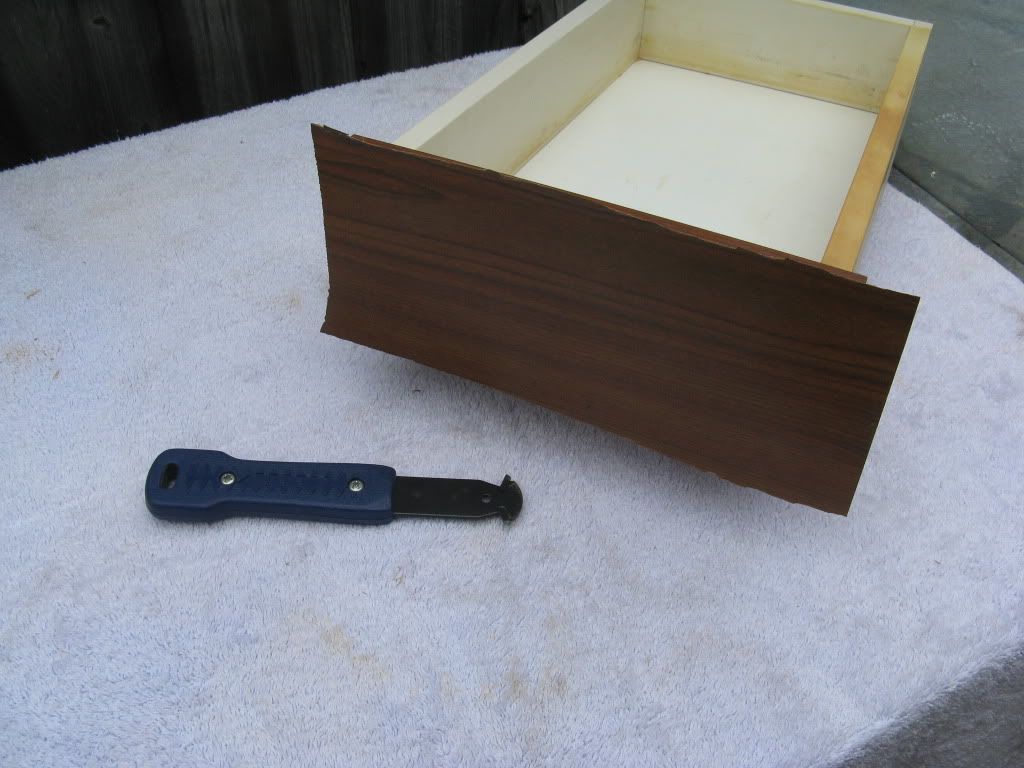

#6 Laminate glued to drawer front (some excess trimmed with laminate tool. Not necessary)

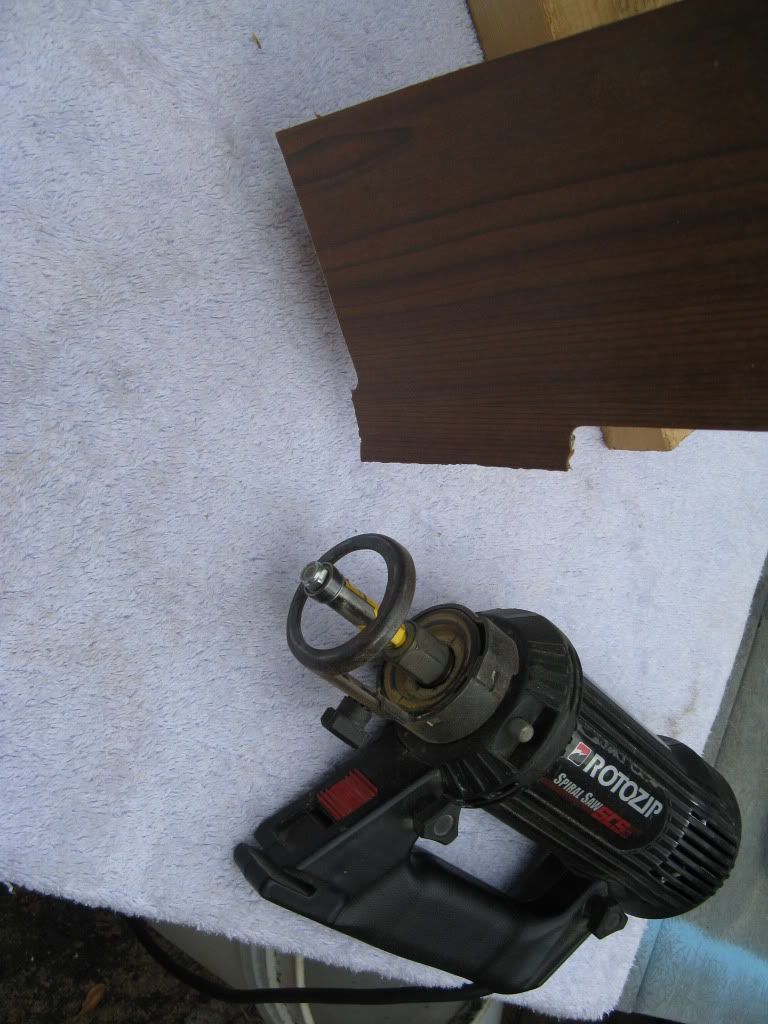

#7 Trim with router or roto zip tool. Note: lightly sand routered edges, they can cut you.
#8Same day, same drawer. 1 1/2 hours start to finish.
_________________
63 two fold rag
66 sedan delivery Type 6
http://www.thesamba.com/vw/forum/viewtopic.php?t=569619&highlight=sedan+delivery
Last edited by grandpa pete on Thu Feb 09, 2012 7:00 pm; edited 2 times in total |
|
| Back to top |
|
 |
Westfabulous
Samba Member
Joined: January 07, 2007
Posts: 4207
Location: The tropic of Canada, dodging the giant flying moose of Surrey!
|
| Posted: Thu Feb 09, 2012 12:27 pm Post subject: |
|
|
I love tutorials; thanks for sharing yours.
_________________
*****************
"I will gladly pay you Tuesday for a hamburger today." |
|
| Back to top |
|
|
Blue Bear
Samba Member
Joined: February 01, 2012
Posts: 52
|
| Posted: Thu Feb 09, 2012 2:45 pm Post subject: |
|
|
Where did you get your laminate?
I've been trying so hard to find a place that has that Laminate so that I can redo mine.
_________________
1979 Westy |
|
| Back to top |
|
|
VDubTech
Samba Member
Joined: December 29, 2002
Posts: 9155
Location: Syracuse, NY
|
| Posted: Thu Feb 09, 2012 3:03 pm Post subject: |
|
|
It's obviously a chunk of original laminate someone sent him.
_________________
First Trip in the RustyBus:
http://www.thesamba.com/vw/forum/viewtopic.php?t=279077&highlight=
| borninabus wrote: |
| a measurement of your rod would be extremely useful. |
| notchboy wrote: |
| my dad wasnt a belittling cock when he tought me how to wrench on cars. |
| EverettB wrote: |
One photo = good for reference.
10 photos = douchebaggery |
|
|
| Back to top |
|
|
Blue Bear
Samba Member
Joined: February 01, 2012
Posts: 52
|
| Posted: Thu Feb 09, 2012 3:12 pm Post subject: |
|
|
| VDubTech wrote: |
| It's obviously a chunk of original laminate someone sent him. |
Wasn't that obvious to me. Thanks for the heads up though.
_________________
1979 Westy |
|
| Back to top |
|
|
VDubTech
Samba Member
Joined: December 29, 2002
Posts: 9155
Location: Syracuse, NY
|
| Posted: Thu Feb 09, 2012 3:48 pm Post subject: |
|
|
| Blue Bear wrote: |
| VDubTech wrote: |
| It's obviously a chunk of original laminate someone sent him. |
Wasn't that obvious to me. Thanks for the heads up though. |
He said it was reccled laminate, thanks the samba member he got it from and in the photo it shows a piece of laminate with jagged edges. How many more clues do you need?
_________________
First Trip in the RustyBus:
http://www.thesamba.com/vw/forum/viewtopic.php?t=279077&highlight=
| borninabus wrote: |
| a measurement of your rod would be extremely useful. |
| notchboy wrote: |
| my dad wasnt a belittling cock when he tought me how to wrench on cars. |
| EverettB wrote: |
One photo = good for reference.
10 photos = douchebaggery |
|
|
| Back to top |
|
|
odecom5
Samba Member
Joined: July 17, 2006
Posts: 459
Location: CO
|
| Posted: Thu Feb 09, 2012 4:10 pm Post subject: Re: Laminate Repair...tutorial w photos |
|
|
Thanks for the tutorial gramps!
Last edited by odecom5 on Thu Feb 09, 2012 5:05 pm; edited 1 time in total |
|
| Back to top |
|
|
bignick
Samba Member
Joined: July 31, 2006
Posts: 299
Location: Chattanooga, TN
|
| Posted: Thu Feb 09, 2012 4:30 pm Post subject: Re: Laminate Repair...tutorial w photos |
|
|
What page is this on in the Bentley manual?
_________________
'69 bug (Bonnie)
'74 Westy (Penelope) |
|
| Back to top |
|
|
Blue Bear
Samba Member
Joined: February 01, 2012
Posts: 52
|
| Posted: Thu Feb 09, 2012 5:06 pm Post subject: |
|
|
I guess i'm not as observant as most. Sorry for asking.
_________________
1979 Westy |
|
| Back to top |
|
|
Sage79
Samba Member
Joined: September 13, 2008
Posts: 437
Location: Holland MI
|
| Posted: Thu Feb 09, 2012 5:12 pm Post subject: |
|
|
Alternatively, in a case like this you can clean up the break line so it's nice and straight along the grain line and then splice in a piece just over the damaged area. The damaged laminate can be removed with some heat (heat gun) and putty knife. This uses up far less valuble OG laminate (and keeps the grain oriented the right way). You do have to live with a joint line but if you pick a good match section of laminate it can be made almost invisible. I even found a usable piece of laminate on the back of one of my cabinets that I stripped of and used as repair.
_________________
Dirk
'79 Westy 2.0FI
'73 Sportsmobile 1.7dual Solex 003Auto - now my daughter's
'77 delux 2.0FI 090Auto - now my son's |
|
| Back to top |
|
|
kamara
Samba Member
Joined: January 27, 2008
Posts: 142
Location: Tallahasee, Fl.
|
| Posted: Thu Feb 09, 2012 5:21 pm Post subject: |
|
|
Nice job! looks good.
_________________
"Spirit is the journey - body is the bus
I am the driver - from dust to dust." J. Clegg
- President of CCvdub (Tallahassee's VW Club)
([email protected])
73 Type2 Riviera, 74 Type2 Westy, 69 Type1 Standard, 72 Type4 412 Variant |
|
| Back to top |
|
|
Desertbusman
Samba Member
Joined: June 03, 2005
Posts: 14655
Location: Arizona
|
| Posted: Thu Feb 09, 2012 5:27 pm Post subject: |
|
|
| bignick wrote: |
| Btw, what page is this on in the Bentley manual? |
Section 2719, page 942 in volume 17. You don't have the full library set? I don't either. It would cost more than my bus did.
If you couldn't understand it in Pete's posts it would be a lot harder to know what's going on in a real manual.
BTW, thanks Pete.
_________________
71 Superbug
71 Westy |
|
| Back to top |
|
|
grandpa pete
Samba Member
Joined: July 06, 2008
Posts: 6426
Location: St. Petersburg, FL
|
| Posted: Thu Feb 09, 2012 6:01 pm Post subject: |
|
|
blue bear ..never apologise for asking a question...the stupid question is the one not asked......I got my laminate by repeatedly asking at the end of posts for what i needed:need 5x10 inch peice of laminate for repair: eventually i got what i needed and the color matches pretty well
_________________
63 two fold rag
66 sedan delivery Type 6
http://www.thesamba.com/vw/forum/viewtopic.php?t=569619&highlight=sedan+delivery |
|
| Back to top |
|
|
curtis4085
Samba Member
Joined: July 22, 2011
Posts: 4806
Location: Colorado
|
| Posted: Thu Feb 09, 2012 6:23 pm Post subject: |
|
|
looking good. great tutorial...
_________________
Special Thanks to:
Headflow Masters - Vista, CA
www.headflowmasters.com |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71460
Location: Phoenix 602
|
|
| Back to top |
|
|
grandpa pete
Samba Member
Joined: July 06, 2008
Posts: 6426
Location: St. Petersburg, FL
|
|
| Back to top |
|
|
Westfabulous
Samba Member
Joined: January 07, 2007
Posts: 4207
Location: The tropic of Canada, dodging the giant flying moose of Surrey!
|
| Posted: Thu Feb 09, 2012 7:15 pm Post subject: |
|
|
| VDubTech wrote: |
| He said it was reccled laminate |
Not everyone knows what reccled laminate is.
_________________
*****************
"I will gladly pay you Tuesday for a hamburger today." |
|
| Back to top |
|
|
VWDog
Samba Member
Joined: June 24, 2005
Posts: 627
Location: Ladysmith, BC
|
| Posted: Thu Feb 09, 2012 8:34 pm Post subject: |
|
|
| Good technique, but I am going to sound like a pr!ck here... in future you may want to match up the grain (ie turn it 90 degrees) so that it matches the cabinets next to it. Sorry, comes from my training as a wooden boatbuilder. Another note to wood grain, flame up!(as my foreman always used to say...looks better if there is any flame in the grain). |
|
| Back to top |
|
|
skills@eurocarsplus
Samba Peckerhead
Joined: January 01, 2007
Posts: 17811
Location: sticksville, ct.
|
| Posted: Thu Feb 09, 2012 8:38 pm Post subject: Re: Laminate Repair...tutorial w photos |
|
|
| bignick wrote: |
| What page is this on in the Bentley manual? |
good job on the repair. i had to do the same thing a couple years ago to my 71. i used the same glue and it holds like a bastard. it's the best stuff i have used for sure
_________________
| gprudenciop wrote: |
my reason for switching to subaru is my german car was turning chinese so i said fuck it and went japanese....... |
| Jake Raby wrote: |
| Thanks for the correction. I used to be a nice guy, then I ruined it by exposing myself to the public. |
| Brian wrote: |
| Also the fact that people are agreeing with Skills, it's a turn of events for samba history |
|
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Thu Feb 09, 2012 8:59 pm Post subject: Westfalia Cabinet Refacing |
|
|
Thank's for the post grandpa pete
| Blue Bear wrote: |
Where did you get your laminate?
I've been trying so hard to find a place that has that Laminate so that I can redo mine. |
Hey Blue Bear, I found Formica 6208-43 Glamour Cherry at Southern Lumber.
The provided link has more information. Good Luck
http://www.thesamba.com/vw/forum/viewtopic.php?t=347417 |
|
