 Posted: Thu Feb 23, 2012 5:45 pm Post subject: front seat pivot bolt |
 |
|
| What threads are these bolts? These are the bolts that the backrest pivots on the base of the front seat. If you want to see what they look like the WW part # is: 371881953. I was at a local hardware store that has just about anything you can ask for. I tried my best, as did the clerk, to match the threads and came up empty. The threads are close to 1/2" fine thread but I know this is a metric car and none of the metric threads matched. I would like to buy a tap and nuts but have no clue what to ask for. Is this just an odd ball part? |
|
| Back to top |
|
 |
cletus_zuber
Samba Member
Joined: January 08, 2010
Posts: 2482
Location: Gladstone, Ore
|
|
| Back to top |
|
|
Dwayne1m
Samba Member
Joined: December 31, 2011
Posts: 3543
Location: Pennsylvania
|
| Posted: Thu Feb 23, 2012 8:17 pm Post subject: |
|
|
| I have the bolts. My problem is where they screw into the seat base the threads are stripped. I'm trying to find a nut the same as the bolt and I will weld that on the seat base but I'm not having any luck. |
|
| Back to top |
|
|
Valnar300
Samba Member
Joined: March 18, 2010
Posts: 342
Location: Garden Grove, CA
|
| Posted: Thu Feb 23, 2012 10:47 pm Post subject: |
|
|
| Dwayne1m wrote: |
| I have the bolts. My problem is where they screw into the seat base the threads are stripped. I'm trying to find a nut the same as the bolt and I will weld that on the seat base but I'm not having any luck. |
I had the same issue. What I ended up doing was taking a piece of threaded rod cut to about 2x the length of the bolt, putting it through the hole, with a washer on each side, and a couple of nuts on each side with thread locker. Just dont tighten it up too much or you won't be able to move the seat back anymore.
_________________
Cars So Far:
-73 Super Beetle
...well I didn't say it was a long list. |
|
| Back to top |
|
|
Valnar300
Samba Member
Joined: March 18, 2010
Posts: 342
Location: Garden Grove, CA
|
| Posted: Thu Feb 23, 2012 10:53 pm Post subject: |
|
|

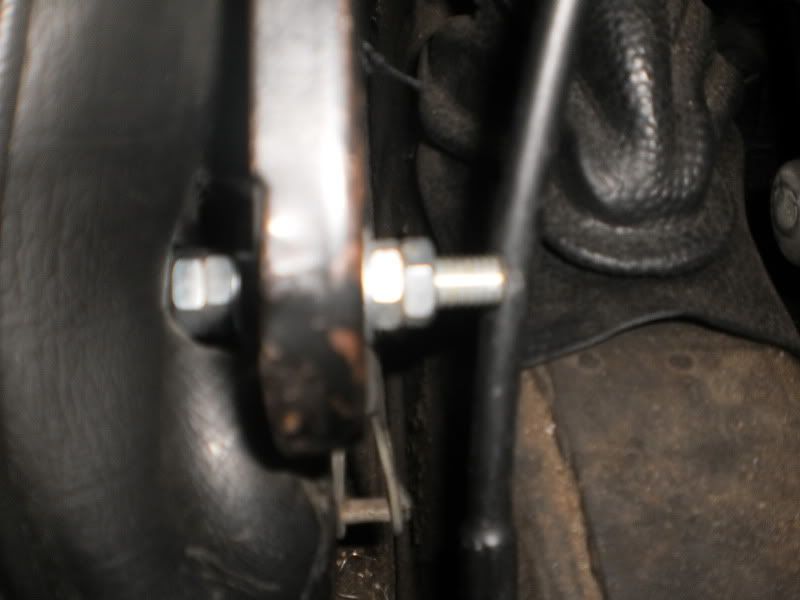

Here's what I mean (Sorry about the blurry photo, with no lighting its hard to get a great shot)
_________________
Cars So Far:
-73 Super Beetle
...well I didn't say it was a long list. |
|
| Back to top |
|
|
Dwayne1m
Samba Member
Joined: December 31, 2011
Posts: 3543
Location: Pennsylvania
|
| Posted: Fri Feb 24, 2012 3:18 pm Post subject: |
|
|
| Thanks. I'll give that some thought. |
|
| Back to top |
|
|
Dwayne1m
Samba Member
Joined: December 31, 2011
Posts: 3543
Location: Pennsylvania
|
| Posted: Sat Feb 25, 2012 10:41 am Post subject: |
|
|
| Here is what I've come up with. I'm using a 1/2" 20NF bolt and I was able to find a sleeve that has a 1/2" ID and a 5/8" OD. That will provide the surface for the seat to pivot on. I'm drilling the seat base with a 29/64" drill bit and also threading the seat base with a 1/2" 20NF tap. This is very close to the thread size in the seat base. I'm also going to put a small jam nut on the 1/2" bolt for more stability since the seat base is not very thick. |
|
