PostPosted: Fri Oct 26, 2018 4:30 pm    Post subject: Tiico alternator bracket FIX no more vibrations. Reply with quote

For less than $20 in Lowes hardware, I solved
the Mickey Mouse alternator mount on my Tiico.

Now it's as solid as a rock. No more vibrations
in the shifter, and pulleys are aligned.

I used hose to fill the big end eye, and provide some damping.

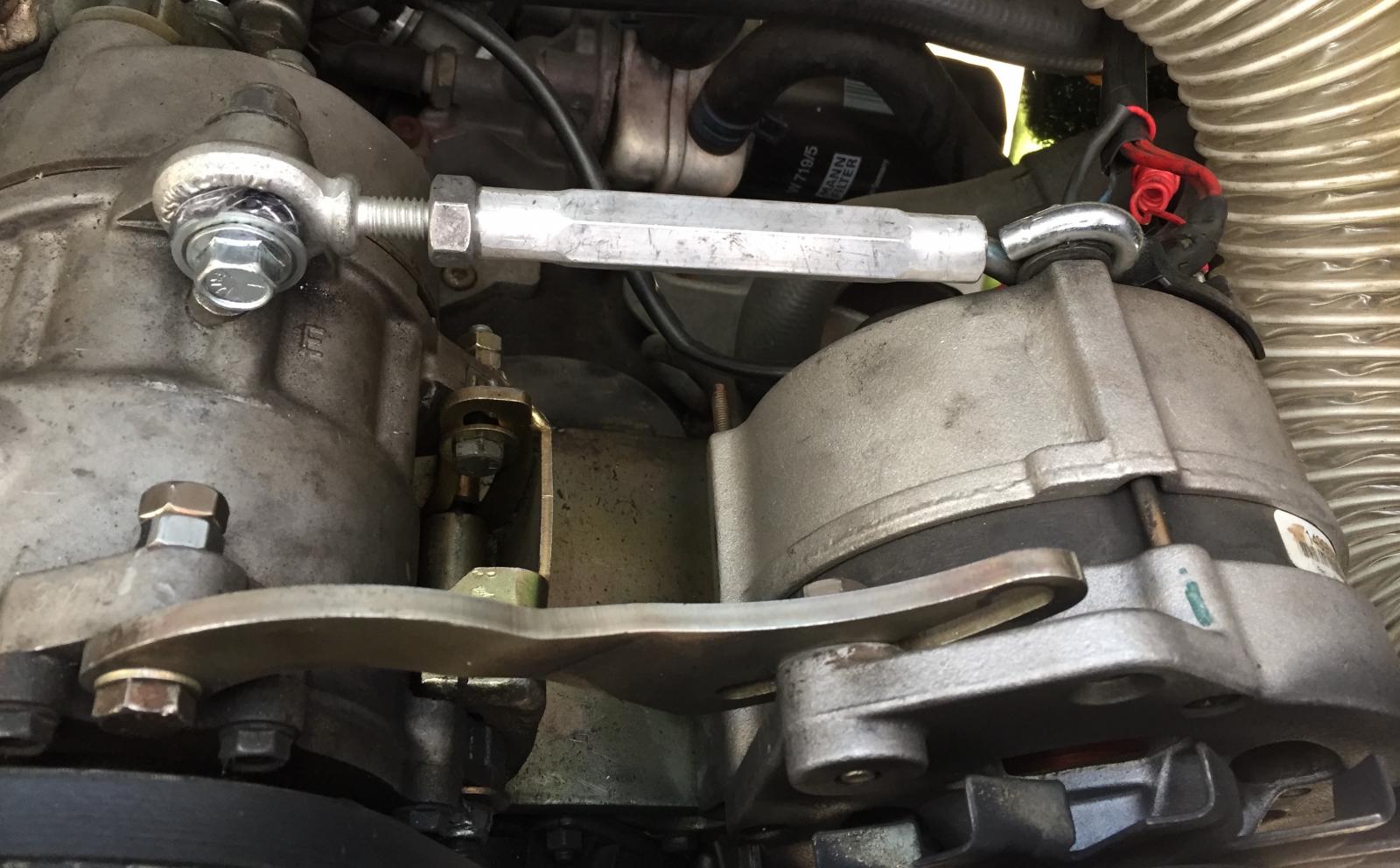

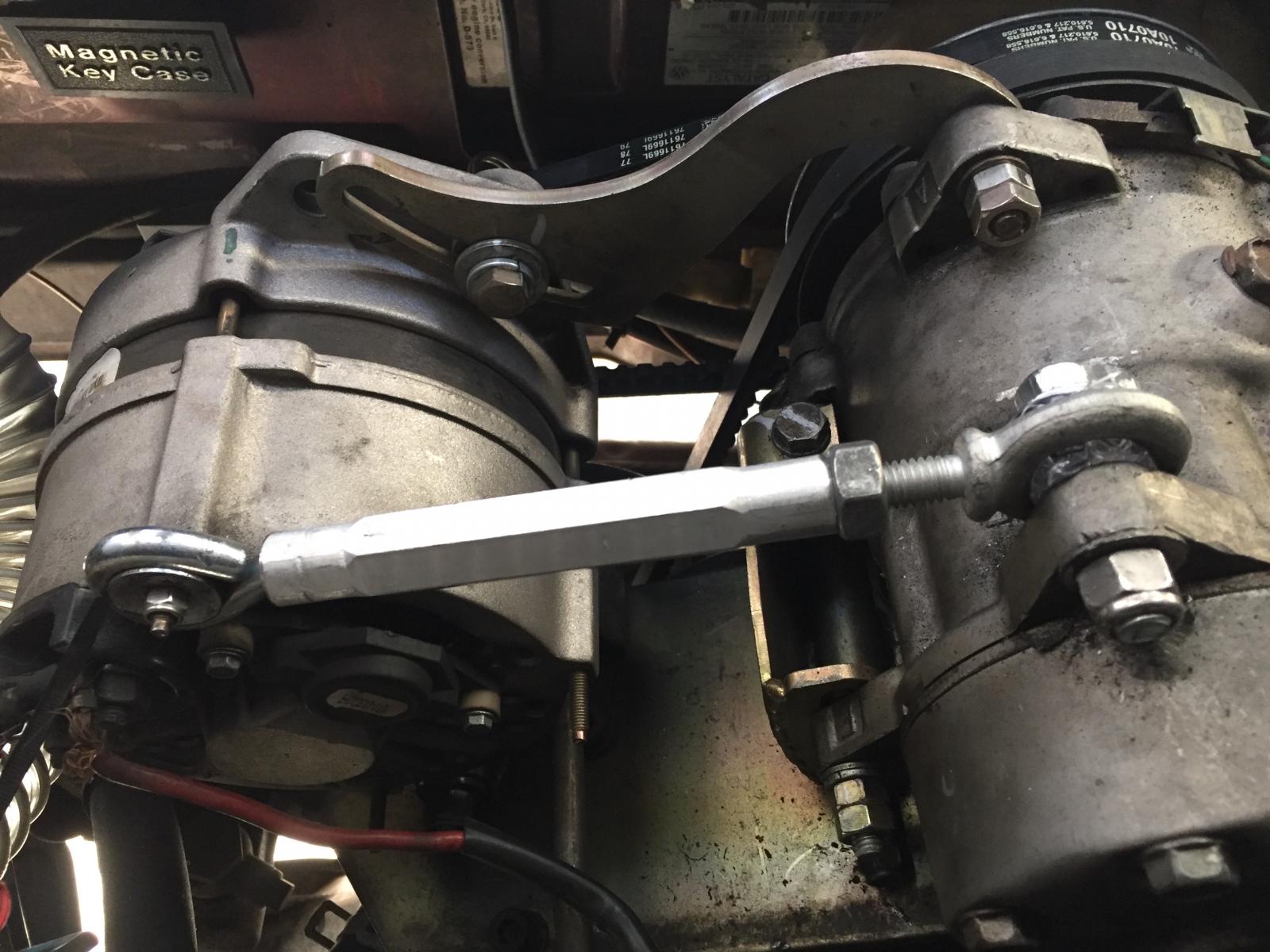

Overview showing new support on backside of alternator:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

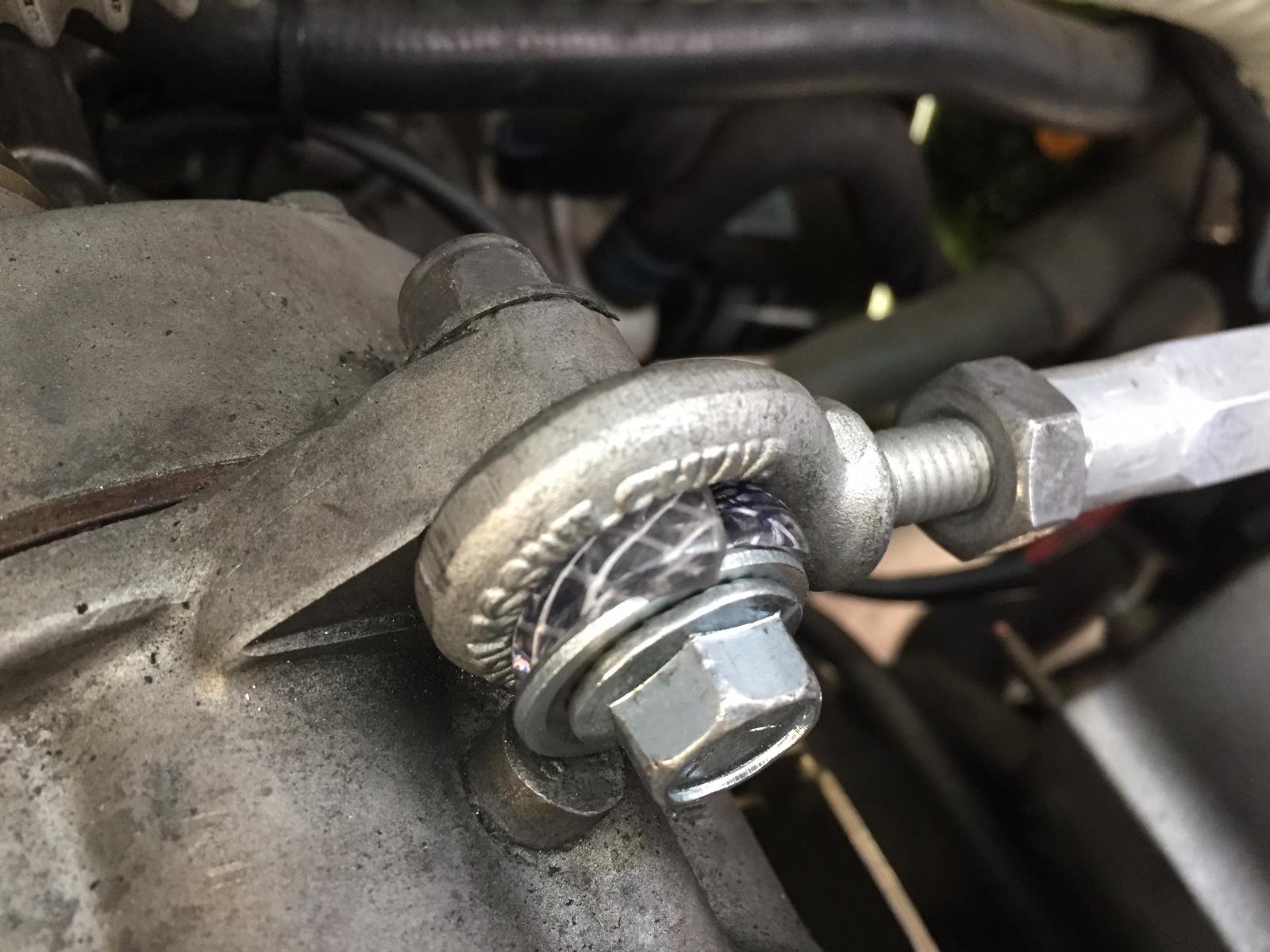

End links on alternator and AC compressor.

I used hose to fill the big end eye, and provide some damping.
That frayed wiring is being replaced next.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1990 Westy 2.0 Tiico inline 4-cyl / CA BAR sticker
/1987 Porsche 911 Carrera
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 6998
Location: NE MN (http://g.co/maps/zt72q)
dhaavers is offline

PostPosted: Fri Oct 26, 2018 4:59 pm    Post subject: Re: Tiico alternator bracket FIX no more vibrations. Reply with quote

Nice mod...simple, cheap, effective!

PS: YES, new wiring, please... Shocked Wink

- Dave
_________________
86 White Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
