 Posted: Sun Sep 15, 2019 4:14 pm Post subject: 34 PICT 3 carb question |
 |
|

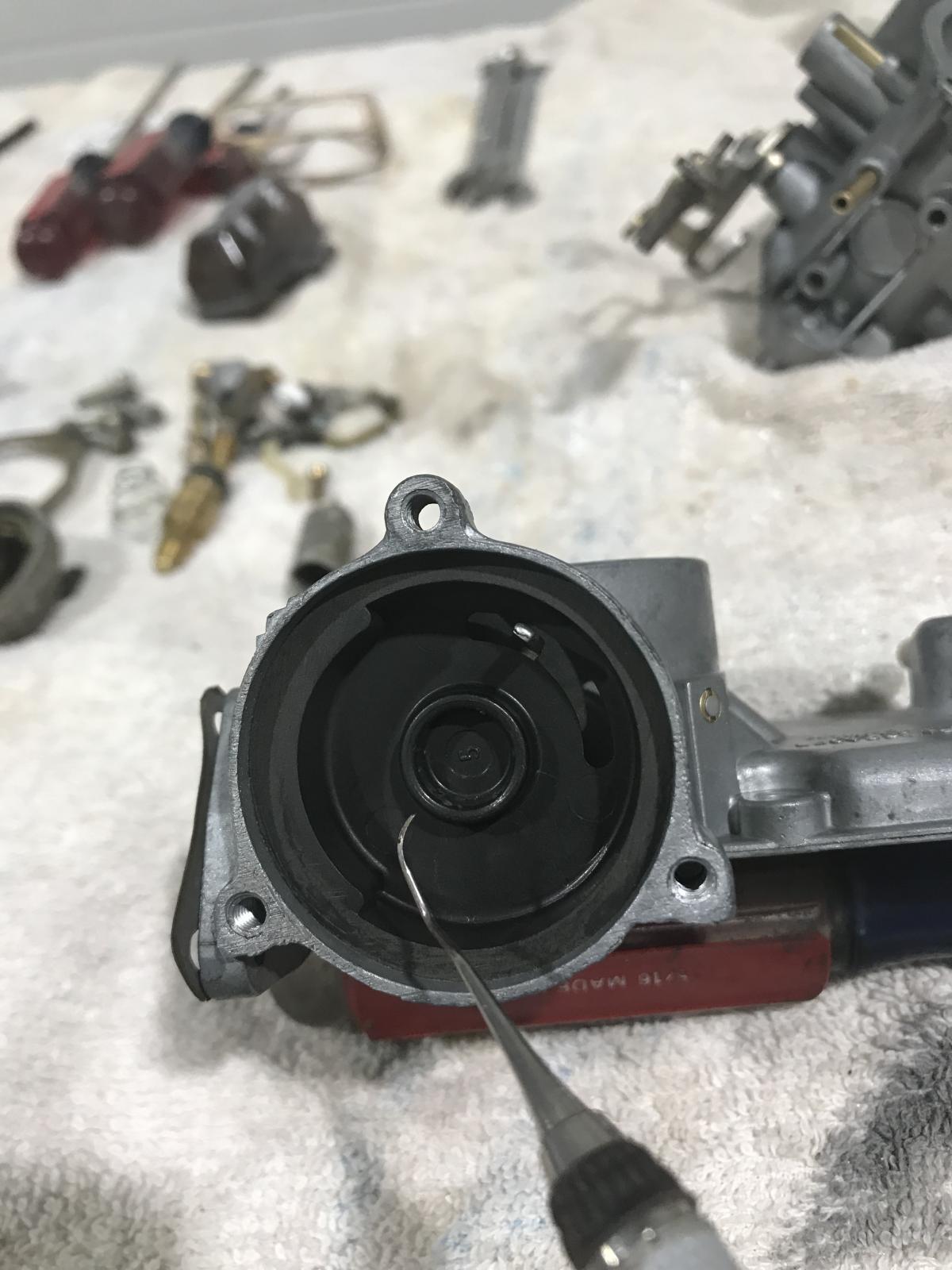

Been awhile since I’ve had to work on one so I need some help guys and girls !! How do you remove this diaphragm and stem from top cover of carb.? The Bakelite part will not budge!!
|
|
| Back to top |
|
 |
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33277
Location: Hot Arizona
|
| Posted: Sun Sep 15, 2019 5:39 pm Post subject: Re: 34 PICT 3 carb question |
|
|
Pull the black plastic part out, towards you. Then it will be obvious how the triangular diaphragm comes out, will simply pull out once its rod is disengaged.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
jeffros 58
Samba Member
Joined: January 01, 2009
Posts: 362
Location: jackson mi
|
| Posted: Sun Sep 15, 2019 6:20 pm Post subject: Re: 34 PICT 3 carb question |
|
|
| That is the problem the Bakelite part is stuck in housing . I use dental picks and cleaner to make sure there was nothing to keep it in . Gave it a few nice sharp smacks on a flat piece of wood bench . Not budging!!! Scared I will break it by prying on it . |
|
| Back to top |
|
|
rcooled
Samba Member
Joined: September 20, 2008
Posts: 2792
Location: Santa Cruz, CA
|
| Posted: Sun Sep 15, 2019 7:10 pm Post subject: Re: 34 PICT 3 carb question |
|
|
| jeffros 58 wrote: |
| That is the problem the Bakelite part is stuck in housing...Scared I will break it by prying on it. |
Try squirting a little penetrating oil (PB Blaster, WD40, etc.) around the plastic insert, then try it again.
You can also try applying a little heat around the aluminum housing (not with penetrating oil around though). Not too much...you just need to expand the diameter a few thousands of an inch to loosen up the insert.
If the insert breaks, it probably wouldn't be too much trouble coming up with a replacement...even if you had to buy some junk carb for a few bucks to get it.
_________________
'63 Ragtop (current)
'65 Ghia coupe (totaled)
'67 Ghia convertible (current)
'69.5 Ghia convertible and
'62, '63, '65, '69 Bugs (all long gone) |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33277
Location: Hot Arizona
|
| Posted: Sun Sep 15, 2019 8:24 pm Post subject: Re: 34 PICT 3 carb question |
|
|
| jeffros 58 wrote: |
| That is the problem the Bakelite part is stuck in housing . I use dental picks and cleaner to make sure there was nothing to keep it in . Gave it a few nice sharp smacks on a flat piece of wood bench . Not budging!!! Scared I will break it by prying on it . |
Maybe someone super-glued or epoxied it in. So it could break, but can't be too much to obtain. I'd guess that [email protected] would have several hundred.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
VolkzBitz
Samba Member
Joined: April 30, 2009
Posts: 306
Location: Washington State USA
|
| Posted: Fri Sep 20, 2019 12:07 am Post subject: Re: 34 PICT 3 carb question |
|
|
Put the choke unit back in and tap around the edges of the carburetor choke housing to make it rounder again. Over time the heat from the choke and the pull from the choke screws distorts the housing.
_________________
http://volkzbitz.com
Quality VW Solex carburetor restoration
[email protected]
Der Vergaser Meister |
|
| Back to top |
|
|
andk5591
Samba Member
Joined: August 29, 2005
Posts: 16805
Location: State College, PA
|
| Posted: Fri Sep 20, 2019 4:52 am Post subject: Re: 34 PICT 3 carb question |
|
|
| VolkzBitz wrote: |
| Put the choke unit back in and tap around the edges of the carburetor choke housing to make it rounder again. Over time the heat from the choke and the pull from the choke screws distorts the housing. |
Tim, sounds like you may have run into this once before
_________________
D-Dubya Manx clone 1914. Ex wifes car.
Rosie 65 bug - My mostly stock daily driver.
Woodie 69 VW woodie (Hot VWs 7/12).
"John's car" 64 VW woodie - The first ever
Maxine 61 Cal-look bug - Ex-wifes car.
66 bug project - Real patina & Suby conversion
There's more, but not keeping them... |
|
| Back to top |
|
|
jeffros 58
Samba Member
Joined: January 01, 2009
Posts: 362
Location: jackson mi
|
| Posted: Fri Sep 20, 2019 6:32 am Post subject: Re: 34 PICT 3 carb question |
|
|
| Was at a swap meet last week end and found a replacement Bakelite part so when I got home I did a little bit of digging and pried it out broke it but it’s out and new one went in clean so all is good |
|
| Back to top |
|
|
FreeBug
Samba Member
Joined: March 12, 2012
Posts: 4277
Location: deepest, darkest Switzerland
|
| Posted: Fri Sep 20, 2019 11:05 am Post subject: Re: 34 PICT 3 carb question |
|
|
| jeffros 58 wrote: |
| Was at a swap meet last week end and found a replacement Bakelite part so when I got home I did a little bit of digging and pried it out broke it but it’s out and new one went in clean so all is good |
Super glue and bakelite (phenolics?) go really well together, good as new if you do it right. |
|
