 Posted: Thu Apr 05, 2012 7:18 pm Post subject: non heater engine tin? |
 |
|
I am wondering if there are any companies making engine breast tin (I think that is what it's called... the tin near the crank pulley) that does not have any fresh air and heater air hose holes in it? Or do people just fabricate their own by filling the holes when not running heaters?
Thanks, Gordo. |
|
| Back to top |
|
 |
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 80589
Location: Sneaking up behind you
|
| Posted: Thu Apr 05, 2012 7:26 pm Post subject: |
|
|
Mine is a factory part from Brazil. But i got it 20 years ago and not sure if its still available.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
DarthWeber
Samba Member
Joined: November 24, 2007
Posts: 7542
Location: Whittier,CA
|
| Posted: Thu Apr 05, 2012 7:39 pm Post subject: |
|
|
http://vwparts.aircooled.net/Rear-Engine-Tin-Apron-Tin-Breastplate-p/rear-engine-tin.htm
_________________
| Mitey62 wrote: |
| Swapped the Compufire for a Bosch blue and some points I had sitting around, started 1st crank. Took her out for a drive, pulls harder, more RPM, and runs smoother. I think I'll be sticking with points from now on. |
| RockCrusher wrote: |
JB weld the case halves....that'll keep the fretting to a minimum.  |
|
|
| Back to top |
|
|
VIN
Samba Member
Joined: June 01, 2006
Posts: 941
Location: phoenix
|
|
| Back to top |
|
|
donmurray
Samba Member
Joined: December 30, 2008
Posts: 841
Location: Frisco Texas
|
| Posted: Thu Apr 05, 2012 7:48 pm Post subject: |
|
|
I plugged mine with 2 round aluminum pieces cut with a hole saw that I just happened to have. Brass machine screw through the middle to a 1" wide piece of aluminum under. A good piece without the holes would look better though. Awesome Powdercoating might have it.
http://www.awesomepowdercoat.com/index.html |
|
| Back to top |
|
|
LyleGB
Samba Member
Joined: August 20, 2011
Posts: 127
Location: Alvin, Tx.
|
| Posted: Thu Apr 05, 2012 8:23 pm Post subject: |
|
|

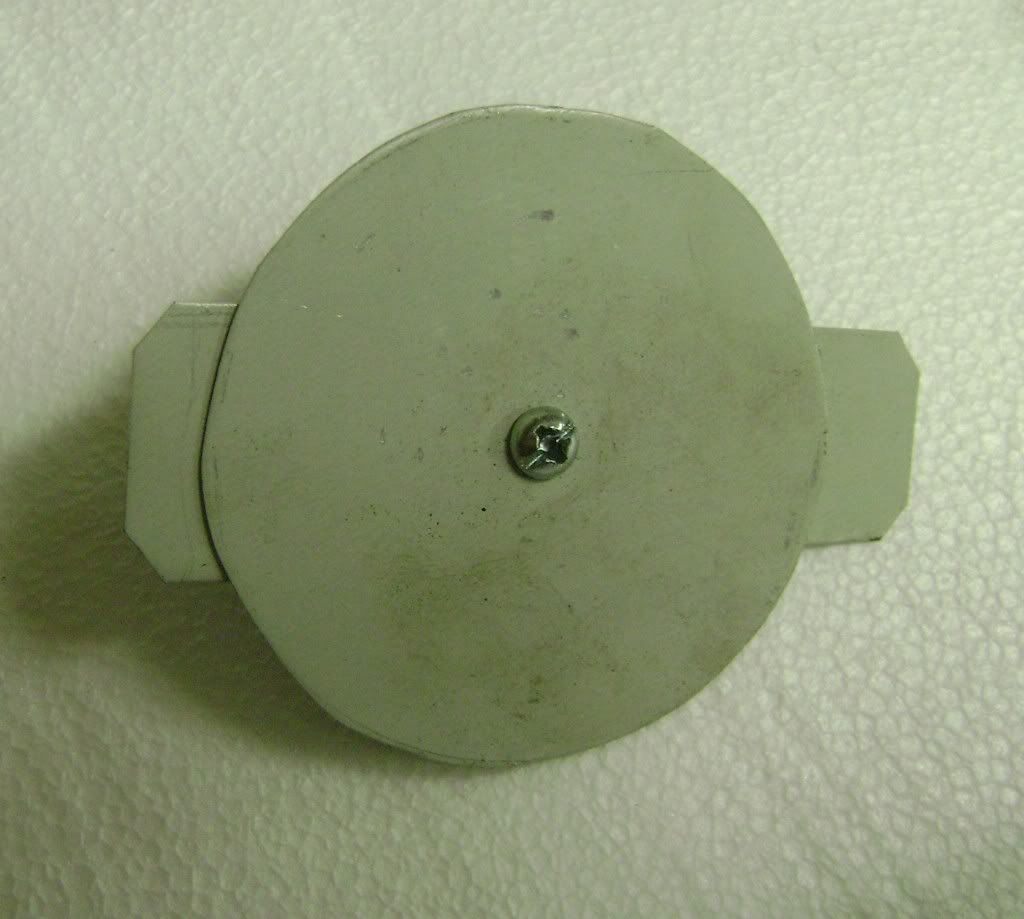

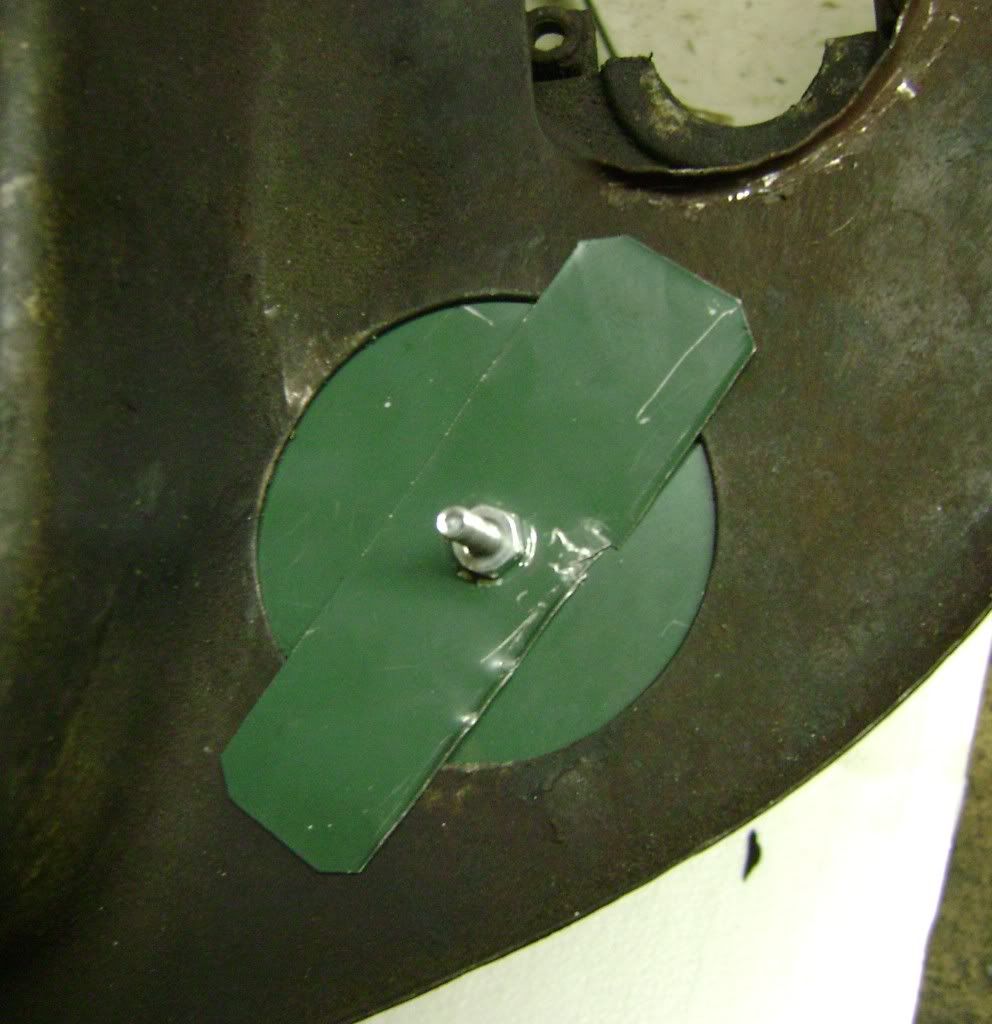

I did something like the above poster, I made the under piece just wide enough so I can slip the assembly in/out without tools. Holds its place just fine. (I only run the hoses in winter).[img]
[/img] |
|
| Back to top |
|
|
69 Jim
Samba Member
Joined: September 27, 2004
Posts: 6264
Location: Chickengeorge's Neighbor
|
| Posted: Thu Apr 05, 2012 9:24 pm Post subject: |
|
|
| If you purchase one Gordo, be sure and also get the pulley tin from the same manufacturer otherwise you will have issues matching up the screw holes. |
|
| Back to top |
|
|
donald.lemay
Samba Member
Joined: March 01, 2009
Posts: 484
Location: Rhode Island
|
|
| Back to top |
|
|
flemcadiddlehopper
Samba Member
Joined: December 05, 2011
Posts: 2345
Location: Kelowna, BC. Canada.
|
| Posted: Fri Apr 06, 2012 9:56 am Post subject: |
|
|
Thanks guys. I didn't want to plug the holes as I am looking for a very clean look. I also wanted the heat risers blocked too.
Glen's looks nice and clean, that's the look I am after as well as keeping the cold side cold.
I have done a little more looking around and found the scat one and the Empi one (probably made by same people) are cheap enough and most likely what I need.
Thanks again, Gordo. |
|
