Posted: Fri Apr 20, 2012 7:54 am Post subject: 62 Rag top winter makeover |
|
|
I thought I would share my winter project, I'm pretty proud of how it turned out
It started with an oil leak last october. I pulled the engine to take care of the oil leak and decided, since the engine is out, I will put the new transmission I had waiting in the garage. The orig trans was popping out of 2nd gear. When it was out, I decided to paint the engine/trans bay. That required removing the rear interior to weld up some holes from the P/O. Well next thing I know it looked like this....
It is an original Anthracite grey(L469) car. I love that color with the True Red interior so on with the restore.
She had been hit in the front so I needed to repair the front qtr panels and replaced the front apron and spare tire tray. It came out nicely.
Continued shortly.....
The P/O had cut the dash and that hack needed to be fixed. I purchased a repair panel for the radio hole. It looked ok but was much thinner metal, so I found an orig dash and welded the radio section in.
The car spent most of its time in New Mexico and was a relatively solid car but did need new rear bumper mounting brackets and had 50 years of dings and dents that needed attention.
_________________ 63 Ruby Red Double Cab
60 SO 23 Westfalia SWR/BG Camper
59 Dove Blue Standard Kombi |
|
Back to top |
|
 |
DerekR Samba Member

Joined: July 22, 2004 Posts: 384 Location: Riverton, Utah
|
Posted: Fri Apr 20, 2012 8:41 am Post subject: |
|
|

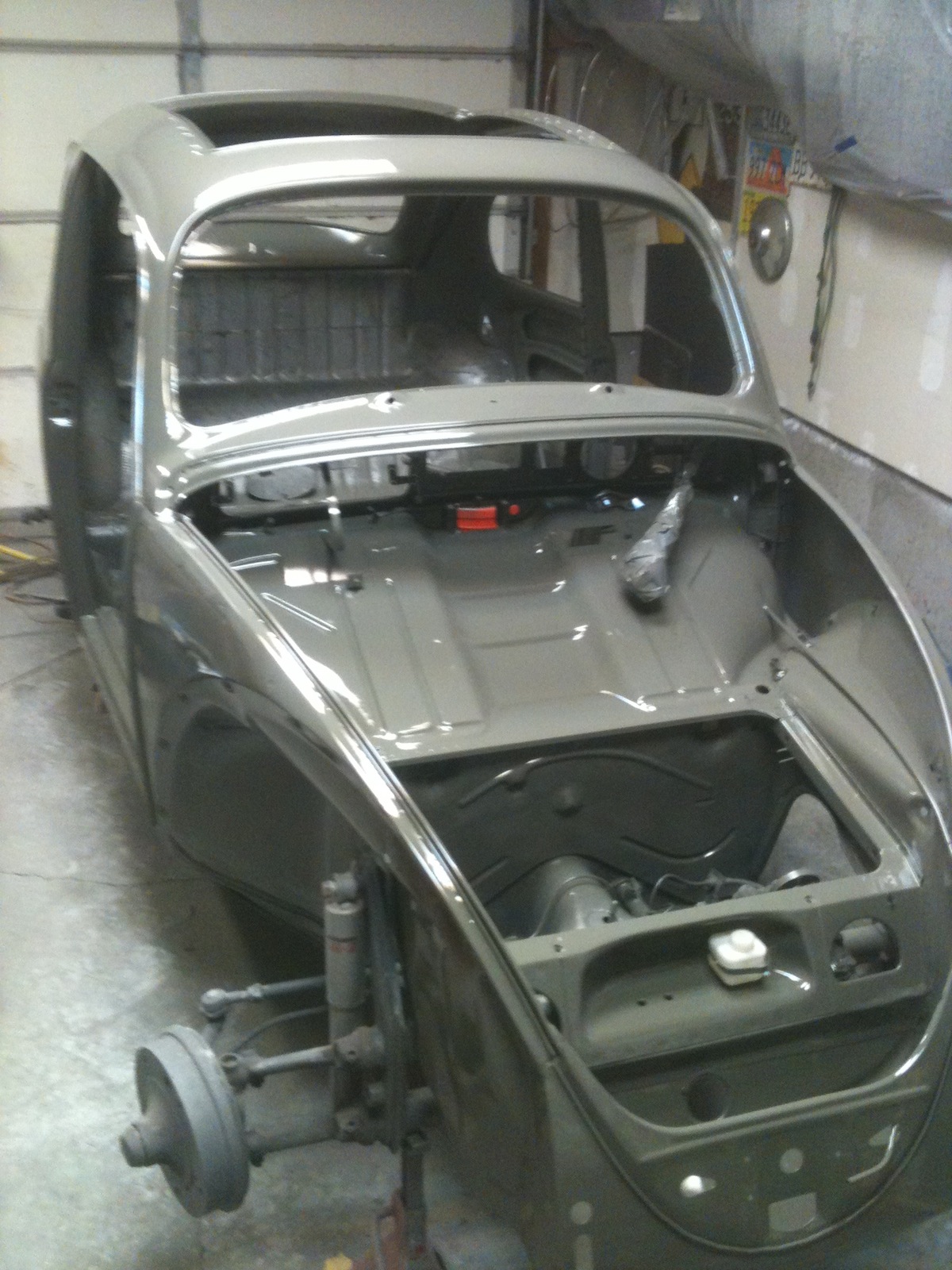

I masked up my garage and turned it into a paint booth. Painted late at night so I wouldn't get any complaints from the neighbors. It was a chore to keep the garage heated, ventilated and floor wet down to hold down the dust when the temp was in the 20's. But it turned out nice.

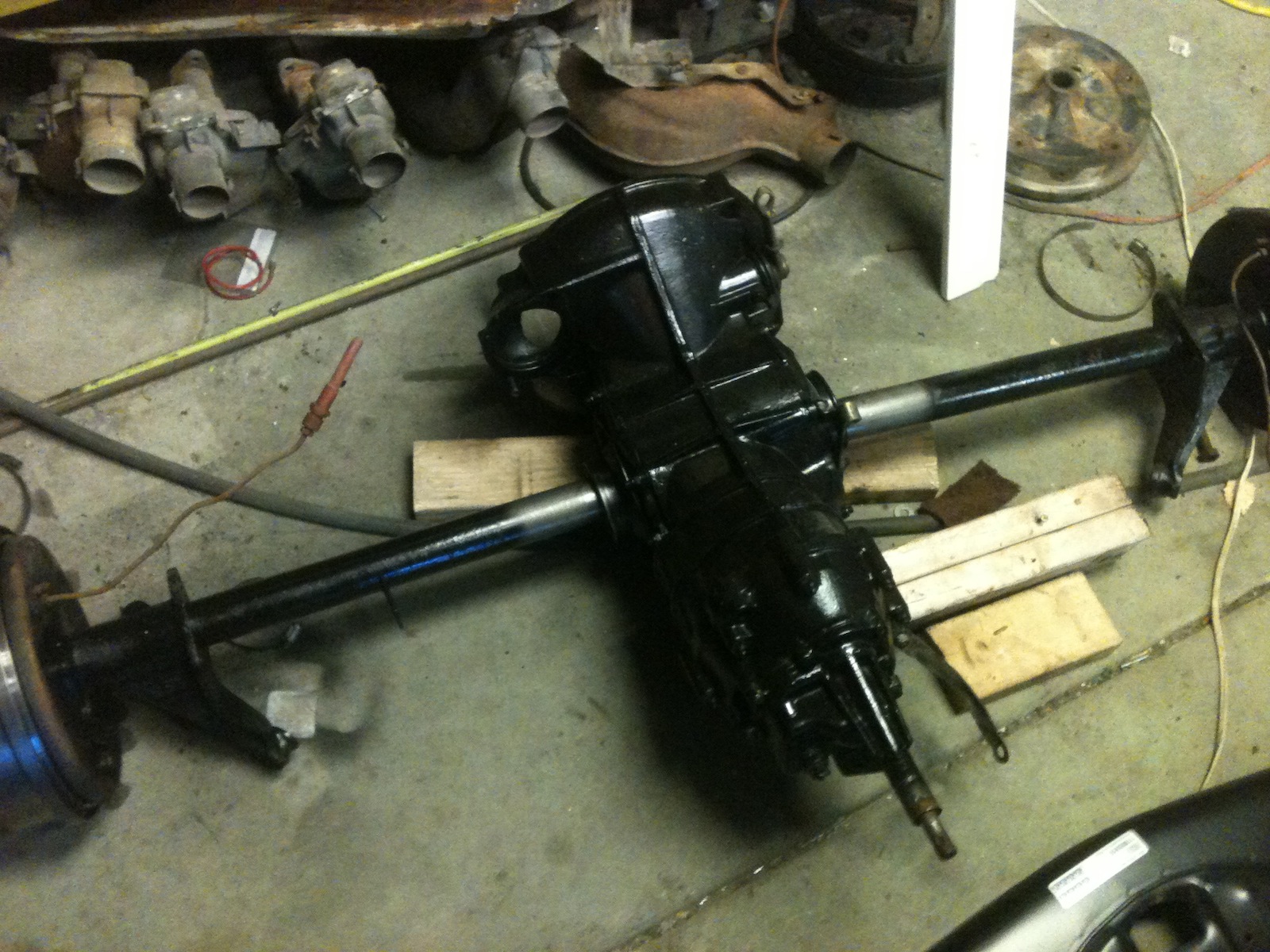

New transmission, a rebuild 73 Ghia trans converted to long swing axles and upgraded to Type 3 rear drum brakes.
Interior went back in. TMI seat covers and horse hair pads, TMI headliner, new floor mats. Orig door panels but the backing on the door panels were warped so I cut new panels and installed the covering. They turned out great!
Headliner took a week or so but turned out nice.
First time out of the garage for a test drive.
Need to do some final adjustments, shifter brakes etc but it feels so good to be driving her again. This weekend the rain is suposed to stop so I will try and get some glamor shots for all to enjoy. I just thought i would share some of my love  _________________ 63 Ruby Red Double Cab
60 SO 23 Westfalia SWR/BG Camper
59 Dove Blue Standard Kombi |
|
Back to top |
|
 |
79SuperVert Samba Member

Joined: May 31, 2002 Posts: 9758 Location: Elizabeth, NJ & La Isla Del Encanto
|
Posted: Fri Apr 20, 2012 8:43 am Post subject: |
|
|
Wow!!! _________________ Central Jersey VW Society
Wanted: Art Collins VW (Savannah, Georgia) items - license plate surrounds and other items. Also ivory "AM", "FM" and "SW" buttons for a US Blaupunkt Frankfurt. |
|
Back to top |
|
 |
THINGONER Samba Member
Joined: April 13, 2008 Posts: 677 Location: riverside ca
|
Posted: Fri Apr 20, 2012 8:49 am Post subject: |
|
|
Looks Great! Good job. |
|
Back to top |
|
 |
Erik G Samba Member

Joined: October 16, 2002 Posts: 13480 Location: Tejas!
|
|
Back to top |
|
 |
jzjames Samba Member
Joined: September 27, 2007 Posts: 1921 Location: Windy Point, WA
|
Posted: Fri Apr 20, 2012 9:26 am Post subject: |
|
|
good workmanship. |
|
Back to top |
|
 |
stale air Samba Member

Joined: August 23, 2007 Posts: 5451 Location: Senoia Ga, formally NorCal
|
Posted: Fri Apr 20, 2012 9:59 am Post subject: |
|
|
Erik G wrote: |
Nice garage resto, I love it! Built not Bought! |
X2, good stuff!  _________________ WANTED: Henry Veale Santa Rosa plate frames
WANTED: Brittsan Motors Fresno plate frames
WANTED: Any Georgia plate frames
|
|
Back to top |
|
 |
Buscowboy Samba Member

Joined: October 29, 2004 Posts: 421 Location: South Coast, England
|
Posted: Fri Apr 20, 2012 10:39 am Post subject: |
|
|
fantastic work for a home resto. Very well done, get some more pics up of all your hard graft.
Johnny |
|
Back to top |
|
 |
obi-nu Samba Member
Joined: September 21, 2010 Posts: 19 Location: Southern England
|
Posted: Fri Apr 20, 2012 11:14 am Post subject: |
|
|
Wow, really nice. I would love to have the time and know how to do that with my 63 anthacite ragtop... great stuff well done. _________________ 63 Ragtop... |
|
Back to top |
|
 |
slik Samba Member
Joined: April 18, 2012 Posts: 216
|
Posted: Fri Apr 20, 2012 12:08 pm Post subject: |
|
|
wow. beautiful! |
|
Back to top |
|
 |
Keith Samba Member

Joined: August 15, 2005 Posts: 3632 Location: Brodheadsville, PA
|
Posted: Fri Apr 20, 2012 3:20 pm Post subject: |
|
|
Johnnylongtime wrote: |
fantastic work for a home resto. Very well done, get some more pics up of all your hard graft.
Johnny |
Fantastic work regardless of where it was done! Damn !!! I have a '62 ragtop I'm doing, original black with red interior which Ive always wanted but thinking about anthracite with true red or some original vw blue with navy instead _________________ Formerly known in the forums as "OVALTEEN"
"I firmly believe that some villagers from Botswana could probably build a better road than PennDot."- Splitty
"If you do anything to your car someone will hate on you for it. People absolutely love to complain and find fault with others. Don't let it bother you. Just live and have fun."- Lind |
|
Back to top |
|
 |
curtisvitoria Samba Member
Joined: August 30, 2011 Posts: 122 Location: British Columbia
|
Posted: Fri Apr 20, 2012 5:27 pm Post subject: |
|
|
Hey just wanted to know what size tires you used on the long axle set up?
I also would like to know why you went with long axles as compared to short. I currently have long axles in my 1960 & considering changing back to short. After looking at your set up I am thinking I may just keep the long.
Your tires fit nice in the pics!
Thanks |
|
Back to top |
|
 |
JerryMCarter1 Samba Member

Joined: January 07, 2007 Posts: 6199 Location: N.W. Phoenix
|
Posted: Fri Apr 20, 2012 6:17 pm Post subject: |
|
|
You be da MAN ! ! ! ! _________________ Experience always triumphs over hearsay and You get to select which theory to believe |
|
Back to top |
|
 |
flyboat Samba Member
Joined: April 21, 2010 Posts: 2752 Location: Bath NC
|
Posted: Fri Apr 20, 2012 6:38 pm Post subject: |
|
|
Very Nice. Looks like you got a lot accomplished over the winter. No cabin fever for you. _________________ 79 super Vert
62 Ragtop Bug
66 tintop Westy
Porsche 914
09 Z06 Vette track car |
|
Back to top |
|
 |
carcass Samba Member

Joined: June 25, 2011 Posts: 302 Location: Santa Maria,Ca.
|
Posted: Fri Apr 20, 2012 9:42 pm Post subject: |
|
|
Beautiful !! |
|
Back to top |
|
 |
DerekR Samba Member

Joined: July 22, 2004 Posts: 384 Location: Riverton, Utah
|
Posted: Fri Apr 20, 2012 9:46 pm Post subject: |
|
|
curtisvitoria wrote: |
Hey just wanted to know what size tires you used on the long axle set up?
I also would like to know why you went with long axles as compared to short. I currently have long axles in my 1960 & considering changing back to short. After looking at your set up I am thinking I may just keep the long.
Your tires fit nice in the pics!
Thanks |
The rear tires are 165r15 stock size tires. I went with the long axles to give me a wider stance. VW went with the long axles in 67 to help eliminate the wheel tuck issue. Add a camber compensator and the issue goes away. Personally I love the smoothies and wanted to fill the wheel well with tire but keep a close to stock tire. If you are going to use any aftermarket wheels with different offset or disk brakes then the short axles are for you _________________ 63 Ruby Red Double Cab
60 SO 23 Westfalia SWR/BG Camper
59 Dove Blue Standard Kombi |
|
Back to top |
|
 |
silvertonguedevil Samba Member

Joined: September 26, 2010 Posts: 1693 Location: Vale, OR
|
Posted: Sat Apr 21, 2012 7:10 am Post subject: |
|
|
Is that an oil leak I see?
Just kidding. Car looks awesome!! _________________ -Greg |
|
Back to top |
|
 |
mykidsbug Samba Member

Joined: April 07, 2011 Posts: 473 Location: SoSo Cal LA
|
Posted: Sat Apr 21, 2012 7:32 am Post subject: |
|
|
Nice makeover! |
|
Back to top |
|
 |
mouser98 Samba Member

Joined: April 12, 2012 Posts: 300 Location: Lugoff, SC
|
Posted: Sat Apr 21, 2012 7:50 am Post subject: |
|
|
awesome skilz, oldguy. beautiful car, i love that anthracite grey. |
|
Back to top |
|
 |
curtisvitoria Samba Member
Joined: August 30, 2011 Posts: 122 Location: British Columbia
|
Posted: Sat Apr 21, 2012 9:36 am Post subject: |
|
|
Do you know what the stock 165 15 would work out to in a regular tire? What is the aspect ratio of the wall? Thanks |
|
